433Mhz 100mW Radio Telemetry Kit

  • Compact and lightweight design (under 4 grams without antenna)

  • Operates on 433MHz frequency with air data rates up to 250kbps

  • Supports MAVLink protocol framing and status reporting

  • Interchangeable air and ground modules with micro-USB and DF13 connectors

  • Frequency hopping spread spectrum (FHSS) and adaptive time division multiplexing (TDM)

  • Error correction up to 25% of bit errors

  • Compatible with APM, PX4, and Pixhawk systems

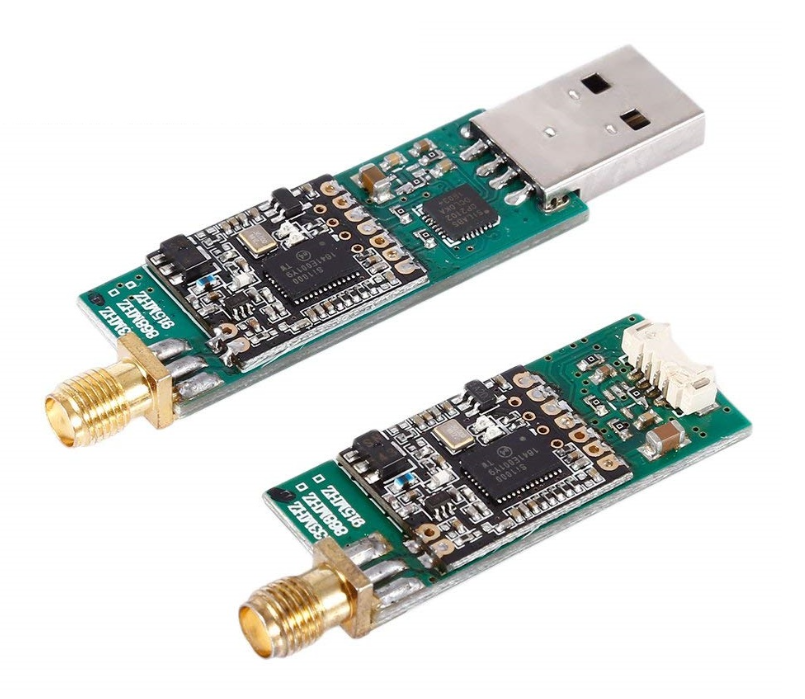

  • Based on HopeRF’s HM-TRP module with SiLabs Si1000 RF microcontroller

SKU: 29600 Categories: , Tags: , , , , , , , , , , , ,

Description

​Introducing the 433MHz 100mW Radio Telemetry Kit, now available at LOFTY AGROTECH. This advanced telemetry solution is designed to establish a reliable two-way communication link between your drone’s flight controller and ground station. Fully compatible with APM, PX4, and Pixhawk systems, it facilitates seamless mission planning and real-time data monitoring.​

The kit features interchangeable air and ground modules, each equipped with USB and 6-pin serial interfaces, allowing for flexible installation and easy firmware upgrades without the need for additional tools. Utilizing MAVLink protocol over a 433MHz frequency band, it offers robust error correction capabilities, correcting up to 25% of bit errors, and supports frequency-hopping spread spectrum (FHSS) for enhanced communication stability.​

For more details and to purchase, click here.
