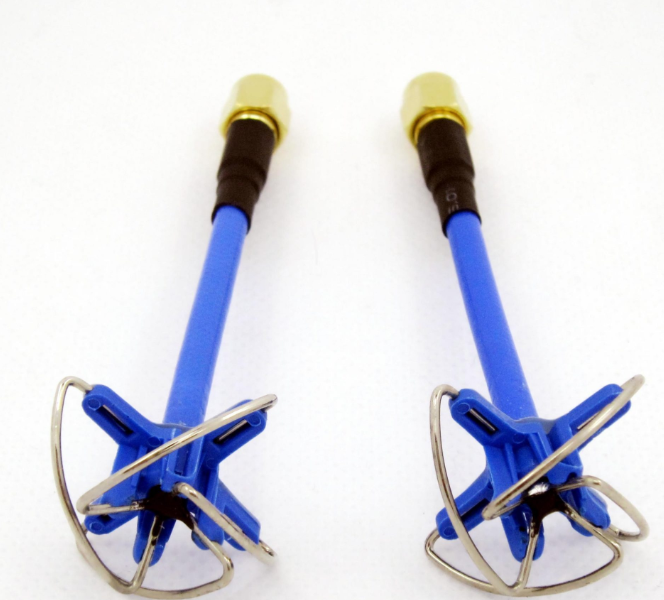

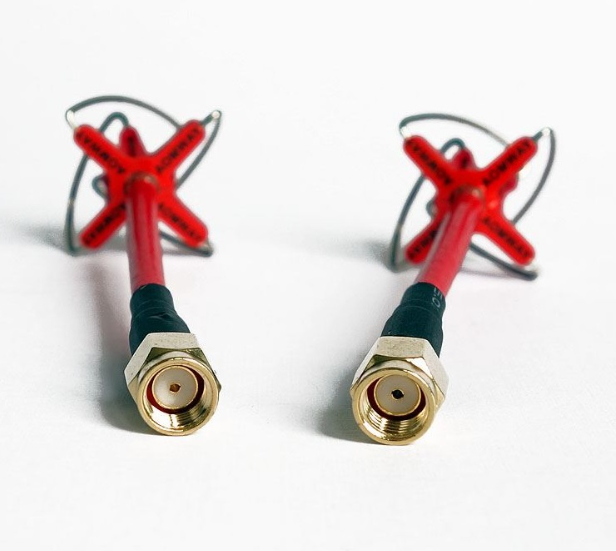

5.8G 3dBi 4 Leaf Clover RHCP SMA Antenna with Cover for FPV Multicopter

  • Frequency: 5.8GHz

  • Gain: 3dBi

  • Polarization: Right-Hand Circular Polarization (RHCP)

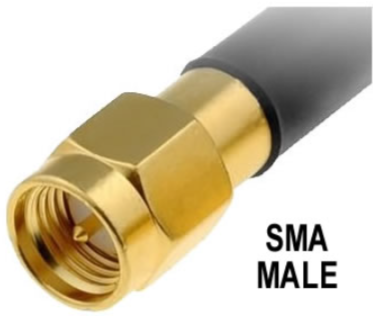

  • Connector: SMA Male

  • SWR: <1.5

  • Omnidirectional, high efficiency

  • Reinforced cloverleaf base with protective cover

  • Suitable for 5.8G AV transmitters and receivers​

SKU: 45714 Categories: , Tags: , , , , , , , , , ,

Description

Product Description:

Introducing the 5.8G 3dBi 4 Leaf Clover RHCP SMA Antenna with Protective Cover, now available at LOFTY AGROTECH. This high-efficiency, omnidirectional antenna is designed to enhance your FPV experience by effectively rejecting multipath interference, a common issue with standard dipole antennas. Its four-leaf clover design ensures improved signal clarity and extended transmission range, making it ideal for FPV multicopter applications.​

The antenna operates at a frequency of 5.8GHz with a gain of 3dBi and a standing wave ratio (SWR) of less than 1.5, ensuring efficient signal transmission. It features a robust construction with reinforcement around the cloverleaf base to prevent damage. Additionally, a new protective cover is included to shield the antenna wires during installation on drones. The SMA male connector provides secure and stable connections to your FPV equipment.

For more details and to purchase, click here.
