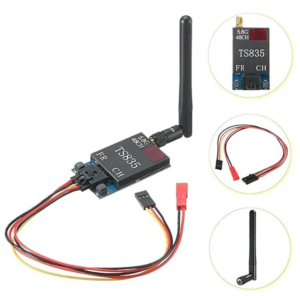

TS835 Fpv 5.8GHz 600Mw 48Ch (2-6S) Wireless Av Transmitter

Description

📦 Key Specifications

---

🎛️ Key Features

• 🔊1 5.8GHz FPV Video Transmitter  Supports audio and video transmission

• 🔁 1 5.8GHz FPV Video Transmitter 48 total channels, including RaceBand

• 🔋1 5.8GHz FPV Video Transmitter  2S–6S voltage range — direct battery connection supported

• 💡 1 5.8GHz FPV Video Transmitter Digital display with button for easy frequency/band control

• 🏗️ 1 5.8GHz FPV Video Transmitter Metal casing for better heat dissipation and durability

• 🔌 1 5.8GHz FPV Video Transmitter Standard AV cable included for plug-and-play use

• 🔗 1 5.8GHz FPV Video Transmitter Compatible with all major analog receivers (RC832, EV800D, etc.)

---

🚁 Use Cases

---

⚙️ Installation Tips

• 1 5.8GHz FPV Video Transmitter Power using 2S–6S LiPo or filtered 12V line

•  5.8GHz FPV Video Transmitter Mount with double-sided foam tape or zip ties

• 1 5.8GHz FPV Video Transmitter  Ensure antenna is connected before powering on

• 1 5.8GHz FPV Video Transmitter Keep VTX away from ESC and GPS to reduce interference

• 1 5.8GHz FPV Video Transmitter Allow airflow around the casing for cooling

---

🔧 Included in the Box

• ✅ 1× TS835 600mW AV Transmitter

• ✅ 1× 5.8GHz RP-SMA Antenna

• ✅ 1× 5-pin AV Cable

• ✅ 1× Channel reference chart

---

📢 Sales-Ready Snippet

The TS835 FPV 5.8GHz 600mW 48CH AV Transmitter offers powerful analog video and audio transmission for long-range FPV. With support for 48 channels, an easy-to-read LED display, wide voltage input (2S–6S), and audio capability, it’s a reliable choice for drone pilots, RC hobbyists, and FPV relay systems. Built with a durable metal shell, it’s ready to handle the demands of serious flying.

This TS835 FPV 5.8G 600MW 48CH (2-6S) Wireless AV Transmitter is perfect for the small budget multi-rotor. Works brilliantly in an atom and because of its low price you have no worries about throwing it around the sky.

A good little mod you can do is to simply solder a length of the single core wire to the SMA as this gives you more than enough range without the long hefty antenna.

Note: This product is available in 2 pcb colors, blue and green, which will be shipped randomly.

You can couple this 5.8GHz transmitter with our FPV cameras,
FPV Camera

---

Features :

1. 1 5.8GHz FPV Video Transmitter 48 channels choice to get the best transmitting quality.
2. 1 5.8GHz FPV Video Transmitter Compatible with A, B, E, and F frequency bands
3. 1 5.8GHz FPV Video Transmitter Smaller size with lighter weight.
4. 1 5.8GHz FPV Video Transmitter 48 CH compatible with all FPV 5.8g receivers.
5. 1 5.8GHz FPV Video Transmitter 5.8G 600mW 40 Channels AV wireless FPV transmitter
6. 1 5.8GHz FPV Video Transmitter Super small 200mA current for 600mW wireless transmitter power.
7.  1 5.8GHz FPV Video Transmitter 600mW transmitter power assure 5KM distance in open area,
8.  1 5.8GHz FPV Video Transmitter 5-8 KM is available if work with the bigger gain antenna.
9. 1 5.8GHz FPV Video Transmitter Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug.

---

Package Includes :

15 Days Warranty

---

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

---

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Model No: FPVATR02

📄 Extended Product Description

The TS835 5.8GHz 600mW Wireless AV Transmitter is a high-performance analog FPV module engineered to deliver long-distance video and audio transmission with outstanding reliability. Supporting 48 channels across 5.8GHz bands (including RaceBand), it ensures broad compatibility with nearly every analog FPV receiver and goggle system on the market.

Built with a durable aluminum casing, the TS835 is both rugged and thermally efficient, capable of operating under sustained power without thermal shutdown. It’s a plug-and-play solution with a digital channel display and push-button interface, making in-field configuration simple and fast — perfect for drone racers, educators, hobbyists, and fixed-wing flyers.

---

⚙️ Core Capabilities & Benefits

🎯 Performance-Oriented Transmission

• 1 5.8GHz FPV Video Transmitter 600mW of clean analog FM power ensures stable video feeds up to 2–4 km in open line-of-sight (with patch RX)

• 1 5.8GHz FPV Video Transmitter Built-in audio input transmits microphone or onboard audio to your ground station or DVR — useful for immersive flying or monitoring

🎛️ User-Friendly Interface

• LED display shows channel and band, allowing quick confirmation of current frequency

• Single-button operation:

  • 1 5.8GHz FPV Video Transmitter Tap to switch channels (CH1–CH8)

  • 1 5.8GHz FPV Video Transmitter Hold to cycle through bands (A/B/E/F/RaceBand)

🔌 Flexible Power Input

• 1 5.8GHz FPV Video Transmitter Wide voltage input range of 7–24V (2S to 6S LiPo support) enables direct connection to flight battery or PDB

• 1 5.8GHz FPV Video Transmitter Standard AV cable provides quick connection to camera and power

---

🔩 Mechanical Design & Durability

• 1 5.8GHz FPV Video Transmitter  Casing: Anodized aluminum housing for impact protection and passive cooling

• 1 5.8GHz FPV Video Transmitter Connector: RP-SMA female antenna jack for secure, crash-resistant antenna connection

• 1 5.8GHz FPV Video Transmitter Mounting: Lightweight design (~12g) makes it ideal for larger racing drones, freestyle quads, and fixed wings

• 1 5.8GHz FPV Video Transmitter Dimensions: ~54 × 32 × 10 mm

🧱 With its robust build and thermal resilience, TS835 handles hard landings and high amp loads better than typical plastic-cased VTXs.

---

🔊 Audio Support Advantage

Unlike many lightweight VTX modules, the TS835 supports mono audio transmission, allowing:

• 1 5.8GHz FPV Video Transmitter Onboard microphone feeds from FPV cameras (e.g., RunCam Swift with mic)

• 1 5.8GHz FPV Video Transmitter Real-time cockpit sound in FPV goggles

• 1 5.8GHz FPV Video Transmitter Ground station DVRs to record synced AV streams

This feature is appreciated by cinematographers, trainers, and immersive flyers.

---

📡 Compatibility & Pairing

✅ Compatible With:

• 1 5.8GHz FPV Video Transmitter Analog goggles (Fat Shark, Skyzone, EV800D, etc.)

• 1 5.8GHz FPV Video Transmitter Analog base stations (RC832, RX5808 modules)

• 1 5.8GHz FPV Video Transmitter FPV cameras with standard AV output

• 1 5.8GHz FPV Video Transmitter Pagoda, Cloverleaf, or Lollipop 5.8GHz antennas

🔄 Best With:

• 1 5.8GHz FPV Video Transmitter Receivers supporting RaceBand or 48CH

• 1 5.8GHz FPV Video Transmitter  Circular-polarized antennas for better multipath handling

• 1 5.8GHz FPV Video Transmitter Ground station DVRs for recording AV

---

🔐 Reliability Notes

• 1 5.8GHz FPV Video Transmitter Always connect the antenna before powering on to avoid internal damage

• 1 5.8GHz FPV Video Transmitter Ensure airflow or open-frame placement — avoid enclosing in tight builds

• 1 5.8GHz FPV Video Transmitter  Use low-ESR capacitors or LC filters if power noise is present

• 1 5.8GHz FPV Video Transmitter Match antenna polarization (RHCP or LHCP) for maximum range

---

🧰 Perfect For

---

🛒 Use in Retail / Training Bundle

Include in:

• 1 5.8GHz FPV Video Transmitter Drone FPV training kits

• 1 5.8GHz FPV Video Transmitter FPV camera + transmitter combo packs

• 1 5.8GHz FPV Video Transmitter RC Plane FPV upgrade sets

• 1 5.8GHz FPV Video Transmitter Analog ground station kits with AV output

• 1 5.8GHz FPV Video Transmitter Educational kits teaching RF/video basics

🛍️ Suggested Retail Keywords:
5.8GHz VTX with audio, TS835 transmitter, 600mW AV transmitter, long-range FPV module, analog video transmitter for drones

🔍 Technical Deep Dive – RF & Power Behavior

🧠 RF Circuit Design:

The TS835 features a broadband RF oscillator coupled with a class-AB power amplifier, delivering 600mW of RF energy on analog FM channels. The transmitter uses an LC output filter network to suppress harmonics, ensuring clean signal output across 5.8GHz bands.

⚡ Electromagnetic Compatibility (EMC):

• 1 5.8GHz FPV Video Transmitter Place away from ESC and power cables to minimize noise coupling

• 1 5.8GHz FPV Video Transmitter Shielded AV cable reduces line static

• 1 5.8GHz FPV Video Transmitter Use LC filter or capacitor bank at power input to eliminate throttle-induced flicker or “wavy lines” in video

⚙️ Power Efficiency:

• 1 5.8GHz FPV Video Transmitter Draws ~280–320mA at 12V

• 1 5.8GHz FPV Video Transmitter No significant ripple introduced to the flight controller if properly filtered

• 1 5.8GHz FPV Video Transmitter Sustains stable output even with slight battery sag (down to ~7V)

---

🔥 Thermal Management & Bench Use

🧊 For extended ground use (e.g., camera testing, streaming), use a dummy load antenna + airflow to prevent heat damage.

---

📡 Real-World Range Performance

🎯 For consistent signal in unpredictable terrain, combine with EV800D, FR632, or RX5808 diversity modules using dual-polarized antennas.

---

🛡️ Fault Handling & Troubleshooting

🛠️ Include a frequency chart card in your packaging or training kit to minimize user confusion.

---

📘 Usage in Training Programs or Drone Labs

The TS835 is excellent for use in educational drone kits or FPV lab setups due to:

• 1 5.8GHz FPV Video Transmitter Simple, intuitive interface (LED + button)

• 1 5.8GHz FPV Video Transmitter Long-lasting build (metal casing, wide voltage range)

• 1 5.8GHz FPV Video Transmitter Compatibility with most AV equipment (screens, recorders, goggles)

• 1 5.8GHz FPV Video Transmitter Easy replacement in case of field damage

🎓 Training Bundle Suggestion:

Drone FPV Classroom Kit:

• 5× TS835 VTXs

• 5× RC832 receivers

• 5× FPV cameras with audio

• Printed AV setup guide + safety card

• AV DVR (optional)

💡 Ideal for colleges, drone startups, and online training academies offering hands-on analog video transmission lessons.

---

📦 Retail Bundling Ideas (Shopify / Flipkart / Amazon)

🧾 Add QR code links to online setup videos for added value.

---

🛍️ SEO Optimized Keywords for E-Commerce Listings

• 1 5.8GHz FPV Video Transmitter 5.8GHz analog video transmitter

• 1 5.8GHz FPV Video Transmitter TS835 AV transmitter for drones

• 1 5.8GHz FPV Video Transmitter FPV VTX 600mW 48 channel

• 1 5.8GHz FPV Video Transmitter RC plane camera video transmitter

• 1 5.8GHz FPV Video Transmitter Long-range FPV VTX module

• 1 5.8GHz FPV Video Transmitter Audio video wireless transmitter for FPV

---

🔚 Summary

The TS835 5.8GHz 600mW 48CH AV Transmitter stands out for its:

• ✅ Long-range, reliable analog transmission

• ✅ Built-in mono audio support

• ✅ Compatibility with 2S to 6S setups

• ✅ Rugged metal construction

• ✅ Ease of channel selection with LED/button UI

Whether you’re building an FPV quad, setting up a classroom, or reselling drone parts, the TS835 offers outstanding value and solid performance.
