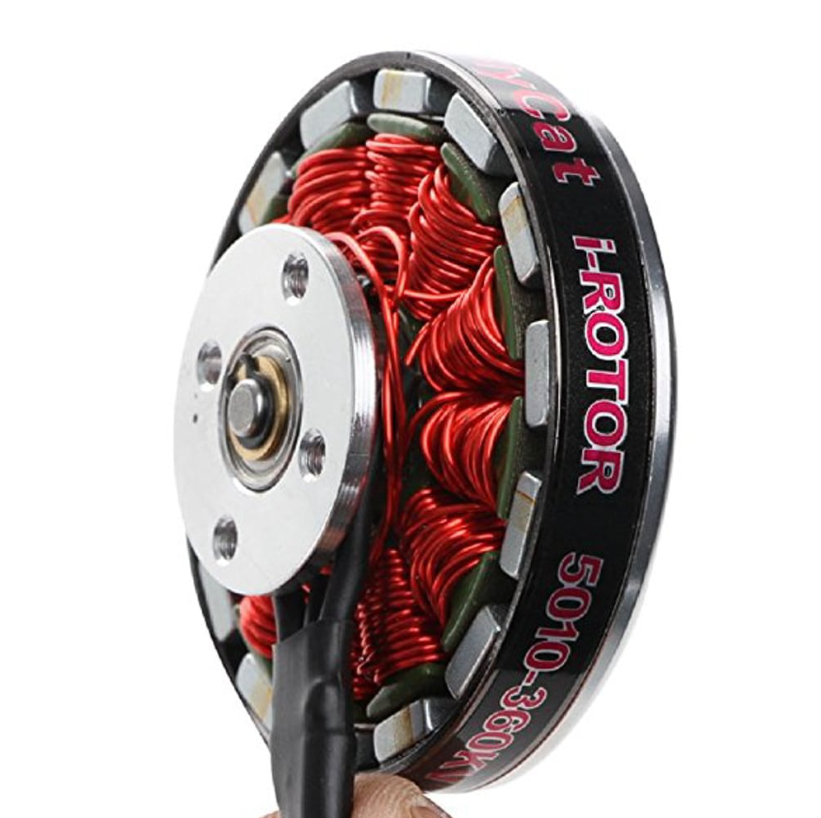

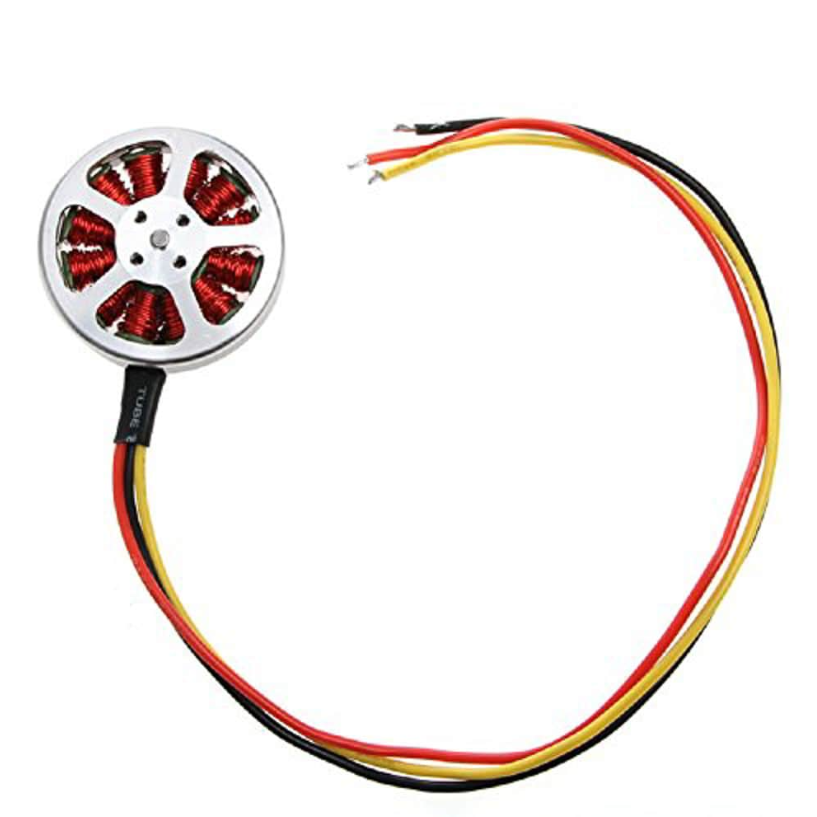

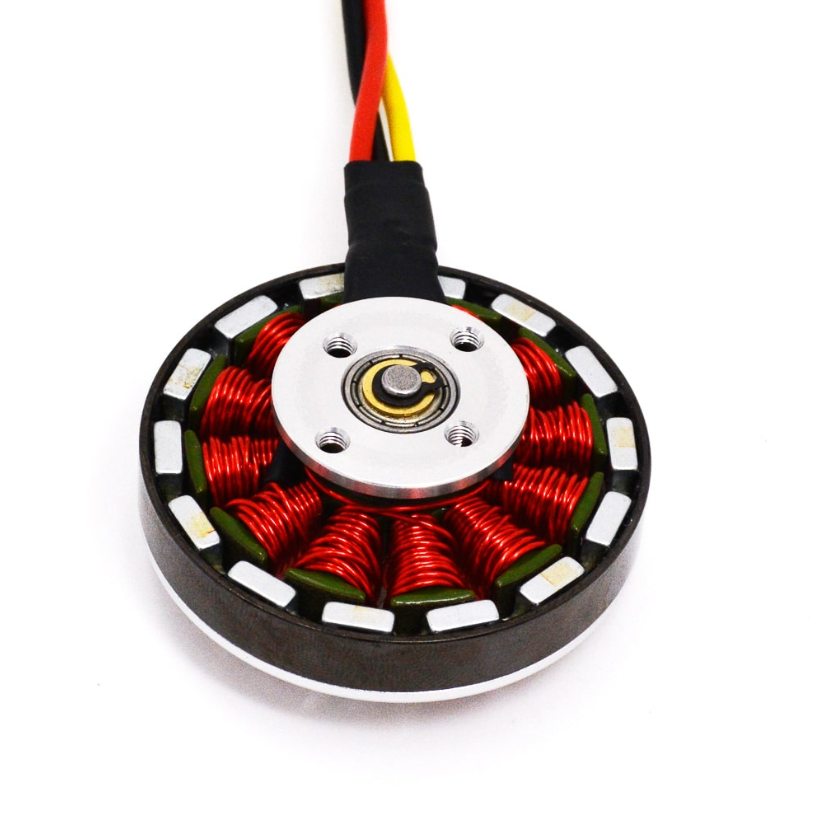

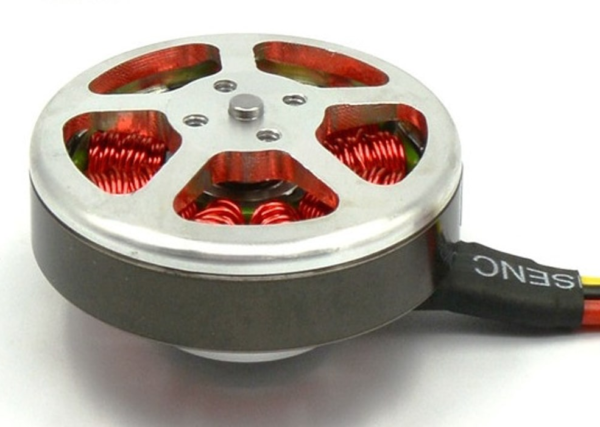

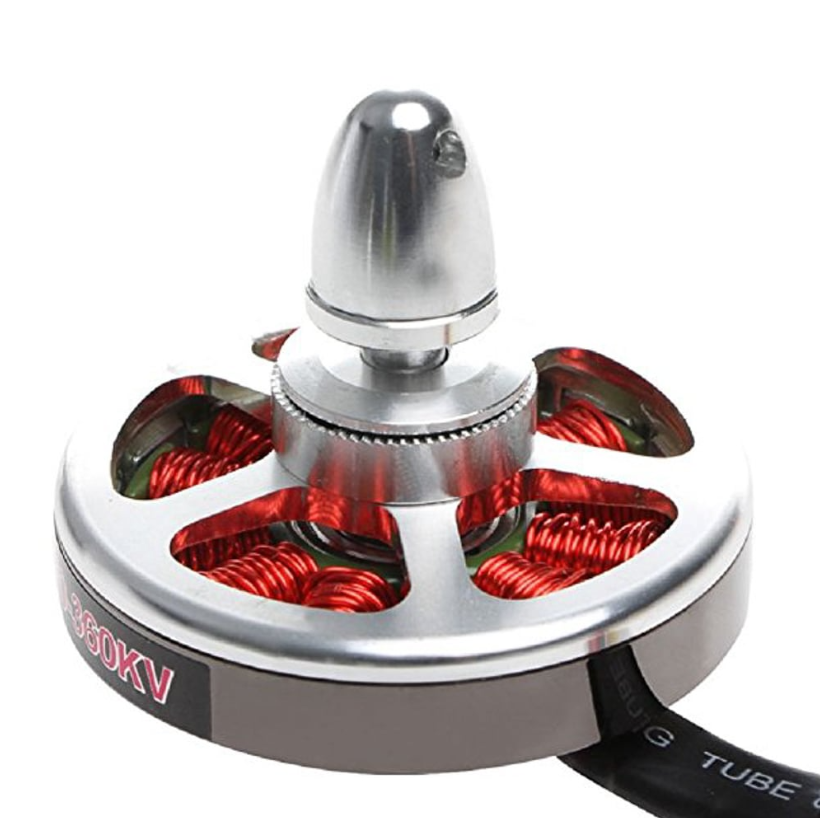

5010 360KV High Torque Brushless Motor for Drone

Original price was: ₹1,927.00.Current price is: ₹1,790.00.

  • Motor Type: Brushless Motor

  • Motor KV: 360

  • Compatible Batteries: 2S to 6S LiPo

  • Maximum Thrust: 1500 gm (with 4S LiPo)

  • Required ESC: 20A ~ 40A

  • Shaft Diameter: 4 mm

  • Compatible Propellers: 14 ~ 16 inches

  • Cooling Technology: Self-cooling for high temperatures up to 140°C

  • Lubricated ball bearings for smooth operation

  • High-temperature adhesives and wires for durability

Description

If you’re looking to build a powerful drone and aren’t sure which motor to choose, LOFTY AGROTECH has got you covered with the perfect solution. This 5010 360KV High Torque Brushless Motor is designed to provide a superior flying experience, delivering excellent performance for a variety of drone applications. It’s ideal for drone enthusiasts looking for a reliable and efficient motor.

The motor comes with self-cooling technology that ensures it can handle high temperatures up to 140°C (356°F), making it a durable option for long flights. It can produce up to 1500 gm of thrust when powered by a 4S LiPo battery, offering great power and stability during flight.

This brushless motor is recognized for its high torque capabilities, allowing it to provide the ideal balance of power and efficiency. The motor features NdFeB magnets and properly lubricated ball bearings, giving you smooth and trouble-free operation. Additionally, it is compatible with 14” to 16” Orange series HD Propellers and can be powered by 2S-6S Orange Li-PO batteries, requiring 20A-40A ESCs.

The motor is equipped with high-temperature wires in the windings to prevent overheating, while high-temperature adhesives secure the stator windings to prevent them from shifting, getting pinched, or shorting out during operation.

If you’re interested in exploring another variation of this motor with a higher KV rating, check out the 5010 750KV High Torque Brushless Motor [Click here].

For 11-inch and above Propellers, [Click here].

To explore various kinds of ESCs, [Click here].

LOFTY AGROTECH is your trusted distributor for high-quality drone parts.

Features:

  • Self-cooling technology with four fan-style cooling holes to keep the motor cool during operation.

  • Rear threaded mounting holes with both 16 mm and 19 mm hole spacing, making it versatile for different applications.

  • NdFeB magnets with a high-temperature rating for optimal performance.

  • 140°C high-temperature rated wire for winding the motors, ensuring durability.

  • Epoxy-coated plates to prevent winding shorting out.

  • Lubricated ball bearings to support smooth motor function.

  • High-temperature adhesives secure the stator windings to prevent shifting, pinching, or shorting.

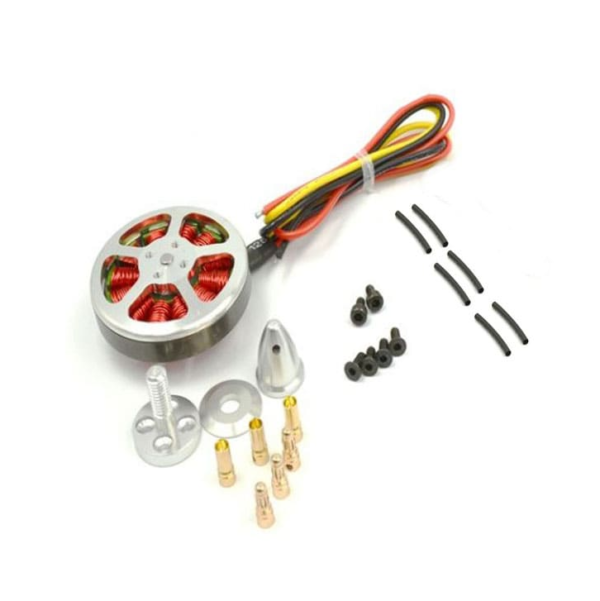

Package Includes:

  • 1 x 5010 360KV High Torque Brushless Motor for Drone

  • 3 x Male Female Golden Connector Pairs with Heat Shrink Tube

  • 1 x Propeller Mount with Accessories


Specifications:

  • Motor Type: Brushless Motor

  • Motor KV: 360

  • Compatible LiPo Batteries: 2S to 6S

  • Required ESC (A): 20A ~ 40A

  • Shaft Diameter (mm): 4

  • Compatible Propellers (inch): 14 ~ 16

  • Length (mm): 50

  • Width (mm): 50

  • Height (mm): 10

  • Weight (g): 112

  • Shipping Weight: 0.12 kg

  • Shipping Dimensions: 5 × 4 × 2 cm
