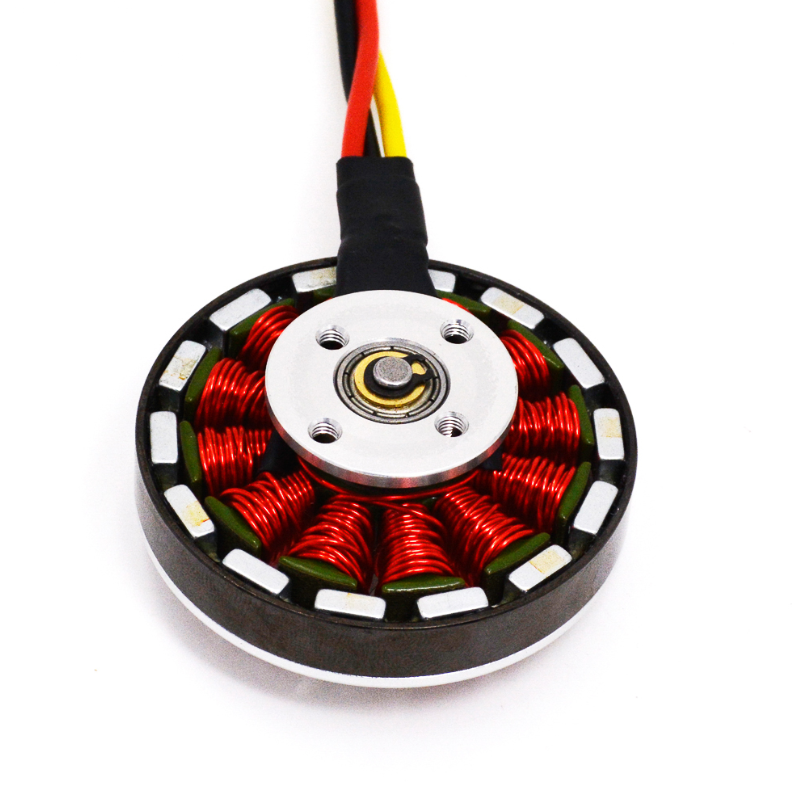

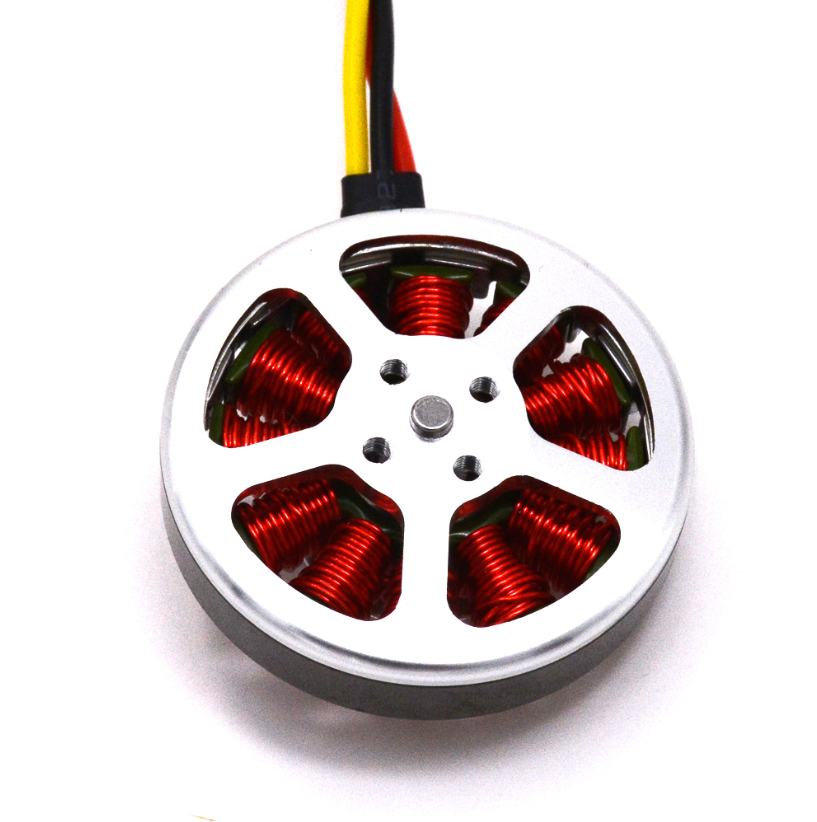

5010 750KV High Torque Brushless Motor for Drone

Description

If you are planning to build a drone and aren’t sure which motor would be best for you, LOFTY AGROTECH is here to help! Our selection has everything you need to kickstart your drone project, and the 5010 750KV High Torque Brushless Motor is the perfect choice to ensure smooth and powerful flights.

This motor is equipped with self-cooling technology that can withstand high temperatures of up to 140°C (356°F), ensuring your drone operates efficiently even in demanding conditions. With the ability to produce a maximum thrust of 1500 gm when paired with a 4S LiPo battery, it provides exceptional power for high-performance drones.

The motor boasts high torque, which delivers an incredible flight experience. It features NdFeB magnets and lubricated, high-quality ball bearings, ensuring long-lasting, smooth operation. The motor is compatible with 14” to 16” Orange Series HD Propellers and is powered by 2S to 6S Orange LiPo Batteries, requiring 20A to 40A ESCs.

Designed for durability, this motor comes with high-temperature wires to prevent overheating and high-temperature adhesives to secure the stator windings, preventing them from shifting, getting pinched, or shorting out during operation.

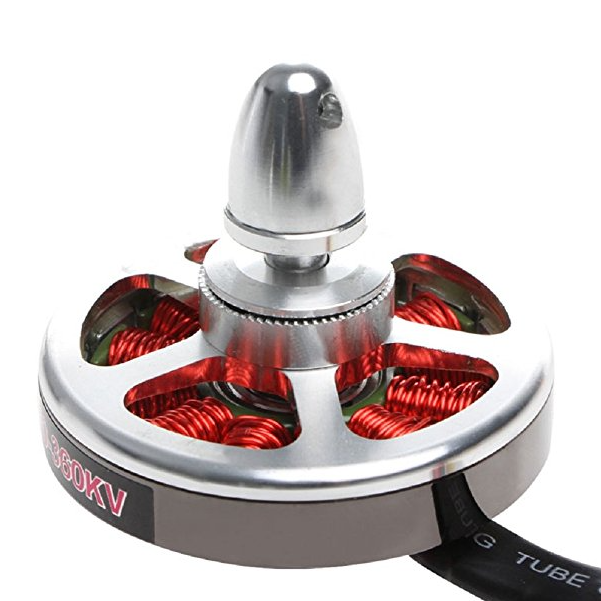

If you’re interested in exploring another variation of this motor with a higher KV rating, check out the 5010 360KV High Torque Brushless Motor [Click here].

For more Drone motors, [Click here].

For various Propellers, [Click here].

To explore different kinds of ESCs, [Click here].

LOFTY AGROTECH is the official distributor for high-quality drone parts.

---

Features:

• Equipped with four fan-style cooling holes that pump air through the motor during operation.

• Rear threaded mounting holes with both 16mm and 19mm hole spacing, making it versatile for a range of applications.

• NdFeB magnets rated for high temperatures, ensuring trouble-free operation.

• 140°C high-temperature rated wire used for winding the motor coils.

• Epoxy-coated plates prevent winding shorting out, providing reliable performance.

• Lubricated ball bearings ensure smooth rotation and long-lasting motor life.

• High-temperature adhesives are used to secure the stator windings, preventing them from shifting, getting pinched, or shorting out.

---

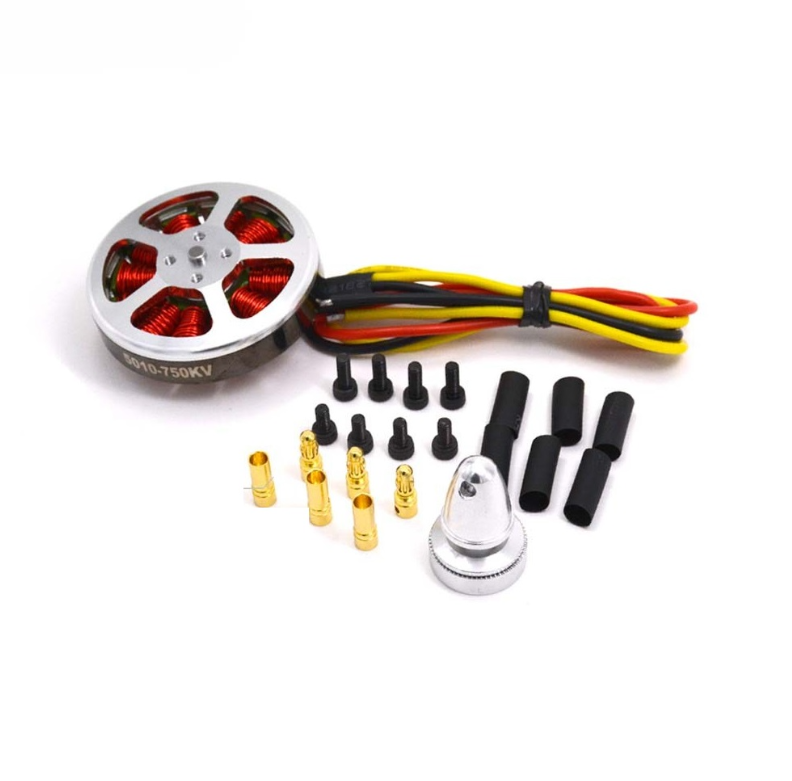

Package Includes:

• 1 x 5010 750KV High Torque Brushless Motor for Drone

• 3 x Male-Female Golden Connector Pairs with Heat Shrink Tube

• 1 x Propeller Mount with Accessories

---

Specifications:

• Motor KV (RPM/V): 750

• Motor Type: Brushless Motor

• Compatible LiPo Batteries: 2S to 6S

• Required ESC (A): 20A ~ 40A

• Maximum Thrust (gm): 1500 (with 4S)

• Shaft Diameter (mm): 4

• Compatible Propellers (inch): 14 ~ 16

• Length (mm): 50

• Width (mm): 50

• Height (mm): 10

• Weight (g): 112

• Shipping Weight: 0.12 kg

• Shipping Dimensions: 5 × 4 × 2 cm
