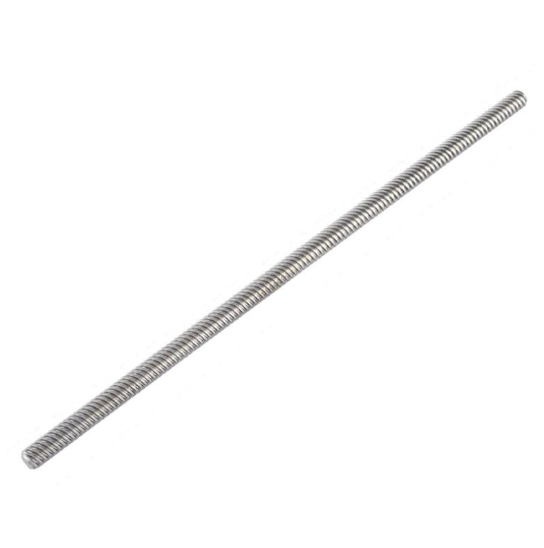

600mm Trapezoidal 4 Start Lead Screw – Precision Motion Component | LOFTY AGROTECH
The 600mm Trapezoidal 4 Start Lead Screw is a high-precision mechanical component designed to provide smooth, accurate, and reliable linear motion in a wide range of machines and automation systems. Manufactured using high-quality 304 stainless steel, this lead screw offers excellent durability, wear resistance, and corrosion resistance, making it suitable for both professional engineering applications and DIY projects.
At LOFTY AGROTECH, we provide high-performance robotics, CNC, and automation components that help engineers, developers, and makers build reliable systems. The 600mm Trapezoidal 4 Start Lead Screw is one of the most essential motion control components used in machines that require precise movement and stable positioning.
Lead screws play an important role in converting rotational motion into linear motion. When a motor rotates the screw, the attached nut moves along the threaded shaft, producing controlled linear movement. The 600mm Trapezoidal 4 Start Lead Screw is specifically designed to deliver efficient motion transmission with minimal friction and high mechanical accuracy.
Because of its robust construction and precise thread design, the 600mm Trapezoidal 4 Start Lead Screw is widely used in 3D printers, CNC machines, robotics systems, automated manufacturing equipment, and stepper motor driven guide rails.
High Quality Stainless Steel Construction
The 600mm Trapezoidal 4 Start Lead Screw is made from premium 304 stainless steel, which is known for its strength, corrosion resistance, and long service life. Stainless steel components are commonly used in engineering applications because they can withstand continuous operation without deforming or wearing out quickly.
The stainless steel body ensures that the 600mm Trapezoidal 4 Start Lead Screw remains stable even when subjected to heavy loads and repetitive motion. This makes it ideal for machines that require long-term reliability and consistent performance.
Another important advantage of stainless steel is its resistance to rust and oxidation. Even in environments where humidity or temperature changes occur, the 600mm Trapezoidal 4 Start Lead Screw maintains its structural integrity and continues to operate efficiently.
Additionally, the smooth surface finish of stainless steel reduces friction between the screw and the nut, allowing the 600mm Trapezoidal 4 Start Lead Screw to deliver smoother and quieter motion compared to conventional threaded rods.

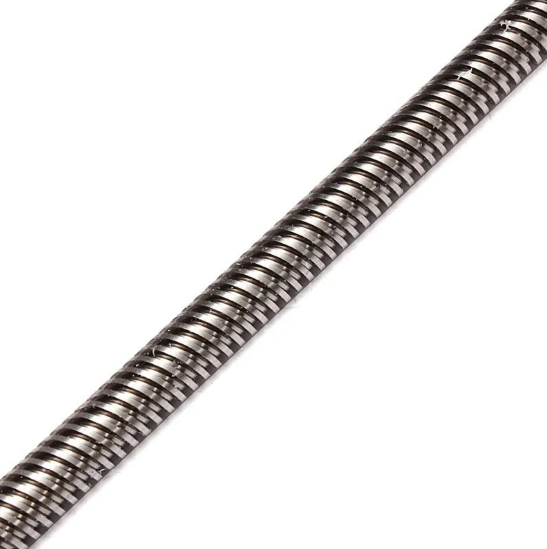

Trapezoidal Thread Design for Precision Motion
The 600mm Trapezoidal 4 Start Lead Screw uses a trapezoidal thread profile, which is widely recognized as the standard design for power transmission and linear motion applications. Trapezoidal threads are designed to handle higher loads and provide greater stability compared to standard triangular threads.
The trapezoidal thread shape distributes mechanical force evenly across the thread surface. This improves durability and reduces wear during continuous operation. Because of this design, the 600mm Trapezoidal 4 Start Lead Screw is capable of delivering smooth motion while maintaining excellent load-bearing capacity.
Another advantage of trapezoidal threads is improved mechanical efficiency. Machines that use the 600mm Trapezoidal 4 Start Lead Screw experience less vibration and more accurate positioning. This makes it an ideal component for equipment that requires precision movement.
Multi-Start Thread Design for Faster Travel
The 600mm Trapezoidal 4 Start Lead Screw features a 4-start thread configuration, meaning four threads run simultaneously along the shaft of the screw. This multi-start design allows the screw to move faster than a single-start lead screw when rotated by a motor.
With fewer rotations required to achieve the same linear movement, the 600mm Trapezoidal 4 Start Lead Screw improves efficiency in mechanical systems. This feature is especially beneficial in machines that require rapid and precise movement, such as CNC machines and 3D printers.
The multi-start thread design also improves smoothness of motion. Because the load is distributed across multiple threads, the 600mm Trapezoidal 4 Start Lead Screw experiences less friction and wear, resulting in longer service life.
Ideal for Stepper Motor Motion Systems
The 600mm Trapezoidal 4 Start Lead Screw is commonly used in motion systems powered by stepper motors. Stepper motors are widely used in robotics and automation because they allow precise control over movement.
When combined with a stepper motor, the 600mm Trapezoidal 4 Start Lead Screw converts rotational motion into accurate linear displacement. This allows machines to move components precisely along a guide rail or linear axis.
Applications where the 600mm Trapezoidal 4 Start Lead Screw is commonly used include:
• Stepper motor driven linear actuators
• CNC axis positioning systems
• robotic arm movement mechanisms
• camera slider systems
• automated laboratory equipment
Because of its precise thread geometry and stable construction, the 600mm Trapezoidal 4 Start Lead Screw ensures smooth motion and consistent performance in these applications.
Perfect Component for 3D Printing Machines
In 3D printers, accurate vertical movement is essential for producing high-quality prints. The 600mm Trapezoidal 4 Start Lead Screw is commonly used for the Z-axis movement of 3D printers.
During the printing process, the build platform or print head must move upward or downward with extreme precision after each layer is printed. The 600mm Trapezoidal 4 Start Lead Screw ensures that this movement occurs smoothly and accurately.
Because of its trapezoidal thread profile and stainless steel construction, the 600mm Trapezoidal 4 Start Lead Screw reduces backlash and vibration, improving print quality and dimensional accuracy.
For this reason, it is widely used in both DIY 3D printers and commercial 3D printing machines.
Reliable Motion Control for CNC Machines
CNC machines rely heavily on motion control systems that can deliver precise positioning and stable movement. The 600mm Trapezoidal 4 Start Lead Screw is an excellent component for CNC routers, milling machines, and automated cutting equipment.
In CNC machines, the lead screw is responsible for moving the machine tool or work platform along different axes. The 600mm Trapezoidal 4 Start Lead Screw provides accurate motion control, allowing CNC machines to produce precise cuts and shapes.
The durable stainless steel material ensures that the lead screw can withstand repeated motion cycles without excessive wear. This makes the 600mm Trapezoidal 4 Start Lead Screw suitable for demanding machining environments.
Easy Installation and Standard Compatibility
The 600mm Trapezoidal 4 Start Lead Screw is designed with standard dimensions that allow easy installation in various mechanical systems. Its 8mm diameter makes it compatible with commonly used couplers, bearings, and lead screw nuts.
Because of its standardized size, the 600mm Trapezoidal 4 Start Lead Screw can easily replace existing components in machines that require an upgrade or repair. Engineers and makers can integrate the lead screw into custom projects without requiring special modifications.
The screw is also easy to align and mount within motion systems, making installation straightforward for both professionals and hobbyists.
Low Friction Operation and Long Service Life
One of the most important characteristics of the 600mm Trapezoidal 4 Start Lead Screw is its low friction operation. The smooth stainless steel surface combined with the trapezoidal thread design reduces mechanical resistance during movement.
Lower friction results in smoother motion and reduced mechanical wear. As a result, the 600mm Trapezoidal 4 Start Lead Screw provides longer service life compared to ordinary threaded rods.
Machines that use high-quality lead screws like this one require less maintenance and deliver more reliable performance over time.
Wide Range of Applications
The 600mm Trapezoidal 4 Start Lead Screw is used in a wide variety of engineering and industrial applications. Its precision design and durable construction make it suitable for both commercial and experimental systems.
Common applications include:
• 3D printers
• CNC machines
• robotics platforms
• automation systems
• camera slider systems
• laboratory equipment
• DIY robotics projects
• engineering prototypes
The versatility of the 600mm Trapezoidal 4 Start Lead Screw makes it a valuable component for engineers, researchers, students, and robotics enthusiasts.
Specifications
| Specification | Details |
|---|---|
| Item Type | Lead Screw |
| Compatibility | General Purpose |
| Material | 304 Stainless Steel |
| Number of Starts | 4 |
| Thread Diameter | 8 mm |
| Pitch | 2 mm |
| Bolt Body Diameter | 8 mm |
| Length | 600 mm |
| Net Weight | 185 g |
| Shipping Weight | 0.19 kg |
| Shipping Dimensions | 60 × 3 × 3 cm |
Package Includes
• 1 × 600mm Trapezoidal 4 Start Lead Screw
