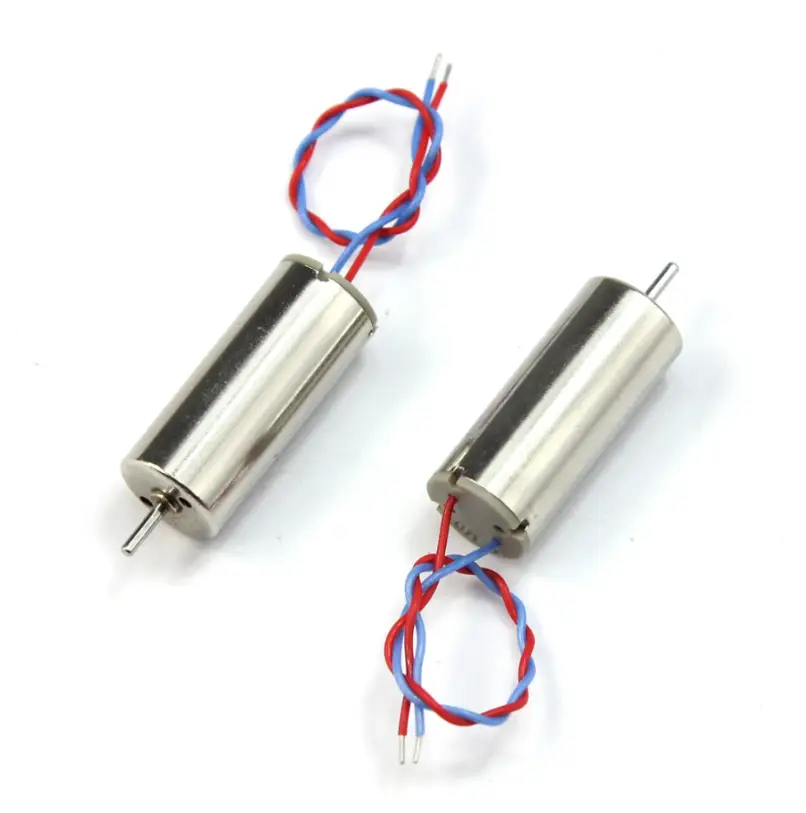

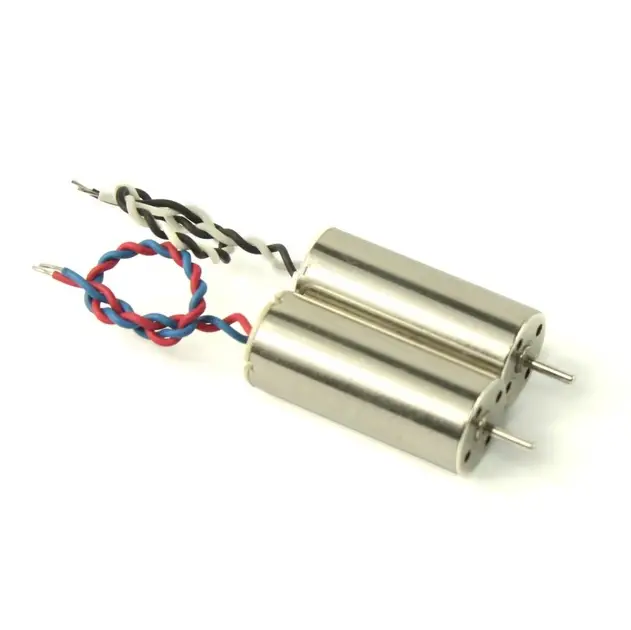

8520 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW

Description

If you’re new to the world of multirotors and drones and looking to get started with basic drone designs to enhance your knowledge, then look no further. The 8520 Magnetic Micro Coreless Motor from LOFTY AGROTECH is an ideal choice for beginners. This compact, lightweight motor set is perfect for building small drones, especially those with frames around 100mm in size, offering an excellent entry point into the hobby at a budget-friendly price.

The 8520 motor operates at high speeds (up to 39,000 RPM), which is more than sufficient for small drones. These motors are designed to provide the perfect balance of performance and efficiency for micro quadcopters. Although they are high-speed and low-torque motors, they offer low resistance and less noisy operation compared to other types of motors, making them ideal for micro drone builds.

This motor combo comes with two CW (Clockwise) motors and two CCW (Counterclockwise) motors, providing the necessary setup for your multirotor. The coreless design ensures the motor operates with minimal noise and friction, increasing the overall lifespan and performance. Moreover, the motors are equipped with high-quality magnets to ensure a smooth and stable flight experience.

If you’re looking for a cost-effective and efficient motor option for your micro quadcopter, this 8520 Magnetic Micro Coreless Motor combo from LOFTY AGROTECH will meet your needs. The package also supports 1S LiPo batteries for powering your build, giving you flexibility for small drone projects.

For more drone motors and accessories, [Click here].

---

Features:

• 8520 Coreless Motor is a high-speed and low-torque motor.

• Low resistance for efficient operation and long battery life.

• Less noisy operation, ensuring quiet flight.

• Equipped with high-quality magnets for improved performance.

• Supports 1S battery, suitable for small drone builds.

• Ideal for small micro quadcopters with 100mm frames.

• Rated Speed: 30500 – 39000 RPM.

• Rotation direction: 2x CW and 2x CCW motors.

---

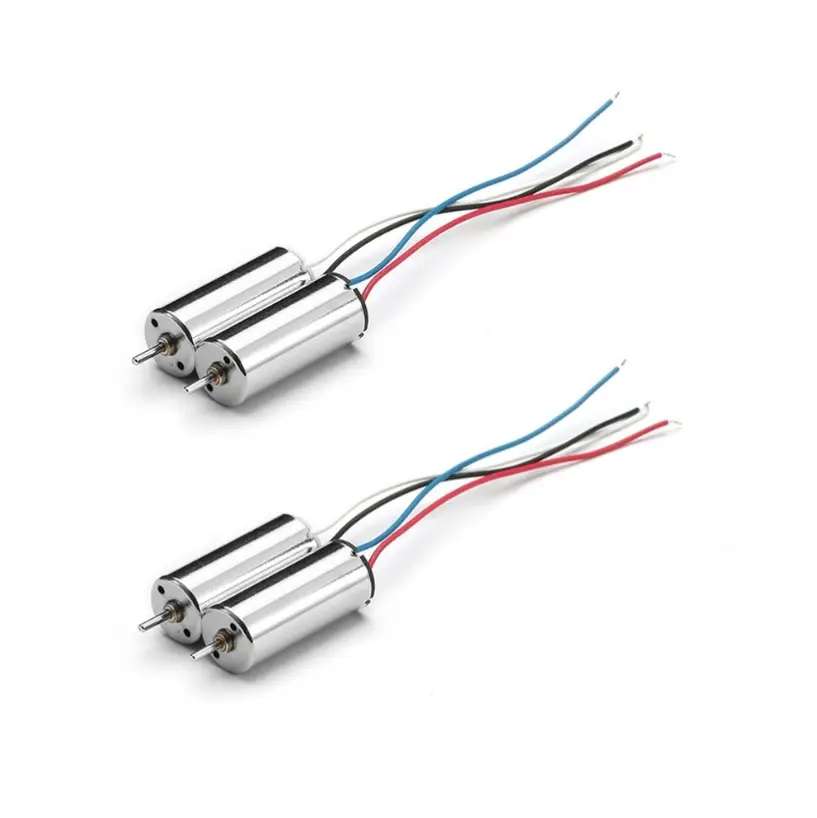

Package Includes:

• 2 x 8520 Magnetic Micro Coreless Motor (CW)

• 2 x 8520 Magnetic Micro Coreless Motor (CCW)

---

Specifications:

• Rated Voltage (V): 3.7V

• Rated Current (A): 0.15A

• Operating Temperature (°C): -10 to 50°C

• Rated Speed (RPM): 30500 – 39000

• Rated Load Current (mA): 1620

• Motor Color: Silver

• Motor Material: Metal

• Motor Diameter (mm): 8.5mm

• Motor Length (mm): 20mm

• Shaft Diameter (mm): 1mm

• Cable Length (cm): 6cm

• Shipping Weight: 0.03 kg

• Shipping Dimensions: 15 × 10 × 6 cm
