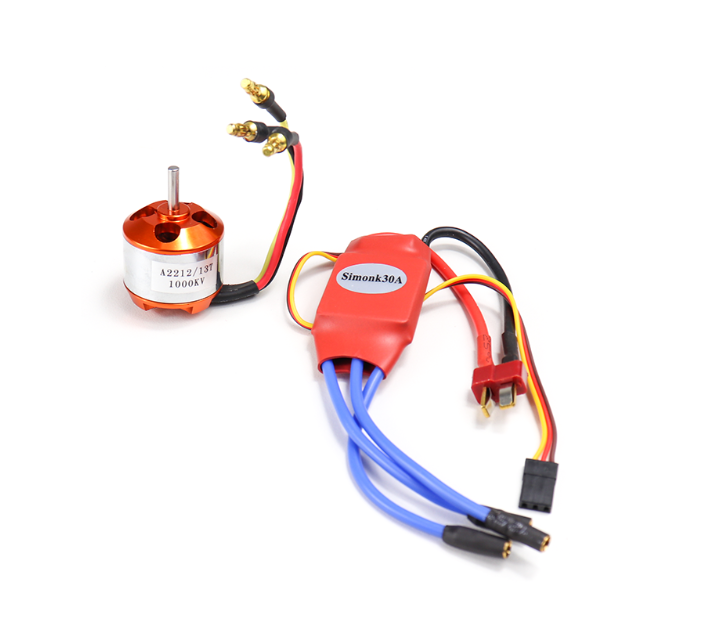

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC

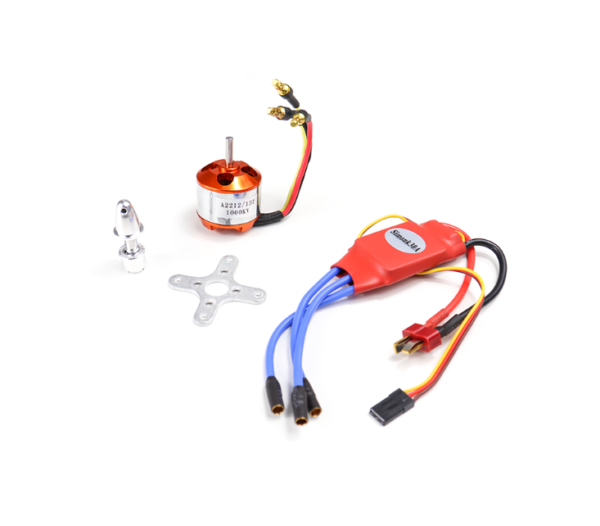

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 2

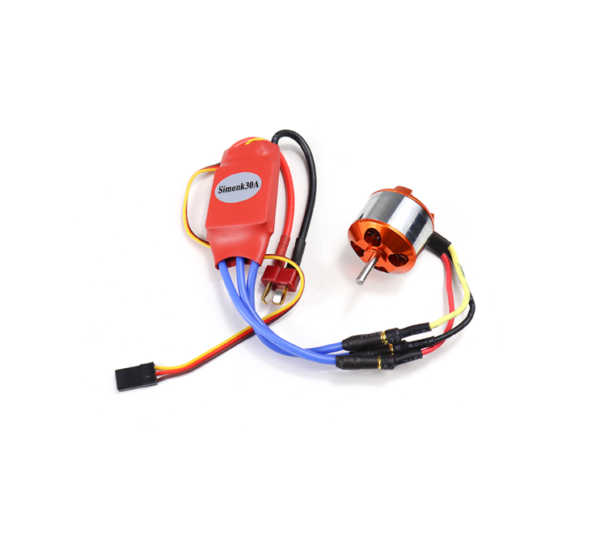

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 3

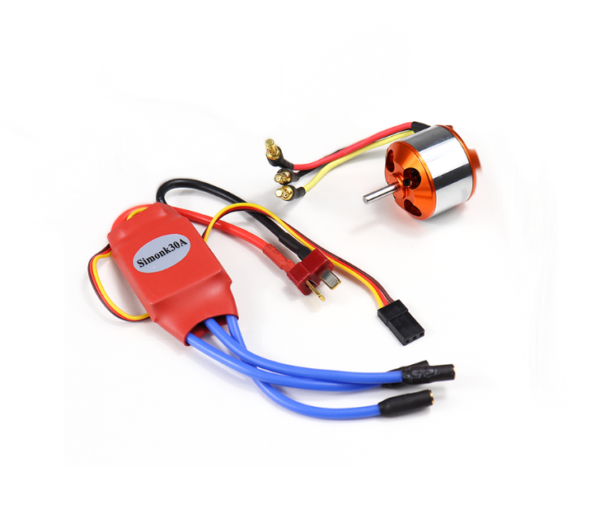

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 4

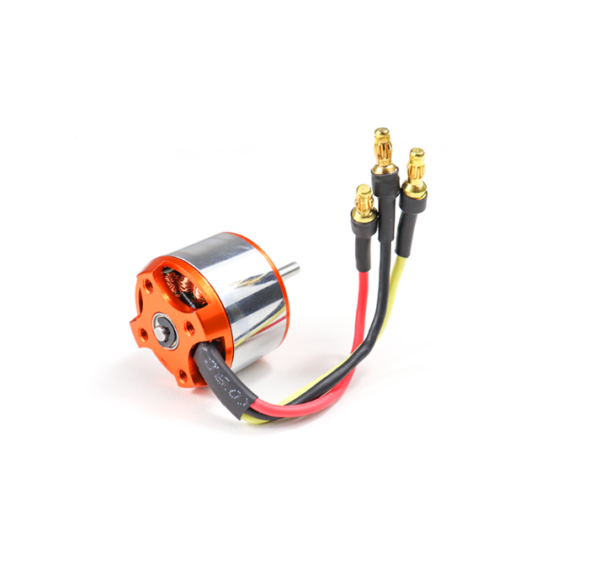

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 5

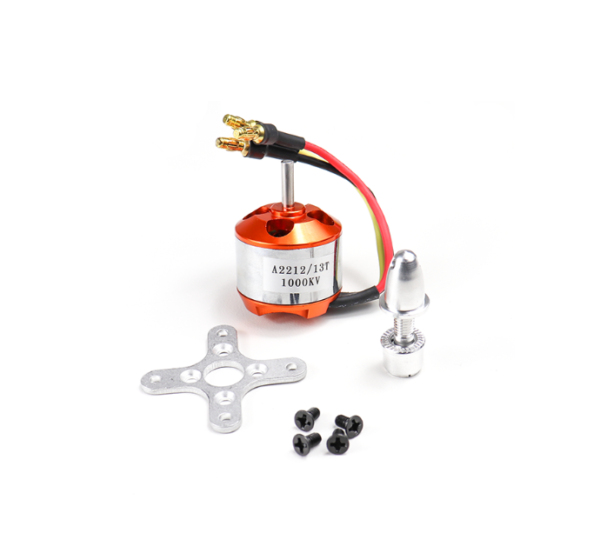

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 6
  1. A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC
  2. A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 2
  3. A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 3
  4. A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 4
  5. A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 5
  6. A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - Image 6

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC

Original price was: ₹1,350.00.Current price is: ₹908.00.

  1. Offers great performance and value for money.
  2. Suitable for airplane, aircraft, quadcopter.
  3. Motor KV: 1000
  4. LiPO Batteries: 2S-3S
  5. Shaft Diameter: 3.17 mm
  6. ESC used has an On-Board BEC.
Product Code: NDM04 Categories: , Tags: , , , , , , , , , , , , , , , , , , ,

Description

The A2212 1000KV Brushless Motor by NDK21 from LOFTY AGROTECH is one of the most affordable motors available for drones. Perfect for newbie drone enthusiasts or pilots who don’t want to risk damaging their motors during the initial testing stages, this motor offers great value and performance at an unbeatable price.

Despite its budget-friendly price, the A2212 1000KV motor delivers a surprising thrust of around 700 grams in flight. While it is true that the motor uses lower-quality bearings and magnets compared to high-end motors, these small trade-offs do not significantly impact performance. However, users should expect some noise, vibration, and warmth when the motor operates at high speeds, but these are minor inconveniences that do not affect the overall functioning of the motor.

This motor is equipped with a solid metal case for durability, making it a reliable choice even in the event of crashes. It’s paired with a SimonK 30A ESC, making it an excellent combination for drone builds. The ESC features an onboard BEC and is easily flashed with SimonK firmware, ensuring smooth throttle response and optimized motor control. The A2212 1000KV Brushless Motor is compatible with 2S-3S LiPo batteries and can be used on a variety of quadcopters and hexacopters.

For more options and products, check out additional items: [Click Here for A2212 Brushless Motors], [Click Here for 1045 Propellers], [Click Here for SimonK 30A ESC], and [Click Here for Q450 Quadcopter Frame].

Features:

  • Compact and lightweight design suitable for a wide range of quadcopters and hexacopter frames.

  • Offers great performance and value for money.

  • The motor features a solid metal case, ensuring durability during crashes.

  • Bi-directional motor – can rotate CW or CCW by swapping the polarity.

  • ESC comes with onboard BEC for easier setup and improved efficiency.

  • Faster and better speed control with SimonK firmware.

  • Compatible with 2S-3S LiPo batteries.

Package Includes:

  • 1 x A2212 1000KV BLDC Brushless Motor.

  • 1 x SimonK 30A BLDC ESC.

  • 1 x Prop Adapter.

  • 1 x Motor Holder (X-type) and set of screws.

Specifications:

  • Motor KV (RPM/V): 1000.

  • Motor Type: Brushless Motor.

  • Compatible LiPO Batteries: 2S to 3S.

  • Model No.: A2212.

  • Shaft Diameter (mm): 3.17.

  • Max. Efficiency Current (A): 4 ~ 10.

  • Max. Power (W): 150.

  • No-Load Current (mA): 500.

  • Internal Resistance (mOhm): 90.

  • Maximum Efficiency: 0.8.

  • No of Poles: 14.

  • Length (mm): 27.5.

  • Width (mm): 27.

  • Constant Current (A): 30.

  • BEC (Y/N): Yes (5V/3A).

  • Dimensions (L x W x H) mm: 45 x 24 x 9.

  • Weight (g): 23.64.

  • Shipping Weight: 0.067 kg.

  • Shipping Dimensions: 8 × 5 × 2 cm.
