A2212 1000 KV BLDC Brushless DC Motor for Drone (Soldered Connector)

  • 1000KV Brushless Motor ideal for DIY drones

  • Compact and lightweight – only 72g

  • Bi-directional rotation (CW/CCW) via polarity swap

  • Compatible with 2S to 3S LiPo batteries

  • Sturdy metal build for reliable performance

  • Ideal for use with 30A SimonK ESCs and 1045 propellers

  • Available in various combos for convenience

Description

Detailed Description

Are you planning to build your first drone and confused about the right motor? Don’t worry — NDK21 BY LOFTY AGROTECH is here to guide you through every step of your drone-building journey. If you’re looking for a reliable, affordable, and efficient brushless motor, the A2212 1000KV from Ready to Sky is one of the best choices in the market.

Known for its balanced performance, solid construction, and compatibility with a variety of multirotor frames, this motor is ideal for drones, quadcopters, hexacopters, UAVs, and even RC aircraft.

Crafted with a steel design, this motor is lightweight yet built to handle intense performance conditions. Its bi-directional capability allows it to rotate CW or CCW by simply swapping the polarity, giving you flexibility in mounting across any drone frame.

Whether you need a single motor or a bundled setup, NDK21 BY LOFTY AGROTECH offers multiple variations of this motor, including:

  • A2212 1000KV with Unsoldered Connectors

  • A2212 1000KV + SimonK 30A ESC

  • A2212 1000KV + ESC + 1045 Propeller

  • Full Set of 4 Motors + 4 ESCs + 4 Prop Sets

🔧 Explore more Drone Motors Click here
🌀 Browse Propeller Options Click here
⚙️ Discover Electronic Speed Controllers (ESCs) Click here

Technical Specifications:

  • Motor KV (RPM/V): 1000

  • Motor Type: Brushless DC Motor

  • Model No.: A2212 10T/13T

  • Shaft Diameter: 3.17 mm

  • No-Load Current: 500 mA

  • Current Capacity: 12 A

  • Max. Efficiency Current: 4 – 10 A

  • Maximum Efficiency: 0.8

  • Compatible Batteries: 2S – 3S LiPo

  • Length: 27.5 mm

  • Width: 27 mm

  • Weight: 72 g

  • Shipping Weight: 0.078 kg

  • Shipping Dimensions: 12 × 6 × 5 cm

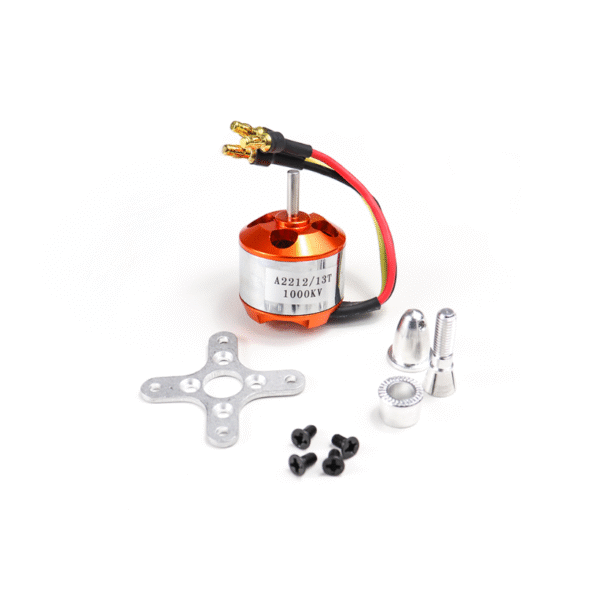

Package Includes:

  • 1 × A2212 1000KV Brushless DC Motor

  • 1 × Prop Adapter

  • 1 × X-Type Motor Holder with Screws
