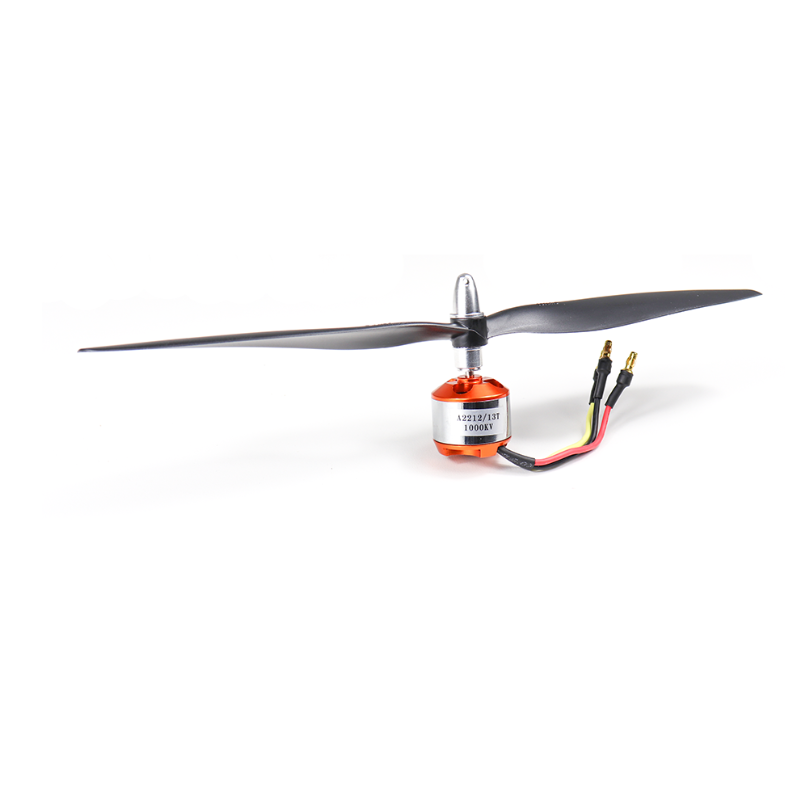

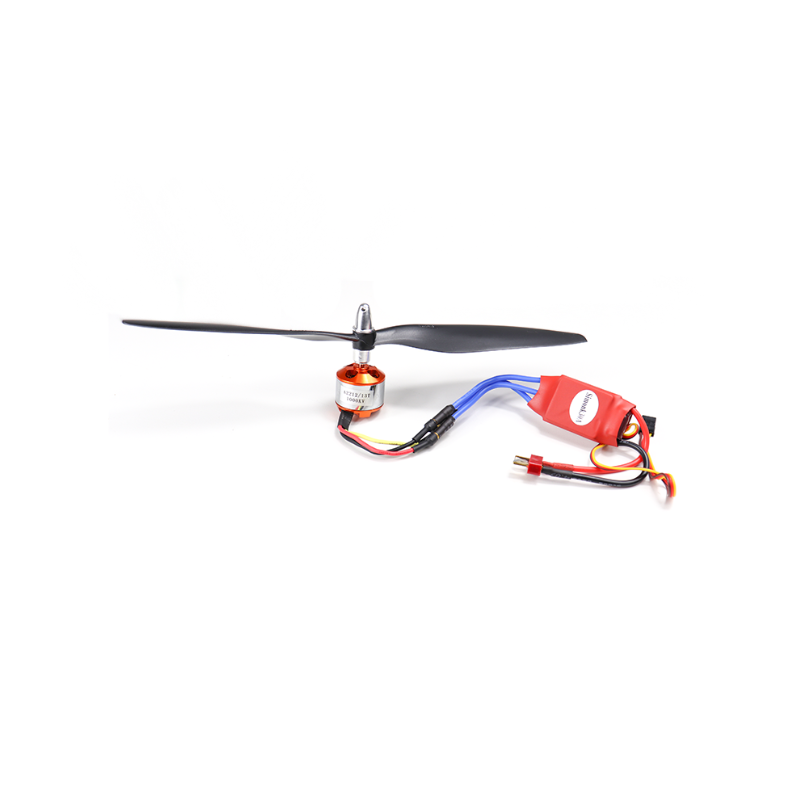

A2212 1000 KV Brushless DC Motor with SimonK 30A ESC and Orange 1045 Propeller Set

Description

Looking for an affordable yet powerful motor for your drone project? LOFTY AGROTECH brings you the best value with the A2212 1000KV Brushless Motor. This motor + ESC combo provides incredible performance at a fraction of the cost. Perfect for beginner drone enthusiasts or those just testing out new builds, this package gives you smooth flight performance without breaking the bank.

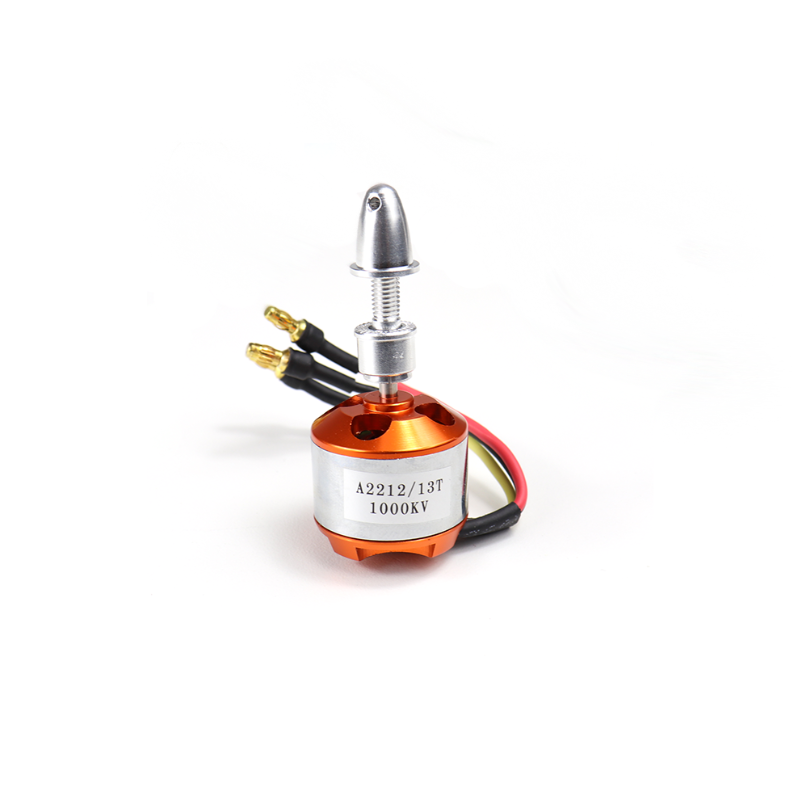

The A2212 1000KV motor is designed with a solid metal case that ensures durability and reliability, even in the event of a crash. It delivers a maximum thrust of around 700g, which is great for small to medium drones and is ideal for 2S to 3S LiPo batteries. Despite its affordable price, this motor provides surprising efficiency and thrust.

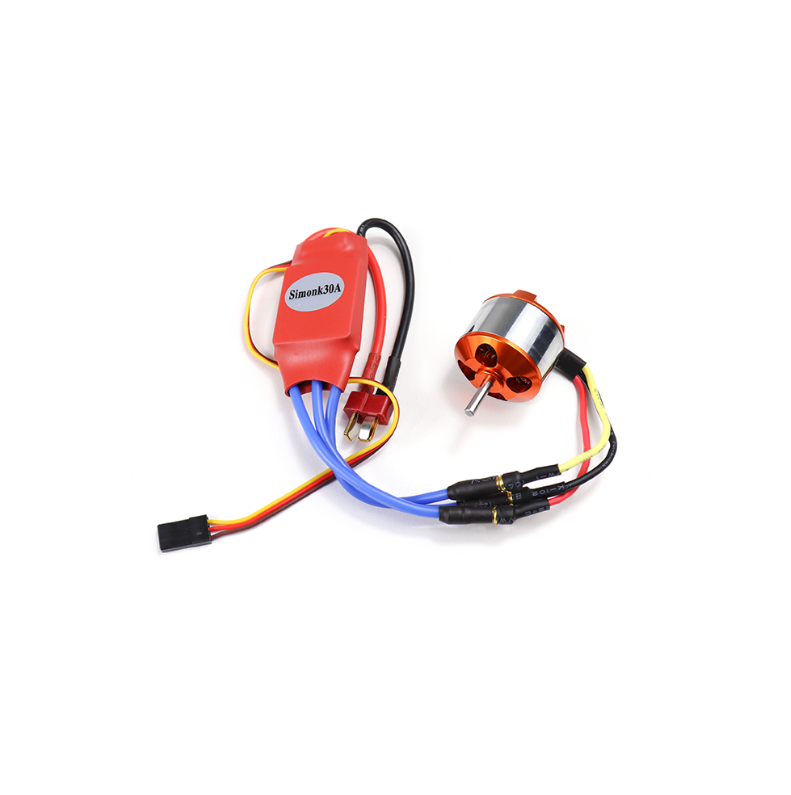

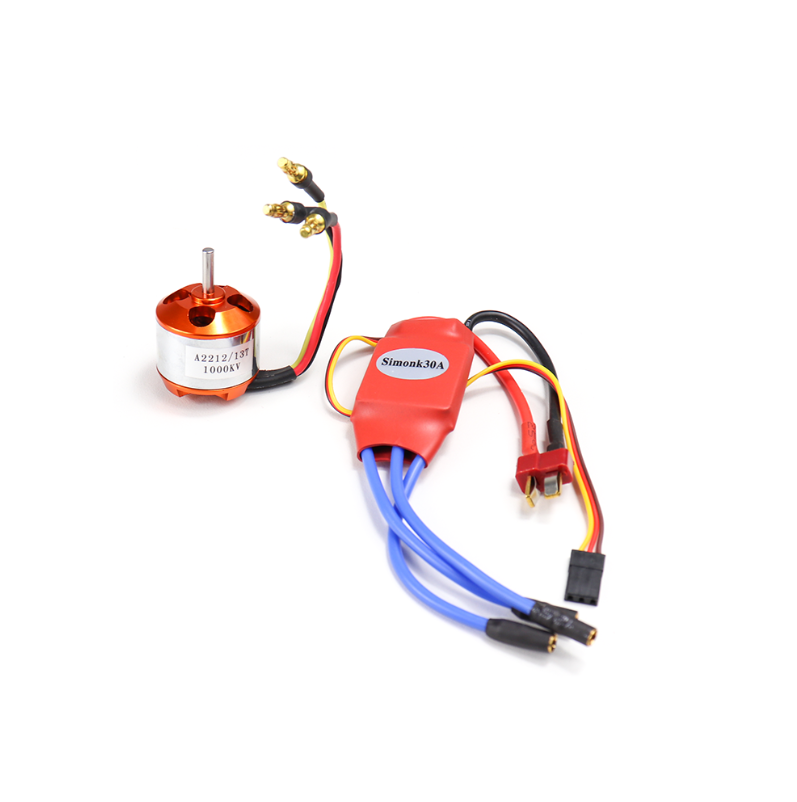

The SimonK 30A ESC included in the package comes pre-soldered for easy installation. It offers fast speed control and features an on-board BEC (5V/3A) for powering your drone’s receiver and other electronics. With the Orange HD 1045 propellers, the motor and ESC combo ensures excellent lifting capacity, smooth performance, and good aerodynamic efficiency, making your drone flights more enjoyable.

Please note that this motor is bi-directional, meaning it can rotate either in CW (clockwise) or CCW (counterclockwise) direction by swapping the input polarity.

If you’re on a budget but still want great performance, this A2212 1000KV Brushless Motor with ESC and Propeller Combo is the ideal choice for you.

For more motor options, [Click here].

To explore a variety of propellers, [Click here].

To check out various ESCs, [Click here].

---

Features:

• Affordable price with high-quality performance for beginners.

• Bi-directional motor: Can rotate in both CW or CCW directions by swapping input polarity.

• Metal case for durability and reliability.

• Soldered connectors for quick and easy installation.

• SimonK 30A ESC with on-board BEC for stable power supply.

• Includes Orange HD 1045 Propellers for better aerodynamic efficiency.

• Compact and lightweight: Perfect for a variety of drone frames.

• Great performance and value for money.

---

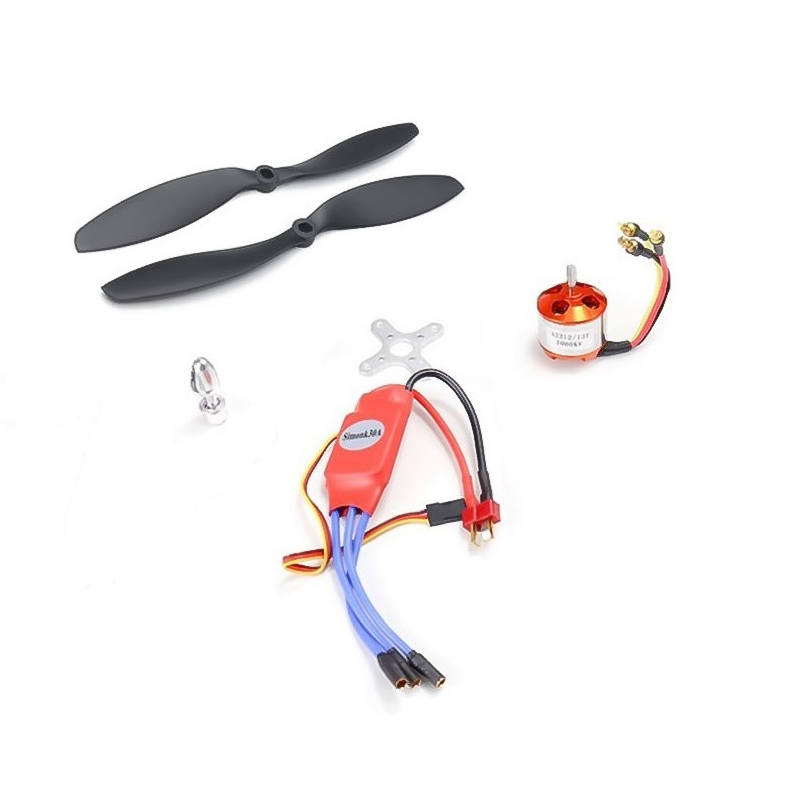

Package Includes:

• 1 x A2212 1000KV Brushless Motor with pre-soldered connector

• 1 x Prop Adapter

• 1 x Motor Holder (X-type) with a set of screws

• 1 x SimonK 30A BLDC ESC

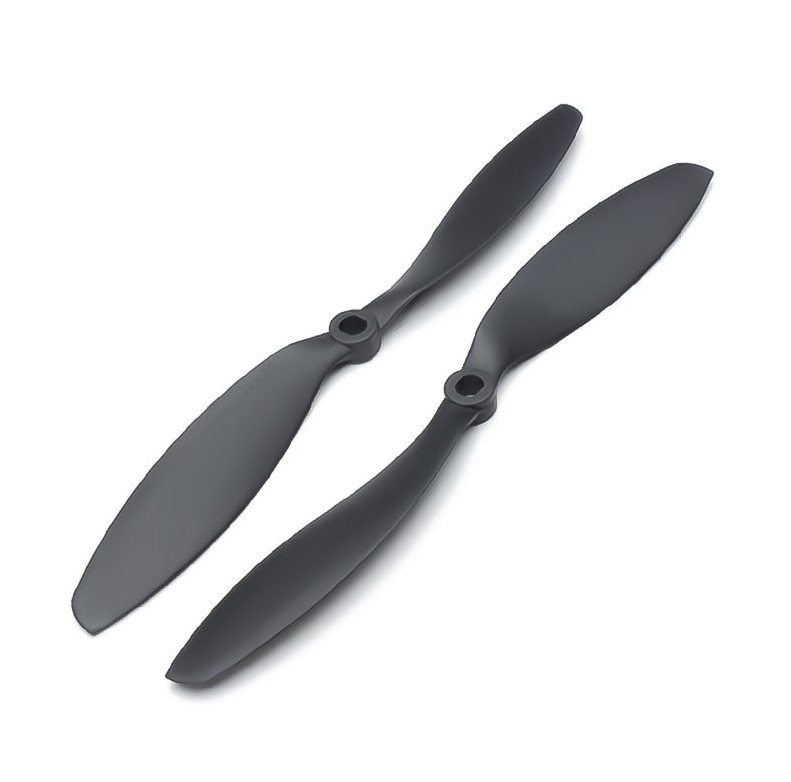

• 1 x Orange HD 1045 Propeller (1CW + 1CCW) ABS DJI Black (1 pair)

---

Specifications:

• Motor KV (RPM/V): 1000

• Motor Type: Brushless Motor

• Compatible LiPo Batteries: 2S to 3S

• Model No.: A2212

• Shaft Diameter (mm): 3.17

• Max Efficiency Current (A): 4 ~ 10

• Max Power (W): 150

• No-Load Current (mA): 500

• Internal Resistance (mOhm): 90

• Maximum Efficiency: 0.8

• Number of Poles: 14

• Length (mm): 27.5

• Width (mm): 27

• Constant Current (A): 30

• BEC (Y/N): Yes (5V/3A)

• Dimensions (L x W x H) mm: 45 x 24 x 9

• Weight (g): 23 (motor), 64 (ESC)

• No. of Blades: 2 (propellers)

• Shaft Hole Diameter: 7-(Flat Side) and 8-(Round Side)

• Color: Black

• Pitch (mm): 4.5 Inch

• Shipping Weight: 0.067 kg

• Shipping Dimensions: 12 × 8 × 5 cm
