Description

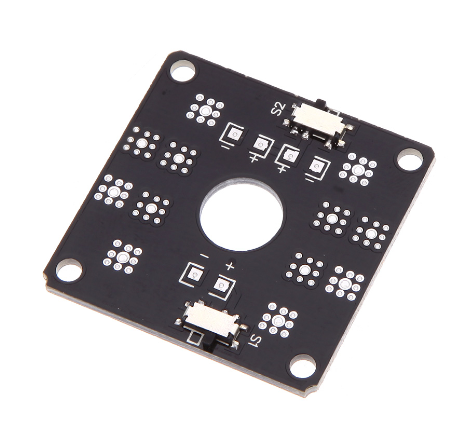

CC3D Mini Power Distribution Board – Overview
The CC3D Mini Power Distribution Board (PDB) by LOFTY AGROTECH is an essential accessory for small multi-rotor drones, mini quads, and FPV builds. Power distribution boards are designed to simplify the delivery of power from your LiPo battery to your ESCs, flight controller, video transmitter, and other onboard electronics. The CC3D Mini Power Distribution Board ensures that your drone operates efficiently, reduces wiring clutter, and provides an organized, easy-to-maintain power system.
In modern drone builds, especially for FPV racing and freestyle drones, the need for compact and reliable power distribution is paramount. Traditional setups often involve tangled wires and separate modules for LEDs, flight controllers, and video equipment, which can compromise reliability and make troubleshooting difficult. The CC3D Mini Power Distribution Board eliminates these issues by providing a clean, integrated platform for power management.
With dual integrated switches, durable construction, and compatibility with standard CC3D flight controllers, this mini PDB is designed for both novice and advanced drone enthusiasts. Whether you are building a new quadcopter, upgrading an existing setup, or exploring DIY drone projects, the CC3D Mini Power Distribution Board offers unmatched convenience and performance.
Key Features of CC3D Mini Power Distribution Board
The CC3D Mini Power Distribution Board by LOFTY AGROTECH is packed with features designed to enhance the performance, reliability, and usability of mini quads, FPV racing drones, micro drones, and DIY builds. Each feature has been carefully engineered to provide efficient power management, durability, and easy integration into compact drone frames.
Compact and Lightweight Design
With a 36 × 36 mm footprint and weighing only 3 grams, the CC3D Mini Power Distribution Board is ideal for builds where space and weight are critical. Its compact design allows it to fit seamlessly into tight frames without interfering with other components or increasing the overall payload.
Benefits of the lightweight design include:
- Improved flight dynamics: Less weight contributes to better acceleration, responsiveness, and maneuverability.
- Longer flight times: Reduced payload minimizes battery drain, allowing extended FPV or freestyle sessions.
- Seamless integration: Fits perfectly in micro drones and mini quads without needing modifications.
This makes it especially suitable for FPV racers and freestyle pilots who require both performance and agility in compact drone frames.
High-Quality Materials for Durability
The CC3D Mini Power Distribution Board is constructed from high-quality PCB materials, ensuring long-lasting performance and reliability. The board is designed to handle current draw from multiple ESCs, flight controllers, and peripheral devices without overheating or degrading over time.
Key durability features include:
- Secure solder pads for reliable connections, minimizing the risk of intermittent power issues.
- Robust construction to withstand vibrations and shocks during aggressive maneuvers or high-speed flight.
- Consistent performance under heavy loads or extended flight sessions.
This ensures that your drone’s electronics are well-protected and maintain stable power distribution, even in demanding conditions.

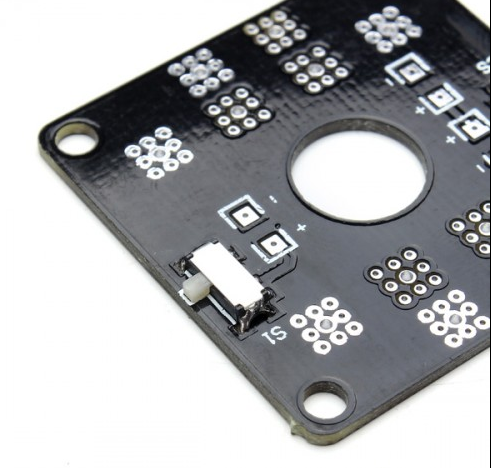

Dual Integrated Switches
A standout feature of the CC3D Mini Power Distribution Board is its dual integrated switches, which allow pilots to control LEDs and FPV equipment directly from the board. This eliminates the need for additional wiring harnesses or external switches, simplifying your drone build.
With these integrated switches, you can:
- Power FPV cameras and VTX units independently, optimizing signal quality and reducing interference.
- Control LED lighting for night flights or orientation indicators, enhancing visibility and safety.
- Reduce wiring clutter, improving airflow, aesthetics, and maintenance accessibility.
This feature is ideal for both hobbyists and professional FPV pilots who need precise control over auxiliary components during flight.
Simplified Wiring and Easy Maintenance
The CC3D Mini Power Distribution Board centralizes all connections for battery, ESCs, flight controller, LEDs, and VTX, drastically simplifying drone wiring. Benefits include:
- Reduced chance of wiring errors, ensuring safer and more reliable power delivery.
- Quick access for maintenance, allowing component replacement or troubleshooting without disassembling the entire drone.
- Organized and clean builds, which improve airflow and enhance overall drone performance.
This design philosophy ensures that your FPV, racing, or DIY drone remains flight-ready with minimal downtime, making the CC3D Mini Power Distribution Board a must-have for efficient and professional drone builds.
Technical Specifications of CC3D Mini Power Distribution Board
The CC3D Mini Power Distribution Board by LOFTY AGROTECH is engineered to provide reliable, stable, and efficient power distribution for mini quads, FPV racing drones, micro drones, and small heavy-lift builds. Its specifications ensure compatibility, durability, and optimal performance for various drone applications.
Board Dimensions and Weight
- Dimensions: 36 × 36 × 1 mm (Length × Width × Height)
- Weight: 3 grams
The compact size and lightweight design make it ideal for space-constrained builds, ensuring minimal impact on the drone’s center of gravity and overall flight dynamics. Its small footprint allows it to fit seamlessly into mini quads, micro drones, and FPV frames.
Power Distribution and Input
- Battery Input: Supports LiPo batteries (2S–4S recommended)
- Power Output: Distributes power efficiently to ESCs, flight controller, LEDs, and FPV equipment
The PDB ensures consistent voltage delivery to all connected components, preventing fluctuations that could compromise performance. Centralized power distribution reduces wiring complexity and improves flight reliability.
Integrated Switches
- Number of Switches: 2
- Purpose: Control LEDs and FPV equipment independently
- Functionality: On/off power control directly from the board
These dual integrated switches allow pilots to manage auxiliary components without external modules, simplifying builds and reducing clutter. This is especially useful for FPV racers, freestyle pilots, and hobbyists requiring precise control over onboard devices.
Compatibility
- Flight Controllers: Compatible with standard CC3D flight controllers
- ESCs: Works with most brushless ESCs used in mini quads and micro drones
- FPV Equipment: Supports cameras, VTX units, and LED systems
The board is designed for easy integration, providing a universal solution for small to medium-sized drone projects.
Material and Build Quality
- Material: High-quality PCB with durable solder pads
- Construction: Engineered for stability and resistance to vibration and shocks
The board’s robust materials ensure long-term reliability, even under aggressive maneuvers or extended flight sessions. High-quality solder pads reduce the risk of loose connections or intermittent power issues.
Connectivity and Output Pads
- ESC Output Pads: Clearly labeled and easy to solder
- Battery Input Pads: Marked for correct polarity
- FPV and LED Pads: Controlled via integrated switches
The organized layout allows for quick and error-free installation, minimizing the chance of short circuits and simplifying maintenance.
Shipping and Packaging
- Shipping Weight: 0.005 kg
- Shipping Dimensions: 5 × 4 × 3 cm
- Package Includes: 1 × CC3D Mini Power Distribution Board
The compact packaging ensures safe delivery and protects the board during transit.
Applications of CC3D Mini Power Distribution Board
The CC3D Mini Power Distribution Board by LOFTY AGROTECH is highly versatile and designed to meet the needs of a wide variety of drone applications. Its compact size, reliable power distribution, and dual integrated switches make it ideal for mini quads, FPV racing drones, DIY projects, and even small heavy-lift drones.
Mini Quads and Micro Drones
For compact drones, every gram matters, and space is limited. The lightweight design and small footprint of the CC3D Mini Power Distribution Board make it perfect for mini quads and micro drones. By centralizing power distribution, the board ensures:
- Reliable voltage delivery to ESCs, flight controllers, and peripherals
- Minimal weight addition for optimized flight performance
- Reduced wiring clutter for clean and efficient builds
This makes it a go-to solution for hobbyists and enthusiasts building compact drones with limited space.
FPV Racing Drones
High-speed FPV racing demands stable, clean, and efficient power delivery. The CC3D Mini Power Distribution Board ensures consistent voltage to ESCs, flight controllers, and VTX systems, allowing racers to:
- Maintain peak performance during aggressive maneuvers
- Reduce the risk of mid-flight power fluctuations
- Control LEDs and video equipment using the dual integrated switches without affecting flight controller operations
This reliability is essential for competitive FPV racing where milliseconds matter, and consistent power can be the difference between winning and losing.
DIY and Educational Drone Projects
The CC3D Mini Power Distribution Board is also ideal for hobbyists, students, and educators. Its clear layout, dual switches, and CC3D compatibility provide a practical platform for:
- Learning basic electronics and power distribution in drones
- Hands-on experimentation with drone assembly and FPV systems
- Teaching concepts in robotics, programming, and aerodynamics
By simplifying the wiring and providing easy access to power connections, this PDB helps learners understand how drones manage electricity and control systems effectively.
Heavy-Lift or Payload Drones
Even for drones designed to carry small payloads such as cameras, sensors, or additional equipment, the CC3D Mini Power Distribution Board ensures reliable and stable power distribution. Its durable PCB design and robust solder points can handle higher loads while maintaining flight stability. Benefits include:
- Safe power delivery to all components under additional weight
- Protection against voltage drops or power spikes
- Enhanced flight reliability even in payload-heavy configurations
This makes it suitable not just for hobby drones but also for professional applications requiring small, reliable heavy-lift capabilities.
Installation and Setup of CC3D Mini Power Distribution Board
Proper installation of the CC3D Mini Power Distribution Board by LOFTY AGROTECH is crucial to ensure optimal performance, reliable power distribution, and safe operation of your drone. Following a careful setup process minimizes the risk of short circuits, component damage, or flight failures, and ensures that all connected electronics perform at their best.
Mounting the Board
- Prepare the Mounting Surface: Ensure that the surface is clean, flat, and free from vibrations or debris that could damage sensitive components.
- Align with Flight Controller: Position the CC3D Mini Power Distribution Board so that its mounting holes match the standard CC3D flight controller layout. Proper alignment ensures secure installation and prevents mechanical stress on solder points.
- Use Anti-Vibration Pads: If possible, use anti-vibration pads to protect the PDB and connected electronics from shocks during aggressive maneuvers or high-speed flights.
Proper mounting is the first step to reliable operation and longevity of the board.
Connecting Power and ESCs
- Battery Connection: Connect the LiPo battery to the input pads on the PDB, ensuring correct polarity to avoid damage.
- ESC Wiring: Solder the ESC leads to their designated output pads. Ensure connections are secure and neatly organized to prevent short circuits.
- Double-Check Polarity and Solder Joints: Verify all connections with a multimeter before powering the drone. Faulty solder joints or reversed polarity can damage the CC3D Mini Power Distribution Board or other drone components.
Wiring FPV Equipment and LEDs
- Integrated Switches: Use the dual integrated switches on the board to control power to FPV cameras, VTX units, and LEDs, reducing the need for additional wiring or external modules.
- Secure Wiring: Ensure all wires are routed away from moving parts like propellers and motors. Use cable ties or shrink tubing for added safety.
- Bench Testing: Test the switches and connected components on the bench to confirm that LEDs, cameras, and VTX units operate correctly before flight.
Pre-Flight Checks
- Inspect Connections: Verify that all solder joints, wires, and connectors are properly secured.
- Check Voltage Output: Use a multimeter to ensure the PDB delivers the correct voltage to all connected components.
- Perform Bench Test: Power the board without propellers attached to confirm that switches, LEDs, and FPV equipment function as expected.
By following these installation and setup steps, your CC3D Mini Power Distribution Board will provide efficient, stable, and reliable power to all drone components, helping ensure safe and optimized flight performance.
Advantages of Using CC3D Mini Power Distribution Board
The CC3D Mini Power Distribution Board by LOFTY AGROTECH provides significant benefits over traditional wiring setups, making it an essential component for mini quads, FPV racing drones, DIY builds, and other multi-rotor projects. By integrating power distribution, switches, and a compact layout, this PDB enhances performance, reliability, and ease of use.
Efficient Power Distribution
One of the primary advantages of the CC3D Mini Power Distribution Board is its ability to centralize power delivery from the LiPo battery to ESCs, flight controllers, LEDs, and FPV equipment. This ensures:
- Stable and consistent voltage output to all components
- Reduced risk of component failure due to fluctuating power
- Improved flight performance, even during aggressive maneuvers or high-speed FPV racing
By efficiently managing power, the board enhances the reliability of the drone’s electronics and helps prevent mid-flight issues.
Reduces Clutter and Simplifies Builds
Traditional drone setups often involve tangled wires and multiple connectors, which can complicate installation and maintenance. The CC3D Mini Power Distribution Board simplifies wiring by providing a central hub for all power connections, offering the following benefits:
- Cleaner and lighter builds, improving flight dynamics
- Easier maintenance and component replacement
- Enhanced airflow and aesthetics, especially in compact frames
This makes it ideal for both beginner builders and experienced FPV pilots who want an organized and professional-looking drone build.
Reliable and Stable Performance
Durability and reliability are key factors for any drone component. The CC3D Mini Power Distribution Board is constructed from high-quality PCB materials and has been thoroughly tested to ensure consistent performance. Advantages include:
- Long-term stability for FPV, racing, and DIY drones
- Resilience to vibrations and aggressive flight conditions
- Dependable operation for integrated switches, ensuring LEDs and FPV equipment remain functional during flight
This reliability gives pilots confidence in the safety and performance of their drones.
Versatility Across Drone Applications
The CC3D Mini Power Distribution Board is designed for a wide range of drone applications. Its CC3D compatibility and dual integrated switches make it suitable for:
- Mini quads and micro drones
- FPV racing drones and freestyle builds
- DIY drone projects for hobbyists and educators
- Small heavy-lift drones carrying cameras or sensors
This versatility allows the CC3D Mini Power Distribution Board to adapt to almost any compact drone setup, making it a highly flexible and valuable component for drone enthusiasts.
Troubleshooting Common Issues with CC3D Mini Power Distribution Board
Even high-quality CC3D Mini Power Distribution Boards can occasionally encounter minor issues. Proper troubleshooting helps maintain reliable performance, prevent flight failures, and ensure the longevity of your drone’s electronics. Below are common issues and solutions.
Power Inconsistencies
- Check Battery Voltage and Polarity: Ensure that your LiPo battery is delivering the correct voltage and that the connections are properly oriented. Incorrect polarity can damage the board or connected components.
- Inspect Solder Joints and Wiring: Loose or weak solder points can cause intermittent power delivery. Examine all solder joints and wiring for cracks or cold joints and reflow solder as necessary.
- Verify Load Distribution: Confirm that ESCs, LEDs, and FPV equipment are not drawing excessive current beyond the board’s limits. Overloading can result in inconsistent power output.
Switch Malfunctions
- Ensure Proper Soldering: Dual integrated switches on the CC3D Mini Power Distribution Board may fail if solder joints are weak or incomplete. Re-solder any problematic connections.
- Bench Test Functionality: Before mounting the board in your drone, test the switches on a bench setup to confirm they reliably control LEDs and FPV equipment.
- Check for Debris or Obstructions: Dust, dirt, or foreign particles around the switch pads may prevent proper operation. Clean gently with compressed air or a soft brush.
Connectivity Issues with ESCs or Flight Controller
- Verify Output Pads: Ensure ESC and flight controller connections are properly seated and correctly routed according to the wiring diagram.
- Inspect for Shorts or Damaged Traces: Physical damage to the PCB, solder bridges, or shorts can disrupt connectivity. Carefully examine the board for signs of damage and repair if needed.
- Test Individual Components: Disconnect and test ESCs, flight controllers, or FPV equipment individually to isolate the problem. This helps identify whether the issue is with the PDB or a connected device.
Maintenance and Care Tips for CC3D Mini Power Distribution Board
Proper maintenance of your CC3D Mini Power Distribution Board by LOFTY AGROTECH is essential to ensure long-lasting performance, reliable power distribution, and safe operation of your drone’s electronics. Regular care helps prevent failures, extends the lifespan of the board, and maintains consistent flight performance.
Cleaning and Dust Prevention
- Keep the CC3D Mini Power Distribution Board free from dust, dirt, and debris, as accumulation can affect solder points and electrical connections.
- Use compressed air or a soft, non-abrasive brush to clean the board gently. Avoid using water or liquid cleaners, as these can damage sensitive electronic components.
- Regular cleaning is especially important for FPV and outdoor drones that are exposed to dirt, dust, or debris during flight.
Checking Solder Joints and Connections
- Inspect all solder points and connections periodically for signs of cracks, corrosion, or loose joints, which can cause intermittent power delivery or failures.
- If any issues are detected, reflow the solder or resolder the connection to restore proper contact and reliability.
- Proper attention to solder joints ensures that the CC3D Mini Power Distribution Board maintains stable power delivery to the flight controller, ESCs, LEDs, and FPV equipment.
Firmware and Component Updates
- While the CC3D Mini Power Distribution Board itself is a hardware-only component, connected electronics such as flight controllers and ESCs may require firmware updates to ensure optimal performance and compatibility.
- Regularly check for updates from your flight controller or ESC manufacturer to maintain the best possible flight experience.
- Keeping all connected components updated minimizes the risk of operational issues and enhances safety during flight.
Conclusion
The CC3D Mini Power Distribution Board by LOFTY AGROTECH stands out as a compact, lightweight, and highly versatile solution for a wide range of drone applications. Whether you are building mini quads, FPV racing drones, DIY hobby drones, or small heavy-lift drones, this PDB provides a reliable platform for efficient power distribution, ensuring that your flight controller, ESCs, LEDs, and FPV equipment receive stable and consistent power.
Its dual integrated switches allow pilots to control LEDs and FPV components directly from the board, reducing wiring complexity and keeping your drone build clean and organized. The high-quality materials and tested functionality make it durable and long-lasting, capable of withstanding the demands of aggressive maneuvers, high-speed racing, and frequent flights.
For hobbyists, educators, and professional FPV pilots, the CC3D Mini Power Distribution Board delivers peace of mind by ensuring safe, stable, and efficient operation of your drone’s electronics. Its CC3D compatibility and thoughtfully designed layout make installation straightforward, even for first-time builders.
In summary, the CC3D Mini Power Distribution Board is not just a component—it is a core element of your drone’s power management system. By choosing this PDB from LOFTY AGROTECH, you are ensuring a high-performance, reliable, and versatile solution that enhances your drone-building experience, simplifies maintenance, and improves flight performance.
