DYS F2204 Drone Power Combo Set (NDK28)

Description

Looking for an affordable yet powerful drone motor and accessories combo? The DYS F2204 Drone Power Combo Set – NDK28 by LOFTY AGROTECH is the perfect choice for drone enthusiasts who want to build their own high-performance quadcopter without breaking the bank.

This combo set includes BE2204 2400KV brushless motors, BL30A BLHeli firmware ESCs, and ABS5030 propellers, making it one of the best budget-friendly racing/fixed-wing drone kits in the market. Imported from China and quality-tested by our team, these motors ensure reliability and durability for drone racing and UAV applications.

The BE2204 motors are built with a solid metal casing, delivering 680g thrust and making them highly efficient and long-lasting. The included BL30A BLHeli firmware ESCs are lightweight, fast, and optimized for multirotor use, ensuring ultra-responsive throttle control. Additionally, the ABS5030 propellers are designed for high-strength performance, featuring quick-release mechanisms for easy installation.

Whether you’re a drone racing enthusiast, an FPV flyer, or a hobbyist looking to build a budget-friendly UAV, this power combo set provides top-tier performance at an unbeatable price.

For more details and to purchase, Click Here.

Warranty Details:

This product comes with a 15-day warranty, covering only manufacturing defects.

What voids the warranty?

• Misuse, tampering, or improper handling of the product.
• Exposure to static discharge, water, fire, or accidental damage.
• Unauthorized modifications, including soldering or altering components.

For warranty claims and support, Click Here.

---

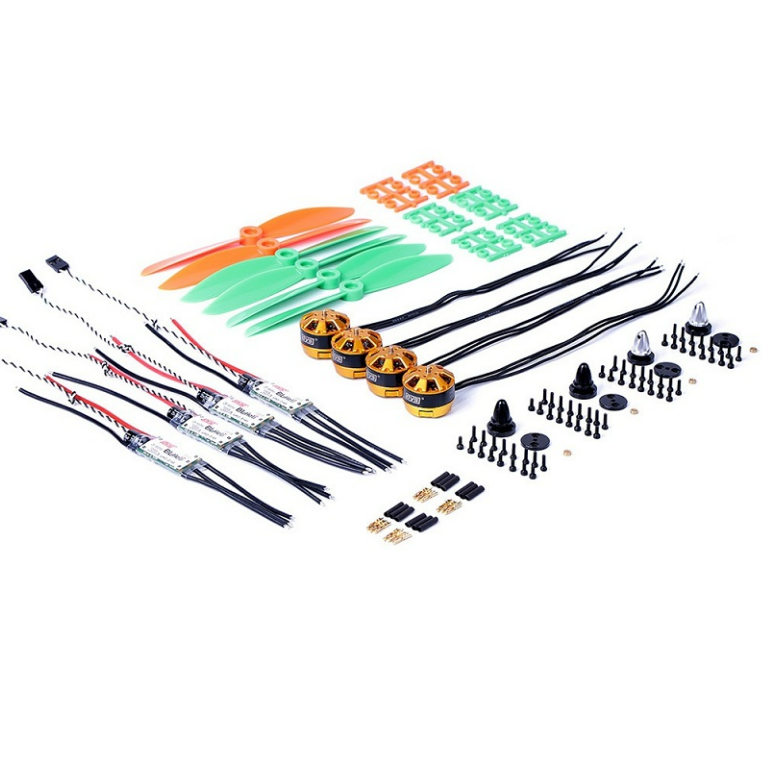

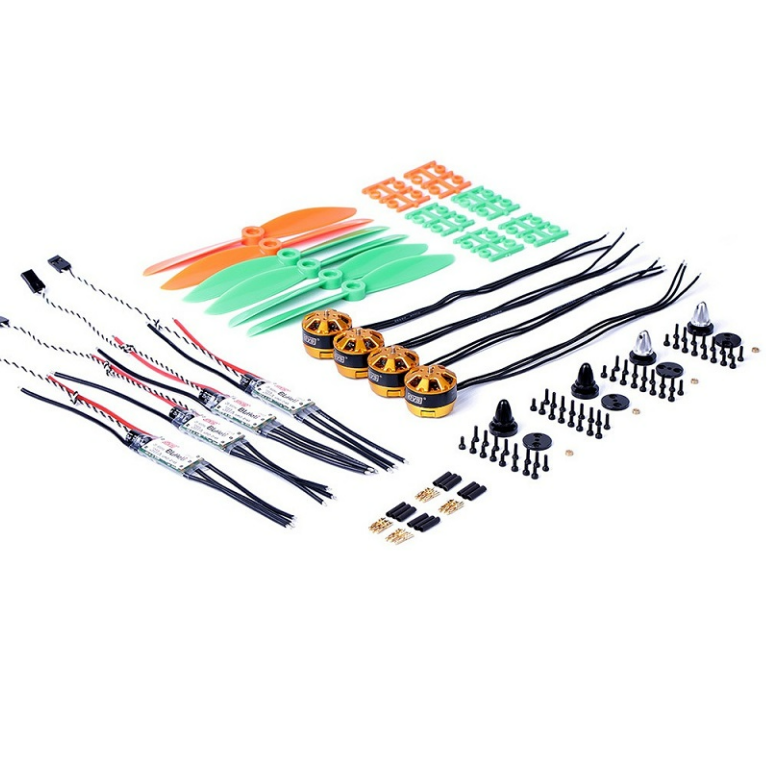

Package Includes:

• 4 x BE2204-2400KV CW/CCW Brushless Motors
• 4 x Set of Motor Accessories
• 4 x BL30A BLHeli Firmware ESCs
• 6 x ABS5030 Propellers (3CW, 3CCW)

For additional drone components and accessories, Click Here.

---

Specifications:

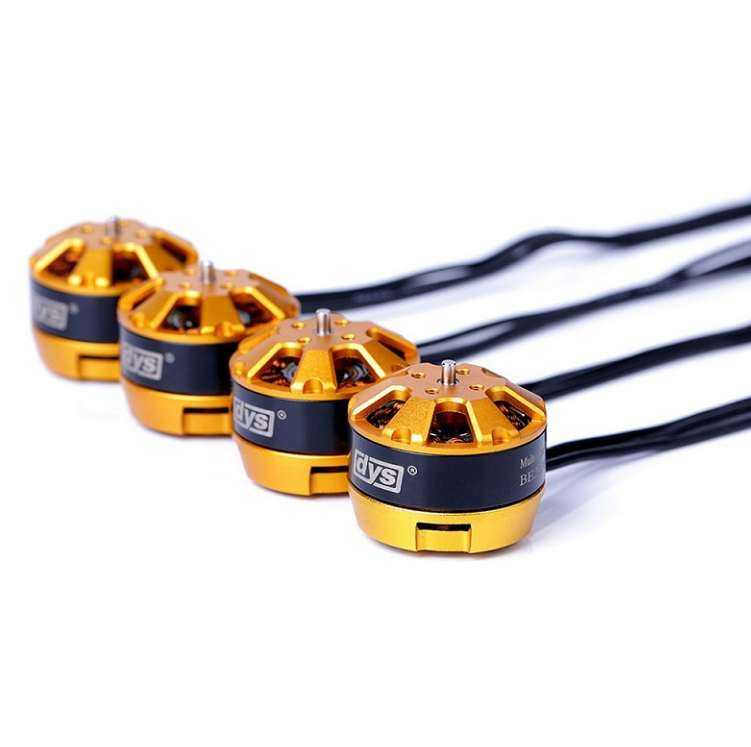

BE2204 Brushless Motors:

• KV: 2400
• Configuration: 12N14P
• Stator Diameter: 22.0mm
• Stator Length: 4.0mm
• Shaft Diameter: 3.0mm
• Motor Dimensions: Φ27×16.5mm
• Weight: 23g
• Cells (Lipo): 3-4S
• Max Continuous Current: 18.9A
• Max Continuous Power: 279.7W
• Internal Resistance: 0.013Ω

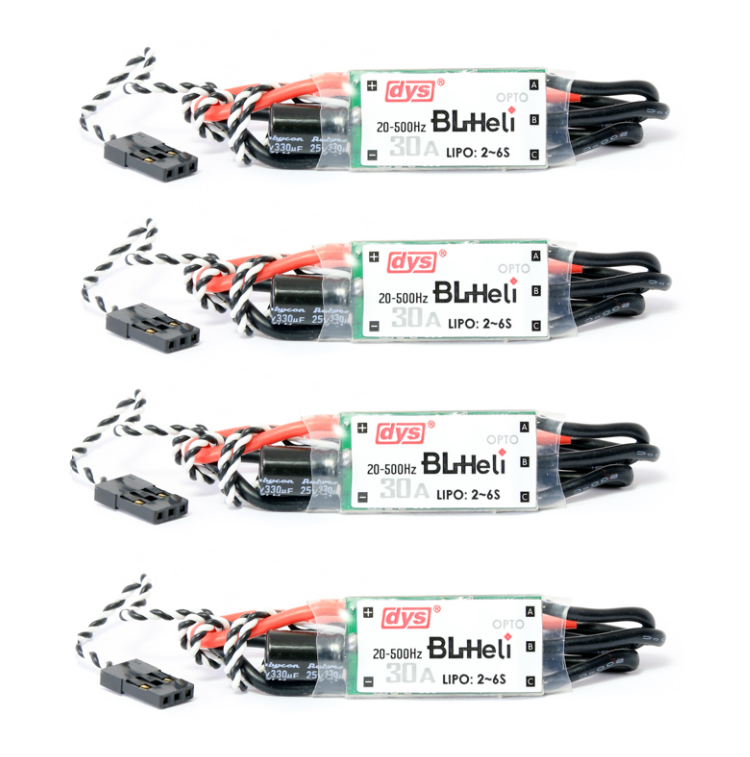

BL30A BLHeli Firmware ESC:

• Model: BL30A / SN30A
• Battery: 6-22.2V (2-6S Lipo)
• Current Rating: 30A / 35A burst
• BEC: No (OPTO)
• Signal Frequency: 20-500Hz
• Output PWM Frequency: 18KHz
• Firmware: BLHeli (also compatible with SimonK)
• Size: 45×16.6×5.5mm
• Weight: 14.5g

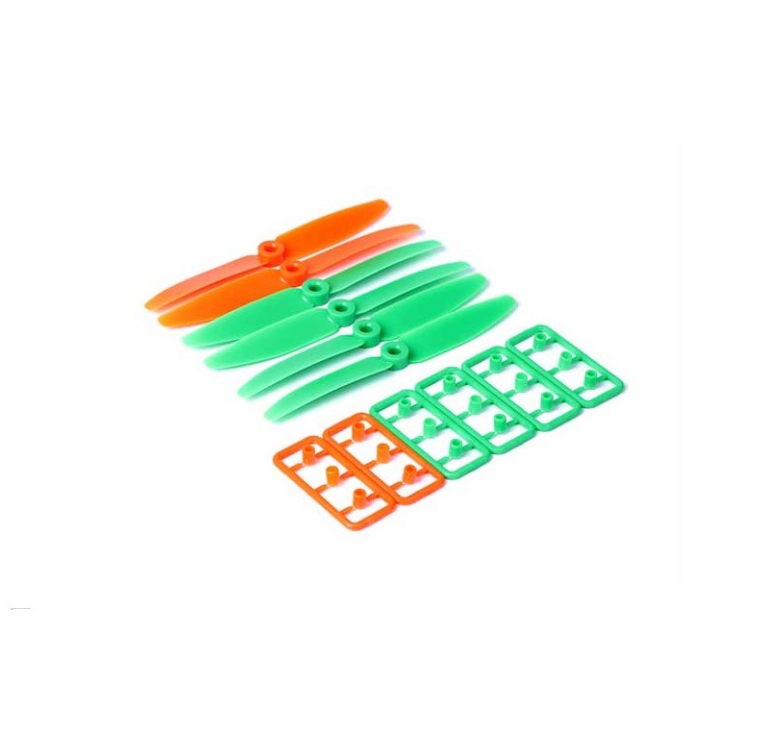

ABS5030 Two-Blade Propellers:

• Material: PC
• Size: 5 x 3 inches
• Hub Inner Diameter (ID): M5
• Hub Thickness: 6.3mm
• Weight: 2.4g/pcs
• Color: Green and Orange
