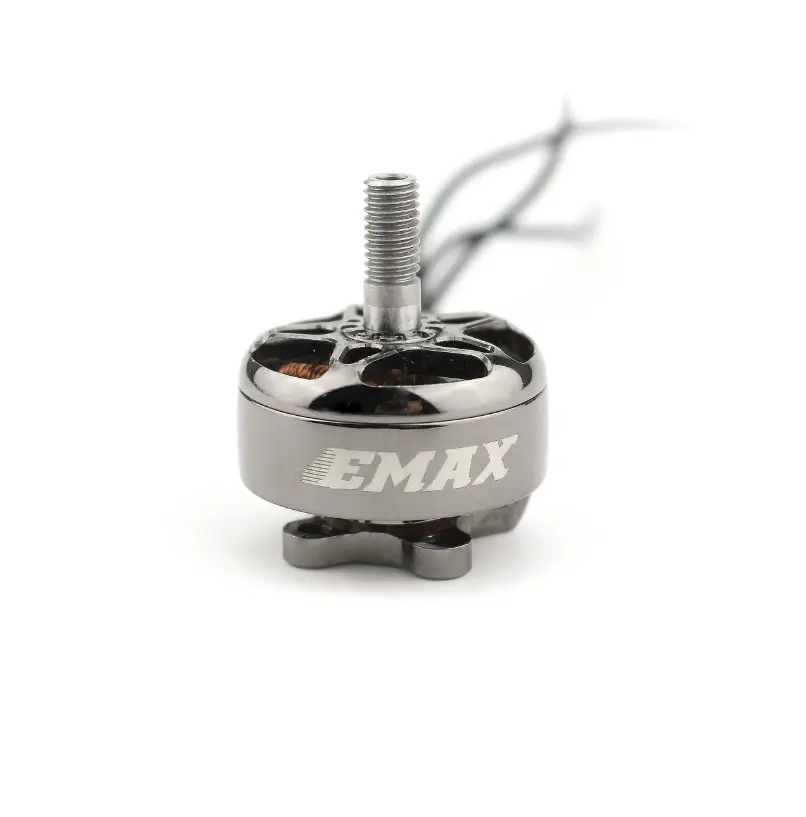

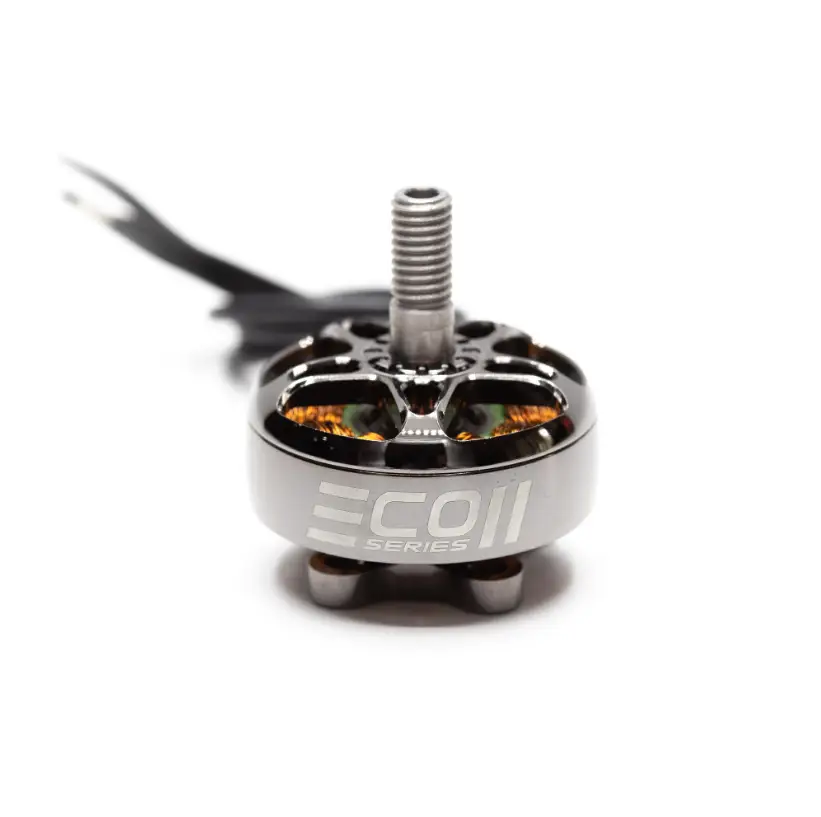

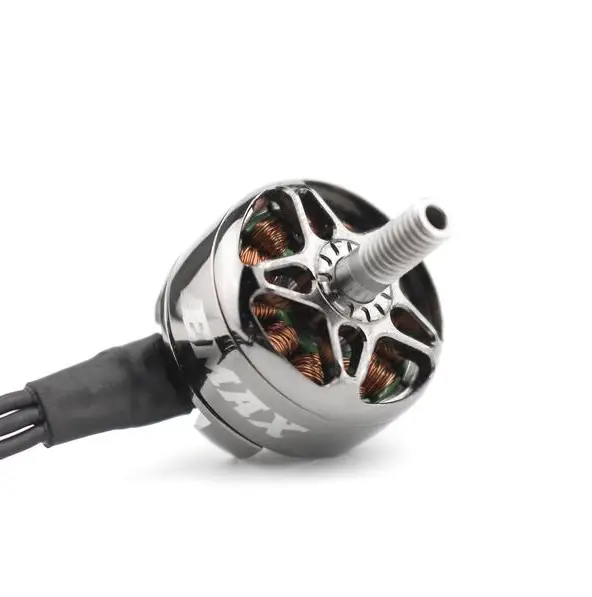

ECO II Series 2207 1700KV Brushless Motor

Description

Introducing the EMAX ECO II 2207 Brushless Motor by LOFTY AGROTECH, the latest evolution in affordable and high-performance brushless motors. The ECO II Series builds upon the success of its predecessor by offering improved performance, enhanced durability, and a sleek modern design that satisfies both functional and aesthetic needs.

The EMAX ECO II is designed with a more rounded motor bell and thicker reinforcements, providing maximum durability. This improved structure allows for higher resistance to crashes and wear while maintaining exceptional flight performance. The motor is finished with a fully mirror-polished surface, making it shine and glisten under even the slightest light, ensuring that your drone will not only perform but look great in the air.

To further enhance its performance, the ECO II is equipped with N52SH curved arc magnets, which provide a tighter airgap and increase overall performance. These upgrades allow for more powerful throttle response and a higher RPM, resulting in better torque and thrust. This makes the EMAX ECO II 2207 Motor ideal for FPV racing or high-performance drone applications, where quick response and power are crucial. The EZO 9mm bearing ensures unparalleled smooth operation and longevity, while the motor’s 10A rated current and 36A peak current make it compatible with a wide range of drone setups.

The ECO II motor is designed to be compatible with 3S to 6S LiPo batteries, allowing for maximum flexibility in your build. Whether you’re looking to race through tight gates or fly for extended periods, this motor can handle it all with ease.

For more details, to explore additional drone motors, and to check out various drone components, [Click here].

---

Features:

• 120mm 20 AWG silicone wire for flexibility and durability.

• Rounded bell design with stronger attachment points for increased motor durability.

• Fully mirror-polished finish for a sleek, modern look.

• Upgraded N52SH curved arc magnets for tighter airgap and enhanced performance.

• EZO 9mm bearing for smooth and quiet operation.

• 16x16mm motor mounting for versatile frame compatibility.

• Capable of 1980g maximum thrust for high-power applications.

• Compatible with 3S to 6S LiPo batteries.

• Rated 10A current, with a peak current of 36A.

---

Package Includes:

• 1 x EMAX ECO II 2207 Motor

• 5 x M3*8 Screws

• 5 x M3*7 Screws

• 5 x M3*6 Screws

• 1 x Aluminum M5 Nylock Nut

• 1 x Washer and Screw for Shaft

---

Specifications:

• Motor Type: Brushless Motor

• Model Name: EMAX ECO II 2207 Motor

• Rated Current (A): 10A

• Peak Current (A): 36A

• Maximum Thrust (gm): 1980

• Shaft Diameter (mm): 4

• Thread Direction: CW (Clockwise)

• Rotation Direction: CCW (Counter Clockwise)

• Framework: 12N14P

• Weight (g): 33.4

• Shipping Weight: 0.054 kg

• Shipping Dimensions: 7 × 3.5 × 4 cm
