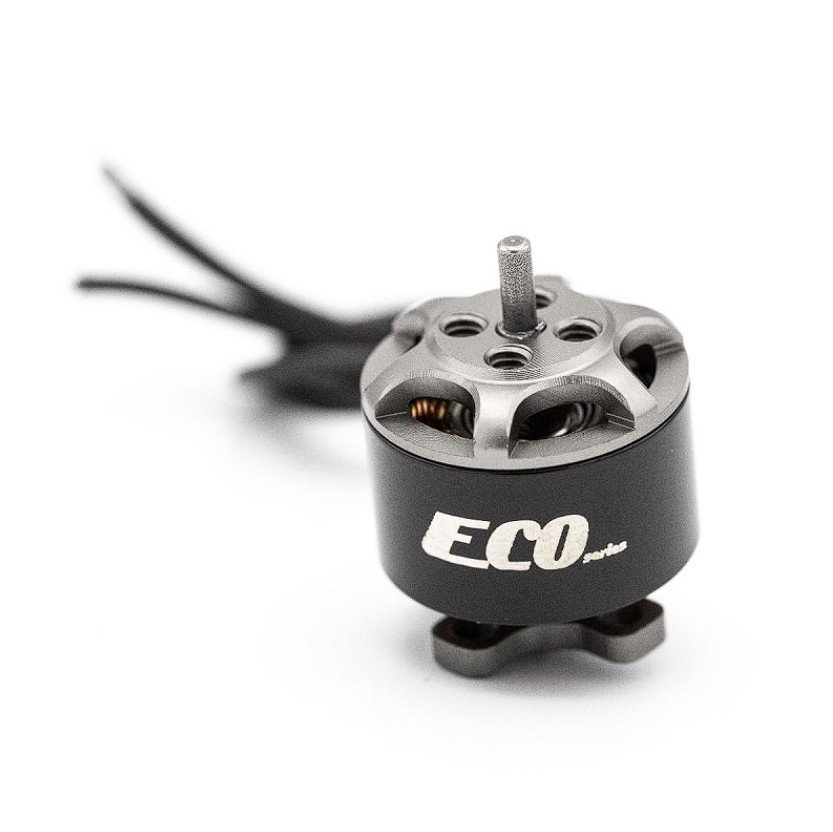

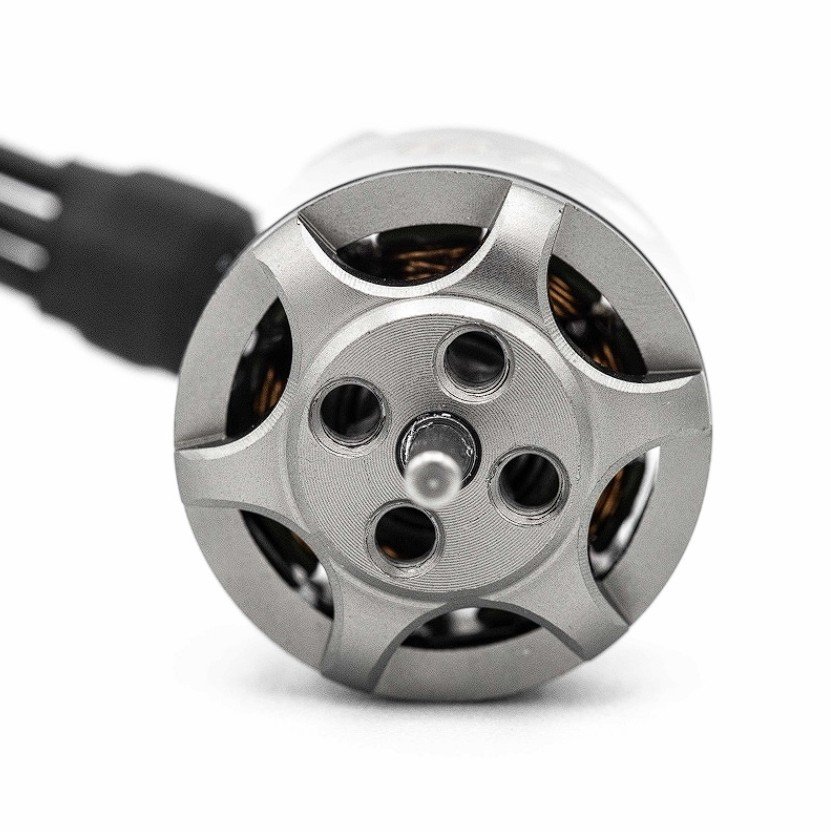

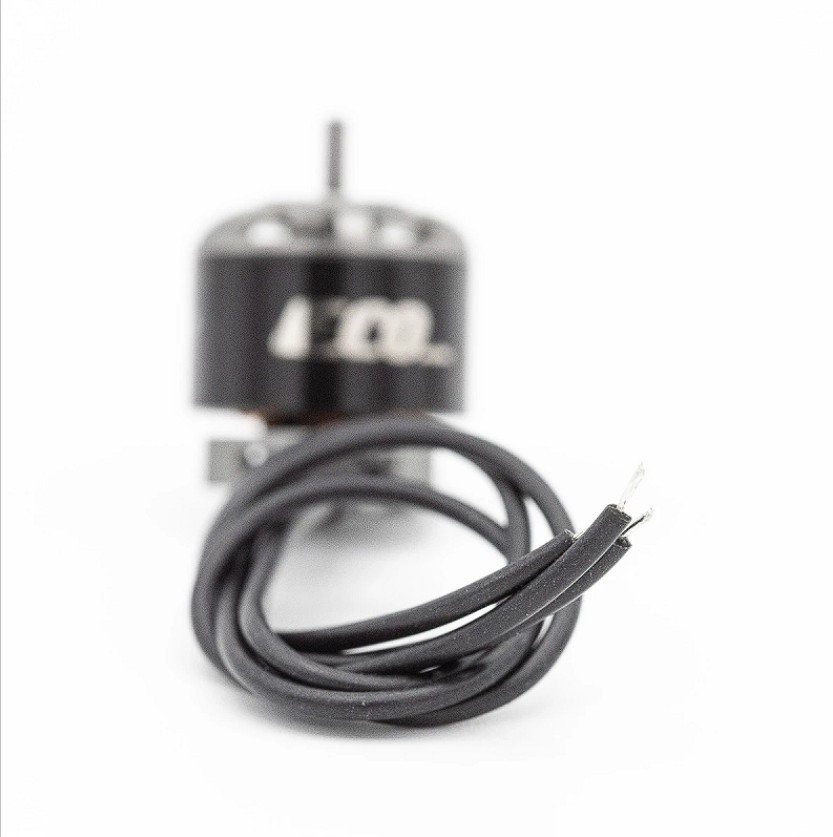

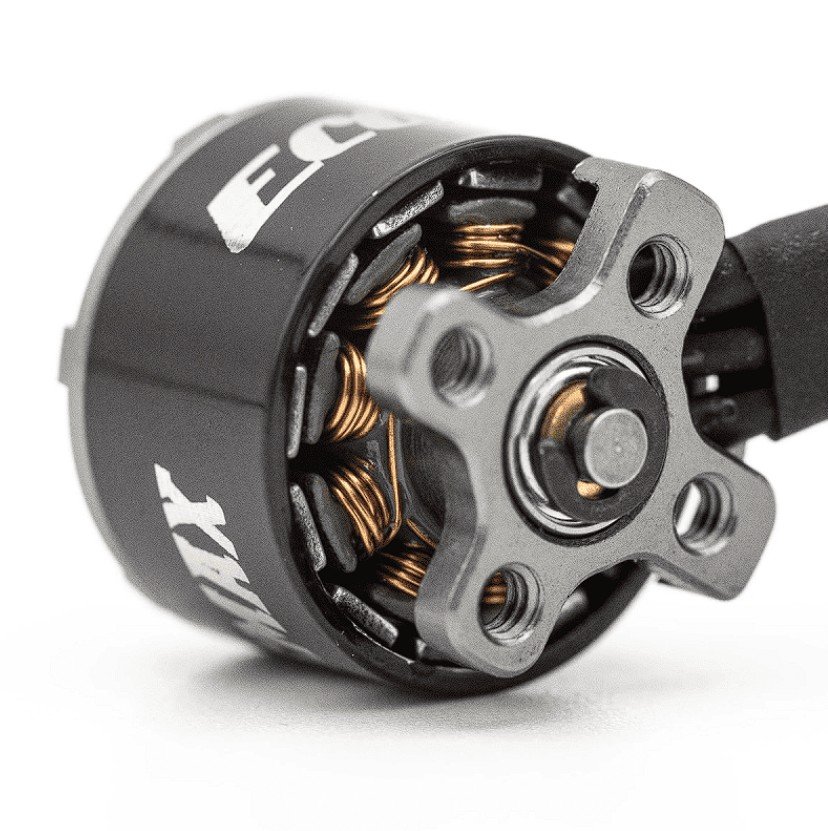

EMAX ECO Micro 1106 2S 6000KV CW Brushless Motor For FPV Racing RC Drone

Description

The EMAX ECO Micro 1106 6000KV CW Brushless Motor, available through NDM BY LOFTY AGROTECH, redefines performance standards in the 2-inch propeller class. This motor is finely tuned for 2S LiPo batteries, offering an incredibly high 6000KV rating that delivers blistering speed in a compact, ultra-lightweight design—perfect for micro FPV drone builds.

What sets the ECO Micro 1106 apart is its 8mm tall stator, delivering strong, instantaneous torque—an uncommon feature in high KV motors. This ensures your drone can achieve rapid acceleration with unmatched responsiveness. The motor is CNC precision-machined, factory balanced, and incorporates premium ball bearings, drastically reducing mechanical vibrations. This results in a smooth and stable flight, allowing your flight controller to operate at peak performance.

A steel motor shaft provides extra durability, and the anodized finish adds both corrosion resistance and style. Built with multi-strand copper windings and equipped with 100mm 26AWG silicone wires, the ECO Micro 1106 is both powerful and efficient—ideal for high-speed racing and agile maneuvering in tight environments.

📦 PACKAGE INCLUDES

• 1 x EMAX ECO Micro 1106 2S 6000KV CW Brushless Motor

• 1 x Set of Fitting Accessories

⚙️ SPECIFICATIONS

• Motor KV: 6000KV

• Motor Type: Brushless

• Compatible Batteries: 2S LiPo

• Framework: 9N12P

• Prop Shaft Diameter: 1.5 mm

• Compatible Prop Size: 2 – 3 inch

• Motor Length: 19.9 mm

• Motor Diameter: 14.2 mm

• Motor Weight: 6.7 g (excluding wires)

• Mounting Pattern: 9×9 mm

• Wire Length: 100 mm, 26AWG silicone

• Shipping Weight: 0.01 kg

• Shipping Dimensions: 14 × 8 × 3 cm
