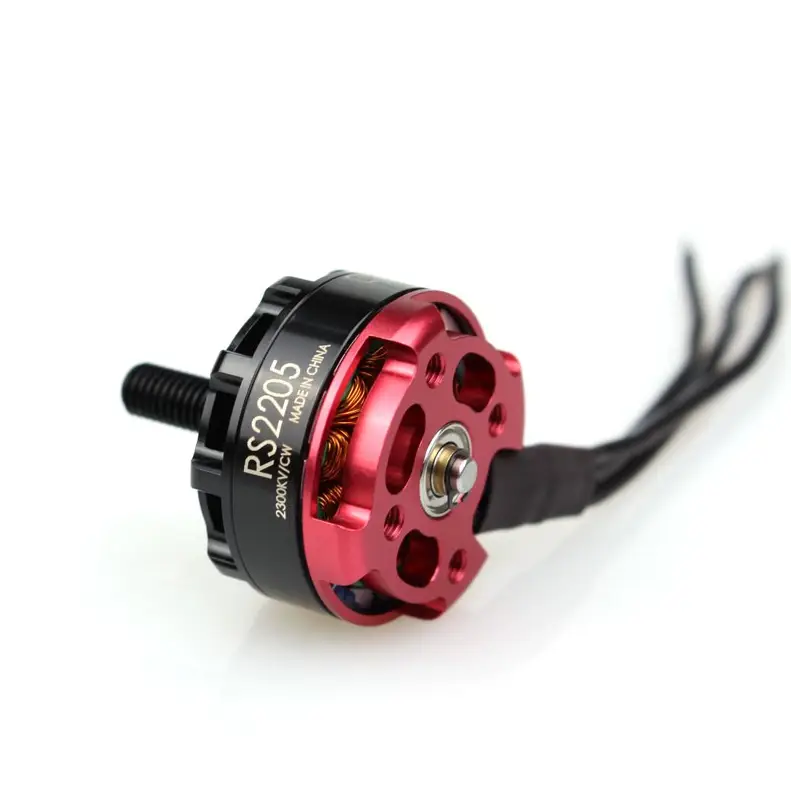

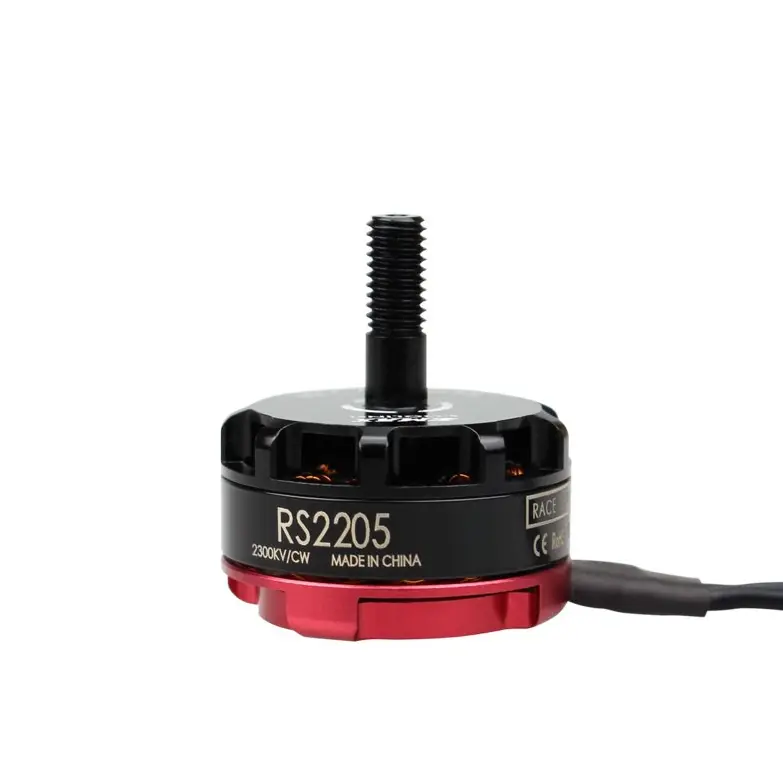

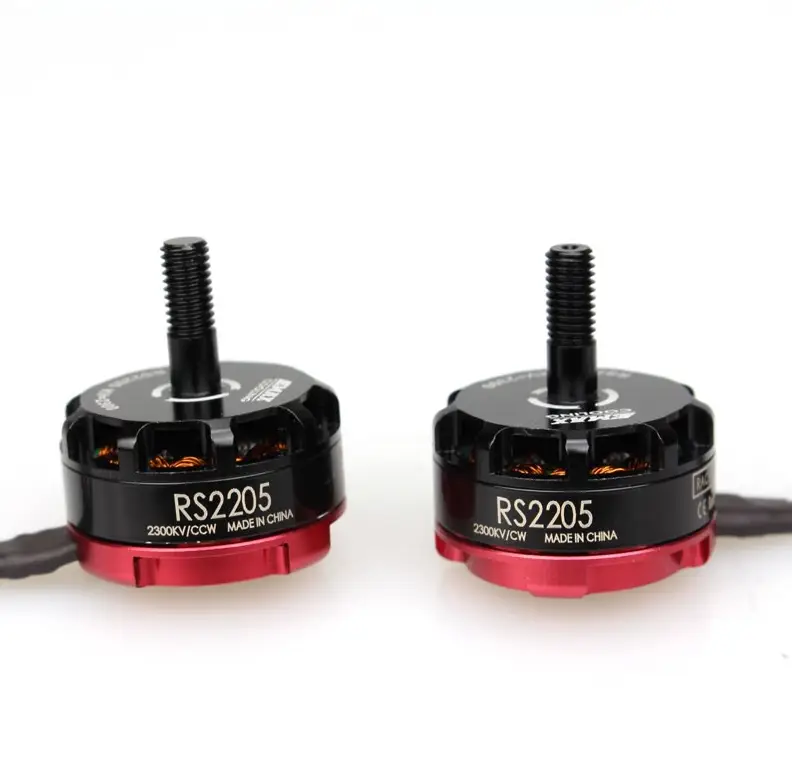

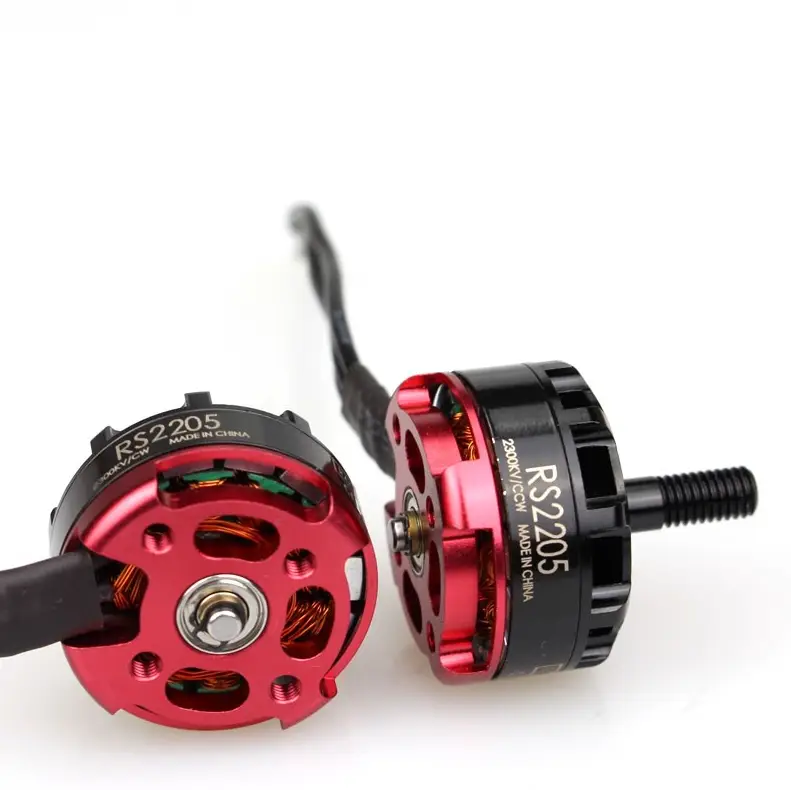

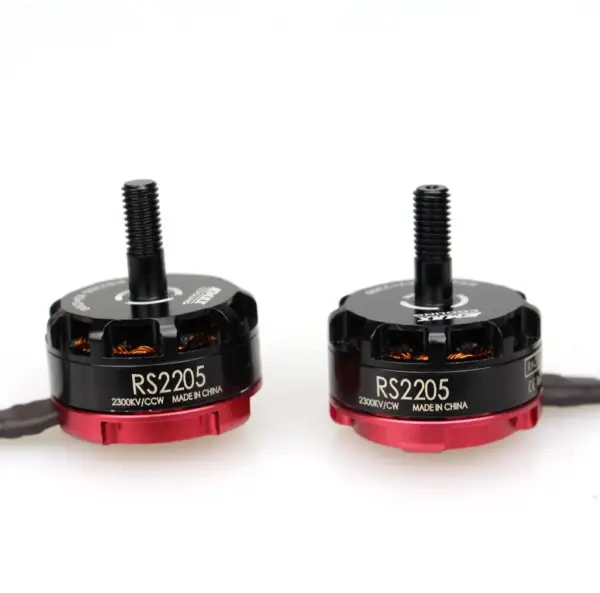

EMAX RS2205 KV2300 Brushless DC Motor for FPV Racing Drone – Red Cap (CCW Motor Rotation)

Description

Introducing the EMAX RS2205 KV2300 Brushless DC Motor for FPV Racing Drones by LOFTY AGROTECH, a high-performance motor designed for the ultimate drone racing experience. EMAX, a leading name in drone motors, brings you this precision-crafted, race-spec motor built with cutting-edge technology and premium materials to deliver outstanding performance in competitive environments.

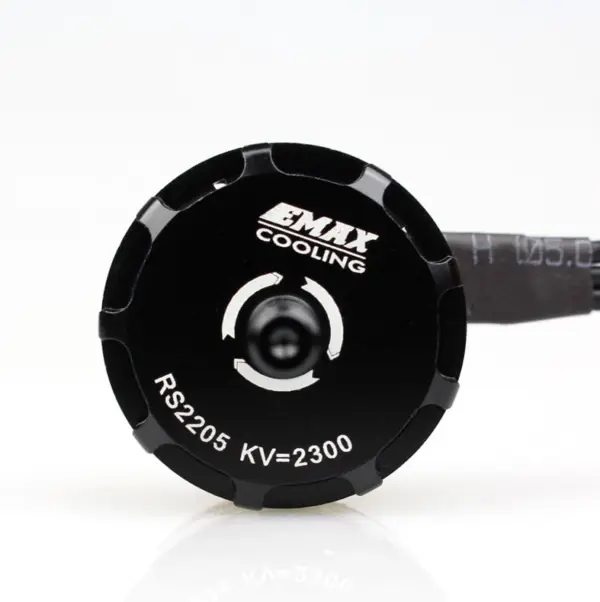

The EMAX RS2205 is engineered with a unique cooling design that reduces the motor temperature by up to 30% during high-speed runs. This efficient cooling system ensures that the motor maintains optimal performance, even during intense drone races. The motor features highest grade N52 neodymium magnets and genuine Japanese NMB bearings, guaranteeing excellent reliability and long-lasting power.

Every motor is dynamically balanced at the factory, ensuring smooth operation and reduced vibrations for enhanced flight stability. Additionally, the motor is equipped with a 15mm extended prop shaft, making it compatible with nearly any propeller with a 5mm hole. The motor also comes with 1 locknut and 2 sets of motor screws to fit 3mm and 4mm thick frames.

Pair the EMAX RS2205 KV2300 with high-performance Orange Propellers and experience unmatched thrust and speed on your FPV racing drone. Whether you’re a professional racer or an enthusiast, this motor provides the reliability and power you need to stay ahead of the competition.

To explore more drone motors, [Click here].

For a wide range of propellers, [Click here].

To explore various ESCs, [Click here].

---

Features:

• Cooling Design reduces motor temperature by up to 30%.

• Built with highest grade N52 Neodymium magnets for maximum efficiency.

• Genuine Japanese NMB Bearings for smooth operation and durability.

• Factory dynamically balanced for superior performance and reduced vibrations.

• 15mm extended prop shaft allows compatibility with propellers having a 5mm hole.

• Includes 1 locknut and 2 sets of motor screws for 3mm and 4mm thick frames.

• Capable of providing up to 1024g thrust with a 4S LiPo battery.

• Compatible with 3S to 4S LiPo batteries.

---

Package Includes:

• 1 x EMAX RS2205 KV2300 Brushless DC Motor for FPV Racing Drone

---

Specifications:

• Motor KV (RPM/V): 2300

• Motor Type: Brushless Motor

• Compatible LiPo Batteries: 3S to 4S

• Model No.: RS2205

• Maximum Thrust (gm): 1024

• Shaft Diameter (mm): 3

• Framework: 12N14P

• Length (mm): 31.7

• Width (mm): 27.9

• Weight (g): 30

• Shipping Weight: 0.033 kg

• Shipping Dimensions: 20 × 5 × 3 cm
