Description

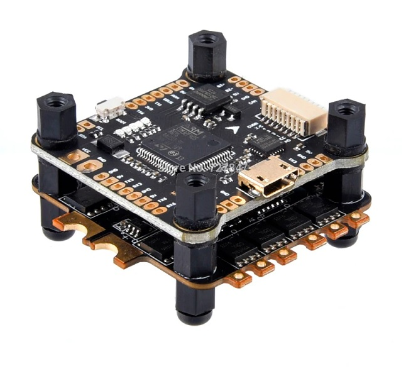

F405 V1.1 Flight Controller 45A 4-in-1 ESC: Ultimate Combo for Drones and Model Planes
The F405 V1.1 Flight Controller 45A 4-in-1 ESC by NDB&C Lofty Agrotech is a high-performance flight control system designed to elevate your drone or model plane’s performance. Combining a powerful flight controller with a reliable Electronic Speed Controller (ESC), this combo kit ensures maximum efficiency, precision, and responsiveness. Ideal for both hobbyists and professional drone pilots, the F405 V1.1 Flight Controller 45A 4-in-1 ESC delivers unmatched stability, control, and versatility in one compact package.
Overview of F405 V1.1 Flight Controller 45A 4-in-1 ESC
The F405 V1.1 Flight Controller 45A 4-in-1 ESC is a meticulously engineered combo that integrates a high-speed flight controller with a 4-in-1 ESC capable of handling 2-6S LiPo batteries. This combination allows drone pilots to experience smooth flights, precise motor control, and optimized energy efficiency.
Unlike separate flight controllers and ESCs, this combo ensures perfect compatibility, eliminating potential configuration issues. Whether you are building a racing drone, a freestyle drone, or a model plane, this kit is designed to simplify installation while maximizing flight performance.
Why Choose the F405 V1.1 Flight Controller 45A 4-in-1 ESC?
The main advantages of the F405 V1.1 Flight Controller 45A 4-in-1 ESC include:
- Seamless Integration: Pre-tested flight controller and ESC compatibility.
- High-Performance Processing: ARM processor ensures rapid calculations for PID loops and sensor data fusion.
- Stable Flight Control: Equipped with MPU6500 sensor for high vibration tolerance and accurate gyro sampling.
- Compact Design: Lightweight and easy to mount on drones or model planes.
- High Current Handling: 45A ESC supports up to 6S LiPo batteries for aggressive maneuvers and powerful thrust.

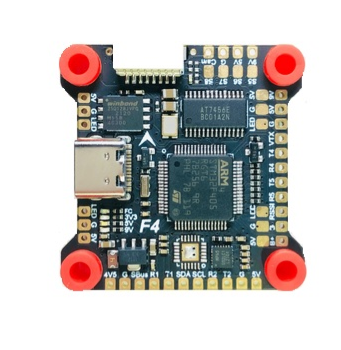

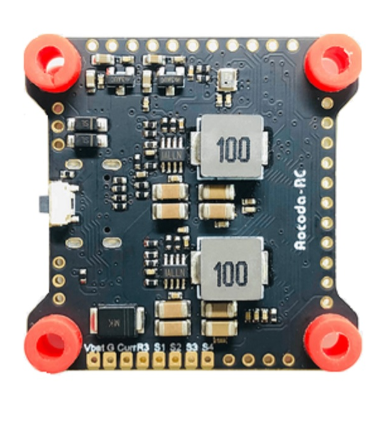

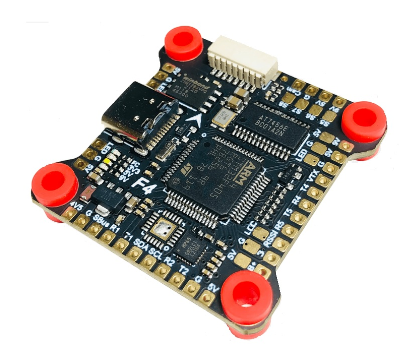

Flight Controller Features in F405 V1.1 Flight Controller 45A 4-in-1 ESC
The flight controller is the brain of any drone, and the F405 V1.1 Flight Controller 45A 4-in-1 ESC is no exception. Its advanced features make it a top choice among professional pilots and enthusiasts alike.
ARM Processor for Superior Performance
The F405 V1.1 Flight Controller 45A 4-in-1 ESC uses a high-speed ARM processor that executes flight control algorithms with remarkable speed. This processor allows for real-time PID loop calculations and sensor fusion, giving your drone responsive control during complex maneuvers.
MPU6500 Sensor Integration
Equipped with the MPU6500 sensor, the flight controller accurately measures acceleration and angular velocity. This sensor provides excellent vibration tolerance and can sample gyroscope data at 8kHz over an SPI interface. It ensures that the F405 V1.1 Flight Controller 45A 4-in-1 ESC maintains stable and smooth flight even under high-speed or turbulent conditions.
Lightweight and Compact Design
The F405 V1.1 Flight Controller 45A 4-in-1 ESC is designed to be lightweight without compromising durability. Its compact size makes installation easier on small drones and model planes, reducing total aircraft weight and improving flight efficiency.

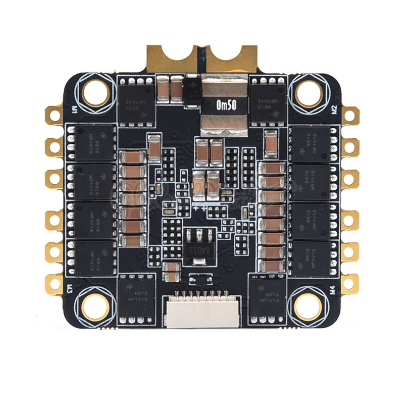

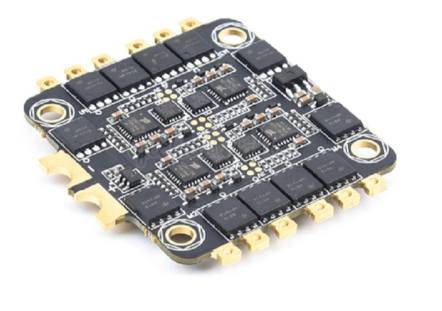

ESC Features in F405 V1.1 Flight Controller 45A 4-in-1 ESC
The Electronic Speed Controller (ESC) is a critical component in any drone, translating flight controller commands into precise motor operation. In the F405 V1.1 Flight Controller 45A 4-in-1 ESC combo, the 45A 2-6S 4-in-1 ESC Flytower ensures consistent, efficient, and high-performance power delivery to all motors. The ESC is designed to handle a wide range of applications, from FPV racing drones to heavy-lift multirotors, making it an essential part of the flight system.
High Current Handling
The 45A ESC in the F405 V1.1 Flight Controller 45A 4-in-1 ESC supports 2-6S LiPo batteries, providing robust power for demanding flight scenarios. Key advantages include:
- Aggressive Maneuvers: The ESC delivers precise bursts of power, enabling sharp turns, flips, and rolls without lag.
- Faster Acceleration: High-current support ensures rapid throttle response, giving FPV racers and freestyle pilots the speed they need.
- Stable Hovering: Even under high load or strong wind conditions, the ESC maintains smooth power output, keeping drones steady.
This high current capability ensures that drones with heavier payloads or larger frames perform reliably without straining the power system.
Efficient Energy Conversion
Efficiency is a key feature of the 4-in-1 ESC, which converts flight controller signals into motor commands with minimal energy loss. Benefits include:
- Extended Flight Times: By reducing energy waste, drones can remain airborne longer, maximizing battery usage.
- Lower Heat Generation: Efficient power conversion reduces heat buildup in the ESC, improving longevity and reliability.
- Optimized Performance: Consistent power delivery allows smooth motor operation, enhancing overall flight stability and control.
This ensures that the F405 V1.1 Flight Controller 45A 4-in-1 ESC performs efficiently even in energy-intensive applications like freestyle tricks or carrying heavy payloads.
Compatibility with F405 Flight Controller
One of the standout features of this combo kit is the pre-matched compatibility between the ESC and flight controller. This offers several advantages:
- Error-Free Setup: Preconfigured communication between the flight controller and ESC reduces installation errors.
- Seamless Integration: Ensures all motor commands are executed accurately, without lag or miscommunication.
- Beginner-Friendly: Even first-time drone builders can install and operate the F405 V1.1 Flight Controller 45A 4-in-1 ESC without complex configurations.
This seamless compatibility makes the combo ideal for both hobbyists and professional pilots, providing reliable and consistent performance out of the box.
Durability and Safety Features
In addition to performance, the ESC in the F405 V1.1 Flight Controller 45A 4-in-1 ESC is designed for durability and safety:
- Short-Circuit Protection: Guards against accidental electrical faults.
- Over-Voltage & Under-Voltage Protection: Prevents damage from improper battery connections.
- High-Temperature Tolerance: Ensures stable operation even during prolonged or demanding flights.
These features make the ESC a reliable partner for the flight controller, ensuring your drone remains safe and operational under various conditions.
Performance Benefits of Using F405 V1.1 Flight Controller 45A 4-in-1 ESC
The F405 V1.1 Flight Controller 45A 4-in-1 ESC combines a high-speed ARM-based flight controller with a powerful 4-in-1 ESC, offering unmatched performance for drones and model planes. This synergy provides pilots with precise control, reliable motor response, and enhanced efficiency, making it suitable for a variety of applications, from high-speed FPV racing to heavy-lift multirotor operations.
Enhanced Stability
One of the most significant advantages of the F405 V1.1 Flight Controller 45A 4-in-1 ESC is its ability to maintain stable flight under a wide range of conditions. The flight controller continuously receives real-time data from the MPU6500 sensor and calculates the optimal motor speeds. This ensures:
- Smooth and steady flight even during aggressive maneuvers.
- Accurate motor adjustments to counteract wind, turbulence, or payload imbalance.
- Reliable hovering and positioning, making it ideal for photography drones and precision applications.
Pilots can confidently perform complex maneuvers without worrying about instability.
Responsive Controls
The ARM processor in the F405 V1.1 Flight Controller 45A 4-in-1 ESC enables ultra-fast processing of sensor data, translating pilot inputs into immediate motor responses. This results in:
- Agile and precise maneuverability for racing or freestyle drones.
- Quick reaction times during sudden altitude or directional changes.
- Seamless integration with ESCs to deliver smooth, coordinated thrust.
Whether performing flips, sharp turns, or obstacle course racing, pilots experience unparalleled responsiveness.
Longer Flight Times
Efficiency is a key factor in drone performance, and the F405 V1.1 Flight Controller 45A 4-in-1 ESC is designed to minimize energy loss. The 4-in-1 ESC efficiently converts flight controller commands into motor power, reducing battery drain and heat generation. Benefits include:
- Extended flight durations, ideal for long FPV sessions or aerial photography.
- Reduced strain on batteries, improving lifespan and reliability.
- Optimized power distribution for even the most energy-demanding drones.
This makes it a practical choice for both casual pilots and professional drone operators.
High Payload Handling
The 45A ESC is capable of delivering high current to all motors, enabling drones to lift heavier payloads without compromising stability or flight quality. The F405 V1.1 Flight Controller 45A 4-in-1 ESC is therefore suitable for:
- Heavy-lift multirotors used in aerial filming or survey missions.
- Payload delivery drones in industrial applications.
- Drones carrying additional sensors, cameras, or equipment.
The precise control and stable motor output ensure the aircraft remains balanced even under maximum load.
Versatility Across Applications
The F405 V1.1 Flight Controller 45A 4-in-1 ESC is designed to work efficiently across a wide range of drone types, offering versatility for multiple applications:
- FPV Racing Drones: Fast, responsive, and stable for competitive racing.
- Freestyle Drones: Supports aerial tricks and acrobatics with precise control.
- Model Planes: Provides smooth, accurate flight control for hobbyist or educational models.
- Heavy-Lift Multirotors: Handles weighty payloads while maintaining flight stability.
Its adaptability makes it a one-stop solution for both beginner and professional drone pilots.
Flight Accuracy and Reliability
The combination of the MPU6500 sensor and ARM processor allows the F405 V1.1 Flight Controller 45A 4-in-1 ESC to achieve up to 95% flight accuracy. This ensures:
- Predictable and controlled responses to pilot commands.
- Stable orientation even in high-speed maneuvers or turbulent conditions.
- Consistent performance across multiple flights, reducing calibration needs.
Pilots benefit from confidence in their aircraft, knowing it will respond reliably to every input.
Reduced Vibration Impact
Vibration is a major challenge for drones, as it can affect sensor readings and destabilize flight. The F405 V1.1 Flight Controller 45A 4-in-1 ESC tackles this issue through:
- High vibration tolerance of the MPU6500 sensor, ensuring gyro and accelerometer data remains accurate.
- Steady orientation and smooth motor response, even with minor propeller imbalance.
- Reliable performance on rough terrain or outdoor environments, allowing safer and more stable flights.
This feature is especially valuable for FPV racing drones, freestyle acrobatics, and heavy-lift operations where vibrations are more pronounced.
Installation and Connection Guide
Installing the F405 V1.1 Flight Controller 45A 4-in-1 ESC is designed to be simple and user-friendly. Thanks to its lightweight, compact design, both the flight controller and ESC can be integrated seamlessly into drones or model planes. Proper installation ensures optimal performance, stable flight, and long-term reliability.
Wiring and Connection
Follow these steps to connect your F405 V1.1 Flight Controller 45A 4-in-1 ESC:
- Connect the Flight Controller to the ESC: Use the included connectors to link the flight controller to the 4-in-1 ESC. This ensures synchronized communication for precise motor control.
- Attach Motors to ESC Outputs: Connect your brushless motors to the respective ESC outputs. Ensure wires are securely fastened to prevent disconnections during flight.
- Connect the Power Source: Attach a compatible 2-6S LiPo battery to the ESC’s power input. This range allows flexibility depending on your drone or model plane setup.
- Secure the Components: Use the provided screw pack to firmly mount both the flight controller and ESC onto your drone or model plane frame. A secure mounting minimizes vibration and enhances stability.
- Calibrate ESC and Sensors: Before the first flight, perform ESC calibration and sensor calibration. This ensures all motors operate at the correct speed and the flight controller accurately reads orientation and movement.
Following these steps guarantees that the F405 V1.1 Flight Controller 45A 4-in-1 ESC will function reliably and efficiently from the first flight.
Notes on Installation
To maximize performance and safety while installing the F405 V1.1 Flight Controller 45A 4-in-1 ESC, keep the following points in mind:
- Vibration-Damping Surface: Mount the flight controller on a vibration-damping material to reduce the impact of motor vibrations on sensor readings.
- Correct Polarity: Always ensure correct polarity when connecting the ESC and power source. Reversing connections can damage the ESC or flight controller.
- Design and Color Variations: The product may differ slightly from images in terms of color or design. The damper shown in some product images is not included in the package.
- Safety First: Double-check all connections before powering on. Ensure screws are tight, wires are insulated, and nothing is loose that could interfere with flight.
Proper installation and adherence to these guidelines ensure your F405 V1.1 Flight Controller 45A 4-in-1 ESC delivers optimal performance, stability, and longevity.

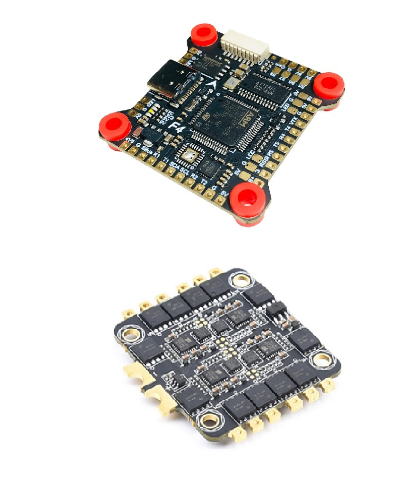

Package Includes
Each F405 V1.1 Flight Controller 45A 4-in-1 ESC kit comes complete with all necessary components for easy setup and immediate use:
- 1 x F405 V1.1 Flight Controller – High-performance ARM-based flight controller with MPU6500 sensor for stable, responsive flight.
- 1 x 45A 2-6S 4-in-1 ESC Flytower (MPU6500) – Efficient ESC providing smooth power distribution to motors.
- 1 x Screw Pack – Includes screws and fasteners for secure mounting of the flight controller and ESC.
This comprehensive package ensures that you have everything needed for a smooth installation and high-performance flight experience.
Technical Specifications of F405 V1.1 Flight Controller 45A 4-in-1 ESC
The F405 V1.1 Flight Controller 45A 4-in-1 ESC is designed with precision engineering to ensure maximum performance, reliability, and compatibility for drones and model planes. Below are the detailed technical specifications:
Item Type
- Flight Controller Combo Kit – This product includes both the F405 V1.1 Flight Controller and the 45A 4-in-1 ESC, providing a fully integrated solution for drone control and motor management.
Power Port
- 1 C-Type Power Port – Simplifies power connections and ensures stable energy delivery from your LiPo battery to both the flight controller and ESC. This type of port is widely compatible and allows for quick and secure connections.
ESC Current Rating
- 45A Continuous Current Rating – The 4-in-1 ESC can handle up to 45 amps per motor channel, providing sufficient power for high-speed maneuvers, heavy-lift operations, and aggressive racing drones.
- High Burst Capacity – Capable of short bursts of higher current without overheating, ensuring stable performance even under heavy loads.
Battery Compatibility
- 2-6S LiPo Support – The ESC supports a wide range of LiPo battery configurations, making it versatile for different drone types:
- 2S and 3S: Ideal for lightweight drones and model planes.
- 4S to 6S: Perfect for high-performance FPV racing drones, heavy-lift multirotors, and freestyle drones.
- Voltage Protection – Integrated safeguards protect against over-voltage, under-voltage, and short circuits, extending the lifespan of both the battery and the ESC.
Flight Controller Performance
- ARM Processor – Handles real-time PID calculations, sensor fusion, and motor commands efficiently.
- MPU6500 Sensor – Provides precise gyro and accelerometer data at 8kHz sampling rate for smooth and stable flight control.
- Compact and Lightweight Design – Minimizes the overall weight on your drone, improving agility, flight time, and maneuverability.
Physical Specifications
- Shipping Weight: 0.026 kg – Ultra-lightweight for easy integration into small or medium-sized drones.
- Shipping Dimensions: 13 × 8 × 3 cm – Compact packaging makes it easy to transport and store.
Additional Features
- Pre-Matched FC and ESC – Ensures perfect communication between the flight controller and ESC out of the box.
- Durability – Designed to withstand vibrations, shocks, and temperature variations during flight.
- Ease of Installation – Comes with a screw pack and simple connection layout for fast setup.
Ideal Use Cases of F405 V1.1 Flight Controller 45A 4-in-1 ESC
The F405 V1.1 Flight Controller 45A 4-in-1 ESC is a versatile and high-performance flight control system suitable for a wide range of aerial applications. Its combination of a powerful ARM-based flight controller, MPU6500 sensor, and 4-in-1 ESC makes it ideal for drones and model planes that require precision, stability, and responsive controls. Below are the detailed use cases:
FPV Racing Drones
FPV (First Person View) racing drones demand fast response times, agile maneuvering, and precise control to navigate complex courses at high speeds. The F405 V1.1 Flight Controller 45A 4-in-1 ESC excels in this application due to:
- Rapid PID Loop Calculations: The ARM processor ensures instantaneous response to pilot input, allowing sharp turns and aggressive maneuvers.
- Stable Flight in Turbulence: The MPU6500 sensor provides excellent vibration tolerance, maintaining flight stability even during high-speed racing.
- Efficient ESC Performance: The 45A 4-in-1 ESC delivers consistent power to all motors, preventing lag or stutter during high throttle demands.
Whether racing competitively or practicing freestyle moves, this combo ensures top-tier performance.
Freestyle Drones
Freestyle drones are built for aerobatic maneuvers, flips, rolls, and other aerial stunts. The F405 V1.1 Flight Controller 45A 4-in-1 ESC is perfect for this use because:
- Responsive Controls: High-speed processing and precise motor control allow smooth execution of complex tricks.
- Vibration Resistance: Even during intense flips and spins, the MPU6500 sensor maintains stable orientation.
- Compact Design: Lightweight design minimizes overall drone weight, improving agility and maneuverability.
Pilots can perform advanced aerial stunts with confidence, knowing their flight controller and ESC are handling the commands accurately.
Model Planes
For hobbyists and model aircraft enthusiasts, maintaining stability and smooth flight is crucial. The F405 V1.1 Flight Controller 45A 4-in-1 ESC enhances model plane performance by:
- Precise Motor Control: Ensures accurate speed adjustments for takeoff, hover, and landing.
- Integrated Flight Stabilization: Keeps the plane steady, even in wind or minor turbulence.
- Compatibility: Works seamlessly with brushless motors used in model planes, simplifying setup and calibration.
This makes it an excellent choice for both beginners and experienced model plane pilots.
Heavy-lift Multirotors
Heavy-lift drones require strong and consistent power delivery to lift cameras, sensors, or payloads. The F405 V1.1 Flight Controller 45A 4-in-1 ESC is ideal for these multirotors due to:
- High Current Handling: 45A ESC supports up to 6S LiPo batteries, ensuring powerful thrust.
- Balanced Motor Distribution: The flight controller distributes power accurately to all motors for stable lifting.
- Durability: Reliable components withstand the stress of heavy payloads without compromising flight control.
Professional photographers, surveyors, or industrial drone operators can rely on this combo for stable, long-duration flights.
Hobbyist and Professional Drone Projects
The F405 V1.1 Flight Controller 45A 4-in-1 ESC is perfect for both hobbyists experimenting with custom builds and professional pilots developing advanced drones. Benefits include:
- Versatility: Supports multiple drone configurations, from quadcopters to hexacopters.
- Ease of Setup: Pre-matched FC and ESC reduce configuration complexity, saving time for projects.
- Reliable Performance: Ensures smooth flights in recreational, research, or professional applications.
This makes it an all-in-one solution for a variety of drone projects, offering both performance and reliability.
Why NDB&C by Lofty Agrotech?
Choosing the F405 V1.1 Flight Controller 45A 4-in-1 ESC from NDB&C by Lofty Agrotech ensures you receive high-quality, tested, and reliable products. The brand focuses on performance, durability, and value for drone enthusiasts and professional pilots alike.
Superior Support and Documentation
NDB&C by Lofty Agrotech provides detailed manuals, installation guides, and technical support to ensure you can maximize the capabilities of the F405 V1.1 Flight Controller 45A 4-in-1 ESC.
Trusted Quality
All components are rigorously tested for vibration tolerance, heat resistance, and long-term reliability, giving pilots confidence in every flight.
Conclusion
The F405 V1.1 Flight Controller 45A 4-in-1 ESC is a complete, high-performance flight solution. With its ARM-powered flight controller, MPU6500 sensor, and efficient 4-in-1 ESC, it provides unmatched stability, precise control, and long-lasting reliability. Whether you are a beginner or a professional pilot, this combo kit simplifies setup and maximizes flight efficiency.
For anyone looking for a robust, versatile, and budget-friendly flight control system, the F405 V1.1 Flight Controller 45A 4-in-1 ESC from NDB&C by Lofty Agrotech is the ultimate choice.
Link
In stock now. Limited quantities available. Ships within 24 hours.
LOOKING FOR MORE? DISCOVER EVERYTHING WITH OFFER AT http://www.loftyagrotech.com
Explore more in our camera drone collection and find the right aerial companion.
Before flying, ensure you’re compliant with India’s drone regulations (DGCA DigitalSky Portal).
Reviews
There are no reviews yet.
