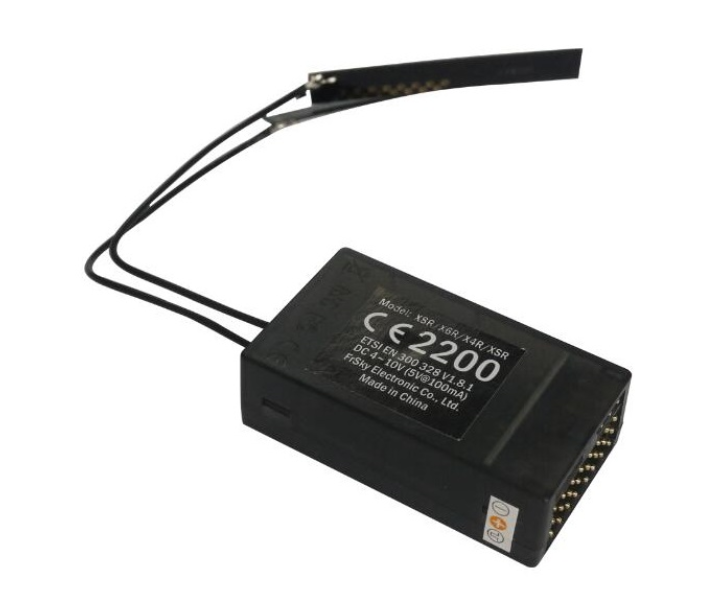

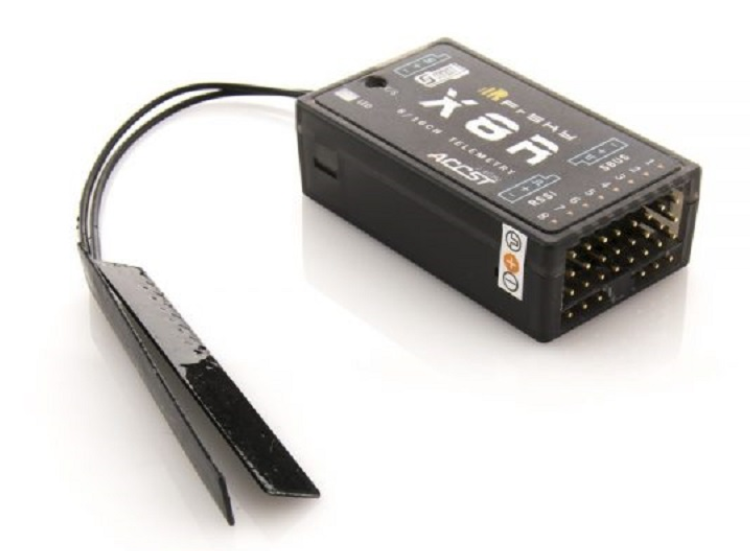

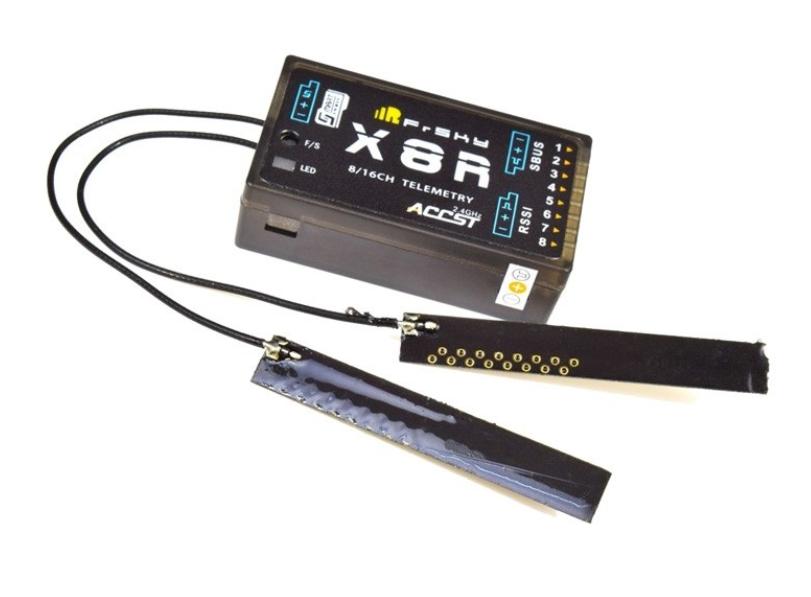

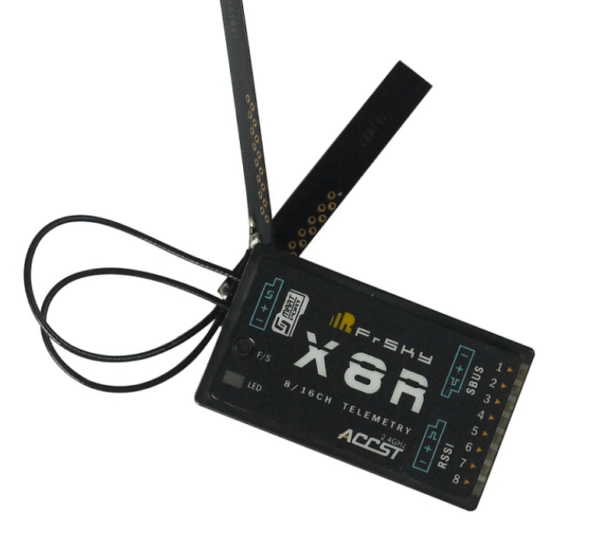

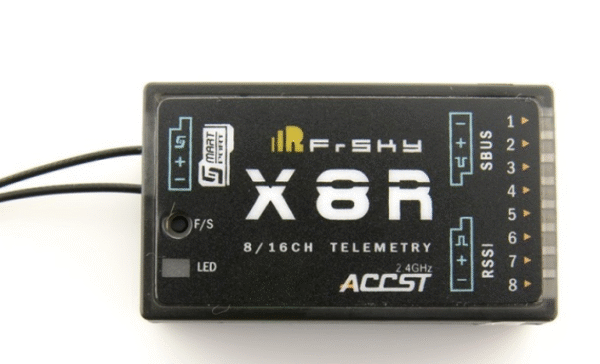

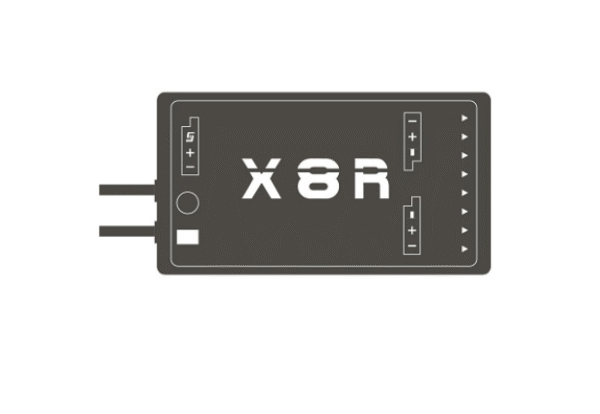

FrSky X8R 8/16ch Full Duplex Telemetry Receiver

  • Supports up to 16 channels via SBUS and 8 channels via PWM outputs

  • SmartPort enabled for two-way full-duplex telemetry communication

  • RSSI PWM output (0~3.3V) for signal strength monitoring

  • Compact size: 46.5mm x 27mm x 14.4mm; Weight: 16.8g

  • Operating voltage: 4V–10V; Current consumption: 100mA@5V

  • Operating range: >1.5km

  • Compatible with FrSky Taranis and XJT modules in D16 mode; DJT, DFT, DHT, and DHT-U modules in D8 mode

SKU: 953918 Categories: , Tags: , , , , , , , , , ,

Description

Introducing the FrSky X8R 8/16CH Full Duplex Telemetry Receiver, now available at LOFTY AGROTECH. This advanced receiver offers robust performance and versatility for RC enthusiasts and professionals alike. With support for up to 16 channels via SBUS and 8 channels through conventional PWM outputs, the X8R ensures seamless integration with various flight control systems.

Equipped with SmartPort technology, the X8R enables two-way full-duplex communication, allowing for real-time telemetry data transmission. The RSSI PWM output (0~3.3V) provides signal strength feedback, enhancing flight reliability. Its compact design, measuring 46.5mm x 27mm x 14.4mm and weighing just 16.8g, makes it suitable for a wide range of aircraft sizes.

The X8R operates within a voltage range of 4V to 10V and consumes 100mA at 5V, ensuring efficient power usage. With an operating range exceeding 1.5km, it offers dependable long-distance control. The receiver is compatible with FrSky Taranis and XJT modules in D16 mode for full 16-channel operation, and with DJT, DFT, DHT, and DHT-U modules in D8 mode for 8-channel setups.

For more details and to purchase, click here.
