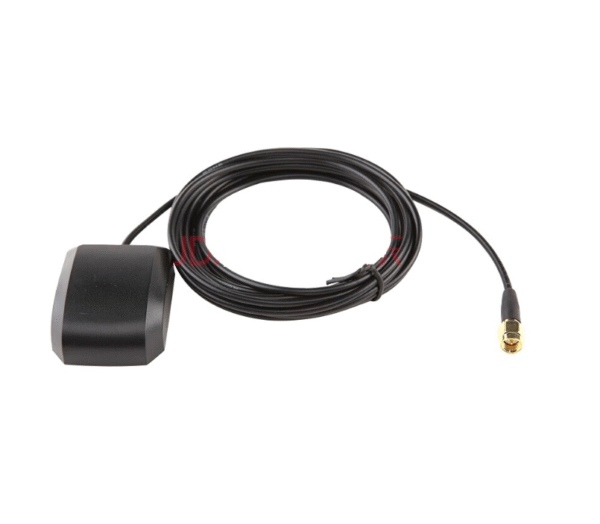

GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable

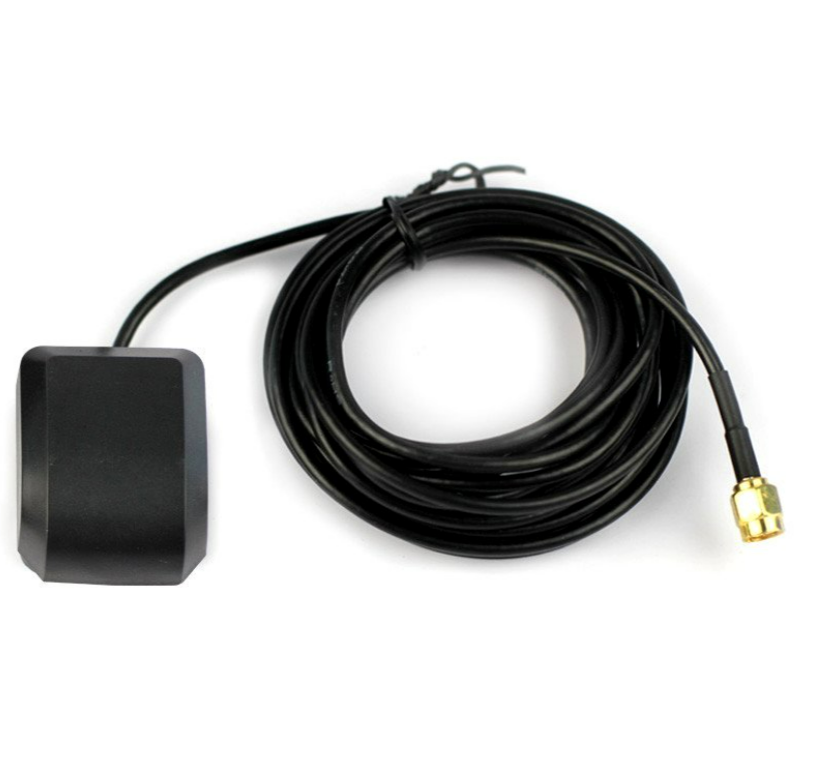

GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 2

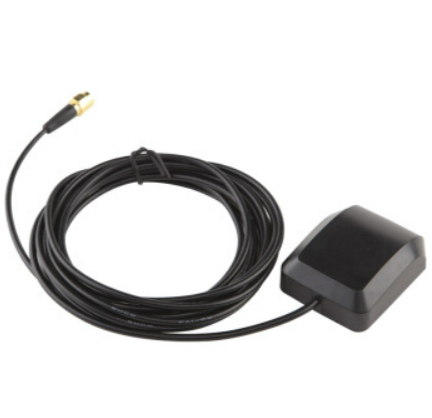

GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 3

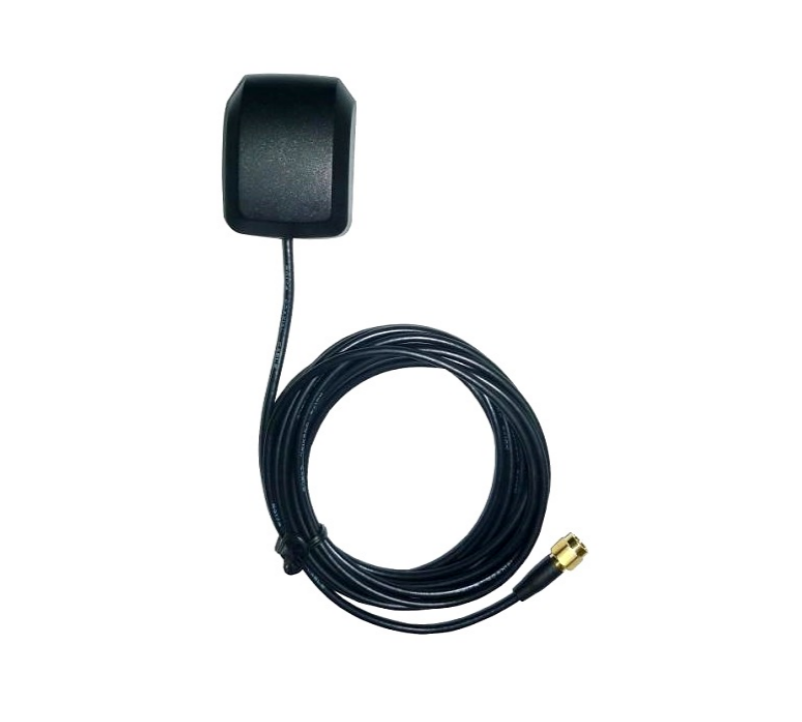

GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 4

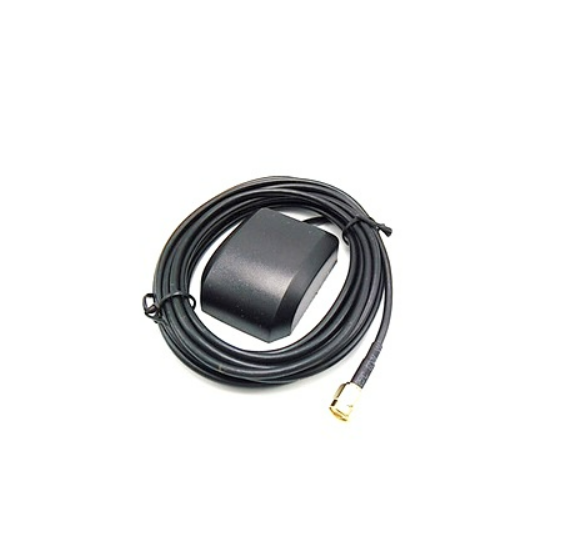

GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 5

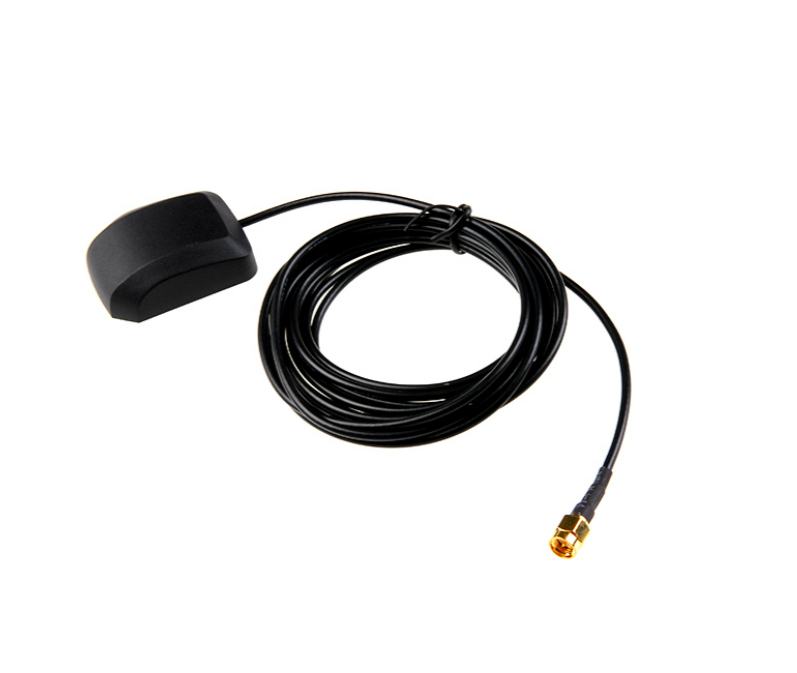

GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 6
GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 7
  1. GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable
  2. GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 2
  3. GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 3
  4. GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 4
  5. GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 5
  6. GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 6
  7. GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable - Image 7

GPS/GLONASS GNSS Antenna for Raspberry Pi HAT and Arduino Shield with 3 Meter Cable

Original price was: ₹298.00.Current price is: ₹251.00.

  • Compact GPS/GLONASS GNSS Antenna with 3m Cable

  • Compatible with Raspberry Pi HAT, Arduino Shield

  • SMA Male Connector with 50 Ohm Impedance

  • Omni-directional, high-accuracy signal reception

  • IP67 Waterproof, Magnetic base for mounting

  • Internal SAW filter & LNA preamplifier for signal clarity

Product Code: NDGM09 Categories: , Tags: , , , , , ,

Description

The LOFTY AGROTECH GPS/GLONASS GNSS Antenna is a compact, high-performance solution designed to provide enhanced positioning accuracy by receiving signals from both GPS and GLONASS satellite systems. Its small form factor makes it ideal for space-constrained installations, including robotics, autonomous vehicles, IoT systems, and indoor GPS applications.

With a built-in 3-meter low-loss cable and SMA male connector, this antenna is a perfect companion for Raspberry Pi HATs, Arduino GPS shields, and other embedded GNSS systems. The magnetic base allows for temporary attachment to metal surfaces, while a flat bottom can be secured with double-sided tape for permanent installations.

The antenna’s IP67-rated waterproof enclosure ensures reliable outdoor use, while its internal SAW filter and preamplifier prevent burnouts and maintain clean signals, even in crowded RF environments.

Specifications :

Specification Details
Item Type GNSS Antenna
Supported Systems GPS, GLONASS
Connector Type SMA Male
Operating Voltage (VDC) 3 ~ 7 V
Max Operating Current 15 mA
Frequency Range 824–894 MHz, 1710–1880 MHz
VSWR 0.084
Impedance 50 Ohms
Peak Gain 2 dBi (at 900 MHz & 1800 MHz)
Polarization Linear, Omni-directional
Noise Figure 1.5 dB
Cable Length 3 meters
Enclosure Protection IP67 Rated (Waterproof & UV Resistant)
Mount Type Magnetic base + flat bottom (for tape mount)
Color Black
Weight 60 g
Shipping Weight 0.1 kg
Shipping Dimensions 12 × 8 × 4 cm

Package Includes:

  • 1 x GPS/GLONASS GNSS Antenna with 3m Cable (SMA Connector)
