Description

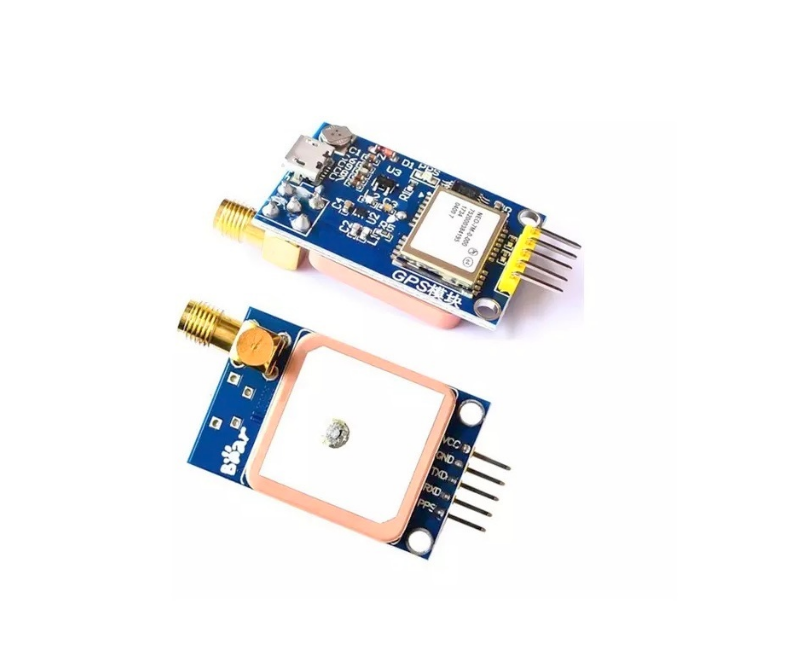

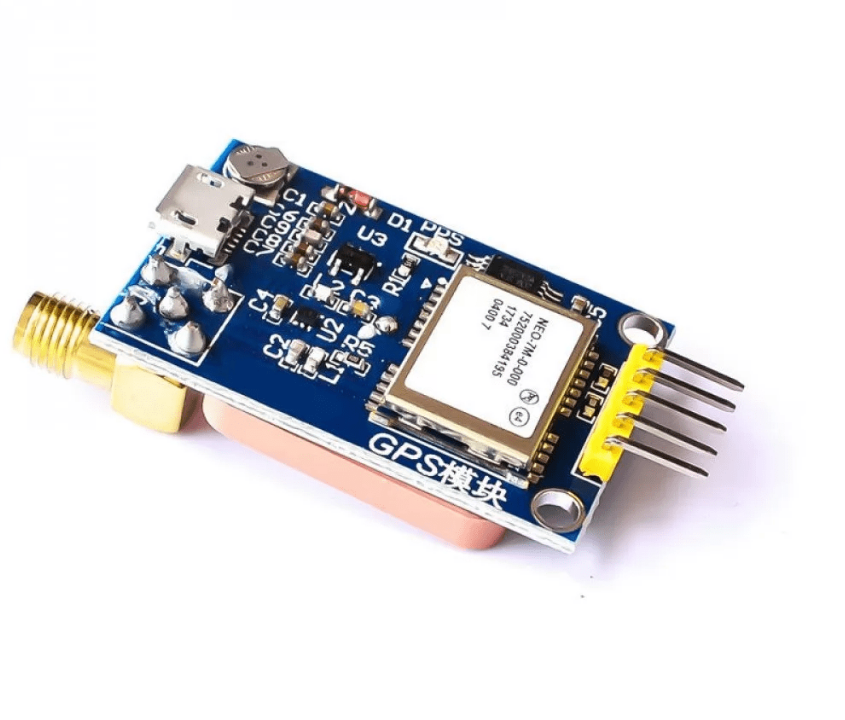

The GPS NEO-7M Satellite Positioning Module from LOFTY AGROTECH is a compact and reliable satellite positioning board, ideal for embedded systems and Arduino/STM32/51 microcontroller projects. It features an on-board ceramic antenna that enables fast satellite acquisition in open environments without the need for an external antenna. For enhanced performance, it also includes a welded SMA connector, allowing the addition of an external antenna to improve GPS reception strength.
With built-in FLASH memory, the module retains configuration settings even after power is removed—no external EEPROM is needed. It supports NMEA standard protocol output and offers both a micro USB interface for easy debugging and a reserved serial port interface for integration with external MCUs or USB-to-serial converters. A signal indicator LED visually confirms GPS data reception.
Whether you’re building GPS tracking, mapping, or robotic navigation applications, this module offers a seamless and efficient solution.
Click here to explore the GPS NEO-7M Module from LOFTY AGROTECH.
Specification:
| Parameter | Details |
|---|---|
| Item Type | Satellite GPS Module |
| Model Name | GPS NEO-7M |
| Map Type | Satellite |
| Chipset | Ublox NEO-7M |
| Antenna Type | On-board Ceramic, SMA for External |
| Interface | Micro USB, TTL Serial |
| Signal Indicator | Yes |
| Memory | Built-in FLASH |
| Recommended Voltage | 3.3V – 5V |
| Dimensions (L×W×H) | 6 × 4 × 3 cm |
| Weight | 531 g |
| Shipping Weight | 0.05 kg |
| Operating Temperature | -40°C to 85°C |
