Hobbywing XRotor X8 Motor and 3011 Folding Propeller Combo Kit – CW(NDK37)

Description

The XRotor X8 Brushless Power System is a high-performance, integrated propulsion system designed specifically for agricultural drones and heavy-lift multirotors. It supports a payload of 5–7kg per rotor, delivering up to 15.3kg of thrust—making it perfect for demanding fieldwork like spraying pesticides, surveying, and seeding.

With IPX7 waterproofing, dust/salt/chemical resistance, and advanced FOC-based control algorithms, the XRotor X8 is built to thrive in harsh environments while offering efficient, balanced, and safe operation.

---

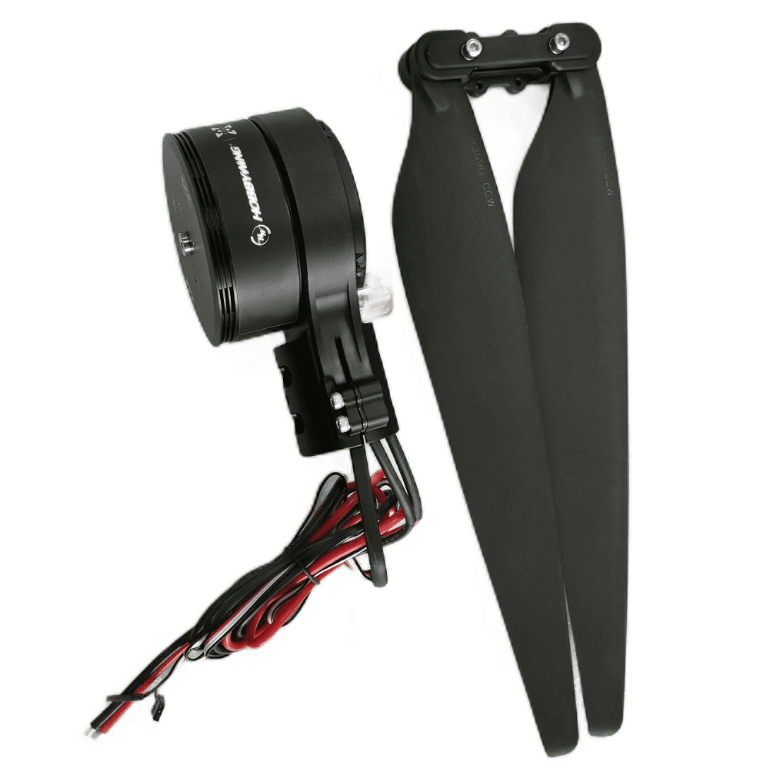

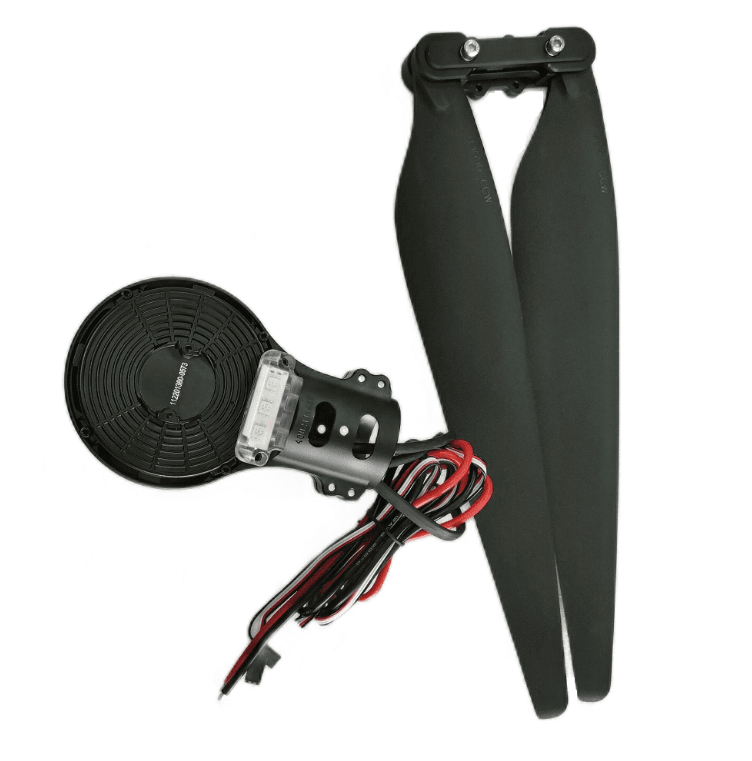

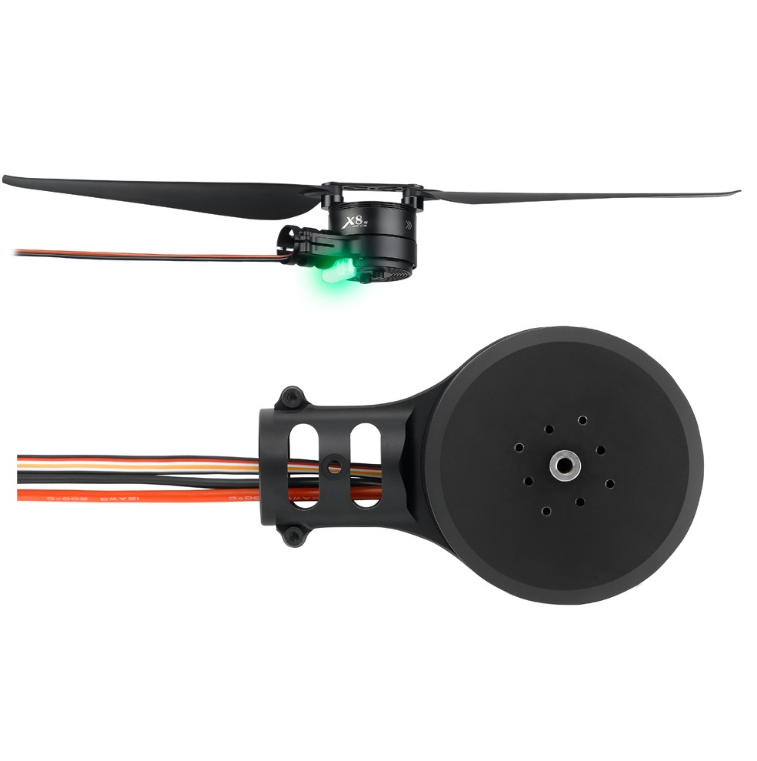

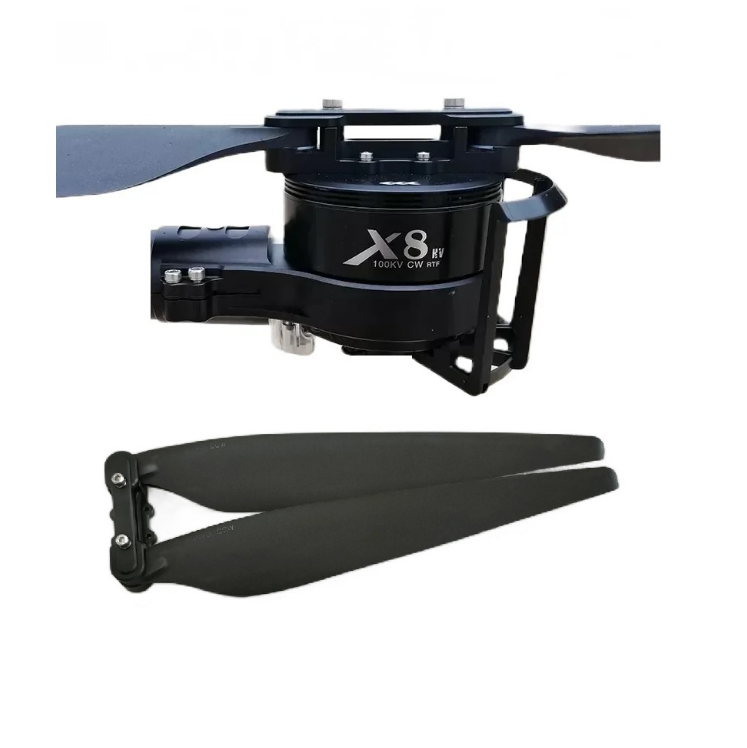

Package Includes:

• 1 x Hobbywing XRotor X8 100KV Motor – CW

• 1 x Hobbywing 3011 Folding Propeller – CW

---

Key Features:

Integrated & Ready-to-Use Design

• All-in-one unit: motor, ESC, folding propeller & mount

• Tube Adapter Compatibility: Supports 30mm & 35mm carbon fiber arms

• Quick Installation: Reduces build time and complexity

FOC-PMSM Control System

• Advanced FOC algorithm: Ensures motor + ESC + propeller work in perfect sync

• PMSM Motor Advantage: Quieter, smaller, higher power density & accuracy

• Smooth Throttle Response: Reduces pulsating torque & motor noise

IPX7 Waterproof & Dustproof

• NSK Waterproof Bearings for extended life

• Patented Drainage Design: Rinse with fresh water post-mission

• Works in: Rain, sandy soil, pesticide spray, salt environments, and more

Built-in Protections

• Power-on Self-check

• Abnormal Voltage Detection

• Overcurrent Protection

• Motor Lock-up Protection

• Real-Time Data Output (for advanced diagnostics)

---

Specifications Overview:

---

Dimensions & Shipping:

• Weight: 1.818 kg

• Size: 40 × 30 × 20 cm

---

Warranty:

3 Months Supplier Warranty
Covers manufacturing defects only.

Warranty Voids If:

• Misuse, soldering, water/fire/chemical damage

• Static discharge, tampering, or unauthorized modifications
