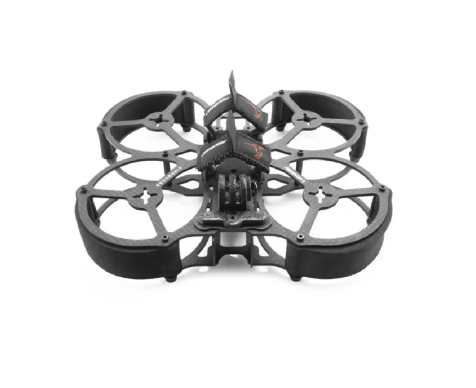

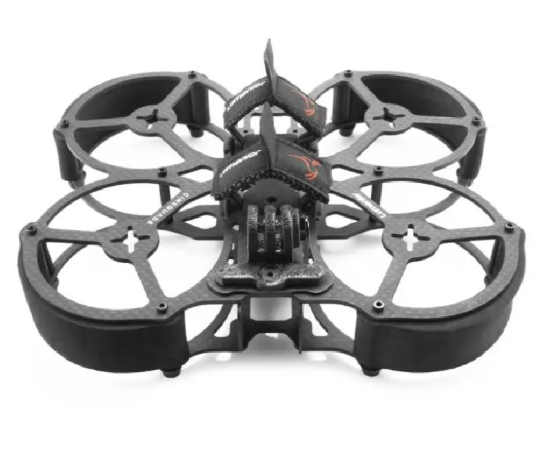

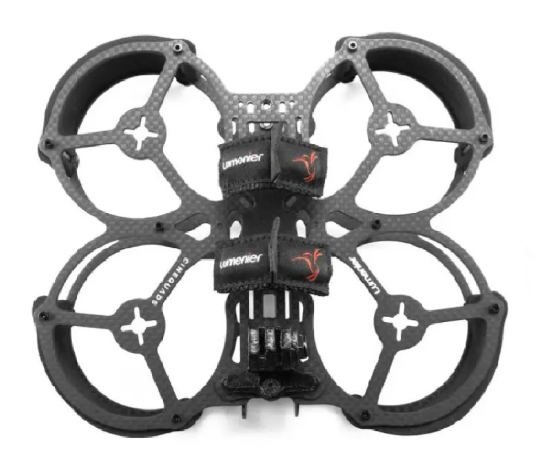

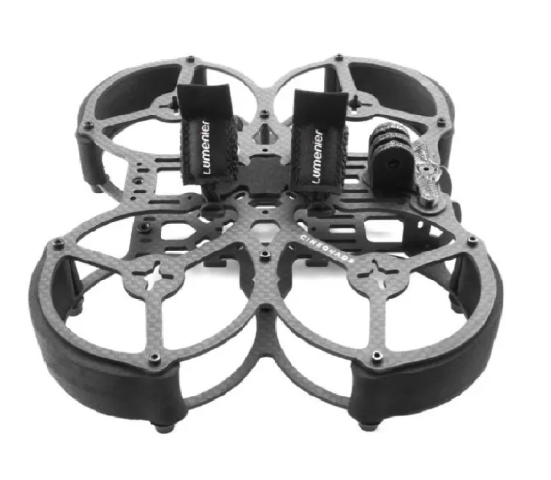

Lumenier QAV-PRO Micro Whoop Frame Kit
Introduction to the Lumenier QAV-PRO Micro Whoop Frame Kit
The Lumenier QAV-PRO Micro Whoop Frame Kit represents a pinnacle in micro FPV drone frame design and engineering. Built through the collaboration of two highly respected names in the FPV industry—Lumenier and Cinequads—this frame kit offers professional-grade quality, reliability, and performance. Designed specifically for micro cinematography, it merges lightweight construction with robust protection, enabling pilots to achieve smooth, cinematic footage even in tight and complex environments.
This Lumenier QAV-PRO Micro Whoop Frame Kit is a 2.5-inch pusher-style frame built for serious FPV pilots, content creators, and professional drone operators who demand both agility and durability. The use of precision-cut carbon fiber components ensures a perfect balance between strength and minimal weight, allowing for enhanced maneuverability and stability during high-speed or indoor operations.
Design and Engineering Excellence
High-Strength Carbon Fiber Construction
The Lumenier QAV-PRO Micro Whoop Frame Kit utilizes aerospace-grade carbon fiber, providing unmatched rigidity while maintaining a lightweight profile. Each plate—motor, bumper, and camera side—is precisely CNC-machined to ensure dimensional accuracy and strength. The frame’s geometry has been optimized to minimize vibrations and flex during flight, which directly contributes to improved footage quality and control precision.
This high-grade carbon fiber material is also designed to resist fatigue over long-term use. Pilots benefit from a frame that can withstand repeated impacts without warping or losing integrity. The Lumenier QAV-PRO Micro Whoop Frame Kit thus delivers a durable foundation for demanding cinematic missions.
Optimized Structural Layout
The structure follows a pusher-style configuration, where the motors are mounted in a downward orientation. This design reduces propwash and enhances thrust efficiency by keeping airflow unobstructed. The result is a more stable and responsive flight characteristic.
Additionally, the Lumenier QAV-PRO Micro Whoop Frame Kit integrates multiple support plates to distribute mechanical loads evenly across the arms and base, preventing stress concentration points that could lead to fractures.
Performance and Handling
Pusher Configuration for Enhanced Stability
In a pusher-style drone like the Lumenier QAV-PRO Micro Whoop Frame Kit, the motors push air downwards through the frame. This reduces turbulence and delivers cleaner airflow, resulting in smoother control inputs and more stable hovering performance. The design also allows for a lower center of gravity, further improving balance and reducing vibration transmission to the onboard camera.
Professional pilots value this configuration for its predictable flight behavior and refined control during low-altitude, close-proximity flights. The Lumenier QAV-PRO Micro Whoop Frame Kit makes it possible to execute complex cinematic maneuvers with precision and confidence.
Lightweight Build for Maximum Agility
Weighing only 53 grams, the Lumenier QAV-PRO Micro Whoop Frame Kit offers exceptional maneuverability. This lightweight nature enables longer flight durations while reducing strain on the motors and electronic components. When paired with high-efficiency motors and a suitable battery setup, this frame becomes an agile yet stable platform for both indoor and outdoor cinematic operations.
Camera Mounting and Imaging Capabilities
Universal Camera Mount Design
The frame includes a 3D-printed universal camera mount base compatible with multiple HD camera systems. This versatility makes the Lumenier QAV-PRO Micro Whoop Frame Kit ideal for a wide range of setups, from lightweight HD cameras to custom FPV camera solutions.
The dual carbon fiber camera side plates (1mm thickness) secure the camera in a vibration-dampened position, minimizing jello effects and ensuring clear footage capture. Pilots can easily adjust tilt angles, allowing for optimal framing during cinematic shots.
Support for HD and Analog FPV Systems
The Lumenier QAV-PRO Micro Whoop Frame Kit supports both HD and analog video transmission systems, providing users with flexibility based on their preferences and shooting needs. Whether you’re using digital setups such as DJI O3 or analog systems for latency-sensitive flights, the frame layout accommodates various mounting standards seamlessly.
Propeller and Motor Configuration
Motor Mounting Compatibility
The motor mounting pattern on the Lumenier QAV-PRO Micro Whoop Frame Kit is optimized for 2.5-inch propellers, supporting a wide range of micro motors. The carbon fiber motor plate (2mm thick) ensures rigidity and resistance against torque stress during aggressive maneuvers.
Each motor mount provides precise alignment, reducing vibration transfer to the frame. The reinforced motor arms further enhance the strength-to-weight ratio, ensuring reliability even under demanding conditions.
Propeller Protection System
Safety and durability are paramount in FPV cinematography, especially during indoor flights. The Lumenier QAV-PRO Micro Whoop Frame Kit incorporates molded foam bumpers that fully enclose the propellers. This protection design prevents damage from collisions while maintaining aerodynamic efficiency.
The foam bumpers not only safeguard the propellers but also reduce potential harm to surrounding objects or personnel—an essential feature for professional environments such as film sets or confined indoor spaces.
Mechanical Design Features
Precision Hardware Set
The Lumenier QAV-PRO Micro Whoop Frame Kit includes a comprehensive hardware set featuring high-quality steel M2 screws, aluminum standoffs, and rubber O-rings for vibration isolation. Every component has been chosen for reliability and ease of assembly.
These precision-engineered parts ensure consistent fitment, improving overall frame rigidity. The included spacers maintain accurate stack height for flight controller and electronic system installation.
Foam Battery Pad and Protection Layers
The foam battery pad provides grip and cushioning, securing the LiPo battery during high-speed flight or impact. The Lumenier QAV-PRO Micro Whoop Frame Kit uses high-density foam material to prevent battery slippage and absorb vibrations.
Additionally, the carbon fiber bumper plate acts as a secondary shield, protecting the battery and electronics from frontal or bottom impacts.
Durability and Maintenance
Crash Resistance and Frame Longevity
The Lumenier QAV-PRO Micro Whoop Frame Kit is engineered for longevity. Its layered structure, combined with robust hardware and foam protection, allows it to endure multiple crashes without structural compromise. Each carbon fiber plate can be replaced individually, making maintenance straightforward and cost-effective.
The frame’s foam bumpers serve as sacrificial components—absorbing energy upon impact while shielding more expensive electronic parts. This thoughtful design ensures pilots spend more time flying and less time repairing.
Ease of Assembly and Component Access
The modular construction of the Lumenier QAV-PRO Micro Whoop Frame Kit simplifies assembly and disassembly. The open-access design allows technicians to quickly reach internal components like the flight controller, VTX, and camera.
This accessibility is crucial for professional operators who require fast turnaround times between flights. Whether you are tuning the PID settings, replacing motors, or upgrading components, maintenance on this frame is efficient and hassle-free.
Professional Applications
FPV Cinematography
The Lumenier QAV-PRO Micro Whoop Frame Kit is purpose-built for cinematic flying. Its compact size and full prop protection make it ideal for shooting in tight spaces—between objects, through windows, or close to vehicles and people.
Professional FPV pilots often use this frame for automotive commercials, real estate walkthroughs, and creative short films. The stable flight behavior ensures smooth footage, while the lightweight construction permits quick acceleration and braking for dynamic shots.
Commercial and Industrial Use
Beyond filmmaking, the Lumenier QAV-PRO Micro Whoop Frame Kit also suits industrial applications requiring precision flight in constrained environments. Inspection teams can leverage its stability and protection to capture visuals in areas where larger drones cannot safely operate.
The durable carbon fiber frame ensures reliability under repeated use, making it suitable for technical inspections, indoor surveys, and demonstration environments.
Flight Dynamics and Testing
Center of Gravity Optimization
By carefully positioning the camera, battery, and electronics, the Lumenier QAV-PRO Micro Whoop Frame Kit achieves a balanced center of gravity. This optimization improves responsiveness and minimizes drift during turns or altitude changes.
Flight tests have demonstrated exceptional stability in both acro and cinematic flight modes. The pusher design contributes to efficient thrust-to-weight distribution, reducing motor load and improving flight duration.
Vibration Isolation and Flight Smoothness
Vibration control is essential for cinematic drone operation. The Lumenier QAV-PRO Micro Whoop Frame Kit employs multiple layers of damping materials, including rubber O-rings and foam interfaces, to absorb oscillations generated by motors and propellers.
This vibration isolation results in cleaner footage and reduces post-processing time for video stabilization.
Specifications Overview
| Parameter | Value |
|---|---|
| Model | Cinequads Edition |
| Material | Carbon Fiber |
| Frame Type | Pusher-style Micro Whoop |
| Wheelbase | 2.5-inch Propeller Support |
| Dimensions | 180 mm (L) × 155 mm (W) × 53 mm (H) |
| Weight | 53 g |
| Compatibility | HD and Analog Systems |
| Included Accessories | Screws, Standoffs, Foam Bumpers, Camera Mount |
| Shipping Weight | 0.304 kg |
| Shipping Dimensions | 22 × 20 × 3 cm |
Advantages of the Lumenier QAV-PRO Micro Whoop Frame Kit
The Lumenier QAV-PRO Micro Whoop Frame Kit has been engineered with precision and purpose, addressing every critical aspect of modern FPV drone performance — from durability and flight efficiency to adaptability and ease of service. Below are the detailed advantages that set this frame apart from conventional micro whoop frames.
1. Professional-Grade Build Quality
The Lumenier QAV-PRO Micro Whoop Frame Kit embodies superior craftsmanship through its use of high-strength carbon fiber components, precision-cut aluminum hardware, and vibration-dampening materials. Each part of the frame is engineered to deliver structural stability without adding unnecessary weight.
The top and bottom plates are manufactured from aerospace-grade carbon fiber sheets that undergo CNC machining to achieve accurate tolerances. This precision machining eliminates warping or misalignment issues commonly found in lower-quality frames. The resulting rigidity ensures that camera vibrations and flight oscillations are minimized, producing smooth and stable footage even during high-speed maneuvers.
Additionally, the aluminum standoffs included in the Lumenier QAV-PRO Micro Whoop Frame Kit contribute to the overall rigidity while providing corrosion resistance and low weight. This combination of materials ensures mechanical integrity across varying temperature and humidity conditions — a vital feature for professional pilots operating in different environments.
Whether used on film sets, in confined indoor spaces, or during fast outdoor runs, the Lumenier QAV-PRO Micro Whoop Frame Kit maintains consistent reliability and strength. It stands as a professional-grade platform designed to withstand the demands of cinematography and FPV racing alike.
2. Exceptional Aerodynamic Efficiency
Aerodynamic performance plays a key role in flight stability, energy consumption, and maneuverability. The Lumenier QAV-PRO Micro Whoop Frame Kit excels in this area due to its well-optimized pusher-style frame geometry. By positioning the propellers below the frame, the pusher configuration ensures clean airflow over the propeller disk and minimizes turbulence.
This efficient airflow reduces drag and allows the drone to generate more lift per watt of power consumed. Pilots experience smoother transitions, stable hover capabilities, and precise control even at low throttle. Such efficiency translates directly into extended flight times and higher responsiveness, critical for professional FPV cinematography where consistency and smoothness are non-negotiable.
The Lumenier QAV-PRO Micro Whoop Frame Kit also benefits from balanced mass distribution. With the battery and camera mounted centrally, the center of gravity remains perfectly aligned with the thrust line. This minimizes unwanted pitching or rolling moments and ensures predictable handling characteristics across a wide range of flying conditions.
In challenging environments — such as windy outdoor shoots or confined indoor corridors — this aerodynamic optimization allows for a confident, controlled flight experience that rivals much larger drones.
3. Flexible System Compatibility
A hallmark of the Lumenier QAV-PRO Micro Whoop Frame Kit is its flexibility in accommodating a broad range of flight electronics, video transmission systems, and camera types. It supports both 20x20mm and 25.5×25.5mm mounting patterns, making it compatible with most modern flight controllers, ESCs, and VTX boards.
This adaptability empowers builders to customize their setups for either digital or analog flight systems. Pilots can mount HD digital systems such as DJI O3, Walksnail Avatar, or similar digital FPV units, as well as traditional analog VTX systems where low latency is a priority. The frame provides ample internal space and efficient cable routing paths for clean, interference-free wiring layouts.
The included 3D-printed universal camera mount base and carbon fiber side plates allow pilots to attach a variety of HD cameras, from compact action cameras to lightweight FPV cameras. This ensures versatility in image capture, enabling both cinematic and freestyle flight applications.
Furthermore, the Lumenier QAV-PRO Micro Whoop Frame Kit provides additional room for accessories like antenna mounts, LEDs, or customized dampening systems. This flexibility is essential for professional operators who demand the ability to configure and upgrade their setup based on mission requirements.
4. Enhanced Safety and Protection
Safety is a defining feature of the Lumenier QAV-PRO Micro Whoop Frame Kit. Recognizing the needs of professionals working on film sets or near sensitive equipment, Lumenier designed this frame to offer complete propeller protection through the inclusion of molded foam bumpers.
These bumpers fully encircle the propellers, absorbing impact energy during collisions and preventing damage to both the drone and its surroundings. In scenarios where the drone is flown close to actors, vehicles, or indoor structures, this protection significantly reduces risk, ensuring safer operations.
The foam bumpers are made of high-density material that resists deformation while maintaining lightweight characteristics. This ensures that safety does not come at the cost of flight performance. Additionally, the bumpers help reduce prop noise and vibration resonance, resulting in quieter and more stable flight — an important advantage during on-set audio recording or indoor flying.
Beyond physical protection, the Lumenier QAV-PRO Micro Whoop Frame Kit also provides a structurally reinforced carbon fiber frame that protects core components such as the flight controller, VTX, and battery. The 2mm carbon bumper and motor plates act as shock absorbers during hard landings, while the foam battery pad secures the power source firmly in place.
For professional pilots, this level of safety translates to reduced downtime, lower repair costs, and consistent performance even after multiple flights or minor crashes.
5. Easy Maintenance and Long-Term Serviceability
Ease of maintenance is a key factor that determines the long-term value of an FPV frame. The Lumenier QAV-PRO Micro Whoop Frame Kit is designed with modularity and accessibility in mind. Each plate, standoff, and bumper can be individually replaced, ensuring that users do not need to discard the entire frame after an impact or component failure.
The frame’s open and spacious design allows for quick access to internal electronics. Technicians can easily remove or replace flight controllers, cameras, or ESCs without disassembling the entire drone. The organized layout of screw placements and standoff spacing reduces the time needed for field repairs — a critical benefit during professional filming sessions where downtime can be costly.
Additionally, the included hardware set is composed of durable M2 steel screws and vibration-isolated rubber O-rings, which simplify assembly while ensuring a tight fit. These components prevent loosening from vibration and ensure long-term structural stability.
The Lumenier QAV-PRO Micro Whoop Frame Kit also supports the use of various aftermarket components, making it a future-proof platform for continuous upgrades. Whether users wish to change flight stacks, integrate advanced digital video transmitters, or mount new camera modules, the frame’s modular approach accommodates evolving technology.
This focus on maintainability ensures that professional pilots can keep their drone in peak condition over hundreds of flight hours, reducing both operational costs and turnaround times between missions.
Summary of Advantages
In essence, the Lumenier QAV-PRO Micro Whoop Frame Kit stands out for combining engineering precision with professional-grade reliability. Its carbon fiber structure guarantees strength and stability, while its aerodynamic efficiency ensures optimal flight performance. Flexible system compatibility allows for diverse configurations, while comprehensive safety features protect both equipment and personnel. Finally, its modular and serviceable design ensures that maintenance remains simple, affordable, and efficient throughout its operational life.
These combined qualities make the Lumenier QAV-PRO Micro Whoop Frame Kit not just a drone frame, but a dependable foundation for professional FPV pilots, filmmakers, and drone enthusiasts seeking maximum performance and long-term value.
Assembly Recommendations
Component Setup
For optimal performance, pair the Lumenier QAV-PRO Micro Whoop Frame Kit with motors in the 1103–1204 range and propellers designed for 2.5-inch setups. Choose a lightweight HD camera like the DJI O3 Lite or similar for balanced performance.
Power and Battery Selection
A 2S or 3S LiPo battery is recommended for this frame. The foam battery pad ensures secure placement and helps maintain balance during aggressive flight maneuvers.
Electronics Layout
The 20x20mm stack mounting pattern allows easy installation of flight controllers and video transmitters. Route wiring efficiently to reduce interference and maintain airflow.
Testing and Quality Assurance
Before release, the Lumenier QAV-PRO Micro Whoop Frame Kit underwent rigorous flight testing and mechanical stress evaluation. Engineers validated its resistance to torsional flex, vibration, and impact damage.
Each component was precision-measured to maintain perfect alignment, ensuring the drone performs consistently across repeated flights.
Maintenance and Longevity
Regular inspection of foam bumpers, screws, and battery mounts is recommended to preserve optimal performance. Due to its robust construction, the Lumenier QAV-PRO Micro Whoop Frame Kit can endure hundreds of flight cycles without degradation, offering an excellent long-term investment for FPV professionals.
Conclusion
The Lumenier QAV-PRO Micro Whoop Frame Kit exemplifies the evolution of micro FPV technology. Through meticulous engineering, lightweight construction, and collaboration with Cinequads, this frame kit delivers exceptional stability, precision, and safety.
Its compact 2.5-inch configuration allows it to perform in environments where larger drones cannot operate, making it a versatile tool for professionals in cinematography, inspections, and creative aerial applications.
The combination of strength, agility, and compatibility makes the Lumenier QAV-PRO Micro Whoop Frame Kit a benchmark for micro FPV performance. For drone pilots who demand the highest standards in engineering and flight dynamics, this frame remains one of the most reliable and technically refined options on the market today.
