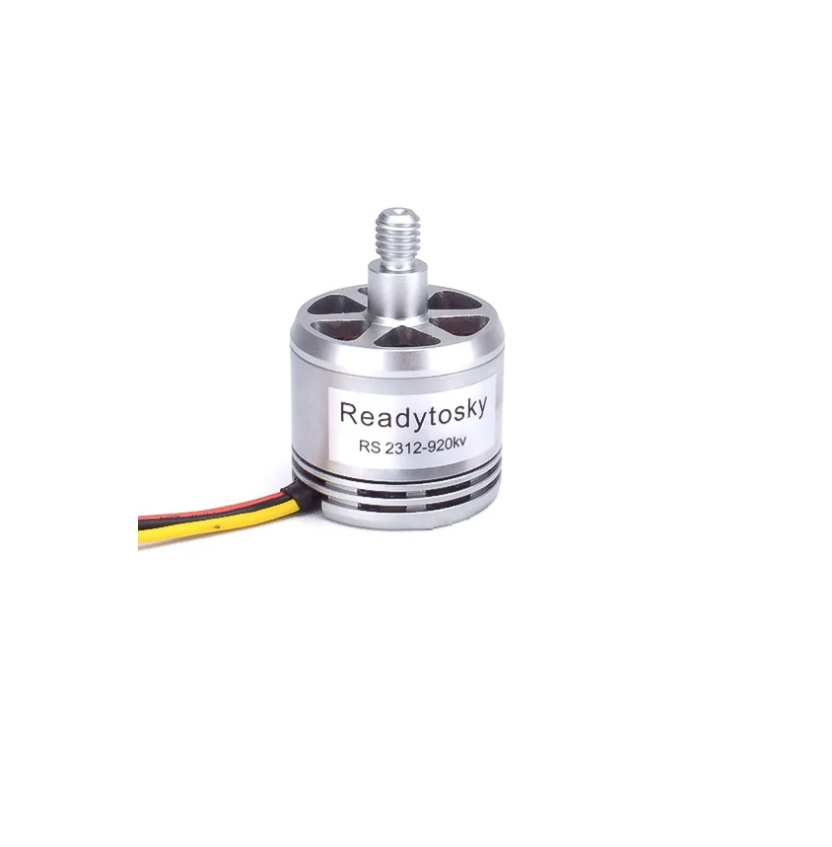

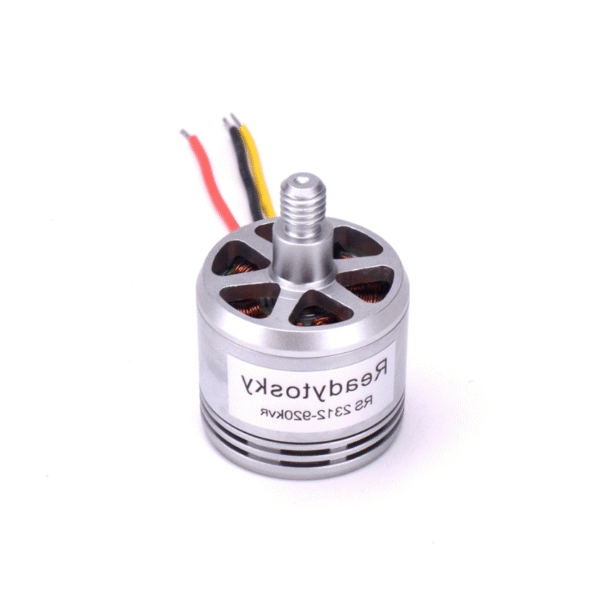

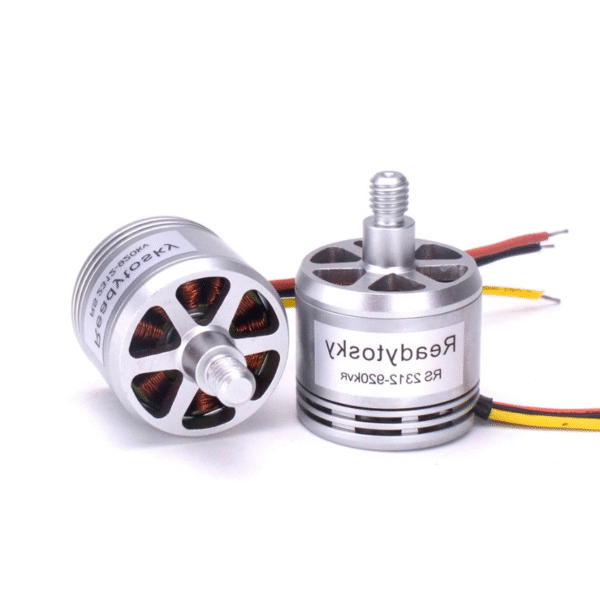

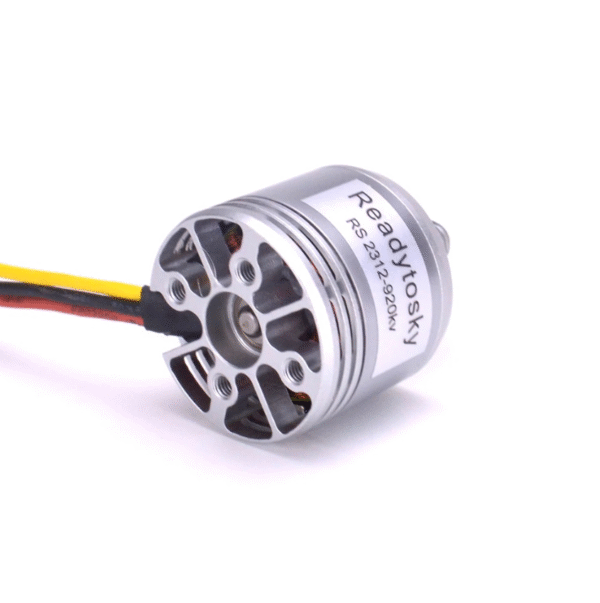

2312 920KV Brushless DC Motor for Drone (CCW Motor Rotation)

Description

Detailed Description

The NDK21 by LOFTY AGROTECH – 2312 920KV Brushless DC Motor (CCW) is a premium-grade motor designed for drone builders seeking a reliable and efficient power solution. Whether you’re a beginner or a hobbyist building your own quadcopter, this motor delivers excellent performance at a mid-range price.

Crafted with a CNC-machined aluminum body, it not only provides strength and durability but also gives a polished, premium finish compared to traditional brushless motors. The motor integrates high-quality Japanese EZO bearings, ensuring smooth and stable operation with minimal noise and vibration.

This 2312 motor supports 2S to 4S LiPo batteries and requires a 30A ESC. The motor has a robust 12N14P framework with 14 poles and is capable of reaching a maximum power of 220W. With a 920KV rating, it’s designed to give you a balance between thrust and efficiency, ideal for a wide range of drone builds.

Please note, this is a Counter-Clockwise (CCW) rotating motor. For Clockwise (CW) version, Click here
To buy a compatible prop adapter, Click here
Explore more drone motors, Click here
Explore a variety of propellers, Click here
Explore all ESC options, Click here

---

Specifications

• Motor KV (RPM/V): 920

• Motor Type: Brushless

• Rotation: CCW

• Compatible LiPo Batteries: 2S to 4S

• Max. Power: 220W

• Required ESC: 30A

• No. of Poles: 14

• Framework: 12N14P

• No-Load Current: 450mA

• Rated Current: 14A

• Dimensions (L×W×H): 27.7mm × 27.7mm × 26mm

• Weight: 50g

• Motor Material: CNC Machined Aluminum

• Bearing Type: Japanese EZO

Package Includes:

• 1 x 2312 920KV Brushless DC Motor for Drone (CCW)

Shipping Weight: 0.055 kg
Shipping Dimensions: 3 × 3 × 3 cm
