Description

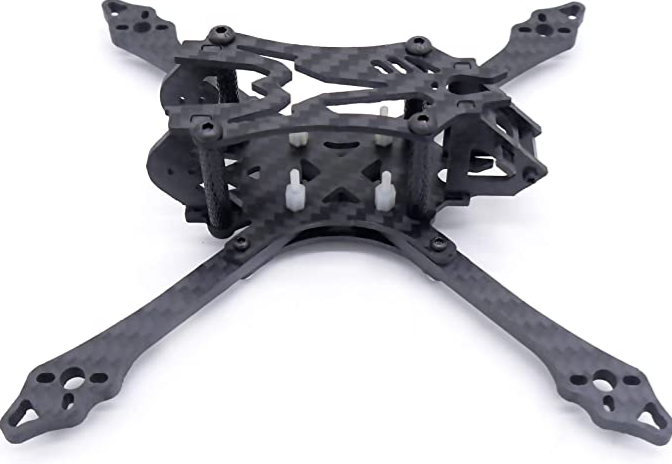

The HF150 Carbon Fiber Frame by LOFTY AGROTECH is a compact and lightweight 3-inch drone frame designed for high-performance FPV builds. Crafted entirely from premium carbon fiber, it offers exceptional strength while weighing just 40 grams—ensuring a perfect balance between durability and flight performance.
With a wheelbase of 150mm and an X-type split structure, the frame provides solid stability in the air and is suitable for a wide range of mini-motors, including 1306, 1407, and 1105 models from the 13xx and 14xx motor series (9×12 mounting pattern). The arms feature a robust 4.0mm thickness, while the other plates are 2.0mm, offering rigid support during high-speed maneuvers.
The frame’s simple, modular design allows for quick and easy assembly, making it perfect for DIY drone builders. It’s optimized for 3-inch propellers and supports a flight controller mounting hole distance of 20x20mm, making it compatible with most micro FPV setups.
CLICK HERE for setup guides, installation diagrams, and compatibility charts.
Package Includes:
-
1 x NDK21 HF150 150mm 3-Inch Carbon Fiber Frame
Specifications:
-
Item Type: Frame
-
Model Type: Carbon Fiber Frame
-
Material: Carbon Fiber
-
Wheelbase: 150mm
-
Propeller Size: 3 inch
-
Arm Thickness: 4.0mm
-
Other Plate Thickness: 2.0mm
-
Flight Controller Hole Distance: 20x20mm
-
Motor Compatibility: 13xx / 14xx Series (9×12)
-
Structure Type: X-type Split
-
Weight: 40g
-
Shipping Weight: 0.055 kg
-
Shipping Dimensions: 15 × 12 × 1 cm
