Description

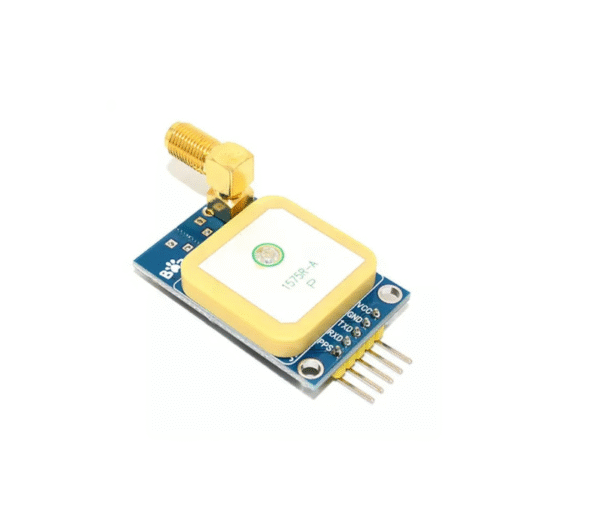

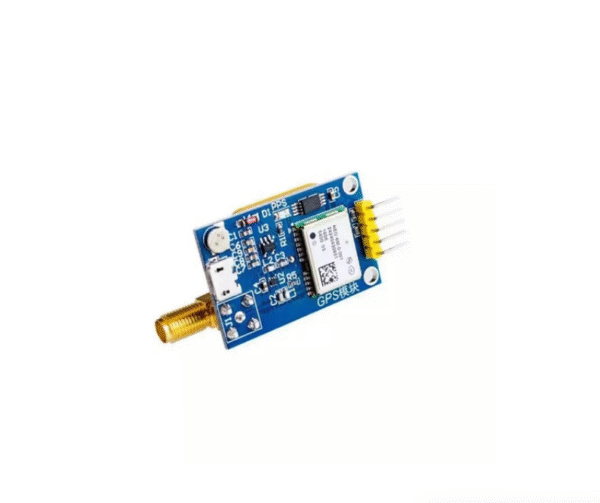

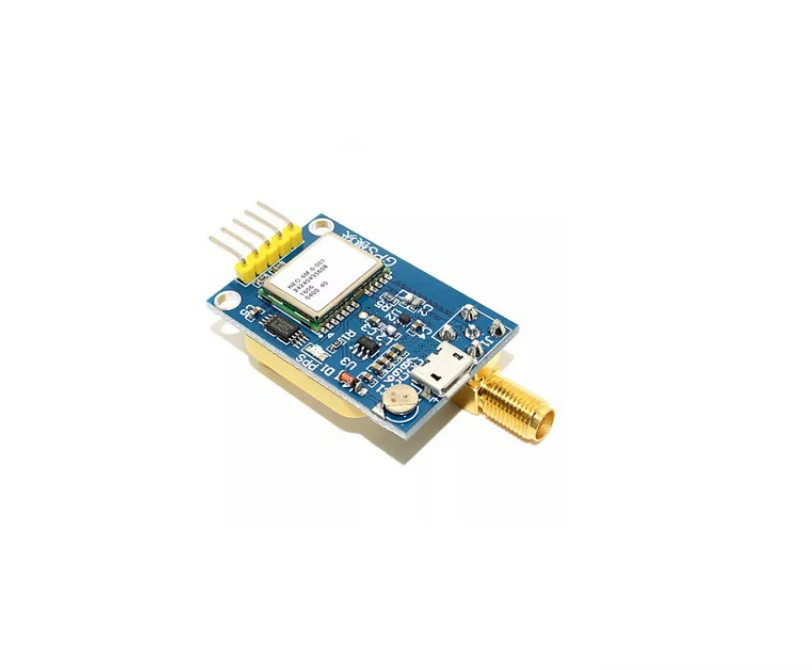

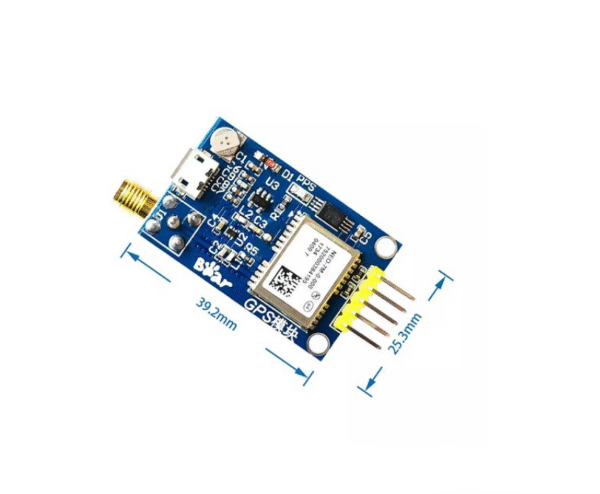

The NEO-6M GPS Module is a compact and high-performance satellite positioning board designed for Arduino, STM32, 51 series, and other development platforms. Built around the Ublox NEO-6M chipset, it offers reliable, real-time location tracking with a 5Hz position update rate, making it ideal for UAVs, robotics, automotive, and embedded applications.
This module features a 25 x 25mm high-gain active GPS antenna for strong satellite reception, even in challenging environments. A built-in EEPROM ensures saved configuration settings persist across reboots, while the rechargeable backup battery enables faster satellite lock times after power cycles.
Equipped with a UART TTL interface, it’s plug-and-play with popular microcontroller boards like Arduino and STM32. With its wide operating temperature range of -40°C to 85°C, this module is suited for outdoor and industrial use.
Specifications Table:
| Specification | Details |
|---|---|
| Item Type | Satellite GPS Module |
| Model | NEO-6M |
| Position Update Rate | 5Hz |
| Start Times | Cold: 38s, Hot: 1s |
| Supply Voltage | 3.3V |
| Interface | UART TTL |
| Operating Temperature | -40°C to 85°C |
| Backup Battery | Rechargeable (included) |
| EEPROM | Yes – for saving configuration |
| Antenna Type | 25 x 25mm Active GPS Antenna |
| Compatibility | Arduino, STM32, ATmega 51, APM 2.0/2.5/2.6 |
| Shipping Weight | 0.028 kg |
| Shipping Dimensions | 9 × 6 × 2 cm |
Package Includes:
-
1 x NEO-6M GPS Satellite Positioning Module Development Board
