Description

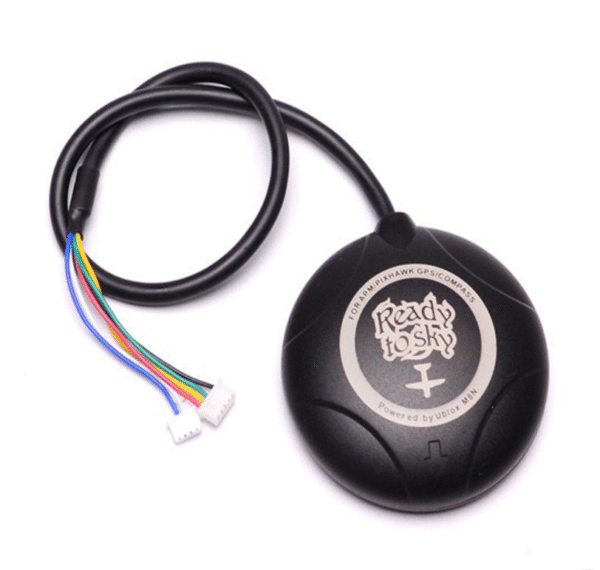

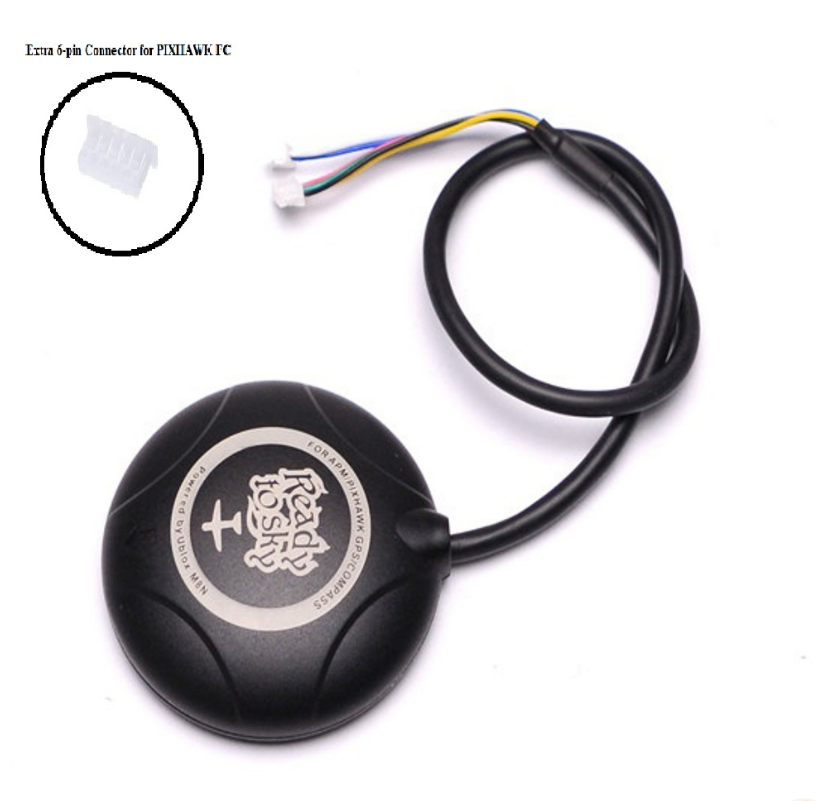

The Ublox NEO-M8N GPS Module with Built-in Compass from LOFTY AGROTECH is a high-performance GPS solution designed for both APM and PIXHAWK flight controllers. Pre-configured with a 5-pin connector (APM-ready), this GPS module is also supplied with an extra 6-pin connector to swap for PIXHAWK compatibility.
This new generation NEO-M8N GPS module features the HMC5883L digital compass, integrated into a robust plastic housing, along with a ceramic patch antenna and onboard active circuitry, delivering precise signal lock and high positional accuracy. With an enhanced update rate of up to 18 Hz, and tracking sensitivity of –167 dBm, this GPS module is ideal for flight-critical systems, mapping drones, and outdoor navigation.
It supports multiple satellite systems including GPS/QZSS, GLONASS, BeiDou, and Galileo-ready, along with SBAS (WAAS, EGNOS, MSAS). The built-in flash memory ensures firmware upgrades and offline GNSS assistance, making it future-proof for growing needs.
This module is enclosed with a circular mounting pad, includes anti-jamming filters, and a rechargeable battery for quicker warm starts.
Blue LED indicates position lock. No lock = brief flash; Locked = continuous flash.
Firmware update available via U-Center (except v3.01 due to memory limit).
Specifications :
Specification Details Item Type GPS Module Model Name Ublox NEO-M8N Main Chip Ublox NEO-M8N Receiver Type 72-channel Ublox M8 engine Input Voltage (V) 0.5 to 3.6 Position Accuracy (m) 2, 2.5 Acceleration (g) <4 Update Rate Up to 18 Hz Tracking Sensitivity –161 to –167 dBm Cold Start Time (s) ~30 Warm Start Time (s) ~1 Boot Time / Capture 1s boot / 0.1s capture Coordinate System WGS-84 Max Altitude 18,000 m Operating Temp (°C) -45 to 105 Dimensions (mm) Ø 54 mm (outer diameter) Cable Length (cm) 20 cm Weight (g) 33 g Shipping Weight 0.12 kg Shipping Dimensions 8 × 8 × 3 cm
