Description

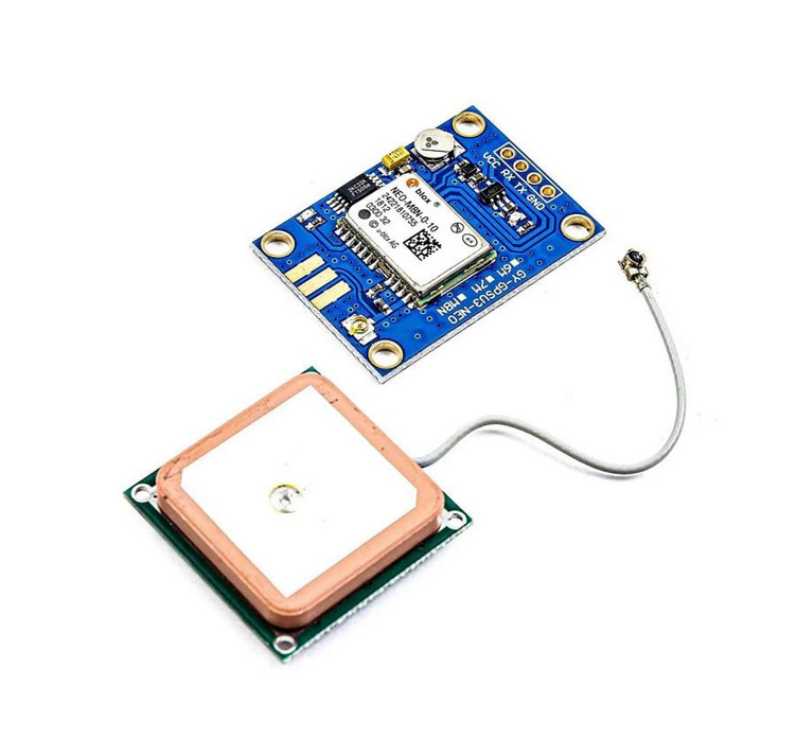

This NEO-M8N GPS Module with Ceramic Active Antenna from LOFTY AGROTECH is engineered for precision and reliability in drone, automotive, and industrial applications. Powered by the high-performance 72-channel Ublox M8 engine, this GPS module ensures fast locks, excellent signal quality, and low power consumption.
The onboard ceramic active antenna ensures a strong and stable GPS signal, even in challenging environments. With 64KB flash memory for firmware upgrades, built-in data backup battery, and default baud rate of 9600, this module is versatile and future-ready. It includes anti-jamming features, LED indicators for signal status, and compatibility with multiple satellite systems—making it ideal for Arduino, Raspberry Pi, and various flight controllers.
Note: Manual measurement may vary slightly. Item color may differ slightly due to monitor settings.
Want to learn how to interface this with Raspberry Pi or Arduino? Click here for the hookup guide.
To purchase this GPS module, Click here.
Specifications :
| Specification | Details |
|---|---|
| Item Type | GPS Module |
| Model Name | Ublox NEO-M8N |
| Receiver Type | 72-channel Ublox M8 engine |
| Input Voltage (V) | 3.3 to 5 |
| Main Chip | Ublox NEO-M8N |
| Position Accuracy (m) | 2 – 2.5 |
| Acceleration (g) | < 4 |
| Navigation Update Rate | Up to 18 Hz |
| Operating Temperature (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -161 |
| Flash Memory | 64 KB |
| Avg Cold Start Time (s) | 30 |
| Warm Start Time (s) | 1 |
| Boot Time | 1 s |
| Capture Time | 0.1 s (avg.) |
| Co-Ordinate System | WGS-84 |
| Max Altitude (m) | 18,000 |
| Antenna Dimensions (mm) | 26 x 26 x 9 |
| Module Dimensions (mm) | 26 x 36 x 4 |
| Net Weight (g) | 16 |
| Gross Weight (g) | 17 |
| Mounting Hole Size | Approx. 3 mm |
| Default Baud Rate | 9600 |
| Shipping Dimensions | 9 × 8 × 3 cm |
| Shipping Weight | 0.06 kg |
