Description

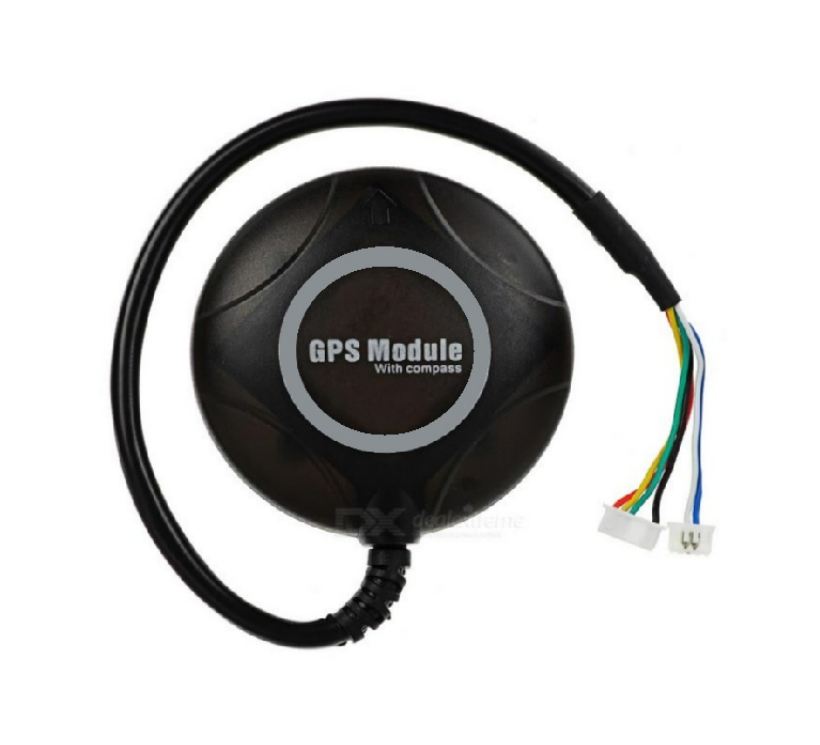

The NEO-M8N GPS Module with Built-in Compass by LOFTY AGROTECH is a next-generation positioning system engineered for APM flight controllers. Designed with high-precision u-blox M8N chipset, it delivers superior accuracy (~0.6 to 0.9 meters) and fast satellite acquisition compared to the older NEO-7N modules.
With support for multiple global navigation systems—including GPS/QZSS L1 C/A, GLONASS L10F, and BeiDou B1—this module ensures reliable and stable positioning in diverse environments. The unit features anti-jamming capability, an onboard SAW bandpass filter, and a built-in RTC crystal to enhance its performance even in electronically noisy conditions.
It also comes pre-configured, tested, and flashed with the correct settings for plug-and-play use with APM controllers. Lightweight yet durable with a plastic casing, it includes a compass module and a signal sticker for easy mounting.
Click here to explore the NEO-M8N GPS Module with Compass from LOFTY AGROTECH.
Specification Table:
| Parameter | Details |
|---|---|
| Item Type | GPS Module |
| Model | NEO-M8N |
| GPS Version | V2.0 |
| Material | Plastic |
| Power Supply | +3.5V ~ +5.5V |
| Tracking Sensitivity | -161 dBm |
| Navigation Sensitivity | -167 dBm |
| Capture Sensitivity | -148 dBm |
| Capture Time | 0.1s average |
| Cold Start Time | 38s average |
| Warm Start Time | 35s average |
| Hot Start Time | 1s average |
| RTC Crystal | Built-in |
| Supported Protocols | GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 |
| Operating Temp. Range | -40°C to +80°C |
| Anti-jamming Features | CW detection & removal, SAW bandpass filter |
| Shipping Weight | 0.034 kg |
| Shipping Dimensions | 17 × 10 × 2 cm |
