Description

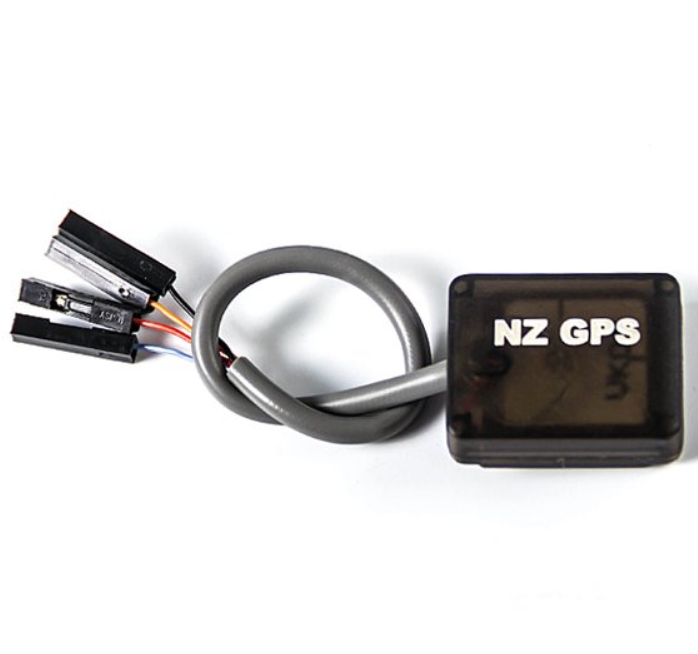

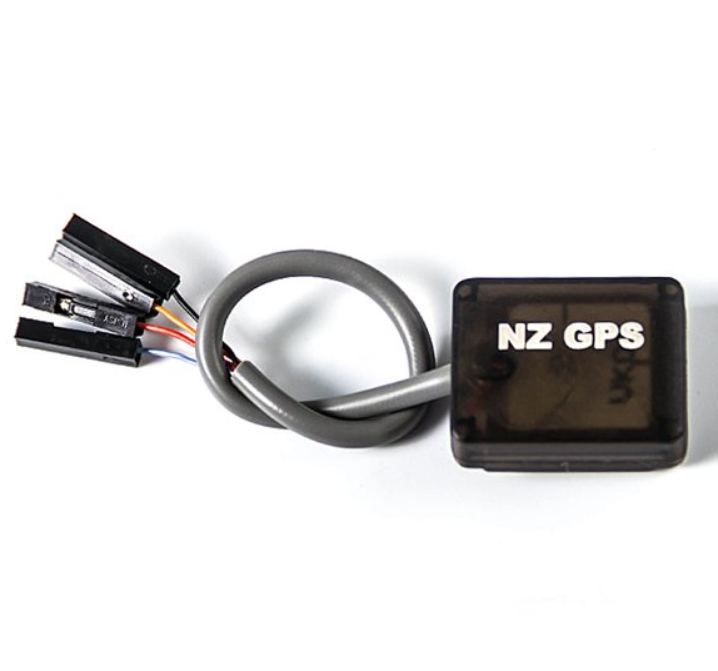

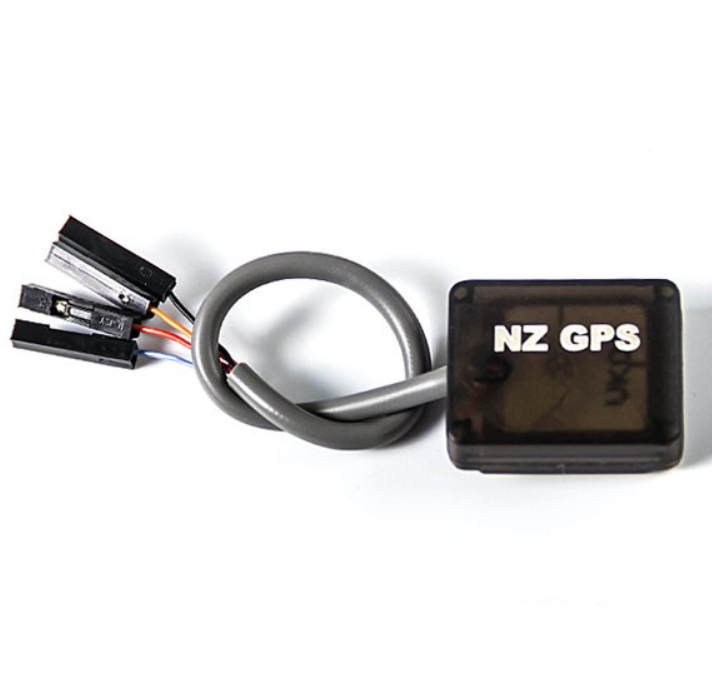

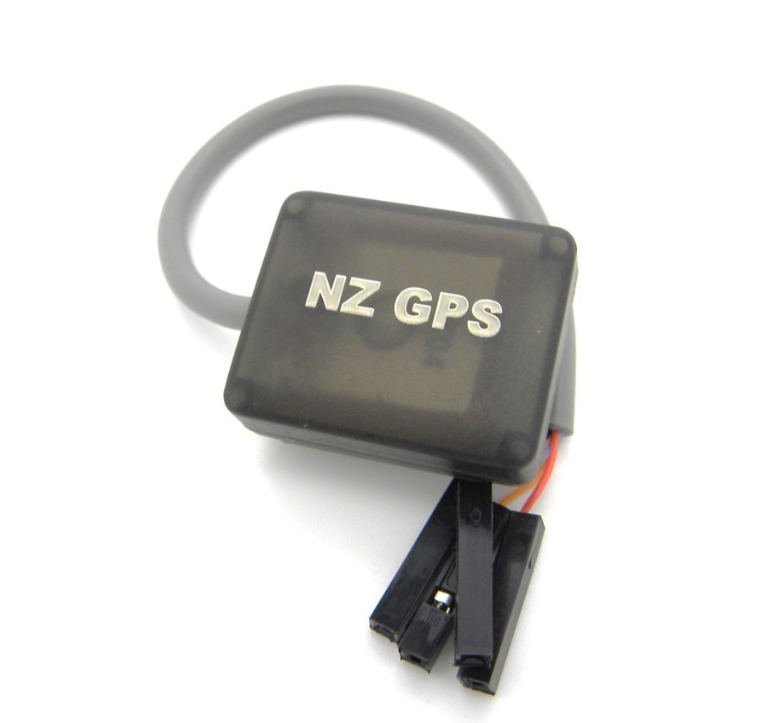

NZ Mini GPS Module
Item Type: GPS Module
- NZ Mini GPS Module for NAZE32 This confirms the product is a dedicated GPS device used for providing real-time positioning data.
-
It’s designed specifically for drones and flight controllers and is commonly used in FPV setups where GPS telemetry (speed, altitude, location) is displayed on screen.
Chipset: OEM Ublox 7 Series
NZ Mini GPS Module
Ublox 7 series is a proven, mid-range GPS chipset used in compact modules.
-
“OEM” (Original Equipment Manufacturer) means the chip is a genuine Ublox product, integrated into Lofty AgroTech’s module.
-
Benefits:
-
Fast satellite lock time
-
Stable signal reception
-
Sufficient for OSD telemetry, though not for autonomous flight like RTH (Return-to-Home)
-

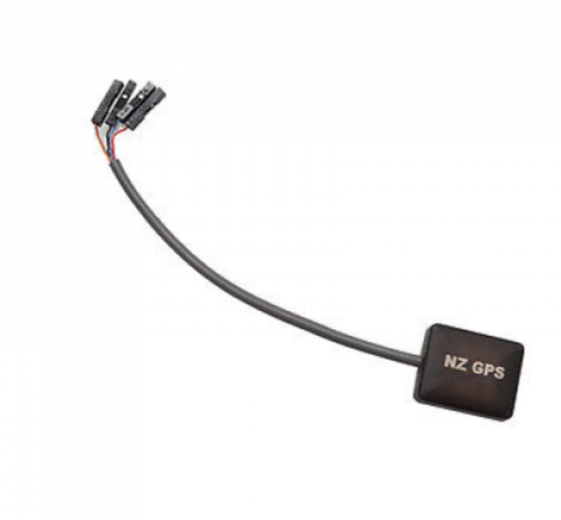

Wire Length: 15 cm
-
The attached cable is 15 centimeters long, which is ideal for:
-
Mounting the GPS on the top or rear of a drone
-
Connecting to a flight controller without extensions
-
-
Offers flexibility in small or mid-sized drone builds.

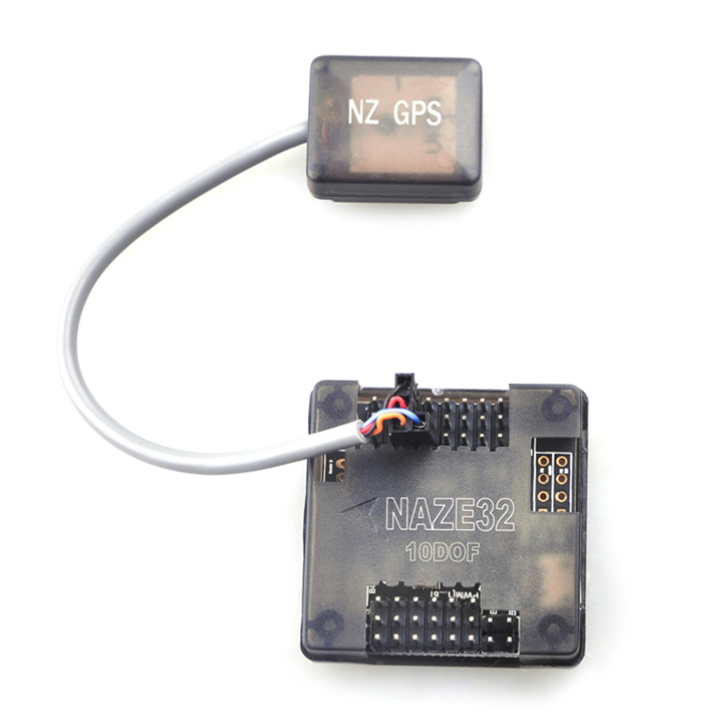

Compatibility: NAZE32, Flip32, NanJ32 Flight Controllers
-
These are popular F1 and F3-based flight controllers used in:
-
DIY drones
-
FPV racing builds
-
-
The GPS module is pre-configured to communicate seamlessly with these boards.
-
Best used with Cleanflight and Betaflight firmware for telemetry data on On-Screen Display (OSD).
Dimensions (L × W × H): 26 × 25 × 8 mm
-
Very compact and low-profile, especially useful in racing drones where:
-
Space is limited
-
Weight reduction improves performance
-
-
Can be mounted securely even on micro quadcopters.
Weight: 10 grams
-
Extremely lightweight, which is crucial in:
-
Racing drones (where less weight = more speed)
-
Mini drones with limited payload capacity
-
-
Helps maintain flight stability and battery efficiency.
Interface: 1 Pin 2.54
-
This refers to the connector type on the module:
-
A 2.54mm pitch single-pin connector is a common standard used on many DIY and hobby-grade flight controllers.
-
-
Ensures easy and direct plug-in connection without custom wiring.
Shipping Weight: 0.03 kg
-
Total package weight including the module, wiring, and any protective materials is about 30 grams.
-
Helps estimate shipping costs and storage needs.
Shipping Dimensions: 8 × 8 × 6 cm
-
The package size is compact and easy to store or transport.
-
Small enough for:
-
Retail display
-
Online order delivery
-
Parts kit for drone projects
-
Summary
The NZ Mini GPS Module offers:
Feature | Benefit |
---|---|
Compact Size | Easy to install even in tight drone frames |
Lightweight Build | Ideal for racing and freestyle drones |
Fixed Baud Rate | Plug-and-play with Cleanflight/Betaflight, no configuration needed |
Ublox 7 Chipset | Reliable GPS signal for telemetry (speed, altitude, time) |
Compatibility | Works perfectly with NAZE32, Flip32, and NanJ32 boards |
NZ Mini GPS Module for NAZE32 – LOFTY AGROTECH
Overview
The NZ Mini GPS Module for NAZE32 s a compact and efficient GPS solution designed specifically for flight controllers such as NAZE32, Flip32, and NanJ32. Powered by the OEM Ublox 7 series chip, this module ensures accurate and reliable positioning data, making it ideal for drone enthusiasts and professionals alike.
Measuring just 26 x 25 x 8 mm and weighing approximately 10 grams, its lightweight design is perfect for racing drones like the QAV250 and ZMR250, where every gram counts. The module comes pre-configured at a 9600 baud rate, optimized for Cleanflight and Betaflight controllers, facilitating seamless integration without the need for additional setup.
Please note that the settings on this module are fixed and cannot be altered. It’s best utilized for On-Screen Display (OSD) information such as speed, altitude, and flight time.
Key Features
-
- Compact Design: Dimensions of 26 x 25 x 8 mm and a weight of 10 grams make it ideal for lightweight drone builds.
- Pre-configured Settings: Operates at a 9600 baud rate, optimized for Cleanflight and Betaflight controllers.
- Fixed Configuration: Settings are fixed and cannot be altered, ensuring consistent performance.
- Ideal for OSD: Best used for displaying On-Screen Display (OSD) information such as speed, altitude, and flight time.
Key Features – Detailed Explanation
1. Compact Design
Dimensions: 26 mm × 25 mm × 8 mm
Weight: 10 grams
-
-
-
The NZ Mini GPS Module is extremely small and lightweight, making it perfect for use on micro or racing drones where weight savings are critical.
-
A lighter drone means:
-
Faster flight
-
Longer battery life
-
Better maneuverability
-
-
Its tiny footprint ensures easy mounting on any frame, even in tight builds like QAV250 or ZMR250.
-
-
2. Pre-configured Settings
Baud Rate: 9600 bps (bits per second)
-
-
-
This GPS module comes pre-set to 9600 baud rate, which is the ideal speed for communication between:
-
GPS module ↔️ Flight controller
-
-
Compatible directly with:
-
Cleanflight
-
Betaflight
-
-
This means:
-
No need to change settings
-
No external software or flashing required
-
Just plug in and fly—true plug-and-play
-
-
-
3. Fixed Configuration
Non-modifiable settings
-
-
-
The internal GPS settings are locked, meaning:
-
Users cannot change baud rate, update frequency, or protocols.
-
-
This may sound limiting, but it’s actually a benefit for beginners or plug-and-play setups:
-
No risk of misconfiguration
-
Ensures consistent and stable performance
-
Reduces time spent on complex GPS tuning
-
-
-
It is designed to “just work” with common flight controllers — ideal for FPV pilots who don’t need complex navigation but want reliable telemetry.
4. Ideal for OSD (On-Screen Display)
-
-
-
This module is optimized for telemetry, not for GPS navigation.
-
Its core function is to feed GPS data to the flight controller, which then displays it on your FPV screen through the OSD.
-
Data displayed may include:
-
Speed
-
Altitude
-
Coordinates
-
Flight time
-
-
This is highly useful in:
-
FPV racing — to monitor your speed
-
Freestyle flights — to keep track of altitude and flight duration
-
Basic telemetry logging
-
-
-
Note: It does not support features like GPS hold, position hold, or return-to-home (RTH).
Conclusion
The NZ Mini GPS Module by Lofty AgroTech is a compact, ready-to-use, and OSD-focused GPS module. It’s ideal for:
-
-
-
FPV drone pilots
-
Beginners
-
Hobbyists building Cleanflight/Betaflight-based drones
-
-
You get essential GPS data in your video feed, without the hassle of complex setup or configuration.
Specifications
Parameter | Details |
---|---|
Item Type | GPS Module |
Chipset | OEM Ublox 7 series |
Wire Length | 15 cm |
Compatibility | NAZE32, Flip32, NanJ32 flight controllers |
Dimensions (L x W x H) | 26 x 25 x 8 mm |
Weight | 10 grams |
Interface | 1 Pin 2.54 |
Shipping Weight | 0.03 kg |
Shipping Dimensions | 8 × 8 × 6 cm |
Pin Descriptions
- Black: GND
- Red: +5V
- Blue: TX
- Orange: RX
-
Pin Descriptions – NZ Mini GPS Module
This GPS module uses a standard 4-wire connection for communication with your flight controller. Each wire has a specific function, which is color-coded to avoid confusion during installation.
Black Wire: GND (Ground)
-
Function: Electrical ground reference.
-
Purpose: Completes the electrical circuit by connecting to the ground pin of the flight controller.
-
Importance: If not connected properly, the GPS module will not power on or communicate correctly.
-
Connect to: GND pin on NAZE32/Flip32/NanJ32.
Red Wire: +5V (Power Input)
-
Function: Supplies power (5 volts) to the GPS module.
-
Purpose: Powers the internal Ublox 7 chip and GPS components.
-
Input Range: Must be 5V regulated — connecting it to higher voltage can damage the module.
-
Connect to: A 5V output pin on your flight controller or power distribution board (PDB).
Blue Wire: TX (Transmit)
-
Function: This pin transmits data from the GPS module to the flight controller.
-
Purpose: Sends GPS data such as coordinates, speed, altitude, and time to be displayed via OSD or logged.
-
Connect to: RX (Receive) pin on the flight controller.
Note: TX always connects to RX (and vice versa) because one device’s transmission is another’s reception.
Orange Wire: RX (Receive)
-
Function: Receives data sent from the flight controller to the GPS module (rarely used).
-
Purpose: While most GPS modules are one-way communication (TX only), the RX pin is included in case future updates or configurations require two-way communication.
-
Connect to: TX pin on the flight controller (if used).
In many fixed-configuration GPS modules like this one, RX may be unused unless you’re flashing firmware (which is not needed here).
How to Wire It (Summary)
Wire Color Pin Name Connects To on FC Purpose Black GND GND Common ground Red +5V 5V Output Power supply Blue TX RX (on flight controller) GPS → FC data (telemetry) Orange RX TX (on flight controller) FC → GPS (rarely used here)
Tip for Beginners
-
TX ↔ RX and RX ↔ TX
-
Make sure the red wire only goes to 5V, not 12V or VBAT — it can damage the GPS.
-
If your FC only supports 3.3V UART, this 5V GPS module may not be compatible.
-
Package Includes
- 1 x NZ Mini GPS Module for NAZE32
Note: The product is available in various colors and will be shipped randomly.
Usage Notes
- Fixed Settings: The settings on this module are fixed and cannot be altered.
- OSD Display: Best utilized for displaying On-Screen Display (OSD) information such as speed, altitude, and flight time.
- Flight Controller Compatibility: Compatible with NAZE32, Flip32, and NanJ32 flight controllers.
Warranty Information
This product is covered by a standard warranty of 15 days from the time of delivery against manufacturing defects only. Replacement will be done against manufacturing defects.
Note: Warranty does not cover misuse, tampering, static discharge, accident, water or fire damage, use of chemicals, or if the product is soldered or altered in any way.
APPLICATIONS:
1. Drone Navigation and Positioning
The NZ Mini GPS Module is integral to modern drone navigation systems. By providing precise positioning data, it enables drones to maintain stable flight paths, execute Return to Home (RTH) functions, and follow predefined waypoints. This is particularly beneficial in environments where GPS signals are essential for navigation. The module’s compatibility with flight controllers like NAZE32, Flip32, and NanJ32 ensures seamless integration into various drone platforms.
2. On-Screen Display (OSD) Integration
With its fixed baud rate and compatibility with Cleanflight and Betaflight controllers, the NZ Mini GPS Module facilitates the integration of GPS data into the drone’s on-screen display. Pilots can monitor real-time information such as speed, altitude, and flight time, enhancing situational awareness during flight. This feature is particularly useful for pilots who require immediate access to flight data without needing to refer to external devices.
3. Racing Drones
The compact size and lightweight design of the NZ Mini GPS Module make it an excellent choice for racing drones like the QAV250 and ZMR250. In racing scenarios, precise positioning and minimal weight are critical for optimal performance. The module’s small form factor ensures it doesn’t add significant weight to the drone, allowing for agile maneuvers and enhanced speed.
4. Agricultural Drones
In precision agriculture, drones equipped with GPS modules like the NZ Mini can perform tasks such as crop monitoring, field mapping, and automated spraying. Accurate GPS data ensures that these tasks are carried out efficiently and within specified boundaries. This leads to optimized resource usage, reduced waste, and increased crop yields.
5. Aerial Photography and Mapping
For aerial photography and mapping applications, precise georeferencing is essential. The NZ Mini GPS Module provides accurate location data, enabling the creation of detailed maps and high-quality aerial images with correct spatial references. This is crucial for applications like land surveying, environmental monitoring, and urban planning.
6. Surveying and Inspection
Drones equipped with GPS modules are increasingly used for surveying and inspecting infrastructure such as power lines, bridges, and pipelines. The NZ Mini GPS Module ensures that the drone’s position is accurately tracked, allowing for precise data collection and analysis. This capability enhances the efficiency and safety of inspections, reducing the need for manual labor in hazardous environments.
7. Search and Rescue Operations
In search and rescue missions, drones can cover large areas quickly. The NZ Mini GPS Module aids in mapping out search grids and tracking the drone’s location, improving the efficiency and effectiveness of these operations. By providing real-time location data, the module assists rescue teams in pinpointing areas of interest and coordinating efforts more effectively.
8. Environmental Monitoring
Drones equipped with GPS modules can be used to monitor environmental conditions such as forest health, wildlife populations, and pollution levels. The NZ Mini GPS Module provides accurate location data, ensuring that monitoring activities are conducted in the correct areas. This contributes to more effective conservation efforts and better-informed environmental policies.
9. Educational and Research Purposes
Educational institutions and research organizations use drones for various studies, including atmospheric research, wildlife tracking, and geographical surveys. The NZ Mini GPS Module offers a cost-effective solution for integrating GPS functionality into these drone applications. Its affordability and ease of integration make it an attractive option for educational projects and research initiatives.
10. Urban Planning and Development
In urban planning, drones equipped with GPS modules can conduct aerial surveys to assess land use, infrastructure development, and urban sprawl. The NZ Mini GPS Module ensures that the drone’s position is accurately tracked during these surveys. This data aids planners in making informed decisions about zoning, development, and resource allocation.
