Pixhawk 2.4.7 Upgraded Flight Controller kit with GPS Module Combo Kit (NDK30)

✔ All-in-One Flight Controller Kit – Perfect for building high-performance drones
✔ High-Precision GPS – Ublox NEO-M8N with Compass and folding antenna mount
✔ Reliable Power Monitoring – 90A Pixhawk power module with XT60 Plug
✔ PPM Encoder – Simplified wiring to the flight controller
✔ Shock Absorber – Glass fiber anti-vibration mount for stable flight performance
✔ Shipping Weight: 0.75 kg | Dimensions: 15 × 10 × 6 cm

Product Code: NDK30 Categories: , Tags: , , , , , , , , , , , ,

Description

The PIXHAWK PX4 2.4.7 Combo Kit – NDK29 by LOFTY AGROTECH is an all-in-one flight controller system that brings together everything you need to build and operate a professional-grade quadcopter. It’s perfect for fixed-wing drones, multicopters, helicopters, boats, and robotic vehicles—offering industry-grade autopilot features at an affordable price.

This combo includes:

  • PIXHAWK PX4 2.4.7 Flight Controller

  • Ublox NEO-M8N GPS with Compass

  • Anti-vibration Shock Absorber

  • Pixhawk Power Module V6.0

  • PPM Encoder Module

Whether you’re a researcher, student, or drone hobbyist, this controller is designed to offer precision, stability, and ease of integration. The included shock absorber protects delicate components, while the high-precision GPS gives accurate real-time location data. The PPM Encoder simplifies wiring by converting multiple PWM signals into a single line, and the power module offers reliable power supply and monitoring.

🔗 For more details and to purchase, Click Here.

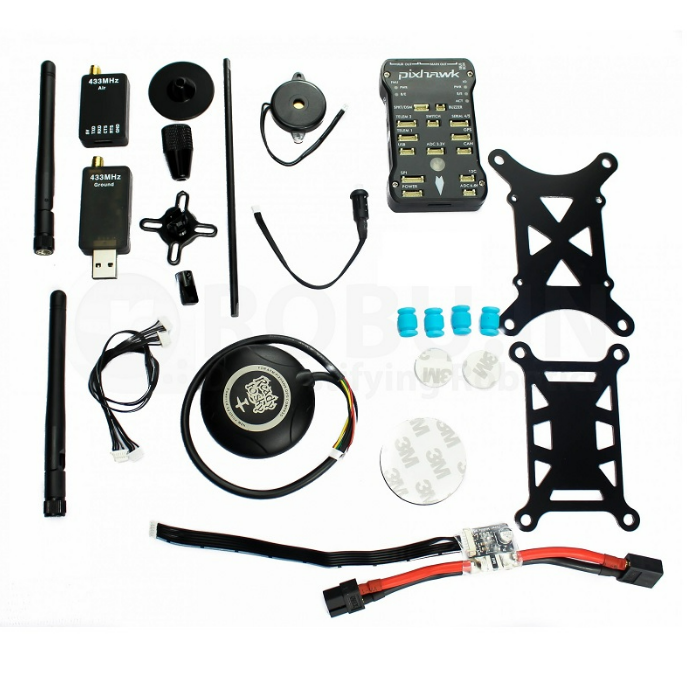

Package Includes:

  • 1 x Ublox NEO-M8N GPS Module (with compass and Pixhawk connector)

  • 1 x Pixhawk PX4 2.4.7 32-Bit Flight Controller

  • 1 x Anti-Vibration Shock Absorber Mount

  • 1 x Pixhawk PPM Encoder Module

  • 1 x Pixhawk Power Module V6.0 with XT60 Plug

Note: Mini OSD is not included.

Key Features:

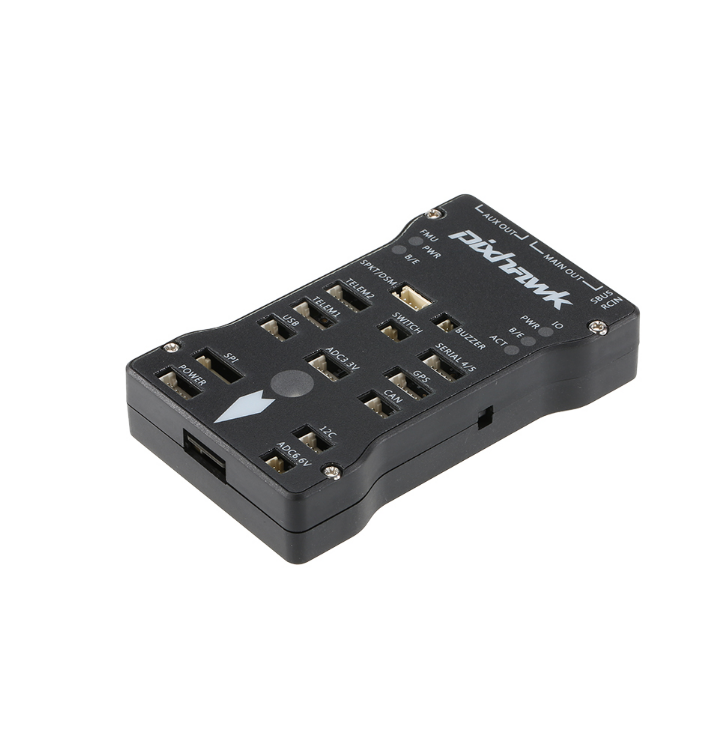

Flight Controller – Pixhawk PX4 2.4.7

  • Processor: 32-bit STM32F427 Cortex M4, 168 MHz, 2MB Flash, 256KB RAM

  • Sensors:

    • L3GD20H Gyroscope

    • 3CLDW 303H Accelerometer/Magnetometer

    • MPU6000 3-axis Gyro/Accel

    • MS5611 Barometer

  • I/O: 5x UART, 2x CAN, PPM, DSM, SBUS, I2C, SPI

  • Servo Outputs: 14 PWM/Servo (8 Main + 6 Aux)

  • Other:

    • Manual override support

    • Redundant power supply

    • MicroSD logging

    • LED indicators and buzzer

GPS – Ublox NEO-M8N

  • Accuracy: ~0.9 meters

  • Protocols: GPS/QZSS, GLONASS, BeiDou

  • Update Rate: 10Hz (Concurrent GNSS), up to 18Hz (Single GNSS)

  • Features:

    • Anti-jamming

    • Position logging

    • Odometer function

    • AssistNow technology

  • Antenna Mount: Folding GPS base, CNC aluminum alloy with carbon rod

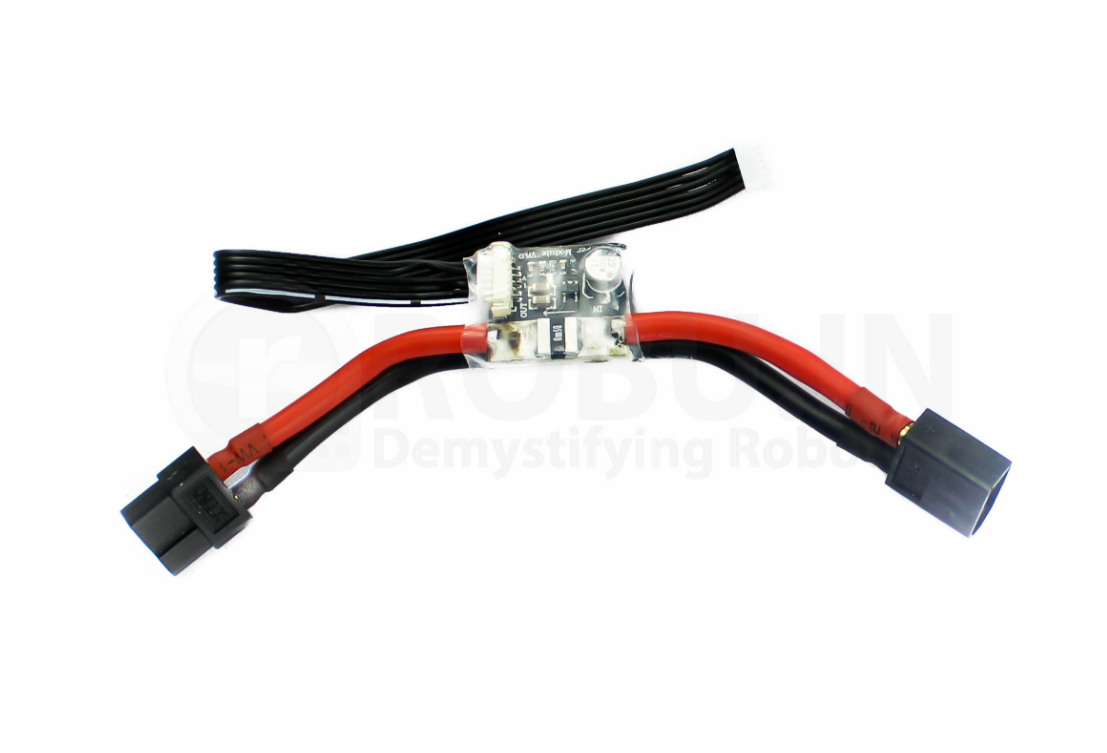

Power Module:

  • Input Voltage: Up to 28V

  • Current Sensing: Up to 90A

  • Output: 5.3V @ 3A BEC

  • Connector: XT60 plug

  • Compatible with: APM, Pixhawk

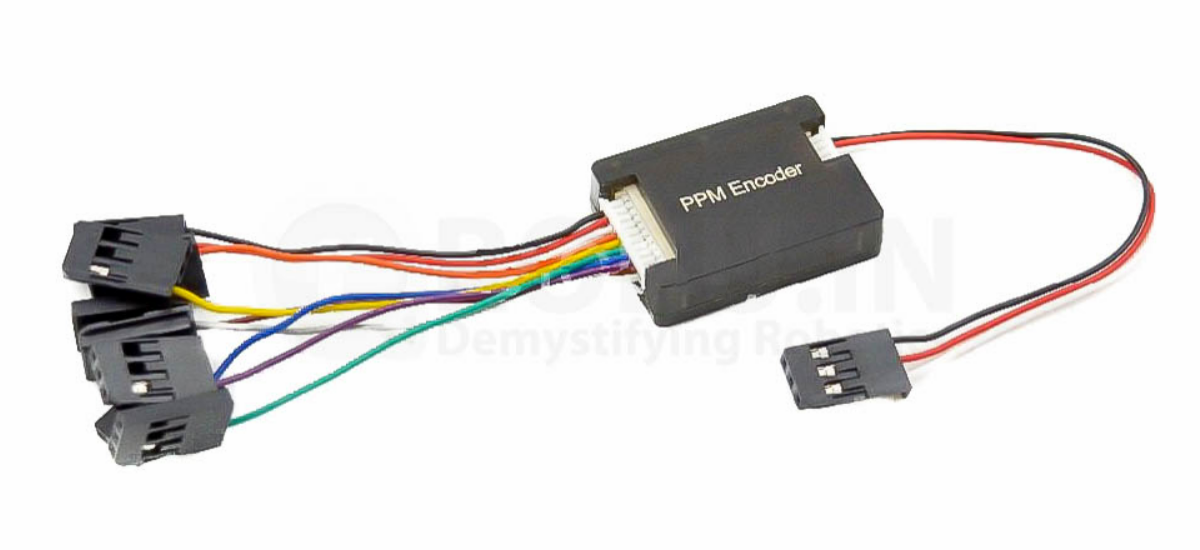

PPM Encoder:

  • Channels: Supports up to 8 input channels

  • Output: PPM SUM signal

  • Size: 28 x 19 x 5 mm

  • Weight: 12g

Shock Absorber:

  • Material: Glass fiber

  • Compatible with: Pixhawk/APM/KK/MWC

  • Size: Upper 90x60mm | Lower 100x70mm

  • Color: Black

  • Weight: 24g

Warranty:

🛡️ 15 Days Warranty
Covers manufacturing defects only.

Warranty void if:

  • Product is tampered or altered

  • Damaged due to static, water, fire, misuse, or chemicals

  • Components are soldered without guidance
