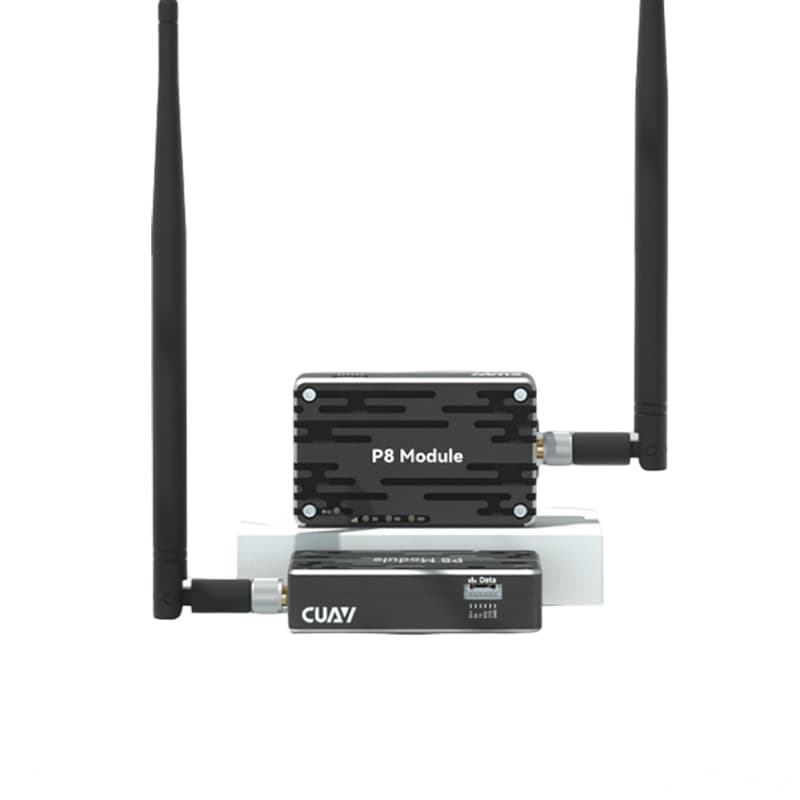

| Model | CUAV P8 |
|---|---|
| Transmission Distance | Up to 60 km for long-range communication. |
| Data Rate | High transmission rate of 345 Kbps. |
| Communication Modes | Supports point-to-multiple and relay communication. |
| Battery Compatibility | Accepts 3S-12S battery input (12V-60V). |
| Model Name: | CUAV P8 |
| Frequency Band | 840-845MHz |
| Error Detection/Control | Hamming, BCH, Golay, Reed-Solomon, Viterbi, 32 bits of CRC, ARQ |
| Frequency | Up to 40 km |
| Sensitivity dBm | -109dBM@115.2kbps, -108dBm@172.8kbps, -106dBm@230.4kbps |
| Max Transmit Power | 100mw~1000mw(20~30dBm）； default：1000mW |
| Antenna Gain | 3dBi |
| Baud Rate (bps) | 300bps to 230kbps(57600) |
| Operating Mode | Point-to-Point,Repeat Mode |
| Input Voltage (V): | 12V-60V |
| Input current | >2.5A |
| Current Consumption (mA): | Sleep: < 1 mA, Idle: < 20 mA, RX :45~98mA, TX(peak):2A |
| Antenna Interface | SMA inner needle, Power: XT30PW-M |
| USB | USB Type-C |
| Operating Temperature (°C): | -40℃～85℃ |
| Serial | GHR-06V-S |
| Battery | 3S-12S Lipo |
| Shipping Weight | 0.18 kg |
| Shipping Dimensions | 15 × 10 × 6 cm |
