Description

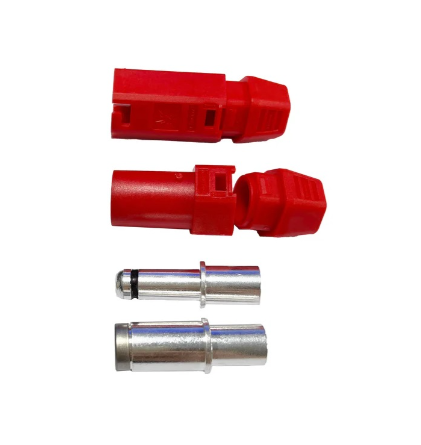

QS12H Single Lock Anti Spark Red Male Connector
Introduction
The QS12H Single Lock Anti Spark Red Male Connector by NDB&C, LOFTY AGROTECH is a premium solution for high-current, high-voltage electrical systems. Designed for applications such as electric bicycles, motor cars, drones, UAVs, and energy storage batteries, this connector combines safety, efficiency, and durability in a compact form factor.
Engineered for demanding applications, the QS12H Single Lock Anti Spark Red Male Connector ensures reliable, spark-free connections, protecting both your equipment and battery packs. Its advanced design provides optimal conductivity and mechanical stability, making it the preferred choice for professional-grade setups and high-performance hobbyist projects alike.
Construction and Materials
The QS12H Single Lock Anti Spark Red Male Connector is built with industrial-grade nylon housing, providing exceptional durability, resistance to impact, and thermal stability. The connector features 12mm silver-plated copper terminals, delivering low resistance and high conductivity, essential for maintaining power efficiency in high-current systems.
The silver plating protects against oxidation and corrosion, ensuring consistent performance over thousands of connection cycles. This combination of robust housing and high-quality terminals ensures that the QS12H Single Lock Anti Spark Red Male Connector remains reliable under extreme conditions.
The bright red color of the housing aids in polarity recognition and simplifies installation, reducing the risk of accidental misconnection, particularly in complex multi-battery or multi-device setups.
Electrical Specifications and Performance
The QS12H Single Lock Anti Spark Red Male Connector supports DC voltages up to 600V and continuous currents from 260A to 320A. Its high current-handling capability makes it suitable for electric vehicles, UAVs, drones, and industrial energy storage solutions.
Anti-Spark Technology
A defining feature of this connector is its anti-spark design, which safely manages inrush currents during connection. This prevents dangerous arcing that can damage electronics or batteries, ensuring a safe, spark-free experience every time. This is particularly important for high-voltage systems and professional applications where equipment protection is critical.
Single-Lock Mechanism
The single-lock system of the QS12H connector guarantees a secure, vibration-proof connection. Once engaged, the mechanism prevents accidental disconnections even in high-vibration environments, such as drones in flight or off-road electric bikes. The tactile “click” confirms proper engagement, giving users confidence that the connector is properly seated.
Thermal and Mechanical Stability
The QS12H Single Lock Anti Spark Red Male Connector operates reliably in extreme temperatures, from –30°C to 150°C. The industrial-grade nylon housing resists deformation under heat or cold, and the silver-plated copper terminals maintain conductivity even in challenging conditions.
Mechanically, the connector is built to withstand repeated insertions, high vibration, and mechanical stress, making it ideal for drones, EVs, energy storage systems, and industrial applications where reliability is critical.
Applications of the QS12H Single Lock Anti Spark Red Male Connector
The QS12H Single Lock Anti Spark Red Male Connector is designed for high-current, high-voltage applications, making it versatile across multiple industries. Its durability, spark-free operation, and secure locking mechanism ensure it performs reliably under demanding conditions.
Electric Bicycles and Scooters
In electric bicycles and scooters, the QS12H Single Lock Anti Spark Red Male Connector provides efficient power transfer to the motor while minimizing voltage drops. Its anti-spark design protects sensitive batteries during connection and disconnection, ensuring longevity and safer operation. The secure single-lock mechanism prevents accidental disconnections even when riding over uneven terrain, delivering consistent power throughout the journey.
Motor Cars and Electric Vehicles
For electric vehicles, the QS12H Single Lock Anti Spark Red Male Connector handles heavy currents required for large battery packs and high-power motors. Rated for 260A–320A, it ensures smooth and reliable power delivery without risking sparks or arcing. Its robust nylon housing and thermal stability make it ideal for under-hood or battery pack connections, providing both safety and reliability for EV manufacturers and DIY builders.
UAVs and Drones
Drones and UAVs demand connectors that can maintain secure electrical connections under continuous vibration and rapid maneuvers. The QS12H Single Lock Anti Spark Red Male Connector ensures stable power delivery to high-performance motors, ESCs, and onboard electronics. Its anti-spark technology protects sensitive flight controllers and batteries during quick battery swaps, while the single-lock system guarantees the connection remains secure even mid-flight.
Energy Storage Systems
High-capacity energy storage solutions, including solar battery arrays and industrial backup systems, require connectors capable of safe, high-current operation. The QS12H Single Lock Anti Spark Red Male Connector delivers reliable power transfer while minimizing the risk of sparks that could compromise safety. Its wide operating temperature range ensures consistent performance across diverse environments, from cold storage facilities to high-temperature battery enclosures.
Industrial and DIY High-Power Applications
The QS12H Single Lock Anti Spark Red Male Connector is also ideal for industrial machinery, robotics, and high-power DIY electronics. Its secure locking, high-current capacity, and spark-free design make it perfect for demanding projects where reliability, safety, and performance are critical.
Installation and Compatibility
Installing the QS12H Single Lock Anti Spark Red Male Connector is straightforward, allowing integration into professional and DIY systems alike. The connector supports soldered or crimped wires, providing flexibility for different setups.
Installation Steps:
- Strip the wire to expose the conductor.
- Insert the wire into the connector cavity.
- Secure the wire using crimping or soldering for low-resistance contact.
- Align the male connector with its corresponding female connector.
- Push until the single-lock mechanism clicks, confirming secure engagement.
The QS12H is fully compatible with corresponding female QS12H connectors and can integrate into existing high-current systems requiring 12mm terminals. Its design allows use with high-gauge wires commonly found in EVs, drones, and energy storage systems.
The connector’s compact nylon housing provides electrical insulation and protection, ensuring safe handling even when installed in tight spaces or high-vibration environments. Proper installation ensures maximum efficiency, reliability, and safety in all applications.
Safety and Best Practices for the QS12H Single Lock Anti Spark Red Male Connector
While the QS12H Single Lock Anti Spark Red Male Connector is engineered with anti-spark protection and a single-lock system for secure and safe connections, adhering to best practices further enhances safety, longevity, and performance. Following proper handling and maintenance procedures ensures that the connector operates reliably in high-current and high-voltage applications.
Verify Voltage and Current Ratings
Before installation, always check the voltage and current ratings of the QS12H connector to ensure compatibility with your system. This connector is rated for DC voltages up to 600V and currents between 260A and 320A, making it suitable for electric vehicles, drones, UAVs, and energy storage systems. Exceeding these specifications can compromise performance, reduce lifespan, and pose safety risks such as overheating or electrical arcing.
Ensure Full Engagement and Audible Locking
The single-lock mechanism is designed to provide a secure and vibration-proof connection. Always push the male connector fully into the corresponding female connector until an audible click confirms proper engagement. Partial insertion may result in loose connections, voltage drops, or accidental disconnections, especially in high-vibration environments like UAVs, drones, and electric bikes.
Avoid Moisture and Corrosive Environments
Even though the QS12H connector features durable nylon housing and corrosion-resistant silver-plated terminals, prolonged exposure to moisture, water, or corrosive chemicals can degrade the connector over time. Keep the connector dry and clean, and store it in protective, anti-static packaging when not in use. This ensures long-term performance and prevents potential short circuits or corrosion-related failures.
Inspect Terminals Periodically
Regular inspection is crucial for maintaining the efficiency and safety of the QS12H connector. Check terminals for signs of wear, corrosion, or dirt. Any buildup or surface oxidation can increase contact resistance, causing heating or power loss. Early detection of wear allows for timely cleaning or replacement, reducing the risk of system failures.
Maintain Clean Contacts
To maximize conductivity and prevent overheating, gently clean the contacts using a soft, non-abrasive cloth or contact cleaner. Avoid harsh scrubbing or chemicals that could damage the silver plating. Clean and well-maintained contacts ensure optimal power transfer, reduce energy loss, and extend the operational life of the connector.
By following these safety guidelines and best practices, users can ensure that the QS12H Single Lock Anti Spark Red Male Connector performs reliably and safely in demanding high-power systems. Proper handling, inspection, and maintenance complement the connector’s anti-spark and single-lock features, making it a trusted solution for electric bicycles, motor cars, drones, UAVs, and energy storage applications.
Quality Assurance by LOFTY AGROTECH
Every QS12H Single Lock Anti Spark Red Male Connector undergoes rigorous quality control at NDB&C – LOFTY AGROTECH, ensuring peak performance, safety, and long-term reliability. The process begins with material inspection, verifying the integrity of the nylon housing and silver-plated copper terminals. Only high-grade materials are used to guarantee mechanical strength, thermal stability, and corrosion resistance.
Electrical Testing: Each connector is subjected to high-current stress tests to confirm it handles its rated 260A–320A without excessive heat or voltage drop. Anti-spark functionality is verified, ensuring safe engagement for sensitive electronics and battery packs.
Mechanical Testing: The single-lock mechanism is repeatedly tested for insertion and withdrawal cycles, ensuring secure, vibration-proof engagement in drones, EVs, and industrial applications.
Thermal Testing: Connectors are tested across the –30°C to 150°C range to ensure consistent performance in extreme conditions, maintaining conductivity and structural integrity.
By adhering to these strict standards, LOFTY AGROTECH guarantees that each QS12H Single Lock Anti Spark Red Male Connector meets professional-grade specifications, delivering dependable, spark-free performance in all applications.
Packaging and Dimensions
The QS12H Single Lock Anti Spark Red Male Connector is packaged carefully to protect it during transport. Each connector is sealed in an anti-static bag, preventing damage from dust, moisture, or electrostatic discharge.
- Product Weight: 0.055 kg
- Package Dimensions: 10 × 8 × 3 cm
- Connector Size: 12mm silver-plated copper terminals
- Operating Temperature: –30°C to 150°C
- Current Handling: 260A–320A
Compact, lightweight, and robust, the QS12H connector is easy to handle, store, and install, ensuring it arrives in perfect condition and ready for immediate use in high-power systems.
Advantages of the QS12H Single Lock Anti Spark Red Male Connector
The QS12H Single Lock Anti Spark Red Male Connector by NDB&C – LOFTY AGROTECH is engineered to deliver exceptional performance in high-current applications. Its design and construction provide numerous advantages that ensure safety, reliability, and long-term durability.
High Current Capacity
One of the primary advantages of the QS12H Single Lock Anti Spark Red Male Connector is its high current handling capability, rated for 260A–320A. This makes it ideal for demanding systems such as electric vehicles, industrial machinery, drones, and energy storage units, where consistent, high-power delivery is critical. The connector’s robust silver-plated copper terminals maintain low resistance and efficient conductivity, ensuring minimal power loss even under heavy load.
Anti-Spark Technology
The anti-spark design of the QS12H connector eliminates dangerous arcing during connection or disconnection. This feature protects sensitive electronics, battery packs, and other connected devices, making it safer to use in high-voltage, high-current applications. By preventing inrush currents, the connector not only safeguards equipment but also extends battery and system longevity.
Single-Lock Mechanism
The single-lock system ensures that the QS12H connector remains securely engaged, even in high-vibration environments such as drones in flight, off-road electric bikes, or industrial machinery. This mechanism prevents accidental disconnections, enhancing reliability and operational safety. The audible “click” confirms proper engagement, providing users confidence in their connection.
Durable Construction
Durability is a hallmark of the QS12H connector. Its nylon housing offers mechanical strength, impact resistance, and thermal stability, while the silver-plated copper terminals resist corrosion and oxidation. This combination ensures long-term performance, even under repeated insertions, harsh environmental conditions, or high-temperature operations.
Thermal Stability
The QS12H connector performs reliably in extreme temperatures ranging from –30°C to 150°C, making it suitable for applications exposed to cold winters, hot summer conditions, or high-heat battery enclosures. This thermal stability guarantees consistent conductivity and mechanical integrity under all conditions.
Easy Installation
Designed for both professional and DIY applications, the QS12H connector supports crimping or soldering, allowing users flexibility in installation. Its ergonomic design facilitates easy handling and integration into tight spaces, simplifying wiring tasks without compromising performance or safety.
Versatility
The QS12H Single Lock Anti Spark Red Male Connector is highly versatile, compatible with a wide range of high-power systems. It is ideal for electric bicycles, motor cars, UAVs, drones, and energy storage applications, offering a reliable, spark-free, and secure connection wherever high-current transfer is required.
Comparison with Other Connectors
The QS12H Single Lock Anti Spark Red Male Connector stands out in the high-current connector market due to its advanced anti-spark design, single-lock mechanism, and superior current-handling capacity. Comparing it to other popular connectors highlights why it is the preferred choice for professional and high-performance applications.
QS12H vs XT150
XT150 connectors are widely used in hobbyist and small-scale high-current systems because of their simplicity and affordability. However, they lack integrated anti-spark protection, which makes them prone to arcing during connection and disconnection. Additionally, XT150 connectors do not offer a robust single-lock mechanism, leaving the connection vulnerable to vibration or accidental disconnection, especially in dynamic environments like drones, UAVs, or electric bicycles.
In contrast, the QS12H Single Lock Anti Spark Red Male Connector is specifically engineered for professional-grade systems, offering higher current capacity, spark-free connections, and a secure single-lock mechanism. Rated for 260A–320A, it ensures stable power transfer even under heavy load. Its anti-spark technology protects sensitive electronics and battery packs, while the vibration-proof lock guarantees consistent performance in high-vibration applications. This makes the QS12H safer, more reliable, and suitable for high-power EVs, drones, and industrial setups.
QS12H vs AS200
AS200 connectors are designed for high-current applications and can handle substantial loads. However, they typically do not feature vibration-proof locking or integrated anti-spark protection, which limits their safety and long-term reliability. In high-power systems, the absence of these features can lead to accidental sparks, voltage drops, and potential damage to expensive equipment or battery packs.
The QS12H Single Lock Anti Spark Red Male Connector addresses these limitations. Its anti-spark design eliminates the risk of arcing during connection, while the single-lock mechanism ensures the connection remains secure under vibrations or movement. Additionally, the QS12H’s durable nylon housing and silver-plated copper terminals provide superior corrosion resistance and mechanical stability. These enhancements make it safer and more reliable for critical applications such as electric vehicles, UAVs, drones, and energy storage systems.
QS12H vs QS10
The QS10 series was a popular solution for high-current applications, but the QS12H Single Lock Anti Spark Red Male Connector offers significant improvements. First, the QS12H features larger 12mm terminals, allowing higher current tolerance (260A–320A) compared to the QS10 series. This enables it to handle more demanding electrical systems efficiently.
Second, the QS12H includes an enhanced anti-spark mechanism, protecting batteries and sensitive electronics from inrush currents. Third, the single-lock system and reinforced housing provide superior mechanical stability, ensuring secure connections even in high-vibration or extreme-temperature environments. These improvements make the QS12H the go-to choice for modern high-power electrical systems that demand safety, efficiency, and durability.
Why Choose LOFTY AGROTECH
Choosing NDB&C – LOFTY AGROTECH ensures customers receive high-quality connectors backed by rigorous testing and industry expertise. The QS12H connector is designed and manufactured to meet professional standards, combining safety, performance, and durability. LOFTY AGROTECH’s commitment to quality guarantees spark-free, secure, and reliable operation for industrial, professional, and hobbyist applications.
Conclusion
The QS12H Single Lock Anti Spark Red Male Connector is a top-tier solution for high-current, high-voltage applications, combining anti-spark technology, secure single-lock design, durable nylon housing, and 12mm silver-plated terminals. Rated for 260A–320A and voltages up to 600V DC, it operates reliably in extreme temperatures from –30°C to 150°C.
Ideal for electric bicycles, motor cars, UAVs, drones, and energy storage systems, this connector provides safe, efficient, and long-lasting performance. Professionals and hobbyists alike can trust the QS12H Single Lock Anti Spark Red Male Connector from NDB&C – LOFTY AGROTECH for all demanding electrical setups.
