Description

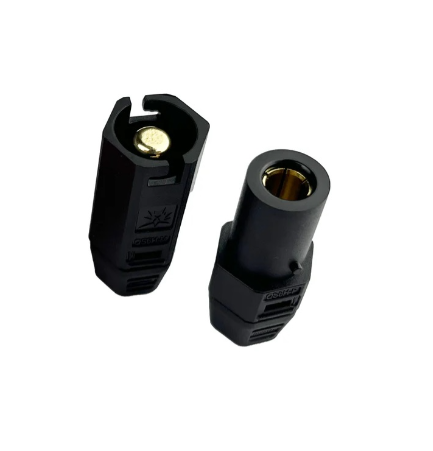

QS6H Single Lock Anti Spark Black Male Connector: Ultimate Solution for High-Current Applications
Introduction of QS6H Single Lock Anti Spark Black Male Connector
The QS6H Single Lock Anti Spark Black Male Connector is a state-of-the-art connector designed to meet the demanding needs of high-current electrical systems. Specifically engineered for electric vehicles, drones, UAVs, and energy storage systems, this connector combines safety, efficiency, and durability in a compact, user-friendly design. Whether you are a hobbyist, engineer, or industry professional, the QS6H connector ensures reliable power delivery and optimal performance.
Key Features of the QS6H Single Lock Anti Spark Black Male Connector
The QS6H Single Lock Anti Spark Black Male Connector incorporates several advanced features that make it a preferred choice in high-current applications:
Superior Conductivity
Equipped with silver-plated copper connectors, the QS6H ensures excellent electrical conductivity. Silver plating minimizes resistance and energy loss while providing corrosion resistance, which is critical for systems exposed to varying environmental conditions. This design guarantees stable current flow, whether the connector is used in a drone battery system or an electric bicycle.
Anti-Spark Safety Design
The anti-spark feature of the QS6H Single Lock Anti Spark Black Male Connector Single Lock Anti Spark Black Male Connector is particularly important in sensitive applications. It reduces the risk of arcing during connection, which can cause damage to electrical components or pose safety hazards. This makes the QS6H ideal for connecting high-voltage batteries in electric vehicles, energy storage units, or UAV power systems.
Single Lock Mechanism
The single lock mechanism ensures that the QS6H Single Lock Anti Spark Black Male Connector remains securely connected under vibration and movement. Unlike traditional connectors that may loosen over time, this design maintains a consistent, reliable connection even in dynamic environments such as off-road EVs or industrial drones.
Durable Material Construction
Constructed from high-quality nylon, the QS6H Single Lock Anti Spark Black Male Connector can withstand extreme conditions. It features a maximum operating temperature of 150°C and a high resistance to wear and mechanical stress, making it suitable for long-term use in demanding environments.
Technical Specifications of QS6H Single Lock Anti Spark Black Male Connector
The QS6H Single Lock Anti Spark Black Male Connector is designed with precision engineering, ensuring compatibility and performance across multiple applications:
| Specification | Details |
|---|---|
| Connector Type | Male Anti Spark Connector |
| Material | Durable Nylon |
| Contacts | Silver-plated copper, 6mm |
| Operating Temperature | 30°C – 200°C |
| Current Rating | 60A – 90A |
| Voltage Rating | 600V DC |
| Lock Mechanism | Single lock for secure connection |
| Applications | Electric vehicles, UAVs, drones, energy storage systems |
| Weight | 0.0 kg (shipping weight) |
The QS6H is capable of handling high currents ranging from 60A to 90A, making it suitable for demanding high-power applications, while its voltage rating of 600V DC ensures safe operation in a variety of electrical systems.
Applications of the QS6H Single Lock Anti Spark Black Male Connector
The QS6H Single Lock Anti Spark Black Male Connector is engineered for versatility and reliability, making it suitable for a wide range of modern high-current applications. Its combination of anti-spark safety, robust construction, and high-current handling allows it to perform effectively in both professional and hobbyist environments. Below are some of the key applications where the QS6H connector excels.
Electric Vehicles (EVs)
Electric bicycles, scooters, and cars rely on stable, high-current connections for their battery packs and motor systems. The QS6H Single Lock Anti Spark Black Male Connector provides:
- Safe, spark-free connections: Minimizes the risk of accidental arcing during battery connection or disconnection.
- High-current handling: Rated for 60A–90A, it can efficiently transfer power from battery packs to motors without overheating.
- Reliability under motion: Its single lock mechanism ensures the connector stays secure even when vehicles experience vibration, bumps, or sudden movement.
For electric bicycles and scooters, the QS6H guarantees that the battery delivers consistent power to the motor, enhancing performance and extending battery life. In electric cars or larger EVs, it provides a dependable link between battery modules, ensuring smooth operation of the entire powertrain.
Unmanned Aerial Vehicles (UAVs) and Drones
Drones and UAVs require connectors that maintain stable, high-current connections under demanding conditions. The QS6H Single Lock Anti Spark Black Male Connector:
- Supports flight-critical systems: Powers motors, ESCs, and onboard electronics reliably.
- Prevents mid-flight issues: Its anti-spark design ensures safe connections during battery swaps or maintenance, reducing the risk of electronic damage.
- Vibration-resistant design: Maintains secure connections even under turbulence, aggressive maneuvers, or rough landings.
This makes the QS6H ideal for commercial UAVs, industrial drones used in surveying, mapping, or delivery, and hobbyist drones where reliability and safety are paramount.
Energy Storage Systems
Residential and industrial energy storage systems, including solar battery banks, require connectors that can handle high currents safely and efficiently. The QS6H Single Lock Anti Spark Black Male Connector excels in these setups by:
- Reducing arcing risks: Protects batteries and electronic circuits from sparks during connection or disconnection.
- Efficient power transfer: Silver-plated copper contacts ensure minimal resistance and heat generation.
- Long-term durability: Withstands repeated connections, temperature fluctuations, and heavy use.
Whether it’s a home solar installation or a large-scale industrial battery array, the QS6H ensures reliable power flow between storage units, inverters, and other system components.
DIY and Hobbyist Electronics
For makers, robotics enthusiasts, and electronics hobbyists, the QS6H Single Lock Anti Spark Black Male Connector Single Lock Anti Spark Black Male Connector provides a robust and easy-to-use solution for high-power projects:
- Secure connections: Prevents accidental disconnections in prototypes or experimental setups.
- High-current compatibility: Can handle significant currents for motors, servos, or other high-power components.
- Durable and reusable: Maintains performance even after repeated connections, making it ideal for testing and iterative projects.
Hobbyists can use the QS6H in applications ranging from RC cars and drones to DIY robots, electric skateboards, or energy experiments, combining safety and performance without compromising convenience.
Additional Applications
Beyond the main categories above, the QS6H Single Lock Anti Spark Black Male Connector is also suitable for:
- Industrial automation systems where reliable high-current connections are essential.
- Portable power tools that require efficient, spark-free connections.
- Electric marine vehicles like boats or jet skis.
- Robotics competitions and labs where repeated connections and high currents are common.
Advantages of Using the QS6H Single Lock Anti Spark Black Male Connector
The QS6H Single Lock Anti Spark Black Male Connector is far more than a standard electrical connector. It offers a range of advantages that make it a top choice for professionals, hobbyists, and industrial applications alike. Its design focuses on safety, reliability, performance, and durability, ensuring that high-current systems operate efficiently and securely.
Safety First
The most critical advantage of the QS6H Single Lock Anti Spark Black Male Connector is its anti-spark design. Connecting or disconnecting high-voltage batteries can often produce sparks, which can damage electronic components or, in worst-case scenarios, pose fire hazards. The QS6H minimizes this risk by controlling the inrush current and preventing arcing during connection.
This safety feature is especially important in applications such as:
- Electric vehicles (EVs): Where battery packs deliver high voltage and currents, even a small spark could damage expensive components.
- Drones and UAVs: Protecting sensitive electronic circuits during battery swaps or maintenance.
- Energy storage systems: Ensuring safe connections during solar battery charging or industrial power systems.
By reducing the risk of sparks, the QS6H protects both the user and critical equipment, making it a reliable choice in high-current applications.
High Reliability
Reliability is key when operating in demanding conditions. The QS6H Single Lock Anti Spark Black Male Connector features a single lock mechanism and durable construction, ensuring that the connection remains stable even in environments with vibration, movement, or temperature fluctuations.
- Single lock mechanism: Prevents accidental disconnections during operation.
- Vibration resistance: Suitable for off-road EVs, drones, and robotics that experience constant motion.
- Temperature resistance: Operates reliably from 30°C up to 200°C, handling high-heat conditions without degradation.
This combination of features ensures that your electrical system remains consistent, even in harsh industrial or outdoor conditions.
Enhanced Electrical Performance
Efficient power transfer is essential for high-current applications, and the QS6H Single Lock Anti Spark Black Male Connector excels in this regard. Its silver-plated copper contacts minimize electrical resistance, reducing energy loss and heat generation.
- High conductivity: Supports efficient current flow from batteries to motors or devices.
- Reduced heat: Less resistance means cooler operation, protecting the connector and surrounding components.
- Stable performance: Prevents voltage drops, ensuring reliable power delivery for sensitive electronics.
Whether used in drones, EVs, or energy storage systems, the QS6H connector guarantees optimal electrical performance.
Long-Lasting Durability
The QS6H Single Lock Anti Spark Black Male Connector Single Lock Anti Spark Black Male Connector is built to withstand the rigors of demanding applications.
- Nylon housing: Strong, impact-resistant, and able to endure repeated handling.
- High temperature rating: Capable of operating safely up to 150°C without deformation or loss of performance.
- Corrosion-resistant contacts: Silver-plating prevents oxidation, extending the lifespan of the connector.
This durability ensures that the QS6H can withstand years of repeated use, even in harsh industrial, automotive, or outdoor environments.
Easy Installation
A high-performance connector is only as good as its usability. The QS6H Single Lock Anti Spark Black Male Connector has been designed for quick, tool-free installation, making it ideal for both professionals and hobbyists.
- Quick connection: Insert and lock in seconds without complex tools.
- Maintenance-friendly: Easy to clean and inspect, reducing downtime in industrial or field applications.
- User-friendly design: Polarized to prevent incorrect insertion, ensuring safe and correct connections every time.
This ease of installation saves time, reduces errors, and makes the QS6H an efficient solution for a wide range of applications.
Installation and Usage Guide for QS6H Single Lock Anti Spark Black Male Connector
Proper installation and careful usage of the QS6H Single Lock Anti Spark Black Male Connector are critical to ensure optimal performance, longevity, and safety. This guide provides step-by-step instructions along with practical tips for both professional and hobbyist users.
Step 1: Inspect the Connector
Before installation, always inspect the QS6H Single Lock Anti Spark Black Male Connector carefully. Look for any visible signs of damage, such as cracks in the nylon housing or bent pins. Make sure that the silver-plated copper contacts are clean, free of dust, dirt, or corrosion. Dirty or damaged contacts can lead to poor conductivity, heat generation, and even sparks, compromising both safety and performance.
Tip: Use a soft brush or a dry lint-free cloth to clean the contacts. Avoid using any harsh chemicals, solvents, or abrasive materials, as they may damage the silver plating or nylon housing.
Step 2: Align Properly
Proper alignment is crucial for a secure connection. Take the QS6H Single Lock Anti Spark Black Male Connector and carefully align it with the corresponding female connector. Ensure that the pins are properly oriented and that the connectors are positioned straight—not at an angle. Misalignment can cause difficulty during connection, bending of the pins, or partial contact, which may result in sparks or overheating.
Tip: Most QS6H connectors are designed with a polarized shape, meaning they only fit in one orientation. Never force the connector if it does not slide in easily; check the alignment again.
Step 3: Engage the Lock
Once aligned, insert the male connector fully into the female connector. You should feel and hear a slight “click” as the single lock mechanism engages. This lock ensures that the connector is securely seated and will not loosen under vibration or movement.
Tip: Do not rely solely on friction to hold the connector. Always confirm that the lock has engaged fully before powering the system. A partially engaged lock can lead to intermittent electrical contact, which may damage connected devices or batteries.
Step 4: Test the Connection
Before applying power, it’s important to test the mechanical security of the connection. Gently pull on the connector to verify that it is firmly locked in place. This simple check can prevent accidental disconnections that could lead to sparks, electrical failures, or system interruptions.
Tip: If the connector moves or comes apart easily, reinsert it carefully, ensuring proper alignment and full engagement of the lock.
Step 5: Maintenance
Regular maintenance will extend the life of the QS6H Single Lock Anti Spark Black Male Connector and maintain safe performance:
- Periodic Inspection: Check the connector for wear, dirt, or corrosion at least once every few months, especially if it’s used in outdoor or high-vibration environments.
- Cleaning: Wipe the contacts with a dry, lint-free cloth to remove dust or debris. For stubborn dirt, a soft brush may be used. Avoid liquids or chemical cleaners that can damage the silver plating.
- Avoid Overheating: Make sure the connector is operating within its rated current (60A–90A) and voltage (600V DC). Overloading can cause excessive heat and damage both the connector and connected devices.
- Storage: If the connector is not in use, store it in a clean, dry location away from direct sunlight, extreme heat, or moisture.
Tip: Keeping a small supply of dielectric grease on hand can help protect contacts from corrosion in humid environments without interfering with conductivity.
Step 6: Safety Precautions
- Do not connect or disconnect under load if possible, even with the anti-spark feature. Always ensure the system is powered down for maximum safety.
- Avoid physical damage to the nylon housing or copper contacts. Even small cracks can compromise insulation and safety.
- Ensure compatibility with the female counterpart and rated current/voltage before installation. Using the QS6H beyond its specifications can lead to failure or hazards.

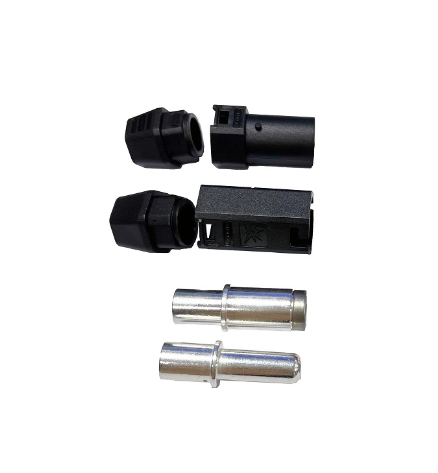

Package Contents
Each QS6H Single Lock Anti Spark Black Male Connector package includes:
- 1 x QS6H Single Lock Anti Spark Black Male Connector (Black, Male)
- User guide for installation and safety precautions
This ensures that users have everything necessary for a smooth installation and safe operation.
Why Choose QS6H Single Lock Anti Spark Black Male Connector
Choosing the right connector for high-current applications is a crucial decision that can affect both safety and performance. The QS6H Single Lock Anti Spark Black Male Connector distinguishes itself through a combination of advanced engineering, durability, and user-friendly design, making it the preferred choice for professionals, hobbyists, and manufacturers alike.
Exceptional Safety
Safety is the top priority when dealing with high-voltage and high-current systems. The QS6H Single Lock Anti Spark Black Male Connector features an anti-spark design that prevents accidental arcing during connection or disconnection. Arcing can damage sensitive electronic components, degrade batteries, and in worst-case scenarios, cause fire hazards. By minimizing spark formation, the QS6H ensures not only the safety of the device but also of the operator. This makes it ideal for use in applications like electric bicycles, drones, and UAVs, where repeated battery connections are common and safety cannot be compromised.
High Current Handling
High-current capability is a key performance metric for any connector used in demanding applications. The QS6H connector is rated for 60A–90A at 600V DC, which makes it suitable for a wide range of applications, from medium-sized electric motors in EVs to high-power battery systems in energy storage solutions. Its robust contacts handle the electrical load efficiently without overheating, ensuring stable power delivery even under peak load conditions. This high-current capacity also provides versatility, allowing users to standardize their systems without needing multiple connector types.
Durable Construction
Reliability in harsh conditions is essential for connectors used in electric vehicles, UAVs, or outdoor installations. The QS6H Single Lock Anti Spark Black Male Connector is built with premium nylon housing, which can withstand extreme temperatures and mechanical stress. Its heat-resistant design (up to 150°C) ensures that the connector performs optimally even under prolonged high-current operations or exposure to direct sunlight, making it highly suitable for industrial and automotive applications. Moreover, the silver-plated copper contacts provide excellent corrosion resistance, maintaining electrical performance over time and reducing maintenance requirements.
Reliable Locking Mechanism
Loose connections can lead to power interruptions, heat build-up, and even component damage. The QS6H Single Lock Anti Spark Black Male Connector features a single lock mechanism, which provides a secure and stable connection that won’t loosen due to vibration or movement. This is particularly important in dynamic environments such as off-road EVs, UAVs in flight, or drones experiencing turbulence. The locking system ensures that the connector stays firmly in place, giving users confidence in the reliability of their electrical systems.
Versatile Applications
One of the strongest advantages of the QS6H Single Lock Anti Spark Black Male Connector is its versatility. It is compatible with a wide range of applications, including:
- Electric Vehicles (EVs): Battery packs and motor connections.
- Drones and UAVs: Reliable power connections for flight-critical systems.
- Energy Storage Systems: Solar and industrial battery arrays.
- Hobby Electronics: Robotics, high-power RC models, and DIY projects.
This versatility not only makes the QS6H a practical choice for professionals but also ensures that hobbyists and innovators can rely on it for safe, efficient, and long-lasting connections in high-current scenarios.
Frequently Asked Questions
Can the QS6H handle currents above 90A?
The QS6H is rated for 60A–90A. Operating above this range may risk overheating or connector failure. For higher currents, multiple connectors or higher-rated alternatives should be considered.
Is the connector waterproof?
The QS6H connector is not fully waterproof. While it can tolerate some moisture and dust due to its nylon housing, it is recommended to use protective enclosures in wet environments.
What is the lifespan of the QS6H connector?
With proper installation and maintenance, the QS6H connector can last for thousands of connection cycles without significant wear, thanks to its high-quality silver-plated contacts and durable nylon housing.
Can I use the QS6H for low-voltage applications?
Yes, it is compatible with lower-voltage systems, but its main advantage is in high-current applications where anti-spark safety and durability are crucial.
Final Thoughts
The QS6H Single Lock Anti Spark Black Male Connector is a high-performance connector that combines safety, efficiency, and reliability. Its silver-plated copper contacts, anti-spark design, and single lock mechanism make it the ideal choice for electric vehicles, drones, energy storage systems, and hobby electronics. With easy installation, robust construction, and excellent conductivity, the QS6H sets a benchmark for high-current connectors in the modern electrical industry.
For professionals and enthusiasts alike, investing in the QS6H Single Lock Anti Spark Black Male Connector guarantees a secure, long-lasting, and safe electrical connection that meets the highest standards of performance.
