Description

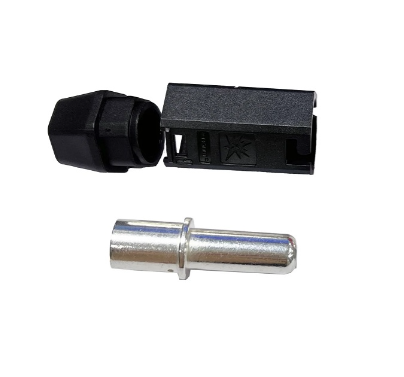

QS8H Single Lock Antipark Connector
The QS8H Single Lock Antipark Connector by NDBC | LOFTY AGROTECH is a premium high-current connector designed for demanding applications such as electric bicycles, drones, UAVs, and energy storage systems. Its robust construction, compact design, and enhanced safety features make it an indispensable component for modern high-performance electrical systems. Built with silver-plated 8mm copper terminals and durable nylon housing, this connector ensures reliable conductivity, thermal stability, and long-term durability. The single-lock antipark mechanism minimizes accidental disconnections, providing superior safety for critical power setups.
Overview of QS8H Single Lock Antipark Connector
The QS8H Single Lock Antipark Connector is engineered to handle high currents ranging from 110A to 180A. Its compact 8mm male terminal design, combined with a robust single-lock mechanism, ensures a secure connection, making it ideal for both industrial and hobbyist applications. The nylon housing offers thermal stability between 30°C and 200°C, protecting against overheating and mechanical stress.
This connector is widely used in:
- Electric bicycles and scooters
- UAVs and drones
- High-current energy storage systems
- Industrial robotics and e-mobility solutions
By choosing the QS8H Single Lock Antipark Connector, users gain confidence in electrical performance, reliability, and enhanced safety during operation.
Key Features of QS8H Single Lock Antipark Connector
High Current Capability
The QS8H Single Lock Antipark Connector supports 110A–180A continuous current. This ensures stable power delivery to high-demand electronics without voltage drops or overheating issues. Its design accommodates peak currents, making it suitable for high-performance UAVs, drones, and electric vehicle applications.
Silver-Plated Copper Terminals
Silver-plated 8mm copper terminals provide excellent electrical conductivity and corrosion resistance. The plating reduces energy loss, enhances efficiency, and ensures consistent performance over hundreds of cycles. This feature is essential for high-current applications where minimal resistance is critical.
Single Lock Mechanism
The single-lock design secures the connection firmly, preventing accidental disconnections. This mechanism is particularly valuable in drones and UAVs, where vibration and rapid movement could compromise standard connectors.
Antipark Design for Safety
The antipark feature of the QS8H Single Lock Antipark Connector reduces the risk of short circuits and sparks during connection. It enhances operational safety, especially during high-current connections in electric vehicles and energy storage systems.
Durable Nylon Housing
The high-strength nylon housing provides thermal stability from 30°C to 200°C and protects the internal terminals from mechanical damage. Its fire-resistant properties make it suitable for industrial, automotive, and UAV applications.
Applications & Use Cases
The QS8H Single Lock Antipark Connector by NDBC | LOFTY AGROTECH is designed for a wide range of high-current applications where reliability, safety, and efficiency are critical. Its combination of antipark design, single-lock mechanism, and silver-plated 8mm terminals makes it suitable for professional, industrial, and hobbyist projects. The connector’s versatility allows it to perform reliably across demanding scenarios, from electric bicycles to UAVs and energy storage systems.
Electric Bicycles
Electric bicycles rely on stable and high-current connections between the battery pack and the motor controller. The QS8H Single Lock Antipark Connector delivers 110A–180A rated current, ensuring minimal voltage drop and maximum efficiency. Its antipark feature prevents accidental sparks during connection, safeguarding both the user and the vehicle’s electronics. This reduces wear on the connector and prolongs the battery and controller life. The durable nylon housing provides thermal stability, maintaining safe operation even under high-load conditions or prolonged cycling. Whether for commuter e-bikes, performance bikes, or cargo e-bikes, this connector guarantees safe, efficient, and long-lasting electrical performance.
UAVs and Drones
Unmanned aerial vehicles (UAVs) and drones require highly reliable power connections for ESC-to-battery circuits. The QS8H Single Lock Antipark Connector maintains consistent conductivity even under vibration, rapid maneuvers, or turbulence, critical for safe flight operations. Its single-lock mechanism ensures the connector remains securely attached during high-speed movements, preventing mid-flight disconnections that could lead to crashes. The connector’s compact and lightweight design adds minimal weight, making it ideal for both commercial UAVs and hobbyist drones. Its thermal resistance also ensures that even during heavy power draws, the connector remains stable without overheating.
Energy Storage Systems
High-power energy storage setups, including solar battery packs, lithium-ion modules, and industrial energy storage systems, benefit from the QS8H Single Lock Antipark Connector’s robust design. Its high-current handling and thermal stability from 30°C to 200°C allow for efficient charge and discharge cycles without risk of overheating or voltage drop. The antipark mechanism reduces connection risks during maintenance or module replacement, enhancing safety for technicians. This connector is especially suitable for modular energy storage solutions, industrial battery racks, and renewable energy installations where reliability and efficiency are paramount.
Industrial and DIY Projects
For high-current robotics, electric motors, and experimental electronics, the QS8H Single Lock Antipark Connector offers a compact yet robust solution. Its 8mm terminals and secure single-lock system support heavy-duty applications, providing stable power transfer with minimal energy loss. Industrial automation systems, DIY electric vehicles, and high-performance robotics projects can rely on this connector for safe and consistent electrical performance. Additionally, its durable construction ensures that frequent assembly and disassembly, common in testing or prototyping phases, do not degrade the connector’s reliability.
Installation & Handling Guidelines
Soldering Best Practices
Proper soldering ensures long-term reliability. Apply heat evenly to both the wire and connector to avoid cold joints. Use high-quality solder and flux to maintain low resistance and prevent mechanical failure.
Polarity Awareness
Always connect the QS8H Single Lock Antipark Connector with correct polarity. Misconnections can damage electronics or create hazards. Color-coded design and locking mechanism help prevent errors.
Maintenance & Cleaning
Regular inspection for oxidation, wear, or mechanical damage is essential. Clean contacts with isopropyl alcohol and replace any compromised connectors to ensure optimal current transfer and safety.
Troubleshooting & Diagnostics
Even with high-quality connectors like the QS8H Single Lock Antipark Connector from NDBC | LOFTY AGROTECH, issues may arise over time due to heavy usage, environmental factors, or improper handling. Proper diagnostics and troubleshooting practices ensure consistent performance, prolong the connector’s lifespan, and maintain the safety of the entire system.
Loose Connections
Loose or poorly installed connectors are one of the most common causes of voltage instability and intermittent power failures. If the single-lock mechanism of the QS8H connector is not fully engaged, the electrical path may become unreliable, causing flickering, voltage drops, or system errors.
Solutions:
- Always ensure the connector clicks firmly into place during installation.
- Inspect solder joints for cold joints or weak connections. Reflow solder if necessary using proper techniques.
- Verify that wires are fully inserted and securely crimped, avoiding partial contact that may lead to heat generation.
Overheating Issues
The QS8H connector is rated for 110A–180A current, but using it beyond specifications or with undersized wires can result in overheating. High temperatures can degrade the nylon housing and reduce the lifespan of the silver-plated copper terminals.
Preventive Measures:
- Use the correct wire gauge as recommended for the intended current.
- Ensure adequate airflow and ventilation around high-current connections.
- Monitor current draw to prevent overloading during continuous operation.
- Consider periodic thermal inspections to detect hot spots.
Mechanical or Electrical Failure
Mechanical or electrical failure can occur if the connector is subjected to repeated stress, impacts, or improper handling. Physical damage can manifest as bent pins, cracked housing, or insulation wear, leading to reduced conductivity or safety risks.
Maintenance Guidelines:
- Inspect connectors regularly for physical damage, deformation, or corrosion.
- Replace any damaged connectors immediately to prevent short circuits or failure during critical operations.
- Avoid excessive bending of wires or repeated disconnections that may weaken the connector.
Long-Term Diagnostics
Routine diagnostic checks help ensure long-term reliability of the QS8H Single Lock Antipark Connector. Tracking performance over time allows for proactive maintenance before system failures occur.
Recommended Practices:
- Periodically measure voltage across the connector during load conditions to ensure stable performance.
- Document current transfer efficiency and any voltage drop to identify patterns of wear or degradation.
- Maintain a maintenance log to anticipate replacement needs, especially in high-current or frequently used systems.
By following these troubleshooting and diagnostic practices, users can maintain optimal performance, extend connector lifespan, and safeguard the electrical systems in drones, electric bicycles, UAVs, and energy storage setups.
Comparative Advantages
The QS8H Single Lock Antipark Connector by NDBC | LOFTY AGROTECH is engineered to deliver a unique combination of high-current performance, safety, and compact design. When compared to other connectors in its class, it demonstrates clear advantages that make it a preferred choice for professional and DIY applications such as drones, UAVs, electric bicycles, and energy storage systems.
Over Smaller Connectors
Smaller connectors often struggle to handle high currents without generating significant heat or voltage drop. The QS8H Single Lock Antipark Connector excels in these areas by supporting a rated current of 110A–180A with minimal resistance. Its silver-plated copper terminals provide excellent conductivity, ensuring efficient power transfer even under heavy loads. Additionally, its robust construction reduces mechanical wear and tear, making it highly durable for repeated use in high-vibration environments like UAVs or racing drones. This makes it far superior to smaller connectors that may fail under prolonged high-current operation or mechanical stress.
Over Larger Connectors
While larger connectors can handle even higher currents, they often come with trade-offs such as increased weight, bulk, and integration challenges. The QS8H Single Lock Antipark Connector strikes an optimal balance between size and performance. Its compact and lightweight design allows integration into tight spaces without compromising current-carrying capacity. This makes it ideal for applications where space and weight are critical, such as micro drones, portable energy systems, or electric bicycles, where larger connectors would be impractical.
Enhanced Safety Features
Safety is a core advantage of the QS8H Single Lock Antipark Connector. Its antipark design significantly reduces the risk of accidental sparks during connection, while the single-lock mechanism ensures a secure and stable attachment. This dual safety approach protects both the user and the connected electronics from short circuits, arcing, and unintended disconnections. Compared to generic connectors, this feature set provides superior safety in high-current and high-stakes applications, making it a trusted component for professionals and hobbyists alike.
Long-Term Reliability
The QS8H connector is designed for consistent performance over extended periods. The silver-plated copper terminals resist corrosion, maintaining excellent conductivity even in harsh environmental conditions. The durable nylon housing withstands mechanical stress, vibration, and temperature fluctuations from 30°C to 200°C. Combined, these features ensure hundreds of cycles of reliable operation without degradation in performance. Users can rely on the QS8H connector for long-term projects, including UAVs, electric vehicles, and industrial energy systems, where reliability is non-negotiable.
Safety, Certification & Standards
Safety and compliance are paramount in high-current connector design, particularly for applications in drones, UAVs, electric vehicles, and energy storage systems. The QS8H Single Lock Antipark Connector by NDBC | LOFTY AGROTECH adheres to stringent international safety and quality standards, ensuring reliable performance, reduced risk of electrical hazards, and long-term operational stability. Every connector is manufactured with precision and tested under rigorous conditions to meet global requirements.
UL94-V0 Flammability Certification
The nylon housing of the QS8H Single Lock Antipark Connector is UL94-V0 certified, one of the highest standards for flame resistance in electrical components. This certification guarantees that the connector resists ignition, self-extinguishes if exposed to a flame, and maintains structural integrity under high-temperature conditions. During high-current applications, the UL94-V0 rating ensures that the connector housing remains thermally stable, protecting surrounding components and reducing the risk of fire in both professional and hobbyist setups.
International Compliance
The QS8H connector is manufactured according to global safety regulations, making it suitable for diverse applications worldwide. Compliance with international standards ensures that the connector meets voltage and current safety requirements, mechanical durability specifications, and environmental guidelines. This makes it ideal for use in electric bicycles, UAVs, drones, industrial energy storage systems, and high-power robotics, providing engineers and end-users with peace of mind regarding regulatory adherence.
Long-Term Reliability
NDBC | LOFTY AGROTECH tests each batch of QS8H Single Lock Antipark Connectors for current handling, mechanical durability, and voltage stability. The silver-plated copper terminals resist corrosion, while the nylon housing withstands mechanical stress, vibration, and temperature fluctuations. This ensures that the connector performs reliably over hundreds of connection cycles, maintaining high efficiency and safety even in demanding conditions. Regular testing guarantees that every unit delivered provides consistent, long-term performance, making it a dependable choice for high-current applications.
Packaging & Shipping
Ensuring that high-current connectors arrive safely and intact is critical for performance and reliability. NDBC | LOFTY AGROTECH employs careful packaging and shipping practices for the QS8H Single Lock Antipark Connector, ensuring that each unit reaches customers without mechanical damage or compromise in quality. Proper handling during storage and transport preserves the connector’s insulation, mechanical stability, and electrical performance.
Individual Packaging
Each QS8H Single Lock Antipark Connector is securely packaged with protective materials such as anti-static bags, foam padding, or molded trays to absorb shocks during transit. Individual packaging ensures that connectors are insulated from physical impacts, moisture, and dust. Alongside the connector, NDBC | LOFTY AGROTECH includes installation instructions and datasheets, providing users with immediate guidance on safe and effective usage.
Bulk Orders
For large-scale operations such as UAV production, drone assembly lines, electric vehicle manufacturing, or energy storage system deployment, bulk ordering is available. Bulk shipments are carefully packed in reinforced boxes with separators or individual protective layers to prevent connectors from rubbing, bending, or shorting during transport. This approach allows manufacturers to receive multiple units in a single shipment while maintaining full functionality and reducing packaging waste.
Storage Recommendations
Proper storage is essential to maintain the long-term performance of QS8H connectors. Store them in dry, temperature-controlled environments between 15°C and 25°C to prevent thermal or moisture-related degradation. Avoid exposing connectors to chemicals, solvents, or mechanical stress, which can compromise the nylon housing or silver-plated terminals. Maintaining controlled storage conditions ensures that the connectors are ready for installation when required, preserving both safety and efficiency.
Environmental & Economic Benefits
The QS8H Single Lock Antipark Connector from NDBC | LOFTY AGROTECH is designed not only for high performance but also for sustainable and cost-effective use in high-current systems. Its robust construction, silver-plated terminals, and durable nylon housing ensure minimal voltage loss and efficient power transfer, which directly contributes to energy savings in applications such as drones, electric bicycles, UAVs, and energy storage systems.
Reduced Voltage Loss
Efficient conductivity of the QS8H connector reduces energy waste during transmission. Lower voltage drops mean that connected devices, whether motors in electric bicycles or batteries in drones, operate closer to their designed efficiency, improving overall system performance and reducing unnecessary energy consumption.
Longer Lifespan Reduces Replacements
The anti-spark design combined with single-lock mechanism and high-quality materials significantly extends the service life of the connector. Fewer replacements are needed over time, which reduces material consumption, manufacturing demand, and the carbon footprint associated with producing and shipping new connectors.
Cost Savings in Professional and DIY Applications
For professional operators managing fleets of drones, UAVs, or energy storage installations, the long-lasting QS8H connector reduces maintenance costs and downtime. Similarly, hobbyists and DIY enthusiasts benefit from lower operational costs and less frequent purchases, while also gaining reliable performance for experimental electronics or high-current robotics projects.
Promotes Sustainability
By combining durability, energy efficiency, and reduced waste, the QS8H Single Lock Antipark Connector promotes a more sustainable approach to high-current electronics. Its eco-conscious design aligns with industry and hobbyist goals to minimize environmental impact while maintaining superior performance and safety standards.
Why Choose NDBC | LOFTY AGROTECH
When it comes to high-performance electrical connectors, NDBC | LOFTY AGROTECH stands out as a trusted provider. Their QS8H Single Lock Antipark Connector exemplifies the company’s commitment to quality, safety, and innovation, making it the preferred choice for industrial, commercial, and hobbyist applications.
Quality Assurance
Every QS8H Single Lock Antipark Connector undergoes rigorous quality assurance testing to ensure maximum reliability and longevity. This includes current handling tests, mechanical stress evaluations, and voltage stability verification. By simulating real-world operating conditions, NDBC | LOFTY AGROTECH guarantees that each connector performs consistently under high-load scenarios, such as in drones, UAVs, electric bicycles, and energy storage systems. This meticulous testing process minimizes failure rates, enhances safety, and ensures long-term performance.
Technical Documentation
To support engineers, manufacturers, and hobbyists, NDBC | LOFTY AGROTECH provides comprehensive technical documentation for every QS8H connector. These documents include detailed datasheets, wiring diagrams, installation instructions, and safety guidelines, allowing users to integrate the connectors seamlessly into their projects. Clear and thorough documentation reduces installation errors, prevents potential hazards, and helps users optimize performance, making the QS8H connector easier and safer to use across various high-current applications.
Global Logistics
NDBC | LOFTY AGROTECH also ensures that its QS8H Single Lock Antipark Connectors are delivered safely and efficiently worldwide. Each connector is individually packaged with protective materials to prevent mechanical damage during transit. For bulk orders, the company offers logistics solutions tailored to production lines, drone manufacturers, and energy storage projects. With a robust global shipping network, NDBC | LOFTY AGROTECH guarantees that connectors arrive on time, intact, and ready for deployment, maintaining consistent product quality regardless of the destination.
Conclusion
The QS8H Single Lock Antipark Connector by NDBC | LOFTY AGROTECH is a high-performance, durable, and safe connector designed for demanding applications such as drones, UAVs, electric bicycles, and energy storage systems. With its single-lock antipark design, silver-plated 8mm copper terminals, and durable nylon housing, it provides optimal conductivity, thermal stability, and mechanical reliability. Its versatility, compact design, and enhanced safety make it an indispensable component for high-current applications.
