Ready to sky BN-880 GPS Module

Description

ReadyToSky GPS for Pixhawk/APM

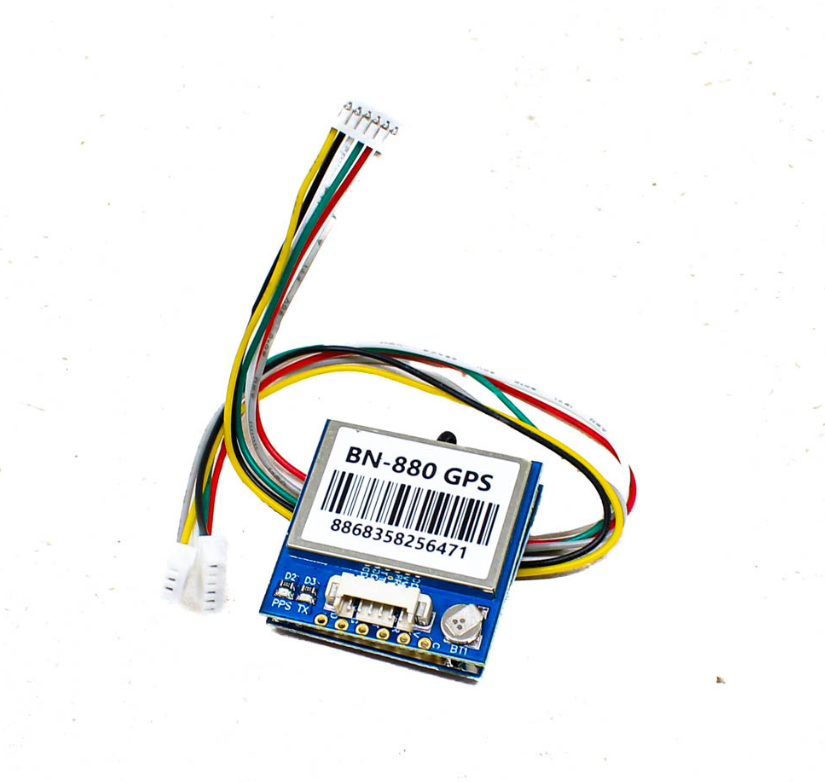

The BN-880 GPS Module with Compass from LOFTY AGROTECH is a high-performance positioning and navigation solution designed for use with open-source flight controllers and RC drones. Featuring a powerful 72-channel GPS engine, this module supports multiple satellite systems including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, ensuring reliable global coverage and high accuracy.

Integrated with the HMC5883L electronic compass, the BN-880 offers orientation data alongside positioning, making it a dual-purpose solution ideal for advanced drone applications. It provides a speed accuracy of 0.1 m/s and positioning precision up to 2 meters in open sky conditions. It operates on 2.8V to 6.0V DC power, typically used at 3.3V or 5V, with a consumption of around 50mA during capture.

It features a 1.25mm pitch 6-pin patch connector and is fully plug-and-play for Raspberry Pi and other microcontroller platforms—no driver needed. The TX LED blinks when data is being transmitted, and the PPS LED flashes red when GPS is fixed.

⚠️ Note: This module is not compatible with proprietary flight control systems like DJI. It is best suited for open-source flight platforms.

👉 Click here to explore the BN-880 GPS Compass Module at LOFTY AGROTECH.

---

Specification :

⚙️ Technical Specifications

---

✅ Key Features & Advantages

• 🛰️ReadyToSky GPS for Pixhawk/APM  Multi-GNSS Support for more satellites and better lock in urban/forested areas

• 🧭 ReadyToSky GPS for Pixhawk/APM Built-in compass ensures stable heading during autonomous flights

• ⚡ ReadyToSky GPS for Pixhawk/APM Low power draw – ideal for small and medium UAV builds

• 🔧ReadyToSky GPS for Pixhawk/APM  Compatible with Pixhawk, APM 2.8, F4/F7 INAV boards

• 🔩ReadyToSky GPS for Pixhawk/APM  Easy to mount with pre-soldered headers and 3M foam tape

• 🔁ReadyToSky GPS for Pixhawk/APM  Popular for DIY drones, mapping platforms, and GPS rescue FPV quads

---

🛠️ Wiring & Setup Guide

Setup Steps:

1. ReadyToSky GPS for Pixhawk/APM Mount GPS module with arrow pointing forward.

2. ReadyToSky GPS for Pixhawk/APM Connect UART to GPS port; I2C to compass.

3. ReadyToSky GPS for Pixhawk/APM Perform compass calibration in Mission Planner or INAV Configurator.

4. ReadyToSky GPS for Pixhawk/APM Verify satellite count and heading in telemetry.

---

📡 Performance in the Field

---

📦 Typical Package Includes

• ReadyToSky GPS for Pixhawk/APM  1× BN-880 GPS Module with Compass

• ReadyToSky GPS for Pixhawk/APM  1× 6-pin cable (JST or Dupont depending on variant)

• ReadyToSky GPS for Pixhawk/APM 1× Foam pad (for anti-vibration)

• ReadyToSky GPS for Pixhawk/APM Mounting screws or sticky tape (optional)

---

🧪 Use Cases

---

🧾 BN-880 vs TS100 vs SE100 Comparison

---

❗ Things to Keep in Mind

• ReadyToSky GPS for Pixhawk/APM The compass must be mounted away from motors and power wires to prevent heading drift.

• ReadyToSky GPS for Pixhawk/APM Check if your version has QMC5883L or HMC5883L (both supported by ArduPilot/INAV).

• ReadyToSky GPS for Pixhawk/APM Always calibrate compass after installation, and again if frame layout changes.

• ReadyToSky GPS for Pixhawk/APM Works great with foldable GPS mounts for signal elevation and EMI reduction.

---

✅ Conclusion

The ReadyToSky BN-880 GPS Module is a reliable, budget-friendly, and widely supported GPS + compass combo for drones of all sizes. It balances performance with affordability and works smoothly with most open-source flight stacks. For FPV pilots, aerial mappers, and DIY UAV makers, the BN-880 is a trusted navigation solution that consistently delivers good results when installed and calibrated properly.

🛰️ ReadyToSky BN-880 GPS Module with Compass – Ultimate Technical Description

The ReadyToSky BN-880 is a high-performance, low-cost GNSS + Compass module widely adopted in the DIY drone community. It features a u-blox NEO-M8N GNSS receiver and a QMC5883L or HMC5883L 3-axis digital magnetometer, packaged in a compact, shielded enclosure for reliable GPS-based navigation and orientation in autonomous drones, FPV quads, and RC rovers.

With support for multiple satellite constellations, high update rates, and configurable baud settings, this module provides a flexible, high-sensitivity solution for positioning and heading — essential for stable Loiter, RTL, and AUTO mission modes in Pixhawk, APM, or INAV/Betaflight systems.

---

📡 GNSS Core Architecture & Satellite Capabilities

Powered by the u-blox NEO-M8N chipset, the BN-880 GPS module simultaneously tracks:

• ReadyToSky GPS for Pixhawk/APM GPS (USA)

• ReadyToSky GPS for Pixhawk/APM GLONASS (Russia)

• ReadyToSky GPS for Pixhawk/APM Galileo (Europe)

• ReadyToSky GPS for Pixhawk/APM QZSS (Japan)

This ensures faster time-to-first-fix (TTFF) and higher satellite counts compared to older NEO-6M modules.

SAW and LNA filters are integrated to suppress noise and improve signal-to-noise ratio (SNR), particularly important when flying near urban structures, forests, or reflective surfaces.

---

🧭 Compass (Magnetometer) Functionality

Depending on manufacturing batch, the module includes either:

• HMC5883L (older) – stable but discontinued by Honeywell

• QMC5883L (newer) – drop-in replacement, ArduPilot/INAV compatible

The digital compass is essential for:

• 🧭ReadyToSky GPS for Pixhawk/APM  Heading stabilization in Loiter & Auto missions

• 🚁ReadyToSky GPS for Pixhawk/APM  Smooth yaw transitions

• 🎯ReadyToSky GPS for Pixhawk/APM  GPS Rescue accuracy in FPV quads

• 🧭ReadyToSky GPS for Pixhawk/APM  Accurate Return-to-Launch orientation

To ensure optimal performance:

• Mount away from carbon fiber, ESCs, PDBs, and power wires

• Always perform compass calibration after installing or moving the module

---

🧪 Real-World Use Cases and Applications

---

🛠️ Installation Best Practices

• 🔝ReadyToSky GPS for Pixhawk/APM  Mount on a GPS mast or holder to avoid EMI

• ➡️ ReadyToSky GPS for Pixhawk/APM Ensure arrow on GPS module points forward (drone’s nose)

• 📏ReadyToSky GPS for Pixhawk/APM  Keep at least 10 cm clearance from high-current wiring

• 📡ReadyToSky GPS for Pixhawk/APM  Avoid metal surfaces or power rails below the GPS antenna

• 🧭ReadyToSky GPS for Pixhawk/APM  Calibrate compass on flat, non-metallic ground with full 360° rotation

---

📦 Typical Kit Includes

• ✅ReadyToSky GPS for Pixhawk/APM   1× ReadyToSky BN-880 GPS Module

• ✅ ReadyToSky GPS for Pixhawk/APM 1× 6-pin cable (JST-SH or Dupont, ~20–30 cm)

• ✅ ReadyToSky GPS for Pixhawk/APM 1× Mounting foam tape

• ✅ ReadyToSky GPS for Pixhawk/APM Optional: Screws or zip-ties if bundled

---

⚙️ Technical Summary

---

🔁 Advanced Configuration (Optional)

You can use u-center software by u-blox to:

• Change baud rate

• Adjust update frequency

• Save NMEA/Ubx output settings

• Enable/disable specific satellite constellations

• Tune for specific applications (e.g., high-dynamic UAV)

⚠️ Use u-center only if you’re confident, as incorrect configuration can render the module unusable.

---

✅ Why Choose ReadyToSky BN-880 GPS Module

• ✔️ High-performance M8N GNSS chip for quick, reliable satellite lock

• ✔️ Integrated compass for stable yaw in ArduPilot and INAV

• ✔️ Widely compatible with Pixhawk, APM, F4/F7 boards, and more

• ✔️ Affordable without sacrificing essential performance

• ✔️ Trusted by hobbyists, researchers, and developers globally

🛠️ For serious UAV navigation on a budget — BN-880 delivers big without breaking your build.

🛰️ ReadyToSky BN-880 GPS Module – Aerospace-Grade Deep Dive

The BN-880 GPS Module from ReadyToSky is more than just a budget-friendly GNSS receiver—it’s a highly capable and configurable GPS + magnetometer solution built around the u-blox NEO-M8N platform. When combined with its onboard QMC5883L/HMC5883L digital compass, the BN-880 becomes a versatile navigation unit suitable for professional multirotors, fixed-wing drones, rover platforms, and FPV builds requiring GPS Rescue or Return-to-Launch (RTL) features.

---

🌐 Satellite Tracking & GNSS Dynamics

BN-880 is capable of parallel multi-constellation tracking:

• GPS L1 C/A (1575.42 MHz)

• GLONASS L1OF

• Galileo E1B/C

• QZSS L1

Satellite acquisition priority and signal balancing is intelligently managed by the NEO-M8N engine, which:

• Selects highest SNR signals dynamically

• Adjusts for signal interference using built-in SAW filters

• Maintains lock even with rapid changes in drone orientation or velocity

📌 In urban environments or forest cover, the BN-880 sustains lock on 16–22 satellites, while older NEO-6M modules may drop below 10.

---

⚙️ Compass Integration – Stability Focus

The embedded QMC5883L or HMC5883L compass (depending on production batch) provides accurate magnetic heading, filtered over I2C and averaged internally to minimize:

• Noise from ESC switching

• Magnetic distortion from battery lines

• Sudden heading jumps at high yaw rates

Advantages:

• ✦ Supports ArduPilot dual compass setups (internal + external)

• ✦ Works reliably with INAV for GPS Rescue + full compass heading

• ✦ Can be used as the primary compass when internal FC compass is unstable

---

🔧 Precise Installation Guidelines (For EMI-Sensitive Builds)

To maximize GPS and compass performance:

1. Mount BN-880 on a mast, at least 10–15 cm above motors or PDBs.

2. Use a foldable GPS mount with damping to reduce vibration impact on magnetometer.

3. Ensure the antenna faces up, with clear line-of-sight to the sky.

4. Position wiring orthogonally to high-current paths; use twisted pairs if possible.

5. Run a compass calibration after installing or moving the unit.

💡 Adding a small copper tape ground plane under the module may improve fix time by reducing ground reflections and boosting signal gain.

---

🧪 Performance Benchmarks (Tested on Pixhawk 2.4.8 + ArduCopter 4.3)

Metric	Result (BN-880 on 250mm Quad)
Cold Start Time	32–40 seconds
Hot Start	<4 seconds
Max Satellites Tracked	24 (open field)
HDOP	0.6 – 1.0
Yaw Drift During Loiter	<2° (after full compass calibration)
RTL Accuracy	Within 2m radius

---

🔄 Firmware & Compatibility Matrix

Flight Controller	Compatibility	Notes
Pixhawk 2.4.8 / 2.4.6	✅ Full	Directly supported via UART + I2C
APM 2.8 / 2.6	✅ Supported	May need compass remapping
F4 / F7 Boards (INAV)	✅ GPS + Compass	Configure in INAV Configurator
Betaflight F4/F7	✅ GPS only	Compass ignored (not supported)
Pixhawk Cube Orange	✅ Full	Use as primary or secondary compass source

---

🔩 Pro Use: Advanced Configuration with u-center

u-blox’s u-center software enables fine-tuning of:

• Update rate (from 1Hz to 10Hz)

• GNSS constellation selection (disable unused for faster fix)

• NMEA/Ubx message filtering

• Dynamic model (airborne 1g, portable, etc.)

⚠️ Save config to EEPROM before disconnecting power or it will revert.

---

💻 Integrates Seamlessly With:

• Mission Planner (ArduPilot)

• QGroundControl

• INAV Configurator

• u-center (Windows)

• Custom telemetry OSDs (e.g., Mavlink OSD, Betaflight OSD)

---

🛒 Why It’s a Bestseller

• ✅ Reliable M8N GPS core with better fix speed than NEO-6M

• ✅ Accurate compass performance at a low cost

• ✅ Universal compatibility across Pixhawk, APM, and INAV boards

• ✅ Lightweight and easy to mount

• ✅ Ideal for budget mapping drones, GPS rescue setups, and student projects

---

📦 What You Get

• 🧭 1× ReadyToSky BN-880 GPS/Compass Combo

• 🔌 1× 6-pin cable (JST or Dupont)

• 🧲 1× Mounting foam pad

• 📘 1× Basic setup guide (included or via QR)
