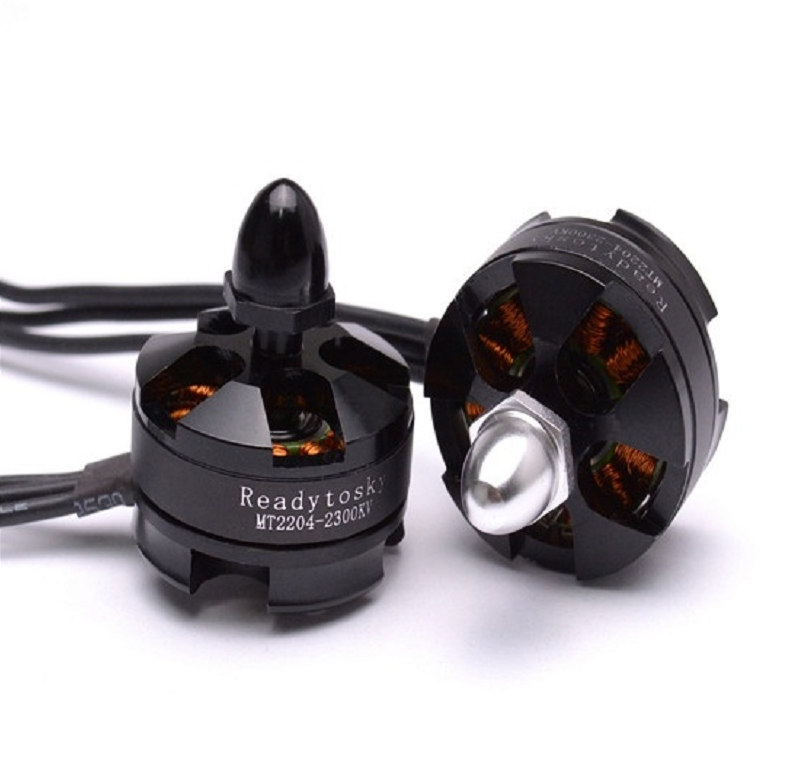

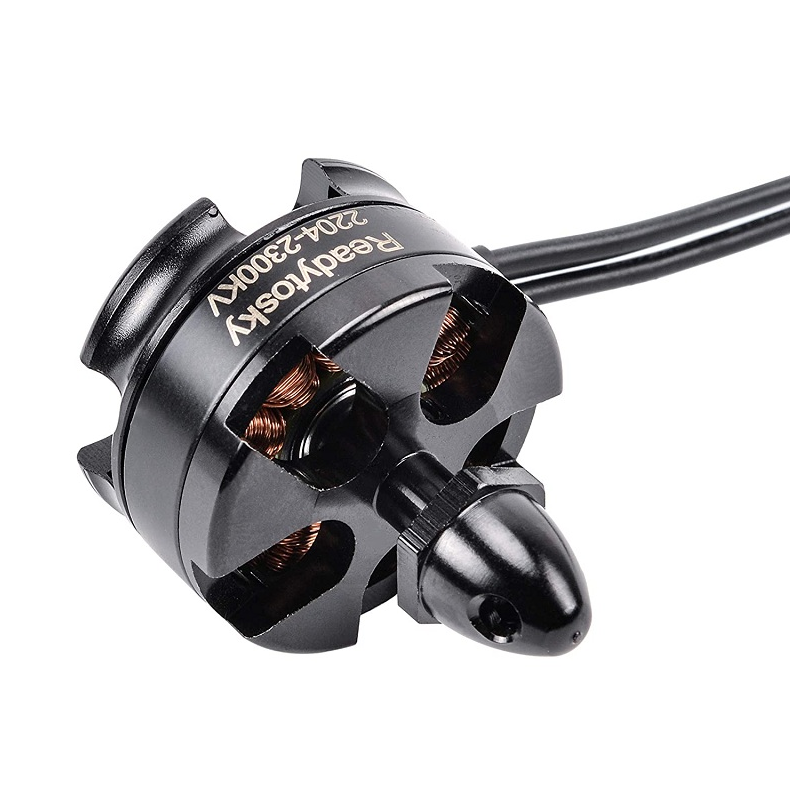

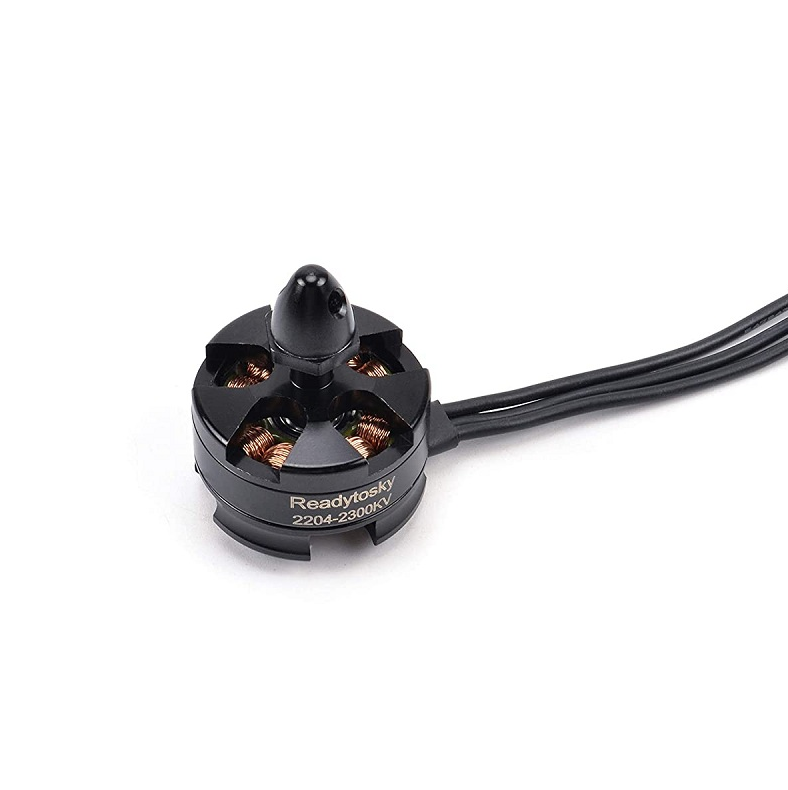

Readytosky MT2204 2300KV CW Brushless Motor (Black cap)

Description

If you’re looking to build a high-performance drone and want a motor that delivers on both power and reliability, the LOFTY AGROTECH Readytosky MT2204 2300KV CW Brushless Motor is your ideal choice. Specifically designed to maximize multirotor performance, this motor brings efficiency, durability, and power together for a unique flying experience.

The MT2204-2300KV motor is built with the highest quality components, including Japanese bearings, N45SH magnets, and 0.2mm laminations, making it highly durable and efficient. With 180-degree oxygen-free copper wire and 0.005g balancing, this motor guarantees smooth, trouble-free operation and optimal flight characteristics.

The motor frame is chamfered at the lower end for easy fitment on tighter frames and offers plenty of clearance for mounting hardware. This motor is also 100% QC approved, ensuring that you receive a product with consistent quality and reliability.

For drone builders looking for a superior experience, this motor can be paired with an Orange 3S Premium LiPo battery and Orange Series HD 5” Propellers, providing an exceptional multirotor flight experience.

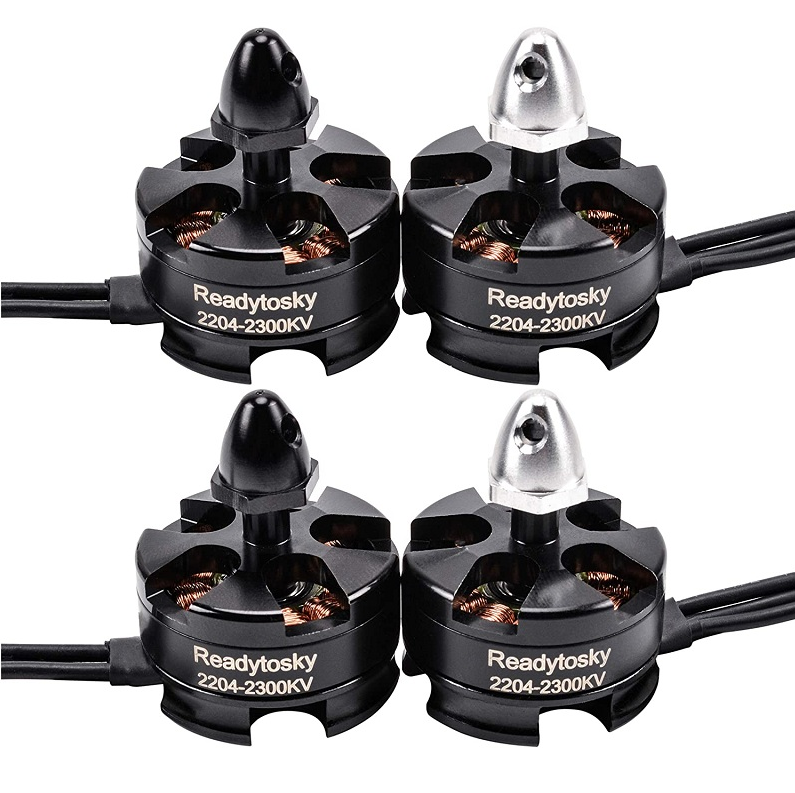

This Readytosky MT2204 2300KV motor is available in both CW (Clockwise) and CCW (Counterclockwise) versions, allowing for full versatility. For the CCW version, [Click here].

To explore more Drone Motors, [Click here].

For various Propellers, [Click here].

To explore different kinds of ESCs, [Click here].

LOFTY AGROTECH is the trusted distributor for high-quality drone parts.

---

Features:

• Japan Bearings ensure smooth operation and longevity.

• N45SH Magnets offer excellent performance and long motor life.

• 2mm Laminations for the best operational characteristics.

• 180-degree Oxygen-free Copper Wire increases durability.

• Motor is balanced to 0.005g or better for smooth flight performance.

• Perfectly laid down windings for optimal power output.

• Chamfered lower motor frame for easy mounting and installation on tight frames.

---

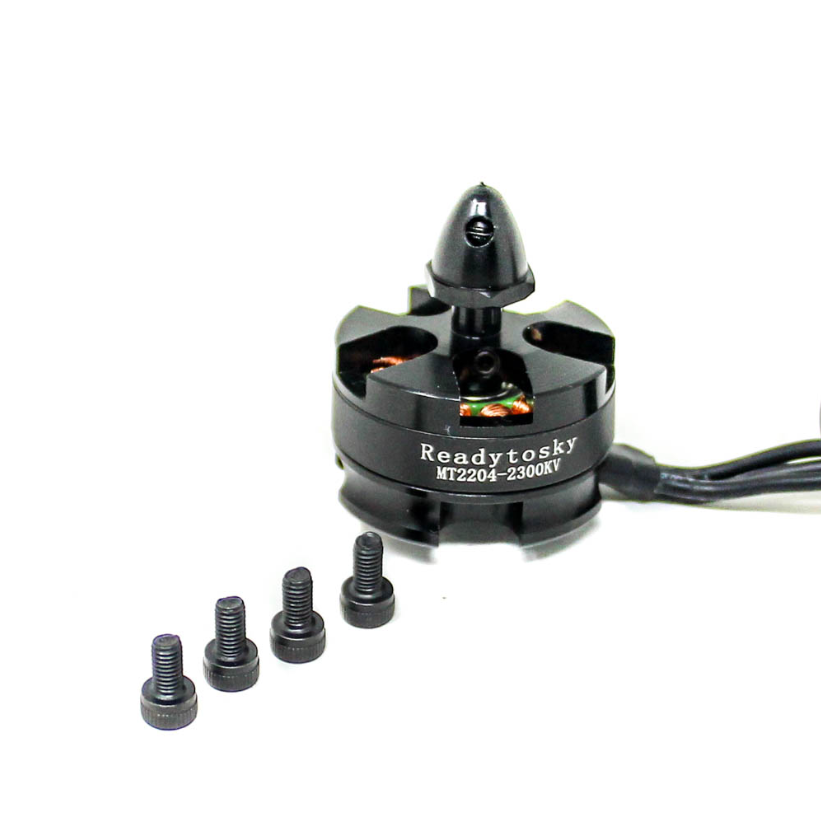

Package Includes:

• 1 x Readytosky MT2204 2300KV CW Brushless Motor

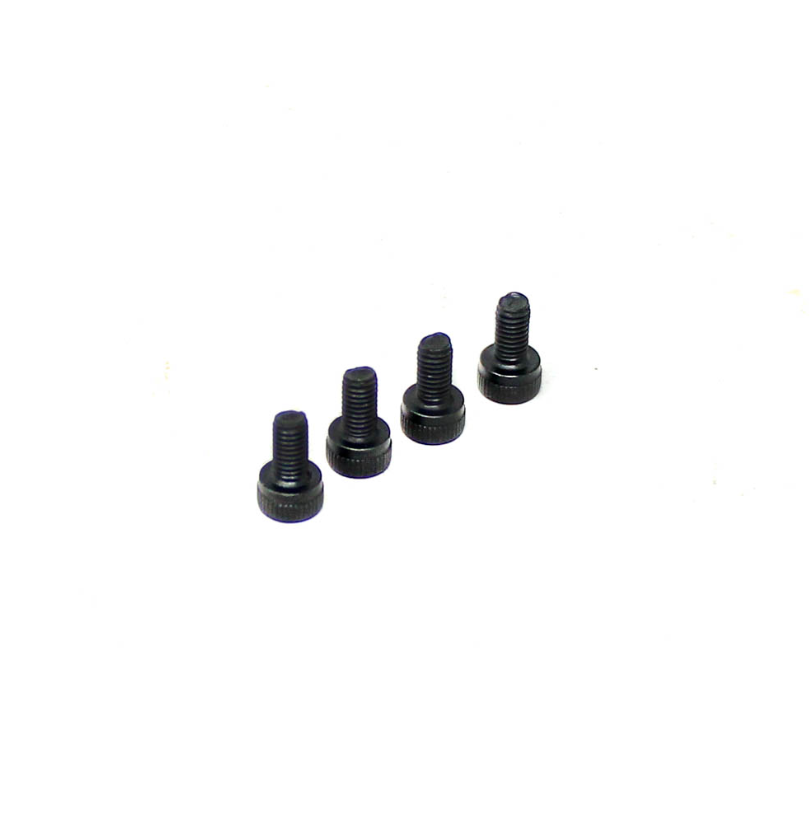

• 1 x Compatible Allen Screw-4 pcs

---

Specifications:

• Motor KV (RPM/V): 2300

• Motor Type: Brushless Motor

• Compatible LiPo Batteries: 2S to 3S

• Maximum Thrust (gm): 440

• Shaft Diameter (mm): 5

• Rotation: CW (Clockwise)

• Number of Poles: 12/14P

• No-Load Current (mA): 600 @ 10V

• Max Efficiency Current (A): 11.5A

• Maximum Current (A): 25A

• Voltage Rating (V): 15V

• Max Power (W): 350W

• Compatible Propellers (inch): 5 inches

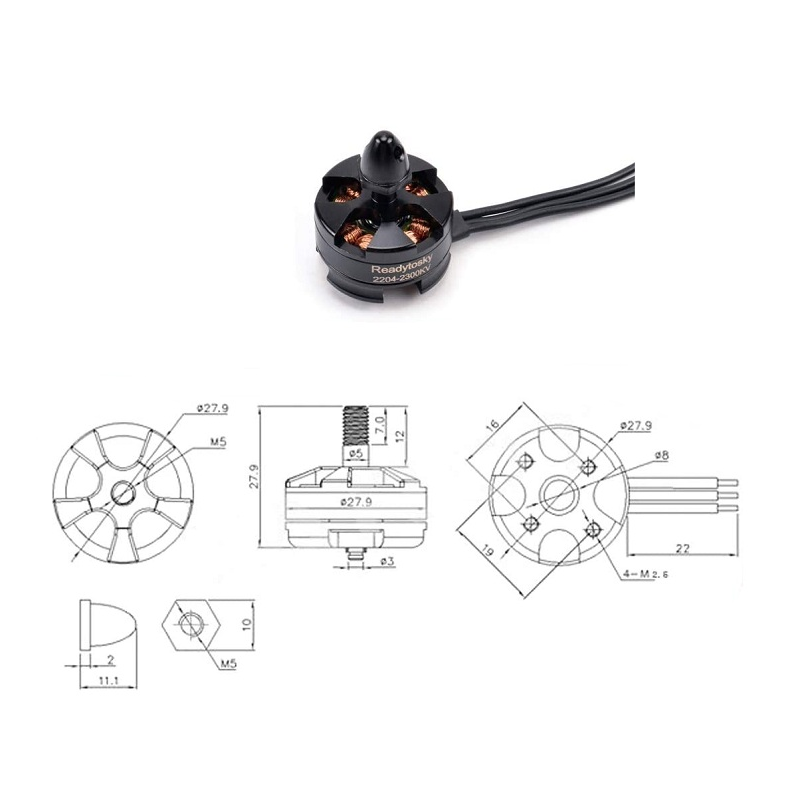

• Height (mm): 30

• Body Diameter (mm): 28

• Weight (g): 27

• Shipping Weight: 0.06 kg

• Shipping Dimensions: 5 × 4 × 2 cm
