S500 Multi Rotor Air PCB Frame with High Landing Gear for FPV Quad-Copter

Description

The S500 Multi-Rotor Air PCB Frame is a high-performance quadcopter frame designed as an upgrade to the F450 frame while maintaining its core strengths. With improved stability, durability, and a lightweight design, this frame is ideal for drone enthusiasts and professionals alike.

One of its key advantages is the slight upsweep in the arms, providing a dihedral effect, which enhances stability, particularly during altitude descents. The frame is constructed using glass fiber and ultra-durable polyamide-nylon arms, making it highly resistant to damage while remaining lightweight. The reinforced arm ridges improve overall stability and contribute to faster forward flight.

The integrated PCB (Printed Circuit Board) allows for direct ESC soldering, eliminating the need for an additional Power Distribution Board (PDB), thus making the assembly cleaner and more efficient. The adjustable battery mount ensures optimal weight distribution, while the bottom frame is designed to accommodate various camera mounts and gimbals, making it perfect for FPV applications and aerial photography.

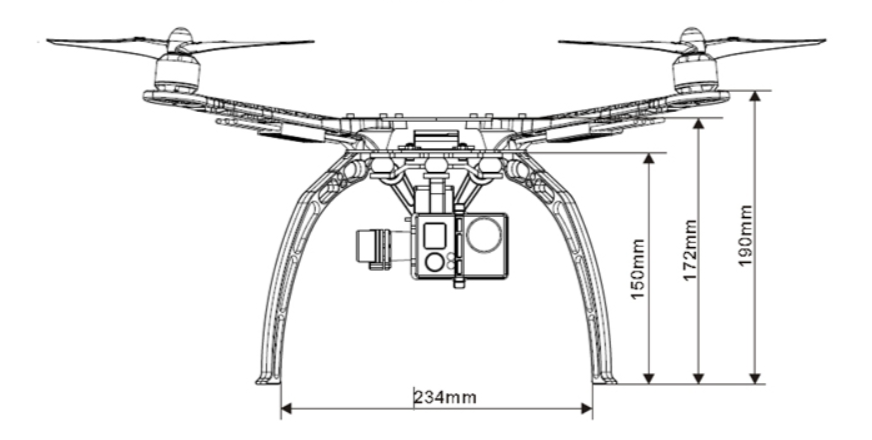

The S500 frame features a 500mm wheelbase and weighs 405g. The included landing gear provides a 200mm ground clearance, allowing for additional payloads such as gimbals and cameras. Made from ABS plastic, the landing gear is designed to absorb impacts, providing added protection during landings.

With pre-threaded brass sleeves, assembling the quadcopter is straightforward, requiring only a single hex wrench. This design ensures quick assembly and disassembly, making it a convenient choice for both beginners and experienced users.

The S500 Quadcopter Frame is engineered for strength, lightweight performance, and aerodynamics, making it a top choice for drone builders.

Key Features:

• Durable & Lightweight: Made from glass fiber and polyamide nylon arms.
• Enhanced Stability: Slight upsweep arms create a dihedral effect.
• Integrated PCB: Enables neat and efficient wiring.
• Easy Assembly: Pre-threaded brass sleeves for quick setup.
• Versatile Design: Supports camera mounts and gimbals.
• High Ground Clearance: 200mm landing gear ideal for FPV applications.

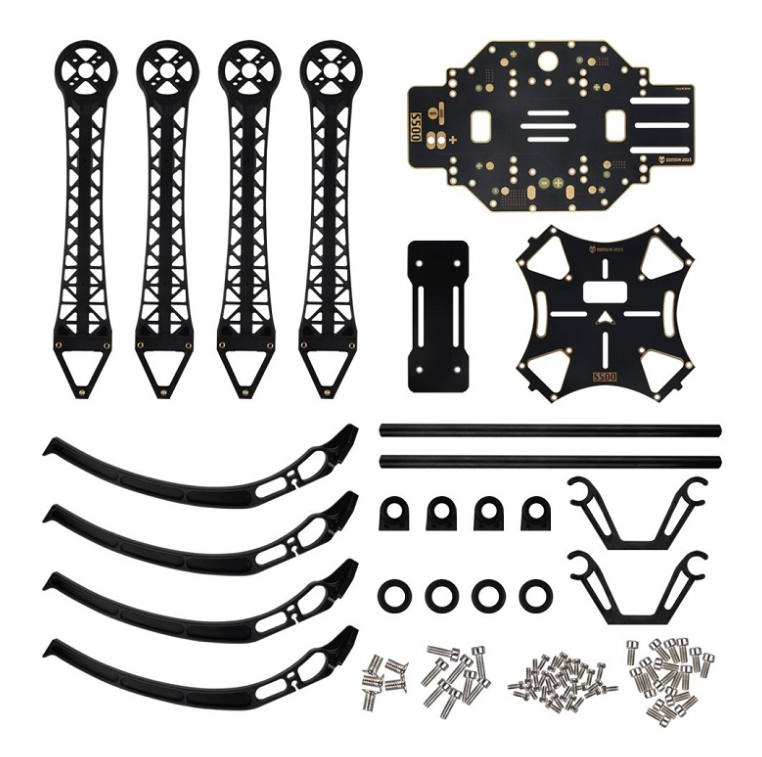

Package Includes:

• 1 x S500 Quadcopter Frame (Top and Bottom) with Integrated PCB
• 4 x S500 Arms
• 1 x Plastic Landing Gear for Quadcopter
• 2 x Special Pipes
• 4 x Pipe Supports
• 1 x Screw Accessories Set (Allen Head)
• 1 x Manual

Recommended (Not Included):

• Propellers: 1045 or 8045 Orange Propeller (CW & CCW)
• Battery: 3S Orange LiPo (1800mAh – 3600mAh)
• ESC: 15A – 40A
• Motors: 800KV – 1100KV Brushless DC Motor
• Allen Key: 10-in-1 Metric Combination Hexagonal Key Allen Wrench

Specifications:

• Model Name: S500
• Item Type: Quadcopter Frame
• Material: Glass Fiber, Polyamide Nylon
• Wheelbase: 500mm
• Frame Weight: 405g
• Arm Size: 220 × 40 mm
• Motor Mount Hole Diameter: 3 mm
• Landing Gear Material: ABS Plastic
• Landing Gear Height: 200 mm
• Landing Gear Color: Black
• Landing Gear Weight: 75g
• Shipping Weight: 0.49kg
• Shipping Dimensions: 30 × 20 × 7 cm

For a full range of multi-rotor accessories, including motors, ESCs, Li-PO batteries, flight controllers, FPV cameras, gimbals, propellers, and remotes, Click Here.

If you’re a beginner or looking for a quick and easy build, explore our Multirotor Kits to get your drone airborne without hassle. Click Here.

Note: The dimensions and weight may have a ±2% error.

Note: S500 arm colors may vary.
