Upgraded S550 Hexacopter Combo Kit (NDK12)

Description

The S550 Upgraded Hexacopter Frame (NDK12) by LOFTY AGROTECH is designed for drone enthusiasts looking for a stable, reliable, and high-performance aerial platform. With six arms, this hexacopter frame provides more power and enhanced flight stability compared to traditional quadcopters. The added lift capacity makes it ideal for carrying payloads like camera systems, FPV setups, and additional electronic components.

One of the key advantages of using a hexacopter over a quadcopter is redundancy—even if one or two motors fail, the drone can still land safely. This ensures extra security for your investment in drone components and equipment.

The S550 Hexacopter Frame features a strong yet lightweight construction, incorporating an integrated PCB (Printed Circuit Board) for neat and easy wiring. This eliminates the need for an additional Power Distribution Board (PDB), making the assembly process more efficient. The pre-threaded brass sleeves and one-size hex wrench compatibility make it easy to assemble and disassemble without the hassle of multiple bolts and nuts.

This frame offers multiple motor mounting hole configurations (16mm, 19mm, and 25mm), making it highly versatile and compatible with a range of motors. The carbon fiber landing gear provides durability and adds minimal weight to the build, ensuring an optimal balance of performance and efficiency.

With a wheelbase of 550mm and a lightweight structure of just 760g, the S550 Hexacopter Frame is an excellent choice for those looking to build a high-performance drone without compromising on strength and stability.

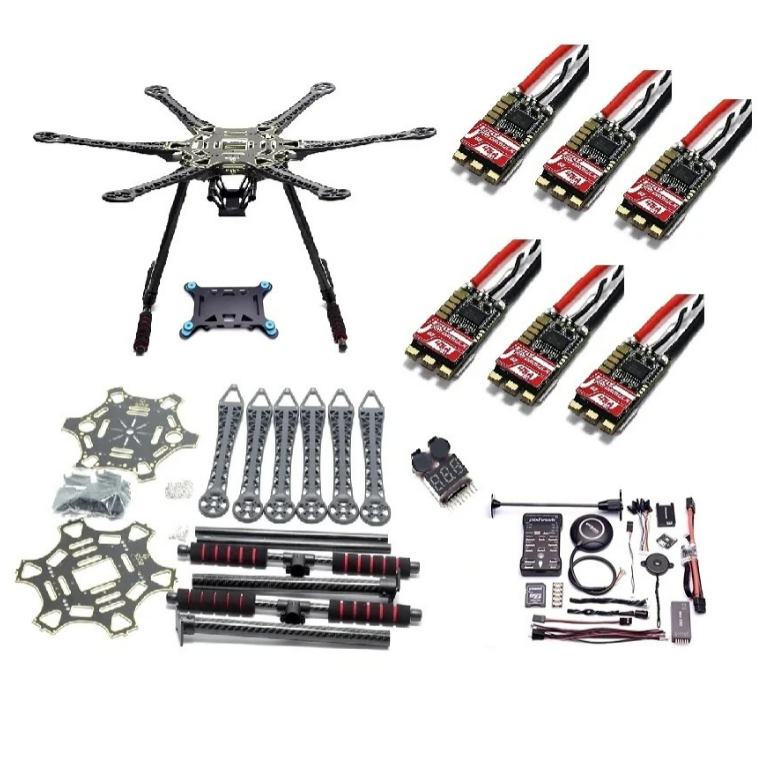

Kit Contents:

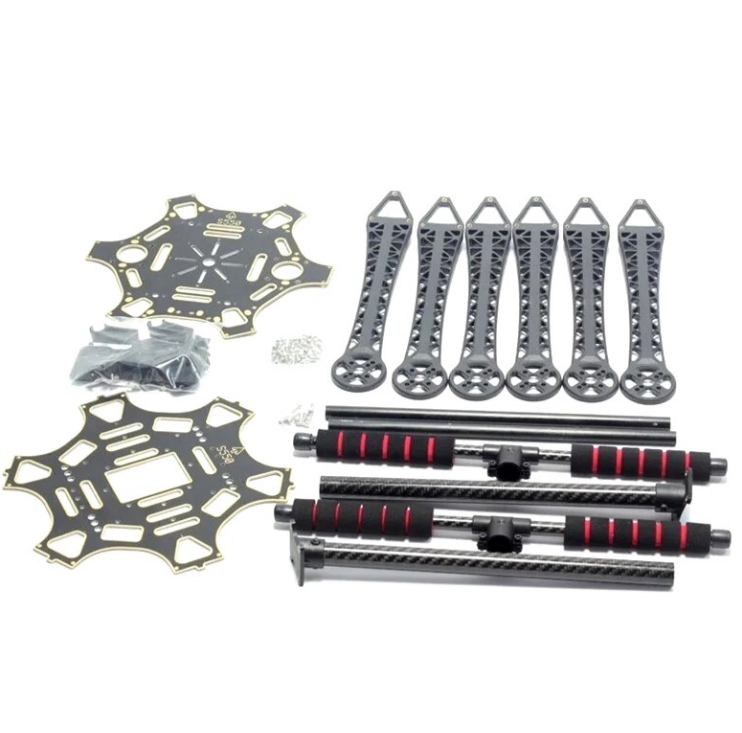

• 1 x S550 Hexacopter Frame

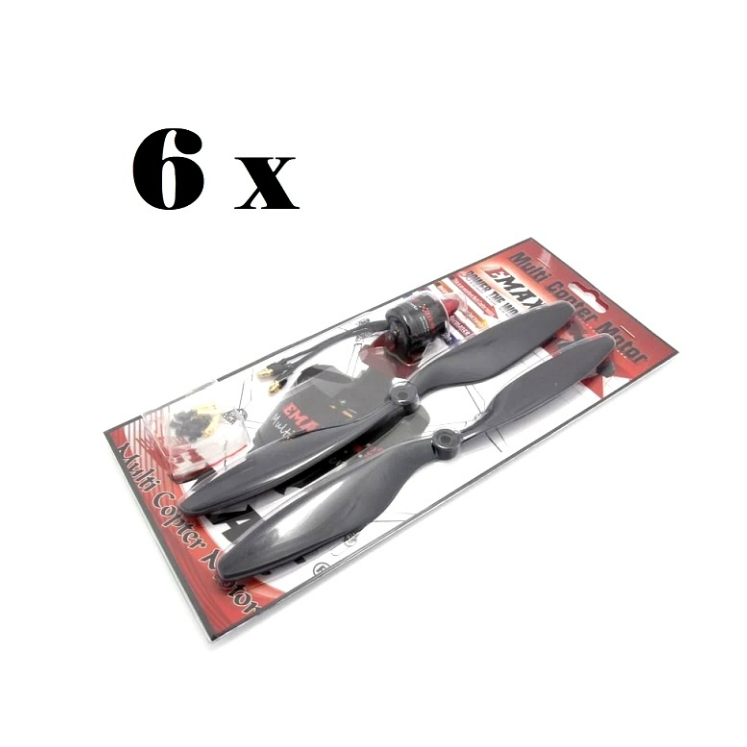

• 3 x EMAX MT2213 935KV Brushless DC Motor – Red Cap (CCW) With 1045 Propeller Combo
• 3 x EMAX MT2213 935KV Brushless DC Motor – Black Cap (CW) With 1045 Propeller Combo

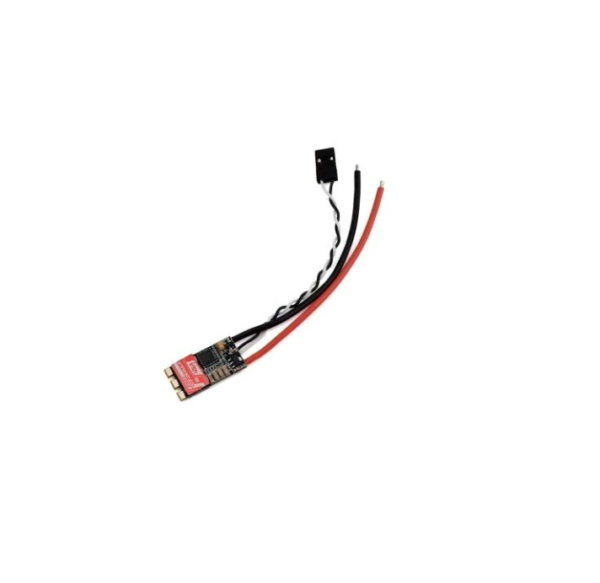

• 6 x EMAX Formula Series 45A ESC support BLHELI_32 ESC Dshot1200

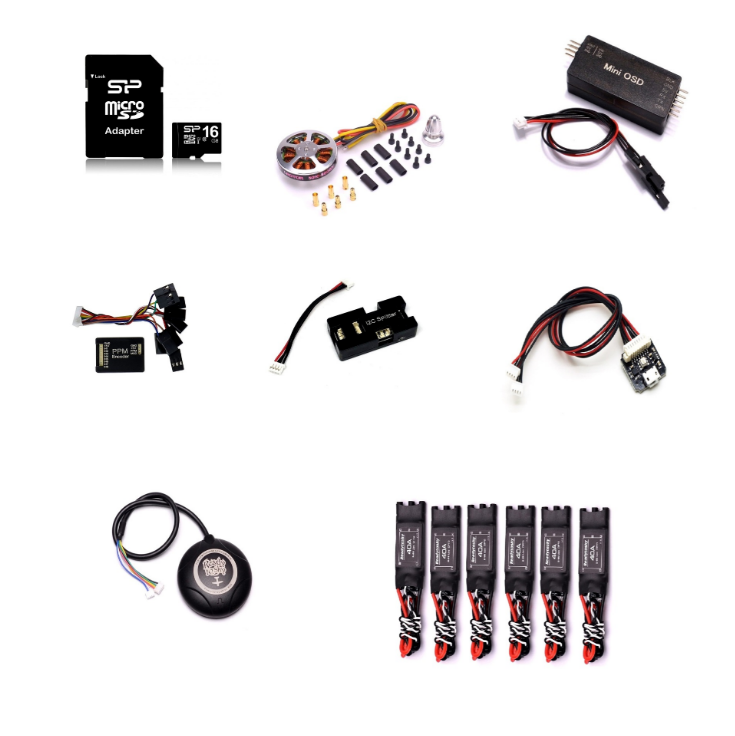

• 1 x Pixhawk 2.4.8 Flight Controller

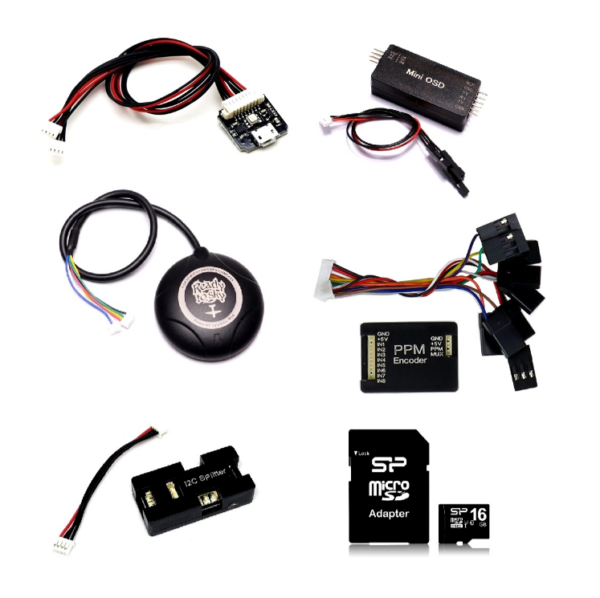

• 1 x Pixhawk I2C Port Expand Board with Cable
• 1 x OSD OLED display for Pixhawk Flight Controller with Cable
• 1 x Pixhawk PPM Encoder Module with Cable
• 1 x Ublox NEO-M8N GPS Module with Compass
• 1 x 4GB MicroSD Card
• 1 x GPS Module Mounting Stand
• 1 x Antivibration Shock Absorber for Pixhawk FC
• 1 x Pixhawk Power Module with XT60 Connector
• 1 x 30cm Lipo Battery Strap Belt Reusable Cable Tie Wrap
• 1 x Lipo Voltage Checker 1S-8S with Buzzer Alarm

Recommended Additional Components (Not Included):

• Propellers: Orange HD Carbon Fiber Propellers (1045, 1147, 1245, 1347 sizes available)
• Batteries: Orange 8000mAh 3S 30C/60C, Orange 5200mAh 3S 40C/80C
• Transmitters & Receivers: Flysky FS-i6X 2.4GHz 6CH AFHDS 2A, FS-TH9X 2.4GHz 9CH Upgrade Transmitter
• FPV Cameras and Accessories: Explore multirotor accessories at Drone Parts

Specifications:

• Item Type: Kit
• Model Name: S550
• Board: PCB version
• Color: Black
• Wheelbase: 550mm
• Arm Size (L x W): 235 × 42 mm
• Motor Mount Bolt Holes: 16, 19, and 25mm
• Landing Gear: Carbon Fiber
• Landing Gear Height: ~250mm
• Landing Gear Color: Black
• Landing Gear Weight: 100g (both)
• Frame Weight: 760g
• Shipping Weight: 1.4 kg
• Shipping Dimensions: 50 × 12 × 5 cm

Warranty:

This item comes with a 15-day standard warranty from the date of delivery against manufacturing defects only. The warranty ensures protection against any manufacturing defects, providing peace of mind for customers.

What voids the warranty?

• Misuse or tampering with the product.
• Exposure to static discharge, accident, water, or fire damage.
• Use of chemicals.
• Any soldering or alterations made to the product.

For replacements due to manufacturing defects, customers must provide proof of purchase and contact customer support.

Note:

• Propeller color may be black or red based on availability.
