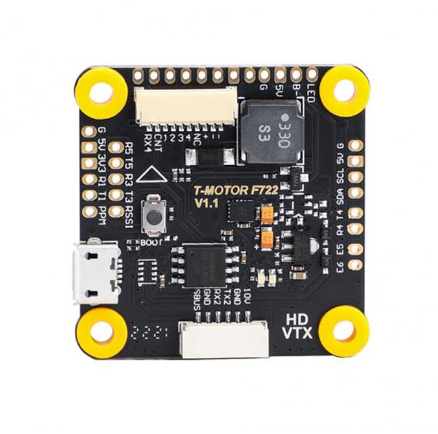

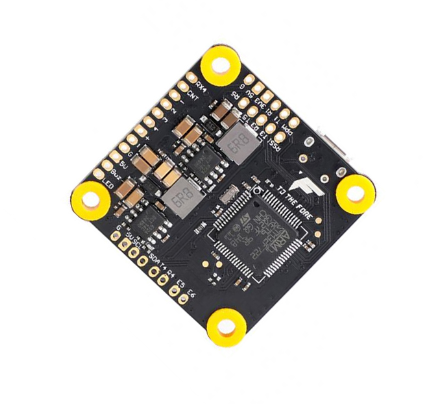

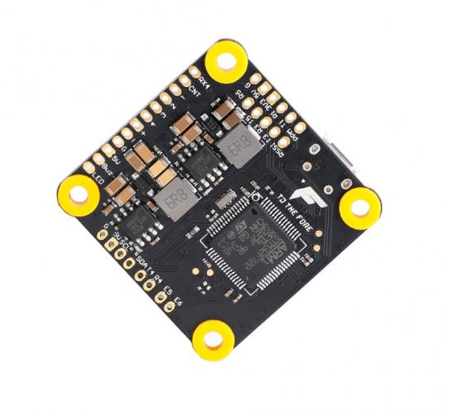

T-Motor F7 HD Flight Controller DJI – The Ultimate Flight Control Solution
The T-Motor F7 HD Flight Controller DJI is one of the most advanced and reliable flight controllers available in the market today. Designed specifically for compatibility with the DJI Digital FPV System, this flight controller delivers seamless integration, enhanced performance, and plug-and-play convenience for drone pilots of all levels. In this guide, we’ll explore its features, specifications, advantages, installation guide, compatibility, and more, providing a complete understanding of why the T-Motor F7 HD Flight Controller DJI is a must-have for any FPV drone enthusiast.
Overview of the T-Motor F7 HD Flight Controller DJI
The T-Motor F7 HD Flight Controller DJI represents the next level in drone flight technology. With a high-performance F722 processor, integrated BEC, and optimized layout, this flight controller is engineered to provide stable, responsive, and smooth flight control. Its compatibility with DJI Air Units ensures that pilots can enjoy the benefits of digital FPV systems without complicated wiring or additional hardware.
This controller is also available as a stack with the T-Motor F55A 4-in-1 ESC, allowing users to combine power and efficiency in one compact unit. The standard 30.5×30.5mm mounting pattern ensures broad frame compatibility, making it suitable for a wide range of racing and freestyle drones.
Key Features of the T-Motor F7 HD Flight Controller DJI
DJI Digital FPV Compatibility
The T-Motor F7 HD Flight Controller DJI is engineered for seamless DJI Digital FPV integration. With a dedicated plug for the DJI Air Unit, pilots can easily connect their digital system without worrying about complicated wiring. This feature reduces setup time and allows for reliable signal transmission, ensuring crisp video feeds and responsive controls during flight.
Integrated 10V 2A BEC
One of the standout features of the T-Motor F7 HD Flight Controller DJI is its built-in 10V 2A BEC. This provides a stable and reliable power supply to the DJI Air Unit, protecting the system from voltage fluctuations and ensuring consistent performance even during aggressive maneuvers or high-load conditions.
High-Performance F722 Processor
At the heart of the T-Motor F7 HD Flight Controller DJI lies the F722 MCU, a powerful processor that delivers smooth, precise, and responsive flight control. The F722 processor allows for faster loop times, improved filtering, and better handling of complex flight dynamics, making it ideal for racing, freestyle, and professional FPV setups.
Optimized Layout and Design
The T-Motor F7 HD Flight Controller DJI is designed with a logical, user-friendly layout, ensuring easy installation and intuitive wiring. The placement of pads, connectors, and mounting holes is optimized for plug-and-play compatibility with popular ESCs and peripherals, reducing clutter and minimizing errors during assembly.
Stackable Option with F55A 4-in-1 ESC
For pilots seeking maximum efficiency and compactness, the T-Motor F7 HD Flight Controller DJI can be stacked with the T-Motor F55A 4-in-1 ESC. This combination provides enhanced power delivery, simplifies wiring, and reduces the overall weight of the drone, resulting in a more agile and responsive flight experience.
Standard 30.5×30.5mm Mounting Pattern
The T-Motor F7 HD Flight Controller DJI features a 30.5×30.5mm mounting pattern, which is compatible with the majority of drone frames. This standardization ensures that pilots can easily integrate this flight controller into their existing setups without modifying frame mounts.
Plug-and-Play Convenience
Designed for both beginners and advanced users, the T-Motor F7 HD Flight Controller DJI offers true plug-and-play convenience. With simple connections to the DJI Air Unit and ESCs, pilots can focus on building, tuning, and flying rather than troubleshooting complicated wiring setups.
Technical Specifications of the T-Motor F7 HD Flight Controller DJI
The T-Motor F7 HD Flight Controller DJI is built with advanced hardware and thoughtfully designed features to deliver exceptional performance for FPV drones. Its specifications ensure reliable operation, compatibility with a wide range of components, and optimized flight control for both beginners and professional pilots.
- Processor: F722 MCU – A high-speed microcontroller that ensures fast loop times, precise sensor processing, and smooth, responsive flight performance.
- BEC Output: 10V 2A – Provides stable and reliable power to the DJI Air Unit, protecting it from voltage fluctuations during aggressive maneuvers.
- Voltage Rating: Compatible with 6S LiPo batteries – Supports high-voltage setups for more powerful and efficient flights.
- Weight: 11g – Ultra-lightweight design minimizes additional load on the drone, helping improve agility and flight time.
- Shipping Weight: 0.026 kg – Compact packaging for safe and easy delivery.
- Shipping Dimensions: 7 × 7 × 3 cm – Small footprint ensures convenient handling and storage.
- Mounting Pattern: 30.5×30.5mm – Standard size that fits most FPV drone frames, simplifying installation and compatibility with popular builds.
- Compatibility: Works seamlessly with DJI Air Units and T-Motor F55A 4-in-1 ESCs – Enables plug-and-play integration for hassle-free setup and enhanced drone performance.
With these specifications, the T-Motor F7 HD Flight Controller DJI provides a robust and reliable foundation for high-performance FPV drones. Pilots can count on stable power, precise flight control, and wide compatibility, making it suitable for racing, freestyle, and professional builds.
Advantages of the T-Motor F7 HD Flight Controller DJI
The T-Motor F7 HD Flight Controller DJI offers a range of advantages that make it one of the most reliable and versatile flight controllers for FPV drones. From seamless integration with DJI Digital FPV systems to enhanced flight performance and compact design, it is engineered to meet the needs of racers, freestyle pilots, professional builders, and beginners alike.
Seamless Digital FPV Integration
The T-Motor F7 HD Flight Controller DJI removes the complexity typically associated with setting up digital FPV systems. Pilots can effortlessly connect their DJI Air Unit via the dedicated plug, ensuring high-definition video, ultra-low latency, and stable signal transmission. This integration allows users to focus on flying and performing maneuvers rather than troubleshooting wiring or connectivity issues. Whether you are racing competitively or performing freestyle tricks, the digital FPV feed provided through this flight controller guarantees a responsive and immersive flight experience.
Reliable Power Supply
A key advantage of the T-Motor F7 HD Flight Controller DJI is its integrated 10V 2A BEC. This built-in power supply ensures consistent voltage delivery to the DJI Air Unit, protecting the system from interruptions or fluctuations during high-speed flights and aggressive maneuvers. Pilots can rely on stable power output for every flight, reducing the risk of unexpected signal loss or system resets, which is crucial for both competitive racing and professional FPV builds.
Enhanced Flight Performance
With its powerful F722 processor and intelligently optimized layout, the T-Motor F7 HD Flight Controller DJI delivers smooth, precise, and responsive flight control. The fast loop times, improved filtering, and accurate sensor readings allow pilots to execute advanced maneuvers with confidence. Whether performing high-speed racing turns or freestyle flips and rolls, this flight controller ensures maximum responsiveness and stability, giving you full control over your drone’s performance in every situation.
Compact and Efficient Design
The T-Motor F7 HD Flight Controller DJI is designed for space efficiency and convenience. Its stackable configuration with the T-Motor F55A 4-in-1 ESC reduces wiring clutter and overall build footprint. This compact design not only saves weight but also improves airflow and weight distribution within the drone, enhancing agility, maneuverability, and overall flight efficiency. Pilots benefit from a more streamlined build without compromising on performance or reliability.
Wide Compatibility
With a standard 30.5×30.5mm mounting pattern, the T-Motor F7 HD Flight Controller DJI is compatible with most FPV drone frames, allowing for easy integration into new builds or upgrades. Its plug-and-play design ensures straightforward connection to the DJI Air Unit and other T-Motor gear, simplifying installation and reducing setup time. This versatility makes it a practical choice for pilots at all experience levels, from beginners to seasoned professionals.
Installation and Setup Guide
Installing the T-Motor F7 HD Flight Controller DJI is a straightforward process, designed to minimize complexity and help pilots get their drones ready for flight quickly. Thanks to its logical layout, plug-and-play compatibility with the DJI Air Unit, and stackable design with the T-Motor F55A 4-in-1 ESC, setup is intuitive for both beginners and experienced builders. Follow these steps to ensure a smooth and safe installation.
step 1 – Mounting
Start by securely mounting the T-Motor F7 HD Flight Controller DJI to your drone frame using the standard 30.5×30.5mm mounting holes. Make sure to install vibration dampeners or soft mounts to reduce the transmission of motor vibrations to the flight controller. Proper mounting not only protects the electronics but also improves flight stability and ensures accurate sensor readings for consistent performance during aggressive maneuvers or high-speed racing.
Step 2 – Wiring the DJI Air Unit
Next, connect the dedicated plug of the T-Motor F7 HD Flight Controller DJI directly to the DJI Air Unit. Thanks to the integrated 10V 2A BEC, the flight controller safely supplies consistent power to the Air Unit without the need for external regulators. Double-check that the connections are secure and properly oriented to avoid any short circuits or power interruptions. This step ensures reliable digital FPV video transmission and smooth flight performance.
Step 3 – Connecting the ESC
If you are using the T-Motor F55A 4-in-1 ESC, simply stack the flight controller on top for a clean, compact build. This stackable configuration reduces wiring complexity and saves space, allowing for better airflow and weight distribution in the drone. If using separate ESCs, connect them carefully to the provided solder pads or connectors on the flight controller, following the wiring diagram for correct motor order and orientation. Proper ESC connection is critical for stable flight control and responsive throttle input.
Step 4 – Firmware and Configuration
Once the hardware is installed, it’s time to configure the T-Motor F7 HD Flight Controller DJI. Install the latest version of Betaflight or Cleanflight firmware compatible with the flight controller. After flashing, configure your flight modes, PID settings, motor directions, and auxiliary functions to match your drone’s setup. Calibrate all sensors, including the accelerometer and gyroscope, to ensure accurate flight control and optimal responsiveness. This step is essential to unlock the full potential of your FPV drone.
Step 5 – Final Checks
Before taking off, perform a thorough pre-flight inspection. Verify that all wiring connections are secure, screws are tightened, and vibration dampeners are in place. Confirm that the flight controller recognizes all ESCs and that the DJI Air Unit is powered correctly. Conduct a small test flight in a safe area to check stability, responsiveness, and sensor calibration. Following these final checks ensures that your T-Motor F7 HD Flight Controller DJI is ready for safe, reliable, and high-performance FPV flying.
Who Should Use the T-Motor F7 HD Flight Controller DJI?
The T-Motor F7 HD Flight Controller DJI is designed to cater to a wide range of drone pilots, from beginners to professional builders, making it a versatile and reliable choice for any FPV setup. Its combination of high-performance flight control, plug-and-play convenience, and DJI Digital FPV compatibility ensures that every pilot can maximize their drone’s potential.
FPV Drone Racers
For competitive FPV drone racers, the T-Motor F7 HD Flight Controller DJI delivers the speed, precision, and stability required to excel on the track. Equipped with the powerful F722 processor and a reliable 10V 2A BEC, this flight controller maintains consistent performance even during high-speed maneuvers and aggressive racing conditions. Its optimized layout and stackable design with the T-Motor F55A 4-in-1 ESC allow racers to reduce weight and improve responsiveness, giving them a competitive edge in every race.
Freestyle Pilots
Freestyle pilots benefit from the T-Motor F7 HD Flight Controller DJI’s plug-and-play convenience and seamless DJI Air Unit integration. This allows them to focus on performing complex tricks, flips, and rolls without worrying about wiring complications or unstable connections. The smooth and responsive control provided by the F722 processor makes executing precise maneuvers easier, enabling freestyle pilots to push the limits of creativity and aerial performance.
Professional Drone Builders
For professional drone builders, the T-Motor F7 HD Flight Controller DJI provides flexibility and ease of integration. Its standard 30.5×30.5mm mounting pattern ensures compatibility with most drone frames, while the ability to stack with the T-Motor F55A ESC simplifies wiring and minimizes the overall footprint. Builders can rely on this flight controller to create high-performance, customized FPV drones that meet their specific power, size, and performance requirements.
Beginners
Even for beginners, the T-Motor F7 HD Flight Controller DJI offers an approachable and reliable experience. The plug-and-play connection to the DJI Air Unit reduces setup complexity, allowing new pilots to focus on learning how to fly rather than troubleshooting hardware. With clear installation guidance, stable power delivery, and intuitive configuration options, beginners can quickly enjoy the benefits of digital FPV without frustration or confusion.
FAQs About the T-Motor F7 HD Flight Controller DJI
Can I use this flight controller with non-DJI FPV systems?
While optimized for DJI Air Units, the T-Motor F7 HD Flight Controller DJI can work with other ESCs and peripherals, though some plug-and-play features may require manual wiring.
Does it support 6S LiPo batteries?
Yes, the T-Motor F7 HD Flight Controller DJI is fully compatible with 6S LiPo setups, providing stable power delivery through its integrated BEC.
Is firmware installation complicated?
No, installing Betaflight or Cleanflight firmware on the T-Motor F7 HD Flight Controller DJI is straightforward, with plenty of tutorials available online for guidance.
Why Choose NDB&C by LOFTY AGROTECH?
At NDB&C by LOFTY AGROTECH, we are committed to delivering authentic T-Motor products that meet the highest standards of quality and reliability. Every product, including the T-Motor F7 HD Flight Controller DJI, undergoes thorough testing to ensure it performs flawlessly, giving pilots confidence in every flight.
Our team also provides dedicated after-sales support, guiding you through installation, troubleshooting, and setup whenever needed. With NDB&C by LOFTY AGROTECH, you get genuine, ready-to-use flight controllers that make building and flying your FPV drone easier and more enjoyable.
Conclusion
The T-Motor F7 HD Flight Controller DJI stands out as a premium choice for FPV drone pilots, combining high-performance flight control with seamless DJI Digital FPV compatibility. Its robust F722 processor ensures smooth, responsive handling, while the integrated 10V 2A BEC provides stable power to your DJI Air Unit, making every flight reliable and precise.
Designed with both convenience and efficiency in mind, this flight controller offers plug-and-play functionality and stackable options with the T-Motor F55A 4-in-1 ESC. Whether you are building a compact racing drone or a freestyle setup, the logical layout and standard 30.5×30.5mm mounting pattern simplify installation, saving time and reducing errors during assembly.
Ideal for beginners and seasoned pilots alike, the T-Motor F7 HD Flight Controller DJI delivers exceptional performance, stability, and reliability. By choosing this flight controller from NDB&C by LOFTY AGROTECH, you gain a trusted, ready-to-use solution that enhances your FPV experience and helps you achieve smoother, more controlled flights every time.
