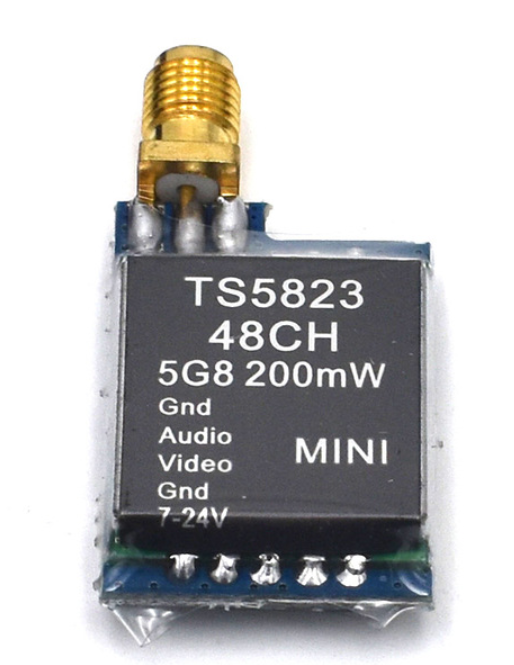

TS5823 200mw 40CH Mini Transmitter

  • 5.8GHz 200mW FPV transmitter with 48 channels

  • Compact and lightweight design (40 x 20 x 8 mm, 10g)

  • Operates on 7V–24V input voltage

  • Supply current: 190mA

  • Supports NTSC/PAL video formats

  • Transmitting distance up to 1500m in open area

  • Includes RP-SMA antenna connector and AV cable

Description

TS5823 200mW 40CH Mini Transmitter

TS5823 200mW 40CH Mini Transmitter

Introducing the TS5823 5.8GHz 200mW 48CH Mini FPV Transmitter, now available at LOFTY AGROTECH. This ultra-compact and lightweight transmitter is designed for FPV enthusiasts seeking high-quality video transmission without adding significant weight to their drones. With 48 channels covering bands A, B, E, F, and R, it offers broad compatibility with various FPV systems. The TS5823 delivers a powerful 200mW output, ensuring stable video signals over extended distances, making it ideal for small models and 350-size multi-rotors.

For more details and to purchase, click here.

📦 Key Features:

  • 📶TS5823 200mW 40CH Mini Transmitter  Frequency Band: 5.8GHz

  • 📡TS5823 200mW 40CH Mini Transmitter  Channels: 40 (including RaceBand, A, B, E, F)

  • 🔋TS5823 200mW 40CH Mini Transmitter  Output Power: 200mW

  • ⚙️ TS5823 200mW 40CH Mini Transmitter Input Voltage: 7–24V (2S to 6S LiPo)

  • 🔌TS5823 200mW 40CH Mini Transmitter  Video Input: Standard analog CVBS (NTSC/PAL)

  • 🔌TS5823 200mW 40CH Mini Transmitter  Connector: RP-SMA or solder pad (depends on model variant)

  • 📐TS5823 200mW 40CH Mini Transmitter  Size: ~19×19mm (standard mini VTX footprint)

  • ⚖️TS5823 200mW 40CH Mini Transmitter  Weight: ~7g (without antenna)

  • 🌡️ TS5823 200mW 40CH Mini Transmitter Cooling: Passive (ensure ventilation in closed frames)


🔍 Detailed Description:

The TS5823 is a lightweight analog video transmitter offering stable mid-range FPV transmission for micro-class and freestyle drones. With its 200mW power output, it provides a reliable link in open fields up to 1–1.5 km line-of-sight when paired with a quality antenna and receiver.

Ideal for drone frames with limited space, this VTX features 40 channels, including the popular RaceBand frequencies used in FPV racing events.

It’s widely used in:

  • TS5823 200mW 40CH Mini Transmitter Budget analog quads

  • TS5823 200mW 40CH Mini Transmitter drone kits

  • TS5823 200mW 40CH Mini Transmitter Backup FPV links

  • TS5823 200mW 40CH Mini Transmitter Custom DIY drone platforms


TS5823 200mW 40CH Mini Transmitter

📡 Channel Bands Included:

Band Channels
A (Boscam) 5865–5705 MHz
B (Fatshark) 5733–5866 MHz
E (Immersion) 5705–5945 MHz
F (Airwave) 5740–5860 MHz
R (RaceBand) 5658–5917 MHz

🧠 A DIP switch or push-button system is used to select channels. Make sure to check your region’s legal frequency bands.


⚙️ Technical Specifications:

Parameter Value
Frequency 5.8GHz analog (5658–5945 MHz)
Output Power 200mW
Input Voltage 7V to 24V (2S–6S)
Current Draw ~100–180mA @ 12V
Modulation FM analog video (CVBS)
Antenna Port RP-SMA Female / solder pads
Video Format NTSC / PAL
Operating Temp –10°C to +60°C
Weight ~7g

🛠️ Installation & Usage Tips:

  • TS5823 200mW 40CH Mini Transmitter Ensure the antenna is always connected before powering on to prevent VTX damage.

  • TS5823 200mW 40CH Mini Transmitter Mount the VTX away from flight controller or GPS to minimize interference.

  • TS5823 200mW 40CH Mini Transmitter Use heatshrink or zip ties to secure it in compact builds.

  • TS5823 200mW 40CH Mini Transmitter Match it with an RHCP antenna for best signal performance.


📊 Performance Summary (Typical Setup):

Use Case Range Estimate (LOS) Notes
Open field 1–1.5 km With high-gain patch antenna
Indoor flying 100–300 meters Minimal penetration
Urban areas ~500–800 meters Some signal degradation
Dense forest ~300–500 meters Multipath & signal fade

🎮 Use Cases

  • 🛩️TS5823 200mW 40CH Mini Transmitter  Micro & Whoop drones

  • 🧰TS5823 200mW 40CH Mini Transmitter  DIY FPV drone kits

  • 🏁 TS5823 200mW 40CH Mini Transmitter Budget racing drones

  • 🎓 TS5823 200mW 40CH Mini Transmitter Educational/Training drones

  • 🛰️TS5823 200mW 40CH Mini Transmitter  Backup/secondary analog FPV links


🔄 TS5823 vs Similar VTX Units

Model Channels Power Size Ideal For
TS5823 40 200mW Compact Micros, racing drones
Eachine TX805 72 25–800mW Stackable Versatile/advanced setups
AKK Nano2 40 25/200mW Tiny Tiny Whoops
Foxeer TM25 40 25–600mW Modular Freestyle builds

🛍️ Marketing Tagline

“The TS5823 200mW VTX delivers clean, reliable analog video transmission in a lightweight and compact design — perfect for budget builds, micros, and racing drones needing stable mid-range FPV.”

🔍 Extended Description – TS5823 200mW 40CH Mini 5.8GHz FPV Video Transmitter

The TS5823 200mW Mini Transmitter is a lightweight, space-efficient analog VTX designed to deliver stable video transmission over the 5.8GHz band with minimal setup complexity. Trusted by drone hobbyists, educators, and FPV racers worldwide, this VTX balances performance, simplicity, and price in one compact package.

Whether you’re building a micro quad, a lightweight freestyle rig, or developing a drone training kit, the TS5823 provides a solid mid-range analog video link, supporting up to 40 channels, including the widely adopted RaceBand frequencies for FPV racing.


⚙️ Optimized for Lightweight Builds

Weighing just around 7 grams, the TS5823 is perfect for:

  • TS5823 200mW 40CH Mini Transmitter Tiny Whoops and Micro FPV Drones

  • TS5823 200mW 40CH Mini Transmitter Toothpicks and 3” racers

  • TS5823 200mW 40CH Mini Transmitter Educational drones where weight and cost are critical

  • TS5823 200mW 40CH Mini Transmitter Projects requiring a clean layout and small component footprint

Its 19mm × 19mm PCB footprint easily integrates into compact airframes with tight space requirements.


📡 200mW Power Output – Balanced for Performance and Heat

With 200mW transmission power, this VTX offers:

  • ✅TS5823 200mW 40CH Mini Transmitter Excellent video clarity in open field conditions

  • ✅TS5823 200mW 40CH Mini Transmitter  Less power draw and heat than high-power VTXs

  • ✅TS5823 200mW 40CH Mini Transmitter  Sufficient penetration for trees, light urban clutter, and race obstacles

  • ✅TS5823 200mW 40CH Mini Transmitter  Lower interference when flying with others (compared to 600–800mW VTXs)

It’s a sweet spot for beginner-to-intermediate pilots and events where clean channel separation is essential.


TS5823 200mW 40CH Mini Transmitter

🔄 Channel Flexibility – 40 Channels Across 5 Bands

The TS5823 supports a full 40 channels, spread across:

  • TS5823 200mW 40CH Mini Transmitter Band A (Boscam)

  • TS5823 200mW 40CH Mini Transmitter Band B (Fat Shark)

  • TS5823 200mW 40CH Mini Transmitter Band E (ImmersionRC)

  • TS5823 200mW 40CH Mini Transmitter Band F (Airwave)

  • TS5823 200mW 40CH Mini Transmitter RaceBand (R1–R8)

Channel selection is either done via DIP switches (on most models) or push-button, depending on the board revision. This flexibility allows users to:

  • Match VTX to nearly any 5.8GHz receiver on the market

  • Avoid interference when flying with multiple pilots

  • Tune to clear channels on the fly

📌 Note: Always check regional RF regulations before use.


🔌 Simple Power and Signal Integration

  • Input Voltage: 7V to 24V (2S–6S LiPo), making it easy to power directly from your main flight battery.

  • Video In: Solder pad or JST input for CVBS analog video (from flight camera or OSD board).

  • Output Connector: Typically RP-SMA or u.FL (depends on variant).

🛠️ Pro Tip: Always power the VTX after connecting an antenna to prevent damage from reflected power.


🧠 Ideal Applications

Application Why It’s Suitable
Micro drones / Whoops Lightweight and compact
Freestyle builds (sub-250g) Balanced power and channel range
FPV Racing (indoor/outdoor) Supports RaceBand, minimal overheating
STEM Education kits Cost-effective and easy to use
Backup video link Affordable and dependable

⚙️ Installation Best Practices

  • TS5823 200mW 40CH Mini Transmitter Mount the transmitter on foam pads or soft mounts to reduce vibration-induced damage

  • TS5823 200mW 40CH Mini Transmitter Keep clear airflow over the VTX to minimize overheating in enclosed frames

  • TS5823 200mW 40CH Mini Transmitter Use short coaxial cable to minimize signal loss

  • TS5823 200mW 40CH Mini Transmitter Use a good-quality RHCP or LHCP antenna, matching your receiver

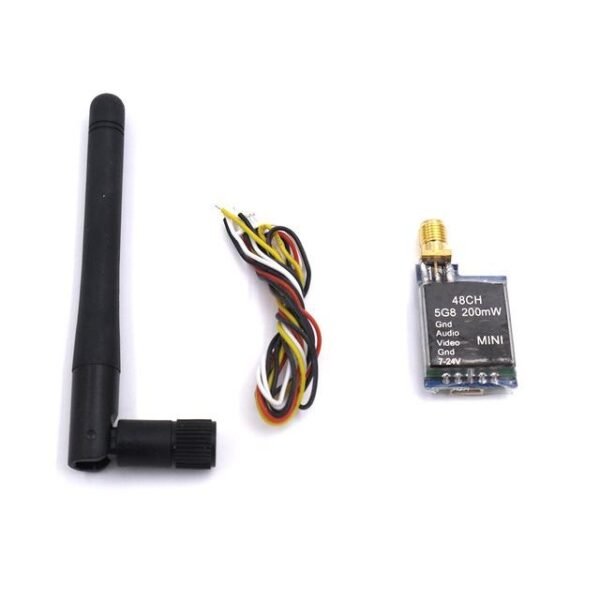

📦 What’s Typically Included

  •  TS5823 200mW 40CH Mini Transmitter 1x TS5823 200mW Video Transmitter

  • TS5823 200mW 40CH Mini Transmitter 1x 5.8GHz linear whip antenna (or no antenna, depending on seller)

  • TS5823 200mW 40CH Mini Transmitter 1x JST cable or solder pads

  • TS5823 200mW 40CH Mini Transmitter DIP switch reference chart or instructions


🔋 Power & Heat Consideration

Because it’s a passively cooled 200mW unit, it’s important to:

  • TS5823 200mW 40CH Mini Transmitter Avoid powering it without airflow for long periods

  • TS5823 200mW 40CH Mini Transmitter Do not enclose it tightly inside carbon shells without ventilation

  • TS5823 200mW 40CH Mini Transmitter Use a 5V fan or ventilation holes in tightly packed racing builds if overheating is observed


📣 Extended Marketing Snippet

TS5823 200mW 40CH Mini Transmitter is your go-to FPV VTX when size and simplicity matter. Designed for tight builds and clean analog transmission, it provides all the essential performance—40 channels, up to 200mW output, wide compatibility—in a lightweight and durable form. Whether you’re flying indoors or out in the open, the TS5823 delivers crisp analog video for freestyle, racing, and educational FPV.

🧪 Signal Propagation and RF Behavior

The TS5823 operates in the ISM 5.8GHz band, known for:

  • TS5823 200mW 40CH Mini Transmitter Low interference from Wi-Fi (2.4GHz) and cellular bands

  • TS5823 200mW 40CH Mini Transmitter High bandwidth capacity — suitable for analog video

  • TS5823 200mW 40CH Mini Transmitter Moderate atmospheric absorption

  • TS5823 200mW 40CH Mini Transmitter Limited wall/tree penetration (compared to 1.2GHz)

At 200mW, the signal strength provides a good balance of:

  • 📶 Clarity within 500m–1.5km in open fields

  • 🧱 Penetration through light foliage or indoor walls

  • 🧲 Stability even when drone is banking or yawing

Pairing it with a RHCP (Right-Hand Circular Polarized) antenna ensures resistance to multipath distortion, especially near buildings or trees.


🔄 Thermal Behavior and Passive Cooling

🌡️ Why Thermal Design Matters:

Even though the TS5823 doesn’t use a heatsink, it runs warm. Excessive heat can:

  • Shorten VTX lifespan

  • Cause frequency drift

  • Trigger shutdown in extreme cases

✅ Best Practices:

  • Avoid powering it up without airflow or antenna

  • Add thermal tape or copper pad to the back if mounted on carbon

  • Design your drone canopy or stack to allow ventilation (vents, mesh, or fans)


📡 Antenna Matching Guide

For best results with TS5823:

Antenna Type Description Best Use
Linear Whip (stock) Low profile, beginner-friendly Indoor flying, short range
Pagoda (RHCP) Circular, good axial ratio Outdoor freestyle, racing
Lollipop/Stubby Compact, rugged, circular Micro quads, toothpicks
Dipole Antenna Balanced polarization, wide angle Lightweight builds, open areas

💡 Always match VTX and RX polarization (RHCP ↔ RHCP, LHCP ↔ LHCP)


🧰 DIY Drone Kit Usage Example

In a classroom or DIY drone scenario:

  • Flight Camera → Analog CVBS output → TS5823 video input

  • Battery (2S–4S) → TS5823 power input (via regulator if needed)

  • TS5823 output → 5.8GHz antenna

  • Connect goggles or receiver (like RC832 or EV800D) to monitor signal

🎓 Great for STEM education due to low cost, visibility of components, and analog simplicity.


TS5823 200mW 40CH Mini Transmitter

🧩 Comparative Table: TS5823 vs Similar VTXs

Model Power Output Channels Size Best For
TS5823 200mW 40 Mini (19mm) Budget builds, micro drones
Eachine TX526 25–600mW 40 30×20mm Adjustable power for freestyle
AKK FX2 Mini 25–800mW 48 Compact Long-range analog setups
Rush Tank Solo 800mW 48 Large Pro FPV builds
BetaFPV Nano 25–200mW 40 Ultra-tiny Whoops, toothpicks

🧠 What Makes the TS5823 Special?

  • Simplicity: No menus, OSD, or firmware. Plug-and-play analog

  • Affordability: Extremely budget-friendly for first-time flyers

  • Compatibility: Works with most analog goggles and receivers

  • Durability: Withstands crashes when soft-mounted properly

  • Low Weight: Great for 100g–250g sub-class drones


📖 Professional Use Cases

Application Why TS5823 Works Well
Drone Rental Fleets Easy to replace, low cost, no settings confusion
STEM/Robotics Training Clear analog signal, visible wiring, beginner-safe
FPV Combat Games Short range and cost-effective for teams
FPV Racing Practice Good for groups with analog goggles and channels
Signal Testing Lightweight probe for checking antenna behavior

📦 Optional Upgrades

Add-On Benefit
5V UBEC / Regulator For builds running on 4S/6S batteries
Antenna Extension Cable For relocating VTX inside canopy
OSD Module (MinimOSD, Betaflight OSD) Overlay voltage/RSSI on video
Fan or mesh canopy Improve heat dissipation in tight builds
DIP switch extension board For easier channel switching on-the-go

🛍️ Enhanced Marketing Snippet

The TS5823 200mW 40CH Mini Transmitter delivers reliable analog FPV in a compact form factor. Whether you’re racing, learning, or just flying for fun, this transmitter brings 40-channel flexibility, stable 5.8GHz video, and smooth integration into even the smallest builds. Trusted by drone schools, hobbyists, and FPV pros — it’s analog, simplified.

Why Choose Lofty AgroTech?

When building or servicing agricultural drones in India, Lofty AgroTech stands out as a reliable and innovative partner. Here’s a comprehensive breakdown of why we choose Lofty AgroTech:


1️⃣ DPIIT-Recognized Innovation

  • Lofty AgroTech is officially recognized by the Department for Promotion of Industry and Internal Trade (DPIIT), Govt. of India.
    🏅 This certification ensures quality, credibility, and government endorsement as a genuine Indian AgriTech innovator.


2️⃣ Tailored for Indian Farming Conditions

  • Their drone components—including GPS modules, landing gear, frames, and spraying systems—are designed and tested for Indian climates:

    • Heat, dust, and humidity-resistant

    • Compatible with crops like paddy, cotton, and sugarcane

  • Engineered specifically for Indian fields, not generic imports.


3️⃣ Complete Hardware Ecosystem

  • Lofty AgroTech provides GPS modules, drone frames, landing gear, sprayer accessories, flight controllers, and telemetry—all under one roof.

  • Ideal for building integrated systems that work seamlessly together from day one.


4️⃣ Plug-and-Play Convenience

  • Products like the NZ Mini GPS Module are pre-configured for Betaflight/Cleanflight, and hardware parts fit standard UAV systems perfectly.

  • No firmware flashing or awkward adapters—just plug, play, and fly.


5️⃣ Strong Local Support & Spare Parts

  • Fast shipping across India without customs delays.

  • Dedicated after-sales support via phone or chat—real help when you’re in the field or repairing.

  • Access to common spares, making downtime less likely.


6️⃣ Academic & Startup Partnerships

  • Lofty AgroTech collaborates with colleges, R&D centers, and agri-tech startups, providing drone kits, hardware training, and workshops.

  • Their products are trusted in STEM labs, contests, innovator incubators, and proof-of-concept tests.


7️⃣ Proven Quality & Real-World Performance

  • Uses industrial-grade components like u‑blox GPS chips, carbon fiber, and rugged nylon.

  • Field-tested in Indian conditions to ensure reliability for crop spraying, mapping, and monitoring.


8️⃣ Educator & Builder-Friendly

  • Their hardware encourages hands-on learning and experimentation without requiring advanced drone expertise.

  • Ideal for drone clubs, agricultural training, hobbyist builders—even first-time users.

Feature Why It Matters
✅ DPIIT-recognition Official credibility and national support
✅ India-ready design Handles dust, heat, and rugged farm terrain
✅ Full ecosystem of parts One-stop for drone assembly & upgrading
✅ Pre-tuned hardware Speeds up deployment without tech hassles
✅ Quick support & spares Minimized downtime in remote locations
✅ Academic collaborations Builds future tech, research, and innovation
✅ High-grade materials Long-lasting and dependable in tough use
✅ User-friendly for all levels Great for experts, educators, and first-timers

.


💥 Ready to Get the Best Value for Your Drone Builds?

Whether you’re assembling your first quad or leading a drone R&D lab, Lofty Agrotech ensures your investment goes into quality, not confusion.

💬 Still unsure what fits your budget and performance needs? Talk to our experts—we’ll help you decide without upselling.

🎁 Institutional Support & Educational Offers

At Lofty Agrotech, we believe in empowering innovation through education. As drone technology becomes a cornerstone of engineering, agriculture, and automation studies, we’re committed to supporting students, educators, and institutions with resources that go far beyond commercial transactions.


🎓 Designed for Academia & R&D

We actively collaborate with:

  • Engineering colleges for final year drone and mechatronics projects

  • Technical universities integrating UAVs into curriculum

  • Research institutions and innovation labs exploring drone-based solutions

  • Polytechnic and diploma-level institutions for hands-on drone skill-building

🏫 We’ve supported 70+ institutions across India with high-quality parts, build assistance, and curriculum alignment.


🧑‍🏫 Exclusive Educational Discounts

We offer special pricing structures tailored for learning environments:

  • Flat % discounts for verified student and faculty orders

  • Price waivers or bundle deals on bulk quantities and lab kits

  • Custom billing for college purchase departments and project grants

  • GST-compliant invoicing for smooth procurement workflows

💡 Every rupee saved can be invested back into your learning journey.


🧰 Build Kits for Projects, Labs & Hackathons

We supply custom FPV and drone kits designed for:

  • Final year projects on AI, computer vision, agriculture drones, etc.

  • Hackathons and technical fests where fast assembly and reliable parts matter

  • Drone training labs needing repeatable, standard setups for multiple students

  • Demo-ready prototypes for academic exhibitions and competitions

Each kit can include:

  • Frame + motors + ESCs + flight controller + camera

  • GPS + battery straps + antennas + GoPro mounts

  • Wiring, build guide PDFs, and phone-based setup assistance

🧩 Tell us your use-case — we’ll build the right kit for your classroom or competition.


🧑‍🔬 Documentation & Tech Support for Reports

We assist students and mentors with:

  • Detailed datasheets and specs for every part purchased

  • Pre-filled or editable bill of materials (BOM) for submission

  • Reference photos, connection diagrams, and PID tuning guides

  • Help with design justification, component selection, and technical write-ups

📘 Save time, avoid confusion, and meet academic documentation standards with our help.


🤝 Long-Term Collaboration Opportunities

For colleges looking to scale their UAV programs, we provide:

  • Campus-wide drone lab setup consultations

  • Mentorship tie-ups with our engineering team

  • Joint research support in AI-agriculture, delivery drones, and aerial surveillance

  • Feature coverage of college builds and success stories on our platforms

📢 Let’s build visibility for your institution while equipping students for tomorrow’s UAV jobs.


🧠 Ready to Partner With Us?

Whether you’re representing a college, lab, startup incubator, or student club, Lofty Agrotech is ready to support your vision with:

✅ Verified brand components
✅ Discounted educational pricing
✅ Technical mentorship
✅ Hassle-free procurement


📩 Contact us today via WhatsApp or email with your institution name, project scope, and component list. We’ll take it from there—professionally and promptly.

✅ Your Trusted FPV Partner in India

At Lofty Agrotech, we’re not just another online drone store—we’re your go-to partner for everything FPV and drone-related. From high-performance gear to educational guidance, we’re here to help you build, fly, learn, and evolve with confidence.


🇮🇳 Made for the Indian FPV Scene

We understand the unique challenges Indian drone pilots and builders face:

  • Import restrictions and part availability

  • Delivery delays from international suppliers

  • Lack of after-sale guidance from foreign retailers

That’s why we built Lofty Agrotech—to provide a local, reliable, and technically strong alternative that delivers both speed and trust.

📦 From Tamil Nadu to Tripura, we’ve shipped high-quality drone parts to over 1200+ Indian locations and counting.


🧠 One-Stop Drone Knowledge Hub

We are more than sellers—we are curators, educators, and enthusiasts who live the drone lifestyle.

  • Frequent product launches & detailed guides

  • Real-world compatibility checks before shipping

  • WhatsApp & email support with actual drone engineers

  • No clones, no confusion—just clean, build-ready components

🛠️ Whether it’s your first drone or your fiftieth, we have something valuable for your journey.


💬 Community Over Commerce

We’ve grown not by pushing sales—but by earning trust:

  • 5-star reviews from students, builders, and professionals

  • Trusted supplier for drone competitions, hackathons, and R&D grants

  • Regularly featured by YouTubers, FPV pilots, and institutions across India

🧑‍🤝‍🧑 At Lofty, you’re not just a customer—you’re part of a mission.


  • 🛡️ We Fly What We Sell

    Every product listed has been tested, reviewed, or recommended by our team. We build our own drones, fly with the same gear, and know what works best for:

    • Freestyle FPV

    • Long-range drones

    • Survey drones for agriculture

    • Academic R&D projects

    🎯 Our credibility comes from hands-on experience, not marketing fluff.


    🔚 Ready to Elevate Your FPV Experience?

    Join the growing tribe of Indian drone builders who trust Lofty Agrotech for quality, clarity, and consistent support. Whether you’re ordering the HGLRC Sector D5, DJI O3 units, or assembling a custom FPV rig—we’ve got your back.

    ✅ Lofty Agrotech – Built by flyers, trusted by builders, and loved by learners.
    💬 Order today, message us anytime, and experience India’s most reliable drone parts platform.

    With thousands of satisfied customers and a growing footprint in India’s drone ecosystem, Lofty Agrotech has become the go-to source for authentic, high-performance, and expertly supported FPV gear.

    From your first flight to your next freestyle banger—we’ve got your back.


    🚀 Ready to Build Like a Pro?

    Take your drone-building journey to the next level with the HGLRC Sector D5 FR 5-Inch Freestyle FPV Frame, now available at Lofty Agrotech—India’s most trusted FPV and drone component partner.


    🛠️ Built for Freestyle. Backed by Professionals.

    Whether you’re a beginner FPV enthusiast or a seasoned pilot looking to upgrade, the Sector D5 offers:

    • Crash-resilient 5mm arms

    • DJI O3 VTX compatibility

    • CNC aluminum side panels

    • Full TPU accessory kit

    • Vibration-isolated camera mount

    • Clean, modular design for easy field maintenance

    All from a verified brand. Delivered by experts. Supported by flyers like you.


    🛒 Order Today from Lofty Agrotech

    When you buy from Lofty Agrotech, you’re choosing:

    • 💯 Original components

    • 🔧 Expert support at every step

    • 📦 Fast, secure delivery across India

    • 💬 Free consultation for part compatibility & build advice

    • 🎓 Special support for students and academic builds

    ✅ In stock now. Limited quantities available. Ships within 24 hours.

Explore more in our camera drone collection and find the right aerial companion.

Before flying, ensure you’re compliant with India’s drone regulations (DGCA DigitalSky Portal).

🎥 Lofty Agrotech YouTube Channel

Explore Lofty Agrotech’s official YouTube channel for videos showcasing their drone technologies and applications:(Southern Drone OPS)

Certainly! Here’s a comprehensive overview of Lofty Agrotech’s drone offerings and available drone parts:
