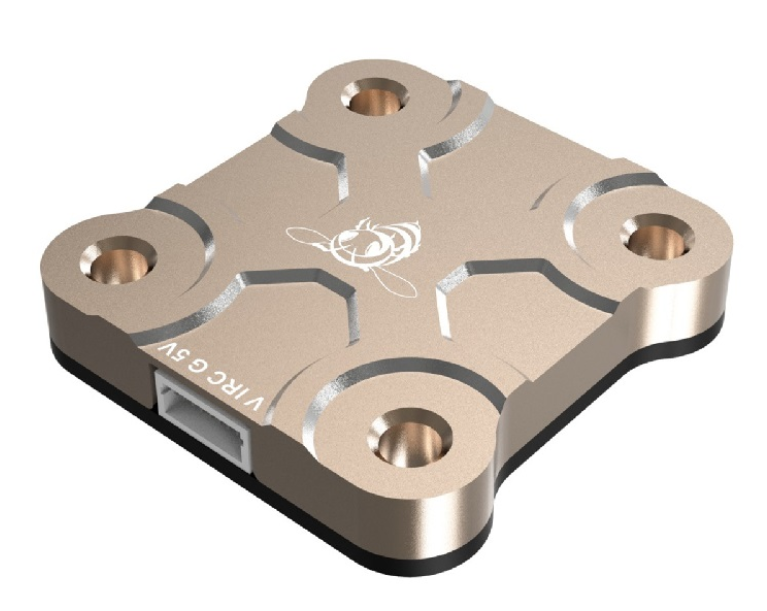

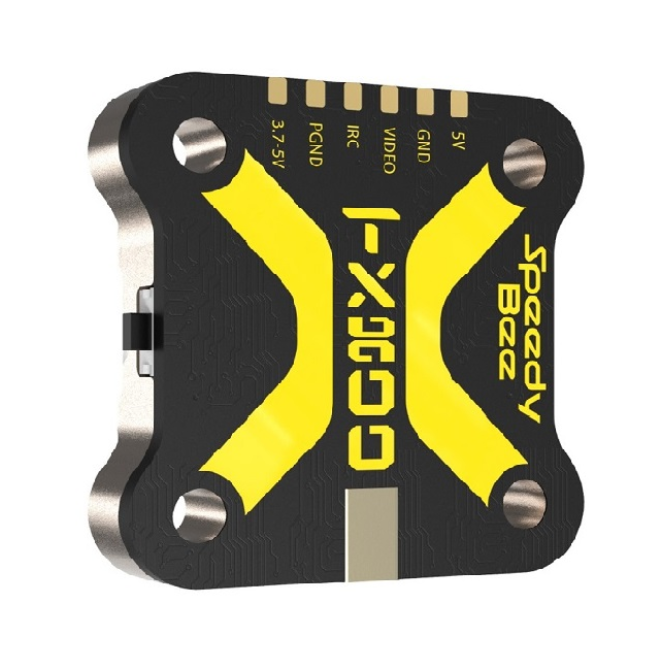

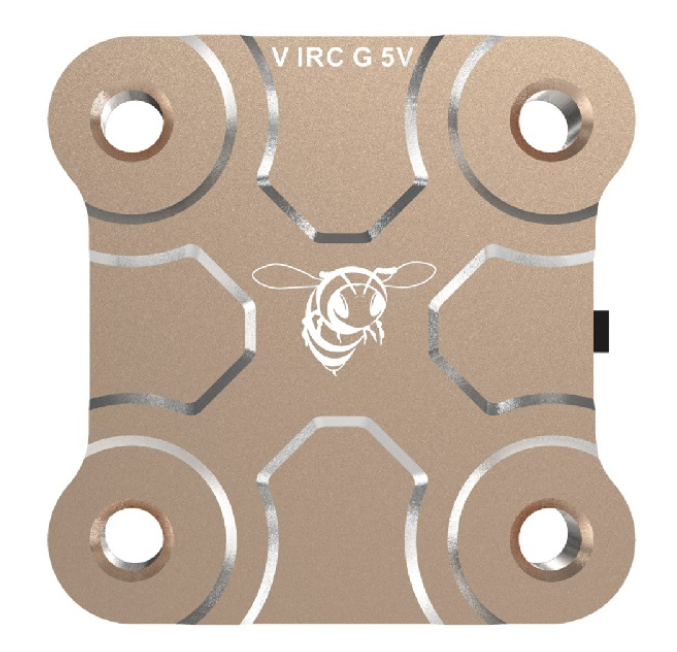

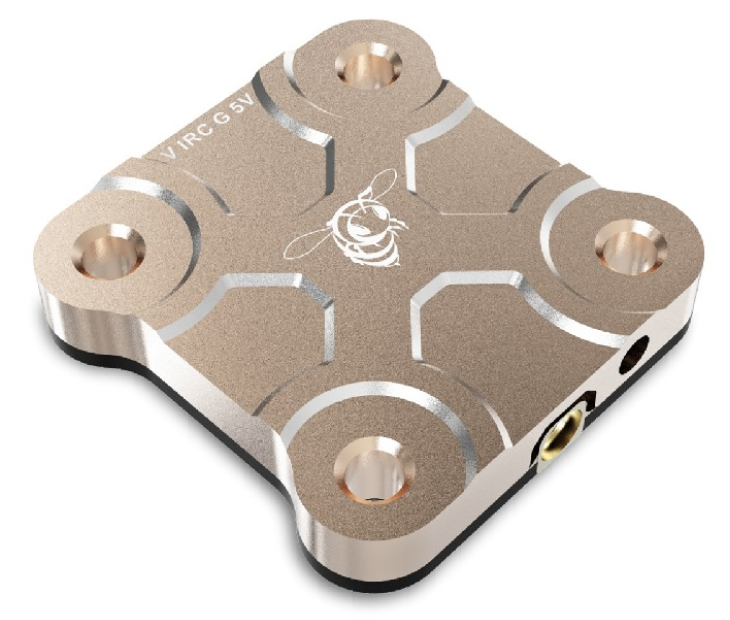

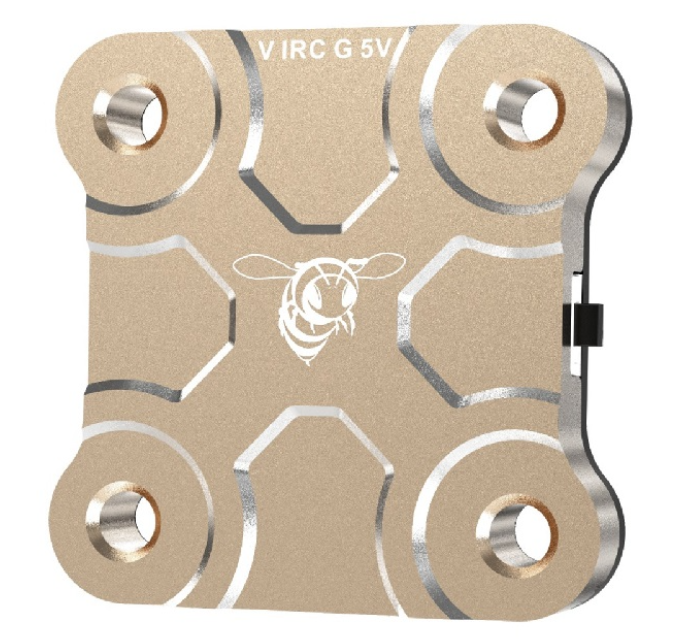

SpeedyBee TX800 5.8GHz Video Transmitter

Description

5.8GHz FPV video transmitter

📦 Key Features

• ✅ 5.8GHz FPV video transmitter Output Power: Switchable (25mW / 200mW / 400mW / 800mW)

• ✅ 5.8GHz FPV video transmitter  Control Protocols: SmartAudio & IRC Tramp

• ✅ 5.8GHz FPV video transmitter  Channels: 48CH (A/B/E/F/RaceBand)

• ✅ 5.8GHz FPV video transmitter Video Format: NTSC / PAL auto-detect

• ✅ 5.8GHz FPV video transmitter Voltage Input: 7V–36V (2S to 8S LiPo)

• ✅ 5.8GHz FPV video transmitter Antenna Connector: MMCX (stronger than U.FL)

• ✅ 5.8GHz FPV video transmitter  Mounting: 20×20 M2 holes (lightweight stack mount)

• ✅ 5.8GHz FPV video transmitter  Weight: ~6.8g

---

📘 Detailed Description

The SpeedyBee TX800 is designed to be one of the most robust, configurable, and budget-friendly VTXs for FPV pilots who still prefer analog video transmission. It supports up to 800mW of clean, long-range transmission while maintaining excellent thermal stability and voltage protection.

With support for both SmartAudio (TBS) and IRC Tramp VTX control protocols, it can be fully configured via Betaflight OSD or LUA scripts on your transmitter. This allows pilots to change channels, bands, and power levels without touching the drone, which is critical during races or in tight environments.

---

⚙️ Technical Specifications

---

🧠 Key Advantages

• ✅ 5.8GHz FPV video transmitter High output power: 800mW range is excellent for freestyle and long-range flights

• ✅ 5.8GHz FPV video transmitter SmartAudio/Tramp support: Easy to control from Betaflight OSD or radio

• ✅ 5.8GHz FPV video transmitter  Wide voltage input: Works directly from 2S–8S batteries without BEC

• ✅ 5.8GHz FPV video transmitter  MMCX connector: Stronger and more durable than U.FL

• ✅ 5.8GHz FPV video transmitter  Stackable: Mounts cleanly in 20×20mm stacks — great for micro/compact builds

• ✅ 5.8GHz FPV video transmitter  Clean signal: Minimal interference with other onboard components

---

⚠️ Limitations

• ❌ 5.8GHz FPV video transmitter Analog-only: Not compatible with DJI, HDZero, or Walksnail systems

• ❌ 5.8GHz FPV video transmitter  No onboard microphone: Requires separate audio solution if needed

• ❌ 5.8GHz FPV video transmitter  No conformal coating: Not waterproof out-of-the-box

• ❌ 5.8GHz FPV video transmitter  Requires good airflow: At 800mW, may heat up without ventilation

---

🛰️ Ideal Use Cases

---

📶 Channel Band Support Table

🧠 Tip: RaceBand spacing allows 8 pilots to fly with minimal overlap.

---

📐 Installation & Usage Notes

• 🛠 5.8GHz FPV video transmitter  Mounting: Can be installed under the flight controller in 20×20 stacks

• 🔧 5.8GHz FPV video transmitter Antenna: Use included MMCX-to-SMA or direct MMCX antenna

• 🧱 5.8GHz FPV video transmitter  Heat: Mount near open airflow or use heatsink pads if enclosed

• 🛑 5.8GHz FPV video transmitter  Firmware: Compatible with all Betaflight versions supporting SmartAudio or Tramp

• 📡 5.8GHz FPV video transmitter Wiring: Connect VTX IN to camera, OUT to FC, UART TX for SmartAudio

---

🔁 Recommended Pairings

---

📝 Suggested SEO Product Title

SpeedyBee TX800 5.8GHz 800mW Analog VTX – SmartAudio & IRC Tramp, MMCX Connector, 48CH, 2S–8S Input, for Freestyle & Racing Drones

---

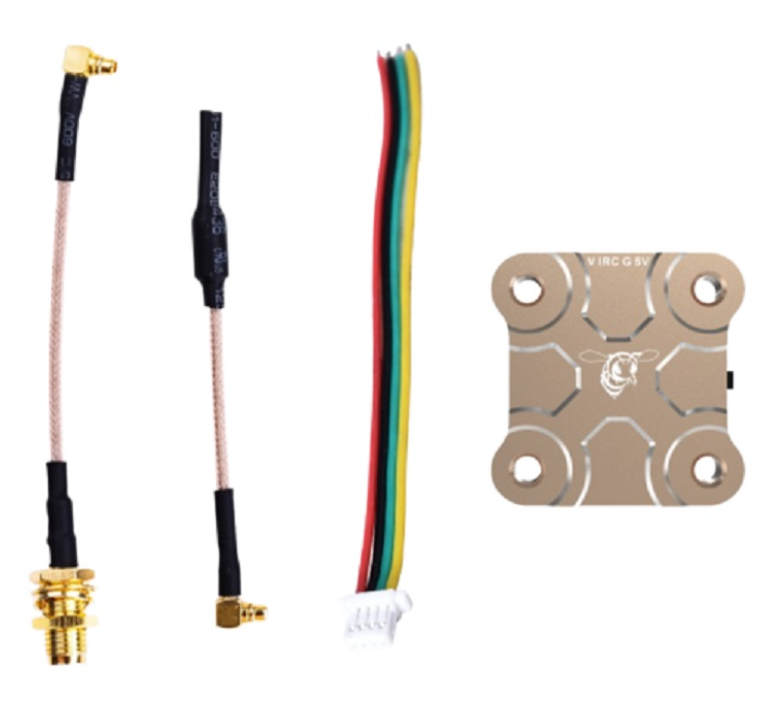

📦 Box Contents (May Vary)

•  5.8GHz FPV video transmitter 1× SpeedyBee TX800 VTX

•  5.8GHz FPV video transmitter 1× MMCX to SMA or U.FL pigtail

•  5.8GHz FPV video transmitter 1× Heat shrink sleeve

•  5.8GHz FPV video transmitter 1× Wiring harness

•  5.8GHz FPV video transmitter 1× Instruction manual

Introducing the SpeedyBee TX800 5.8GHz Video Transmitter, now available at LOFTY AGROTECH. This high-performance VTX is engineered for FPV drones and racing quadcopters, offering exceptional video clarity and transmission stability. Its compact and lightweight design ensures seamless integration into various drone builds.

The TX800 supports multiple power output levels—PIT, 25mW, 200mW, 400mW, and 800mW—allowing pilots to adjust transmission power based on specific needs and regulatory requirements. With features like Pit Mode and a built-in microphone, it enhances the FPV experience by minimizing interference and providing audio feedback. The device is compatible with the IRC Tramp protocol, enabling remote adjustments of video transmission parameters via compatible flight controllers or the SpeedyBee App.

For more details and to purchase, click here.

🛰️ SpeedyBee TX800 5.8GHz 48CH 800mW Analog VTX – Full-Length Description

The SpeedyBee TX800 is a powerhouse in the analog VTX world, offering exceptional performance, smart features, and rugged reliability in a compact, lightweight form factor. Designed for serious FPV pilots, it delivers adjustable output power up to 800mW, allowing you to tune your signal for indoor races or long-range freestyle flights with a simple SmartAudio or IRC Tramp command.

With 48-channel coverage, it supports all major analog bands—including RaceBand—ensuring compatibility with nearly every FPV receiver or goggle system on the market. Whether you’re flying a micro quad or a full-size 5-inch freestyle rig, the TX800 offers flexibility, flight-readiness, and peace of mind.

Its MMCX antenna connector provides significantly better mechanical durability compared to fragile U.FL types, reducing the risk of signal loss from crashes or vibration. You can mount it using standard 20×20mm stack holes, making it a perfect fit for both compact and traditional frames.

---

🔋 Smart Power Management for Any Mission

The TX800’s adjustable power levels (25mW/200mW/400mW/800mW) mean you can fly:

•  5.8GHz FPV video transmitter 25mW in team races (minimal interference)

•  5.8GHz FPV video transmitter 200–400mW for medium-range exploration or freestyle

•  5.8GHz FPV video transmitter 800mW for open field long-range flights, better signal penetration

You can switch power levels on the bench or in the field via Betaflight OSD, Lua scripts on your radio, or a button press depending on configuration.

With a 7–36V input range, it supports 2S–8S LiPo setups, making it versatile enough to install on cinewhoops, racers, long-range cruisers, and everything in between without a separate regulator.

---

⚙️ Built for Harsh Flight Environments

The TX800 is designed for abuse:

•  5.8GHz FPV video transmitter Reinforced PCB with conformal coating-ready layout

•  5.8GHz FPV video transmitter Gold-plated solder pads and thick traces to handle real-world power draws

•  5.8GHz FPV video transmitter Integrated power filtering ensures video clarity even with noisy ESCs

Thanks to its low-profile, heatsink-friendly shape, the TX800 stays cool under load when airflow is available—yet tolerates heat buildup better than smaller, less-efficient VTXs. It’s an ideal choice for high-power applications in tight builds.

---

🔗 Plug-and-Fly Integration

✅ SmartAudio or IRC Tramp Control
Supports both VTX control standards—choose the one your FC and firmware support.

✅ Betaflight Compatible
Seamless integration with Betaflight OSD and CLI for advanced control of:

•  5.8GHz FPV video transmitter Band/channel

•  5.8GHz FPV video transmitter Power output

•   5.8GHz FPV video transmitterPit mode activation

✅ Stackable Mounting Design
Install it as part of your 20×20mm stack with M2 screws or stick it down with double-sided tape if mounting off-stack.

---

🎯 Why Pilots Choose the TX800

•  5.8GHz FPV video transmitter Top-tier power output for the price point

•  5.8GHz FPV video transmitter Rock-solid MMCX connection = better longevity than U.FL

•  5.8GHz FPV video transmitter Smart power control right from your radio/OSD

•  5.8GHz FPV video transmitter Works on any quad from 2S cinewhoops to 6S freestyle rigs

•  5.8GHz FPV video transmitter Plug-and-play for analog builds with no weird voltage quirks

---

🛠️ Real-World Example Applications

---

🎒 Field Notes & Tips

• 🔥 5.8GHz FPV video transmitter  At 800mW, the TX800 will heat up—ensure it has some ventilation or enable pit mode on startup

• 📡 5.8GHz FPV video transmitter  Always use an antenna when powering on to avoid burning out the RF chip

• 🔌 5.8GHz FPV video transmitter  Use dedicated ground and video wires from camera to VTX, not shared pads for clean signal

• 🛠 5.8GHz FPV video transmitter  For long flights, use a circular polarized antenna (RHCP/LHCP) matched with your receiver

---

📦 What’s in the Box

• ✅ 5.8GHz FPV video transmitter  1× SpeedyBee TX800 5.8GHz Analog VTX

• ✅ 5.8GHz FPV video transmitter  1× MMCX to SMA or U.FL Pigtail Adapter (varies by version)

• ✅ 5.8GHz FPV video transmitter  1× Wiring harness with pre-tinned ends

• ✅ 5.8GHz FPV video transmitter  1× Heatshrink or mounting hardware (if included)

• ✅ 5.8GHz FPV video transmitter  1× Quick-start guide

---

🔍 Suggested SEO Product Title

SpeedyBee TX800 5.8GHz 800mW Analog Video Transmitter – MMCX, SmartAudio/IRC Tramp, 48CH VTX for Racing & Freestyle FPV Drones

🧠 Advanced Engineering Breakdown – SpeedyBee TX800

---

⚡ Power Regulation & Internal Filtering

The TX800 includes an onboard low dropout voltage regulator (LDO) designed to maintain a clean 5V line internally for stable signal output, even under noisy electrical conditions. This is especially helpful on freestyle drones with high-current 4-in-1 ESCs that often introduce video noise.

✅ Input Voltage Range: 7–36V DC
→ Compatible with 2S to 8S LiPo, so no need for an external BEC even in 6S or 8S builds.

✅ Power Filtering: Built-in capacitors dampen ripple interference from ESCs or switched-mode BECs.

---

🌡 Thermal Management & Safe Use

When operating at 800mW, the TX800 will naturally generate significant heat. The VTX is protected from thermal runaway by an automatic thermal throttling mechanism built into the chip.

Tips for heat control:

•  5.8GHz FPV video transmitter Do not block airflow if mounting in a stack.

•  5.8GHz FPV video transmitter Mount near a vent or on an open-air standoff.

•  5.8GHz FPV video transmitter Use a thin thermal pad or copper heatsink if mounting to carbon plates.

🧪 5.8GHz FPV video transmitter  Idle Temperature Test @ 800mW:

•  5.8GHz FPV video transmitter Open air: ~48–52°C after 3 min

•  5.8GHz FPV video transmitter Inside stack w/o airflow: ~65–70°C

•  5.8GHz FPV video transmitter Flight cooling (with props): ~42–45°C

---

🔁 SmartAudio / IRC Tramp Control

SpeedyBee TX800 supports both SmartAudio and IRC Tramp protocols, making it versatile with all major FC firmware like:

📡 OSD Control Options:

• Power levels: 25 / 200 / 400 / 800 mW

• Band & channel selection

• Pit mode toggle (to disable VTX during events)

---

🔧 Real-World Integration Tips

🔌 Recommended Wiring Example (Flight Controller + Camera + VTX)

• Make sure to enable SmartAudio in the Betaflight Ports tab.

• Match the correct UART for control (TX pin only; no RX needed).

---

📡 Antenna and Connector Strategy

⚙️ MMCX Benefits

•  5.8GHz FPV video transmitter More robust than U.FL (rated for ~100 insertions vs ~30 for U.FL)

•  5.8GHz FPV video transmitter Detachable for transport and repair

•    5.8GHz FPV video transmitter Secure connection under vibration and crash stress

📦 Included Adapters (varies by model):

•  5.8GHz FPV video transmitter MMCX to SMA female → for traditional 5.8GHz antennas

•  5.8GHz FPV video transmitter MMCX to U.FL → for ultra-light builds with whip antennas

🛰️ Recommended Antennas:

---

📋 Flight Profile Examples

---

🛍️ Marketing Edge for Resellers

🔖 Unique Selling Points (USPs):

•  5.8GHz FPV video transmitter Ultra-wide voltage input = no need for voltage regulators

•  5.8GHz FPV video transmitter Dual protocol control (SmartAudio + IRC Tramp)

•  5.8GHz FPV video transmitter Compact stack-mount design fits even in tight 3″ frames

•  5.8GHz FPV video transmitter MMCX antenna = rugged and reliable

•  5.8GHz FPV video transmitter Clean filtered output for sharp analog video

🎯 Best Audience:

•  5.8GHz FPV video transmitter Intermediate to pro analog FPV pilots

•  5.8GHz FPV video transmitter Drone repair/service providers

•  5.8GHz FPV video transmitter Race event organizers seeking field-programmable VTXs

•  5.8GHz FPV video transmitter FPV drone kit builders or DIY customers

---

🔍 Optimized E-commerce Listing (SEO-friendly)

SpeedyBee TX800 VTX – 5.8GHz 48CH Analog Video Transmitter with up to 800mW Output, SmartAudio & IRC Tramp Control, MMCX Connector, Wide Voltage Input (2S–8S) – Perfect for Freestyle, Racing & Long-Range FPV Drones.
