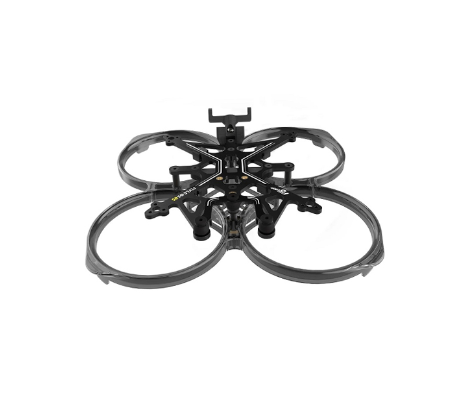

Flywoo FlyLens 85 Lite Frame Kit

Introduction to the Flywoo FlyLens 85 Lite Frame Kit

The Flywoo FlyLens 85 Lite Frame Kit represents one of the most innovative developments in the micro-quad FPV industry, combining structural durability, aerodynamic refinement, and precision-engineered vibration control into a compact 85mm platform. Designed for pilots who demand exceptional performance in both indoor and outdoor environments, this frame kit is engineered to excel in freestyle maneuvers, cinematic micro-FPV flights, and high-accuracy controlled flight missions.

Unlike traditional micro drone frames that compromise durability for weight—or vice versa—the Flywoo FlyLens 85 Lite Frame Kit strikes the perfect equilibrium. It features a lightweight yet impact-resistant PC+ protective ring, a CNC-machined damping platform, multi-standard hole positions for broad compatibility, and a quick-release structural design that vastly improves the assembly, repair, and modification experience. For pilots seeking a next-generation micro-whoop frame that redefines agility, stability, and build flexibility, this kit delivers quality well beyond its size.

The FPV landscape is evolving rapidly, with micro-quads playing an increasingly crucial role in indoor cinematic productions, tight-space exploration, and lightweight freestyle flying. In response to this shift, Flywoo engineered the Flywoo FlyLens 85 Lite Frame Kit to provide professional-grade stability, high vibration resistance, and broad mounting support for flight controllers, VTX units, and cameras. Its unique combination of CNC damping technology and modular quick-release design places it among the most advanced frames in the 85mm micro-class category.

In this comprehensive product description, we explore every detail of the Flywoo FlyLens 85 Lite Frame Kit—from structural materials to aerodynamic behavior, compatibility options, installation methods, flight characteristics, crash durability, user applications, and expert recommendations. Whether you are a beginner, an experienced FPV pilot, or a professional micro-cinematographer, this in-depth analysis will help you understand exactly what makes this frame one of the best in its class.

---

Engineering Principles Behind the Flywoo FlyLens 85 Lite Frame Kit

Structural Philosophy and Material Selection

The engineering foundation of the Flywoo FlyLens 85 Lite Frame Kit is based on three core principles: lightweight durability, vibration mitigation, and modular adaptability. Flywoo chose a PC+ polymer composite for the protective ring structure, a material known for its high tensile strength, temperature resistance, and superior impact absorption compared to conventional plastics. The PC+ blend delivers a structural composition that can withstand repeated crashes without deforming, cracking, or losing rigidity—critical for micro-quads operating in tight indoor environments.

While fragile carbon-fiber ducts were once common in micro-whoops, PC+ has proven to be a more reliable material, especially when durability is a top priority. The Flywoo FlyLens 85 Lite Frame Kit uses this material strategically, reinforcing stress points around motor mounts, prop guard rings, and screw positions to ensure long-term frame integrity under continuous strain. By minimizing unnecessary flex and maximizing shock absorption, the frame maintains stability through aggressive flight movements while protecting sensitive electronics.

The rest of the frame features a combination of 2mm main plates and a 1mm CNC-machined gimbal plate, providing a strong and lightweight foundation that holds internal components securely without adding unnecessary mass. This balance contributes to responsive agility and better thrust efficiency, making the Flywoo FlyLens 85 Lite Frame Kit particularly effective with 2-inch props, which operate optimally at lower frame weights.

---

Damping Platform Technology and Vibration Suppression

Understanding the Three-Point CNC Damping System

One of the most revolutionary features of the Flywoo FlyLens 85 Lite Frame Kit is its three-point CNC damping platform, a system engineered to eliminate high-frequency vibrations and significantly reduce the jelly effect in onboard FPV cameras. Traditional frames rely on rubber dampers or TPU isolators, but the CNC-machined precision of Flywoo’s system provides a far more accurate and stable result.

The platform isolates the camera and flight controller from direct frame vibrations, which originate from:

• Motor acceleration
• Propeller imbalance
• Frame resonance
• Rapid directional changes
• Impacts during flight

By separating critical components from these sources of vibration, the Flywoo FlyLens 85 Lite Frame Kit ensures smooth HD footage, clear analog video transmission, and more accurate gyro readings. Pilots shooting micro-cinematic footage will immediately notice the difference, especially when flying with lightweight HD cameras such as the Insta360 GO series or GoPro Hero GO3.

Reduced Noise for Gyro and PID Loop Stability

Damping is not only important for video quality—it also plays a critical role in flight performance. High-frequency vibration can destabilize the PID loop, causing oscillations, drift, and motor overheating. By suppressing these vibrations at their source, the Flywoo FlyLens 85 Lite Frame Kit allows:

• More precise PID tuning
• Lower filtering requirements
• Cleaner gyro data
• Faster and more reactive control loops
• Improved hover stability

This enhanced signal quality enables finer control during slow cinematic flights and sharper response during freestyle maneuvers. As a result, the frame can accommodate a wide range of flying styles without requiring complex tuning modifications.

---

Aerodynamic Design and Flight Efficiency

85mm Wheelbase for Micro-Class Agility

At the heart of the Flywoo FlyLens 85 Lite Frame Kit is its optimized 85mm wheelbase, a size that provides exceptional maneuverability in indoor settings while maintaining enough stability for outdoor freestyle and cinematic flights. The 85mm footprint is large enough to support 2-inch propellers—an ideal size for balanced thrust, noise reduction, and flight time efficiency.

Smaller 75mm frames often struggle with stability outdoors, while larger 95mm frames may feel too bulky indoors. The Flywoo FlyLens 85 Lite Frame Kit occupies the perfect middle ground, offering:

• Tight-gap maneuverability
• Stable hover performance
• Better airflow across propeller tips
• Reduced turbulence in prop-wash
• Higher thrust efficiency

The aerodynamic profile of the frame’s protective ring minimizes drag while maintaining sufficient protection for props and motors, enabling smoother airflow and more predictable flight behavior. This combination of protection and aerodynamic shaping makes the frame ideal for urban parks, indoor warehouses, cinematic runs, and precision challenges.

Airflow Behavior and Cooling Efficiency

Heat is often a limiting factor in micro-quads, especially when flying in tight indoor spaces. The frame’s open-ring structure improves airflow across motors and internal electronics, helping maintain lower operating temperatures. The Flywoo FlyLens 85 Lite Frame Kit is engineered so that:

• Motors receive unobstructed cooling
• VTX units dissipate heat effectively
• Flight controllers remain stable under load
• ESC components avoid thermal throttling

These thermal advantages contribute to longer component life, reduced risk of voltage sag, and more consistent power output during extended flights.

---

Compatibility Options and Mounting Flexibility

Flight Controller Compatibility

The Flywoo FlyLens 85 Lite Frame Kit supports 25.5×25.5mm flight controllers, the standard size for AIO micro stacks used in 85mm class quads. This ensures compatibility with:

• F4 AIO boards
• F411 boards
• F722 micro systems
• Ultra-lightweight BEC-integrated boards

The screw positions are reinforced to prevent cracking under pressure, ensuring a snug and vibration-isolated fit that enhances both control accuracy and gyro signal clarity.

VTX and Image Transmission System Compatibility

The frame accommodates both 20×20mm and 25.5×25.5mm VTX hole patterns, making it compatible with nearly every popular digital or analog VTX on the market. Pilots can easily install systems such as:

• Walksnail Avatar nano modules
• DJI O3 compatible micro setups
• Analog VTX units from Flywoo, Happymodel, BetaFPV, or RushFPV

This flexibility makes the Flywoo FlyLens 85 Lite Frame Kit an excellent foundation for digital upgrades or mixed-system micro builds.

Motor Compatibility

The motor mounting holes measure 6.6mm, supporting most 11xx and 12xx series micro motors optimized for 2-inch propellers. Compatible motors include:

• Flywoo Robo 1102
• BetaFPV 1103 & 1102
• Happymodel EX1102
• 1202.5 motors for freestyle power

Motor vibrations remain minimal when paired with the damping system, ensuring smoother thrust, lower noise, and efficient power transfer.

Camera Mount Compatibility

The frame supports two camera mounting widths:

• 20mm Standard Cameras
• 18mm Lite Cameras

This makes the Flywoo FlyLens 85 Lite Frame Kit ideal for nano-FPV cameras, lightweight digital units, or micro HD modules.

---

Quick-Release Modularity and Maintenance Efficiency

Four-Screw Separation System

One standout element of the Flywoo FlyLens 85 Lite Frame Kit is its quick-release structure, which allows pilots to detach the upper and lower plates using only four screws. This greatly reduces assembly time and simplifies:

• VTX replacements
• Motor maintenance
• Flight controller adjustments
• LED or camera modifications
• Wiring corrections or upgrades

Pilots who routinely change components will find this design especially valuable.

Customization & Accessory Compatibility

The frame supports neon light strip installation, enabling pilots to add:

• RGB aesthetics
• Visibility for night flying
• Orientation recognition in low light

Its modular accessory system ensures compatibility with small sports cameras such as:

• GoPro Hero GO3
• Insta360 GO series
• Caddx Peanut

The Flywoo FlyLens 85 Lite Frame Kit is ready for flexible cinematic configurations.

---

Durability and Crash Performance

Impact Resistance Under Real Flight Conditions

The Flywoo FlyLens 85 Lite Frame Kit is specifically engineered to survive the harsh realities of micro-cinewhoop flying. Built with a tough PC+ protective ring structure, the frame provides an impressive level of crash resilience that is essential for indoor cinematics, tight-gap exploration, and proximity flying.

The PC+ ducts act as an energy-absorbing barrier, distributing and reducing the force of impacts before they reach critical components such as the motors, flight controller, and camera. This advanced material flexibility makes the FlyLens 85 Lite significantly more durable than many conventional 85mm micro frames.

The reinforced duct design helps protect the drone from:

• Wall Collisions:
  When flying in narrow corridors, staircases, or small rooms, the ducts prevent direct motor and prop strikes, reducing the chances of motor misalignment or prop damage.
• Hard Landings:
  Whether caused by battery sag, throttle misjudgment, or sudden loss of control, the flexible PC+ ring cushions the downward impact and prevents frame cracking.
• Gate Hits:
  During indoor races or practice sessions, hitting plastic, metal, or foam gates becomes far less destructive due to the shock-absorbing nature of the ducts.
• Propeller Strikes:
  The protective ring keeps props isolated from walls, furniture, and obstacles, preventing prop deformation and preserving flight efficiency.
• Obstacle Bumps:
  Light touches against doors, railings, shelving, or tree branches in outdoor environments are absorbed smoothly without transferring harmful force to internal components.

This high level of protection makes the frame exceptionally well-suited for tight indoor flying, warehouse exploration, hallway chases, and proximity-to-object cinematic shots where bumps are common and often unavoidable.

---

Structural Longevity

Beyond basic crash protection, the Flywoo FlyLens 85 Lite Frame Kit is engineered for long-term durability. The use of industrial-grade PC+ (polycarbonate blend) ensures the frame retains its structural integrity even after repeated impacts.

Unlike traditional micro-cinewhoop frames with brittle or rigid carbon fiber ducts that tend to crack or delaminate, the PC+ structure:

• Flexes Instead of Breaking:
  The material bends under stress, absorbing energy and returning to shape without introducing structural weakness.
• Reduces Fatigue Over Time:
  PC+ maintains its flexibility and strength even after hundreds of small crashes, bumps, and scrapes, extending the frame’s usable lifespan far beyond typical micro-whoop designs.
• Protects Mounted Components:
  The reduced transmission of vibration and impact shocks helps protect electronics from loosened solder joints or cracked mounting points.
• Lowers Long-Term Maintenance Costs:
  With fewer broken ducts, fewer bent motor shafts, and fewer damaged props, pilots spend less time repairing and more time flying.

This durability-centric design makes the Flywoo FlyLens 85 Lite Frame Kit not just a high-performance micro whoop option but also a cost-efficient, long-lasting investment, especially for pilots who fly in crash-prone environments or practice indoors extensively.

---

Flight Performance Characteristics

Agility and Control Precision

The Flywoo FlyLens 85 Lite Frame Kit is engineered to deliver an outstanding balance of agility, accuracy, and flight responsiveness. Thanks to its ultra-lightweight carbon structure, optimized duct geometry, and precision-designed damping platform, pilots experience a refined flight feel that is typically seen only in much larger cinewhoop frames. This combination of mechanical rigidity and vibration isolation enhances both maneuverability and control resolution.

Pilots can expect several performance benefits:

• Sharp Cornering:
  The lightweight frame and rigid arm layout allow the drone to maintain stability even during aggressive tilt angles. This ensures rapid, precise turns without overshoot, making it ideal for navigating compact indoor environments and tight obstacle courses.
• Smooth Throttle Transitions:
  Throttle response is clean, linear, and predictable. Whether performing gentle cinematic ascents or rapid bursts of power, the drone maintains its trajectory without jitter or dip, improving both freestyle movements and smooth filming flights.
• High Response Accuracy:
  With reduced vibration transmission and improved gyro clarity, the drone responds instantly to stick inputs. This precision is crucial when flying in confined spaces where every millimeter matters.
• Stable Hover:
  The neutral weight distribution and enhanced damping significantly improve hover consistency. The craft can maintain position with minimal drift, benefiting pilots working on micro-cinematic shots or new fliers practicing stability.
• Predictable Flight Control:
  The consistent behavior across different throttle ranges ensures confidence for both beginners and experienced pilots. You get a flight experience that feels intuitive and controllable, even in challenging indoor airflow conditions.

---

Cinematic Flight Stability

One of the standout features of the Flywoo FlyLens 85 Lite Frame Kit is its damping platform, engineered to isolate the camera and flight controller from motor vibrations. This design delivers flight footage clarity far superior to what is typically achievable with 85mm micro whoops.

The vibration-reducing platform contributes to:

• Smooth HD Footage:
  By eliminating micro-shakes, the frame supports crisp HD video capture, whether using lightweight HD cameras or digital FPV systems.
• Reduced Need for Post-Stabilization:
  Footage comes out cleaner straight from the camera, minimizing the reliance on stabilization tools like Gyroflow. This saves both time and image quality.
• Clearer Analog FPV Feeds:
  Analog pilots benefit from less noise in their live video feed, making indoor cinematic flights and gap runs much more comfortable and visually clear.
• Less Noise in Gyro Data:
  Cleaner gyro signals translate to more accurate PID tuning and more stable flight, even when pushing the quad to high rotational speeds or sudden directional changes.

This combination makes the Flywoo FlyLens 85 Lite Frame Kit a top-tier choice for micro-cinematic filmmaking, indoor studios, creative FPV shoots, and smooth cruising environments where stability is crucial.

---

Expert Recommendations

Professional FPV builders, indoor cinematic pilots, and micro freestyle enthusiasts consistently recommend the Flywoo FlyLens 85 Lite Frame Kit for a wide range of applications. Its versatile design and finely balanced performance make it an excellent choice across the FPV skill spectrum.

Experts recommend this frame for:

• Indoor Cinematic Flying:
  Perfect for filming in corridors, living rooms, warehouses, or creative studio environments. The stable flight and small footprint allow for unobtrusive filming with minimal disturbance.
• Micro Freestyle:
  Its durability and agility allow it to handle flips, rolls, dives, and expressive freestyle lines without sacrificing stability.
• Tight-Gap Navigation:
  The compact wheelbase and optimized duct geometry make squeezing through micro gaps effortless, ideal for cinematic chases or technical practice flights.
• Beginner Training:
  Lightweight, responsive, and easy to control—beginners can learn throttle control, orientation, and stability without fear of heavy impact damage.
• Low-Noise Outdoor Exploration:
  For short-range outdoor cruising, the quiet props combined with duct efficiency produce minimal noise, making it suitable for parks or open residential spaces.
• Lightweight HD Camera Builds:
  Its damping platform and sturdy design support compact HD recording units, enabling cinematic-quality footage on a micro drone.

The Flywoo FlyLens 85 Lite Frame Kit stands out as one of the most versatile micro-frame options available, serving both creative pilots and aspiring beginners looking for a blend of stability, precision, and cinematic capability.

---

Conclusion

The Flywoo FlyLens 85 Lite Frame Kit stands out as one of the most versatile and advanced micro FPV frames available today. Combining CNC-engineered damping, PC+ protective construction, multi-compatibility mounting options, and a quick-release modular system, it offers unmatched performance in micro-class FPV flying. Whether you are building a cinematic nano-rig, an indoor racing quad, or a lightweight freestyle machine, this frame provides the strength, flexibility, and stability required to elevate your flying experience.

---
