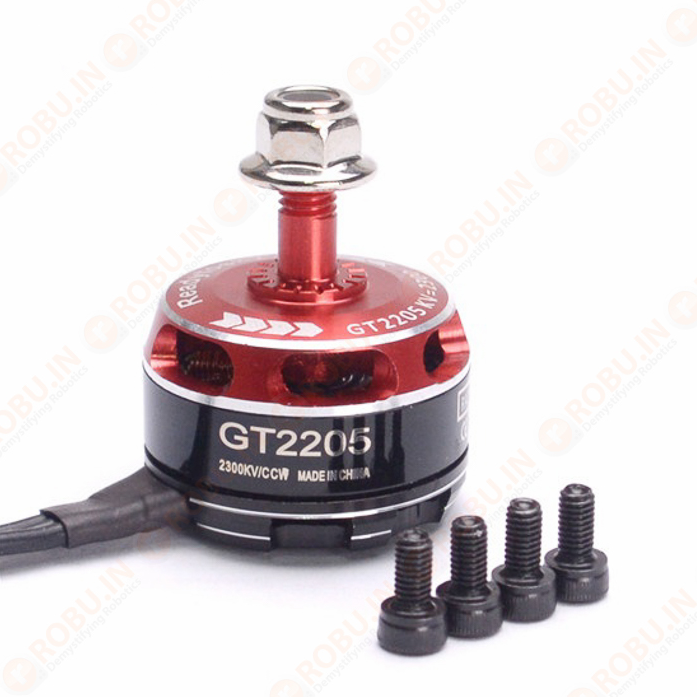

GT2205 2300KV Brushless DC Motor – Silver Cap (CCW Motor Rotation)

GT2205 2300KV Brushless DC Motor – Silver Cap (CCW Motor Rotation)

  • Excellent build quality with sleek silver cap design

  • Lightweight and high-performance (35g)

  • Curved N52 magnets for smooth operation

  • Tight tolerances with a strong c-clip

  • Compatible with 2S–4S LiPO, 40–60A ESC, 5” propeller

  • Ideal for drone racing and custom quad builds

Category: Tags: , , , , , , , , , , , , ,

Description

The GT2205 2300KV Brushless DC Motor – Silver Cap (CCW Rotation) by NDK21 BY LOFTY AGROTECH is a lightweight, high-quality multirotor motor, engineered to meet the demands of drone enthusiasts and professional racers. Built with precision, it features a sleek and durable design that not only looks great but also performs exceptionally well.

This motor runs smoothly with tight manufacturing tolerances and is reinforced by a robust c-clip for enhanced durability during intense flight sessions. Its construction includes curved, high-temperature N52 magnets and high-quality bearings, which significantly boost its performance and reliability under high RPM conditions.

Although the motor does not include exposed cooling fins—an area where it could improve—it still offers remarkable efficiency and power, making it an excellent choice for competitive racing drones and DIY drone projects. It performs optimally with Premium Orange 3S-4S Li-PO Batteries, paired with a 40-60A ESC and a 5-inch Orange propeller.

Whether you’re a beginner exploring drone building or a seasoned pilot fine-tuning your setup, this motor is a dependable choice. Looking for a CW (Clockwise) rotation motor? Click here
Explore more high-performance Drone Motors, Propellers, and ESCs curated by NDK21 BY LOFTY AGROTECH.

Technical Specifications:

  • Motor KV (RPM/V): 2300

  • Motor Type: Brushless DC

  • Compatible LiPO Batteries: 2S to 4S

  • Brushless ESC: 40–60A

  • Shaft Diameter: 5mm

  • Max Power: 495W

  • No-Load Current: 600mA

  • Current Capacity: 20A

  • Max Efficiency Current: 30A

  • Maximum Efficiency: >81%

  • Internal Resistance: 65 mOhm

  • Compatible Propeller: 5 inch

  • Motor Weight: 35g

  • Shipping Weight: 0.037 kg

  • Shipping Dimensions: 3 × 3 × 4 cm

Package Includes:

  • 1 × GT2205 2300KV Brushless DC Motor (CCW)

  • 4 × Socket Head Cap Bolts (Allen) for mounting
