Q250 4 Axis Quadcopter Frame Kit

Description

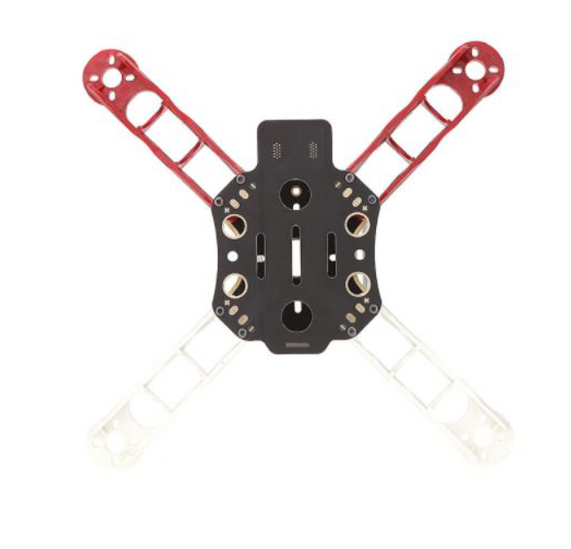

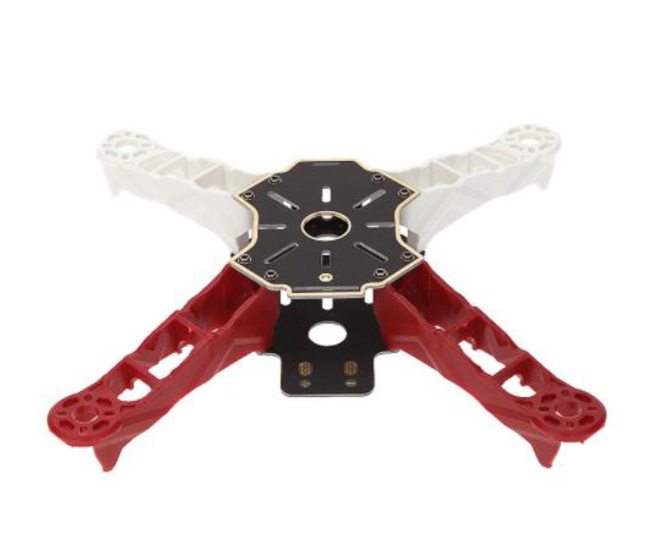

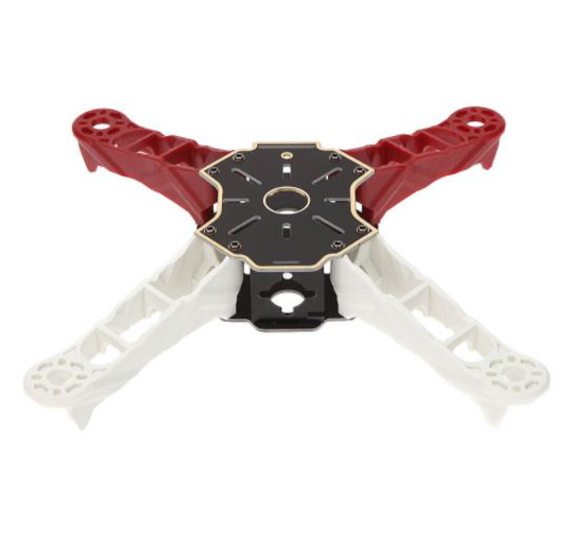

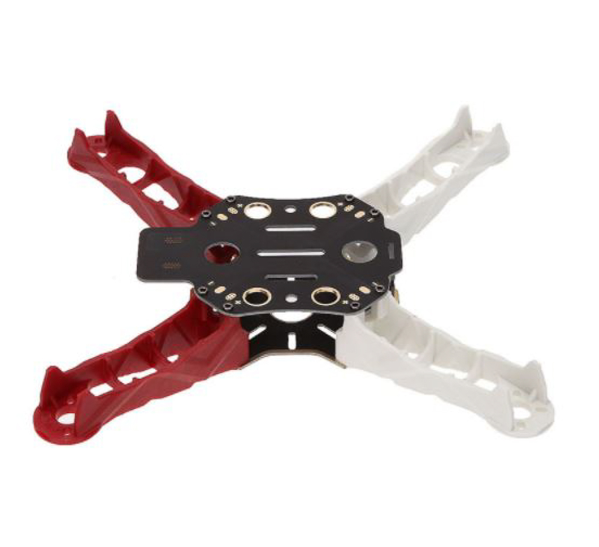

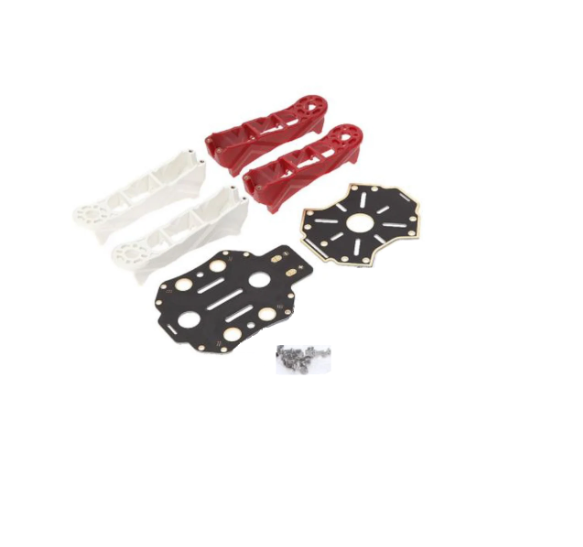

The NDK21 4 Axis Quadcopter Frame Kit from LOFTY AGROTECH is a mini-size drone frame designed with simplicity, strength, and performance in mind, making it ideal for drone hobbyists and DIY enthusiasts alike. Built from high-quality glass fiber, the main frame offers exceptional toughness while keeping the overall weight low. The arms, molded from ultra-durable Polyamide Nylon, come in visually distinct red and white colors and feature a unique downward angle design. This not only enhances flight stability but also promotes faster forward motion, thanks to the support ridges integrated into each arm. These ridges add structural strength, reducing the risk of breakage at motor mounts even during hard landings. With a lightweight construction and thick arms, the NDK21 ensures a balance between agility and mechanical durability. It is aerodynamically efficient and capable of maintaining stable hover at lower throttle levels. The entire take-off weight can be maintained around 500 grams, making it a perfect option for compact and responsive quadcopter builds. One of its standout features is the integrated PCB (Printed Circuit Board), which acts as a built-in Power Distribution Board, allowing you to directly solder ESCs to the frame. This eliminates the need for an additional PDB, making the build process cleaner and quicker. The frame also includes a camera mounting tab at the front of the bottom plate, suitable for FPV or action cameras. To streamline assembly, the frame uses pre-threaded brass sleeves for all bolts and requires only a single size hex wrench, thanks to its one-size bolt system—making both setup and disassembly quick and beginner-friendly. Whether you’re a newcomer or an experienced builder, the NDK21 is a smart choice for a sturdy, fast, and modular quadcopter build. Explore our full range of compatible accessories like motors, ESCs, LiPo batteries, flight controllers, and FPV gear by clicking here, or if you’re looking for a complete beginner-friendly package, check out our ready-to-fly Multirotor Kits. Please note, due to manual measurements, there may be a ±2% variation in weight and dimensions.

Specifications:

• Item Type: Frame, Kit

• Model Type: Quadcopter Frame

• Frame Material: Glass Fiber

• Arm Material: Polyamide Nylon (Red & White)

• Wheelbase: 250 mm

• Weight: 118 g

• Motor Base Diameter: 25 mm

• Motor Mount Hole Diameter: 3 mm

• Built-in PCB for Power Distribution

• Pre-threaded Brass Sleeves

• Camera Mounting Tab on Bottom Plate

• Recommended Battery: 3S LiPo (1800–2200mAh)

• Recommended Motor: 1800KV–2200KV Brushless DC

• Recommended ESC: 15A–25A

• Recommended Propeller Size: 4045 or 6045 (CW & CCW)

• Shipping Weight: 0.15 kg

• Shipping Dimensions: 15 × 8 × 4 cm
