15W Wireless Charging Transmitter Module Type-C Connector

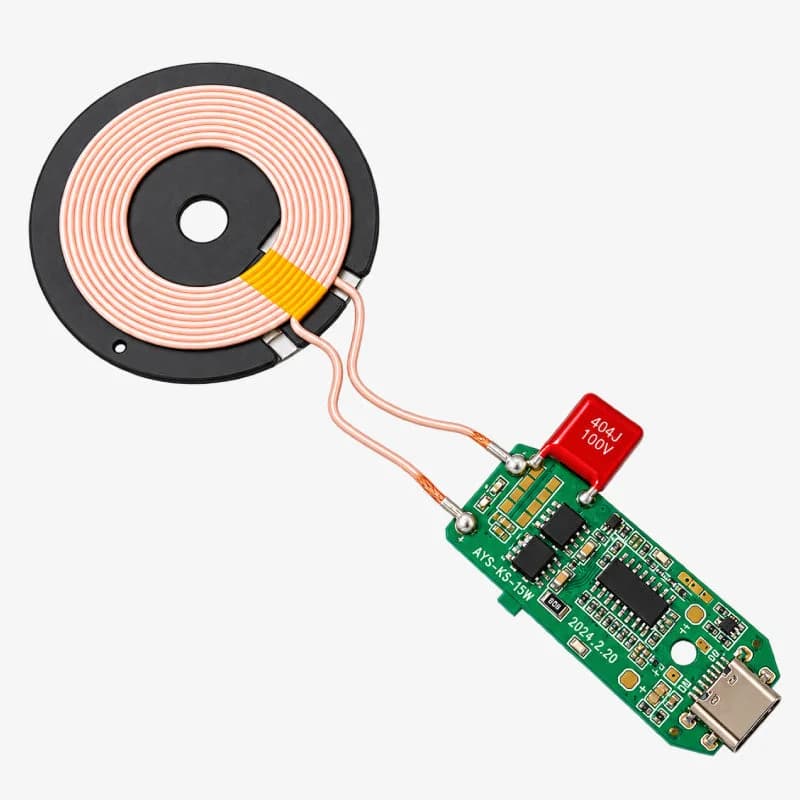

15W Wireless Charging Transmitter Module Type-C Connector is a compact wireless power transmitter module designed for integrating contactless charging into DIY electronics, custom charging pads, embedded charging systems, and other wireless power projects. It accepts 5V or 9V DC input through a USB Type-C connector and provides wireless charging power up to 15W. The module includes a transmitter circuit and charging coil, with a 43 × 17mm PCB and 48mm diameter coil. Wireless power can be transferred across a 10mm air gap or through a partition up to 5mm thick.

Features:

1. 15W maximum wireless charging power
2. 5V / 9V DC input
3. USB Type-C input connector
4. 2A rated input current
5. Integrated wireless charging transmitter circuit and coil
6. Qi wireless charging standard
7. 10mm transmission distance through open air
8. Supports transmission through partitions up to 5mm thick
9. 48mm diameter charging coil
10. Compact 43 × 17mm PCB
11. Metal construction
12. Suitable for DIY, embedded and custom wireless charging projects
13. Requires a compatible wireless charging receiver for power output

5V DC Qi Standard Micro USB Input Wireless Charging Transmitter Module with Coil

XKT-412 5V 2A Wireless Charging Module with Power Coil

ThinkNode M4 Power Bank - LoRa Device with Meshtastic Function Powered By nRF52840

Package Includes:

1 × 15W Wireless Charging Transmitter Module Type-C Connector

Specifications
