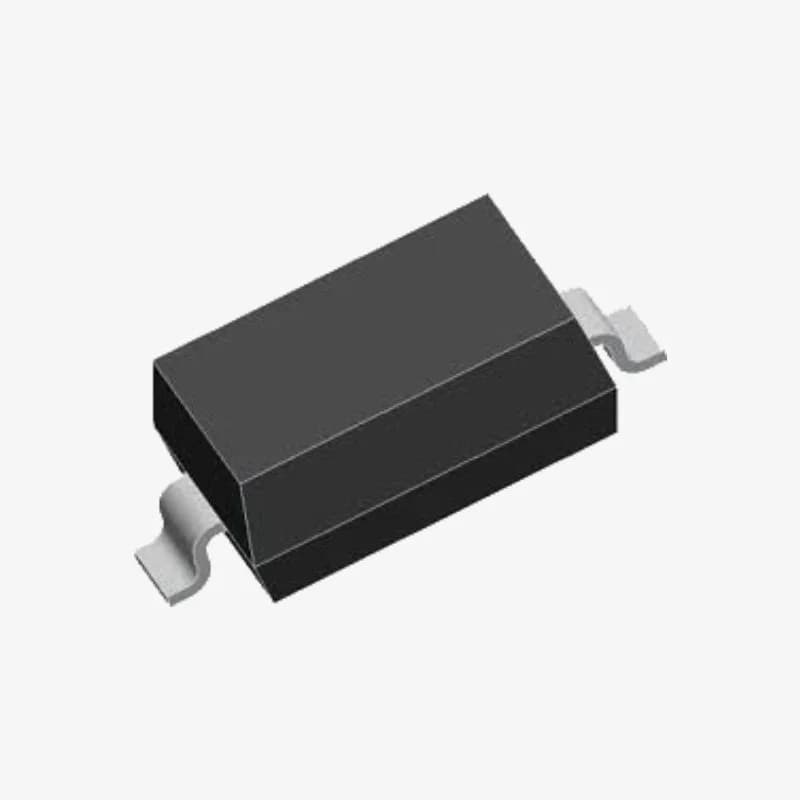

The 1N914BWS Small Signal Switching Diode SOD-323F SMD Package is designed for fast switching and general-purpose surface-mount applications. Its compact SOD-323 package ensures easy PCB integration while providing reliable performance in low-current switching and signal control circuits. Ideal for automated insertion and high-speed switching applications.
CLICK HERE FOR DATASHEET
10 × 1N914BWS Small Signal Switching Diode - SOD-323F SMD Package
| Repetitive Peak Reverse Voltage (VRRM) | 100V |
|---|---|
| Working Peak Reverse Voltage (VR) | 75V |
| Average Forward Rectified Current (IF(AV)) | 150mA |
| Peak Forward Surge Current (IFSM) | 2.0A (1µs pulse) |
| Forward Voltage (VF) | 1.2V at IF = 100mA |
| Reverse Current (IR) | 2µA at VR = 75V |
| Junction Capacitance (CJ) | 4pF (VR = 0V, f = 1MHz) |
| Reverse Recovery Time (trr) | 4ns |
| Power Dissipation (Pd) | 200mW |
| Thermal Resistance Junction-to-Ambient (RθJA) | 650°C/W |
| Operating Junction Temperature (TJ) | 150°C |
| Storage Temperature Range (TSTG) | -65°C to +150°C |
