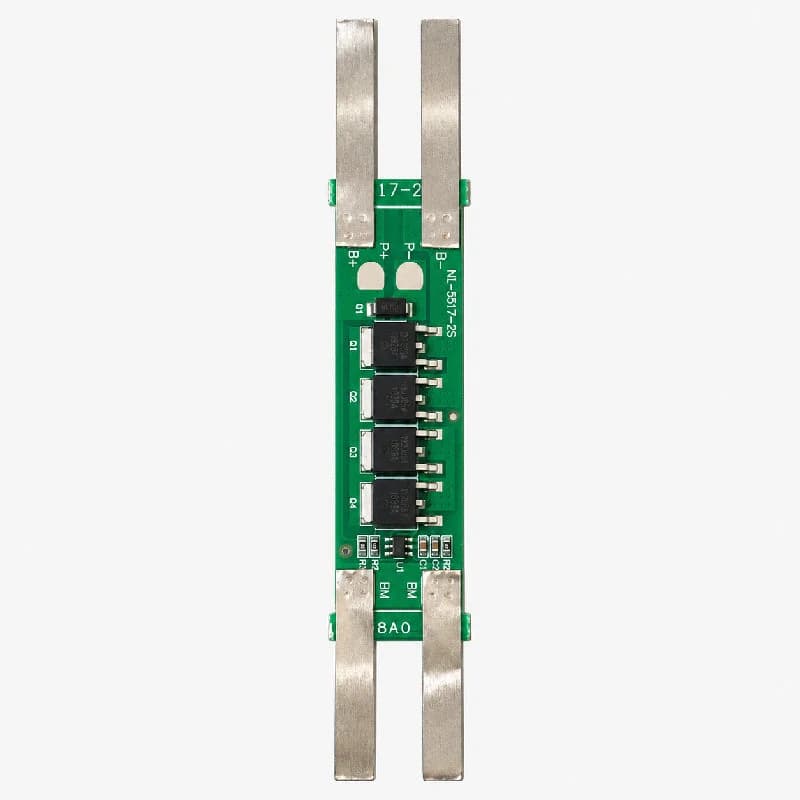

The 2S 10A Lithium Iron Phosphate LFP Battery Protection BMS Module is designed for 3.2V LiFePO₄ cells connected in a 2-series configuration (6.4V nominal). It provides essential protections such as overcharge, over-discharge, overcurrent, and short circuit, ensuring long life and safety for LiFePO₄ battery packs. With a continuous 10A discharge rating and included nickel strips, this module is ideal for compact DIY power banks, solar storage, e-bikes, and robotics projects using LiFePO₄ chemistry.
Features of 2S 10A LiFePO₄ Battery Protection BMS Module:
Package Includes:
1 × 2S 10A LiFePO₄ BMS Module
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
|---|---|
| Configuration | 2S (6.4V nominal) |
| Continuous Discharge Current | 10A |
| Charging Voltage | 7.3V |
| Overcharge Detection Voltage | ~3.65V ± 0.05V |
| Over-discharge Detection Voltage | ~2.0V ± 0.1V |
| Short Circuit Protection | Yes |
| Operating Temperature | -20°C to +60°C |
