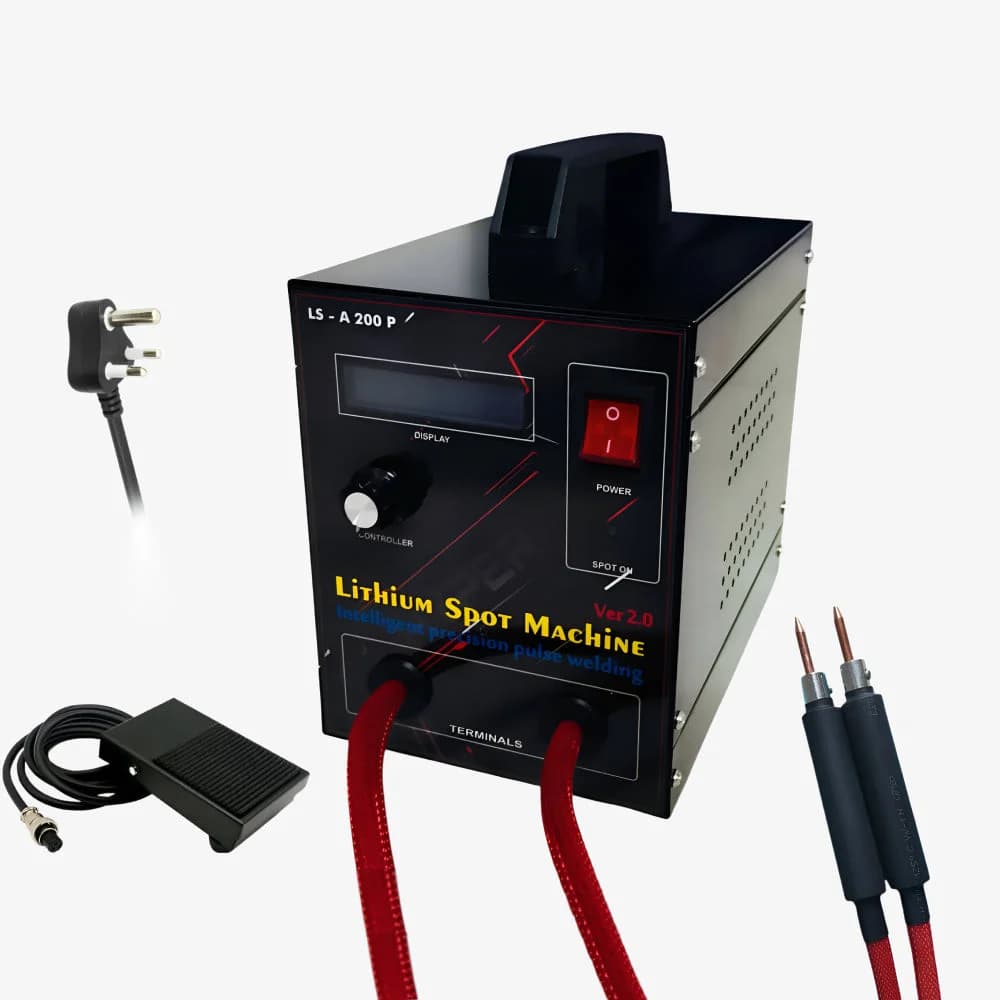

3.5 KVA LS-A200 Portable Lithium Cell Spot Welding Machine for Battery Pack - Includes Double Pen and Pedal

This is a fine-quality spot welding machine control panel, designed for precision, efficiency, and ease of use. It supports single-pulse and double-pulse welding modes, with fully adjustable time and current settings. Equipped with a digital display, it allows direct monitoring of welding parameters, ensuring accurate and stable performance.

The LS-A200 100A Current Controller System is ideal for welding nickel plates, sheet iron, and steel sheets up to 0.25mm thickness, making it suitable for battery pack assembly and high-resistance welding applications. With Auto Spot Mode, welding becomes one-touch simple, while the Double Pulse Welding Technology improves reliability by cleaning the weld surface with the first pulse and securing a strong joint with the second.

Features & Details

1. Independently developed control panel for LS-A200 and high-resistance welding.
2. Auto Spot Mode – one-touch welding, highly efficient and user-friendly.
3. Double Pulse Welding Technology – first pulse cleans oxide layer, second ensures firm, stable welds.
4. Multi-function capability – welds nickel plate, sheet iron, and steel sheet (up to 0.25mm).
5. Silicone controlled phase-shifting triggering principle for precise adjustment of time and current.
6. Digital display shows welding time and current directly for accuracy.
7. Optocoupler isolation ensures safety between strong and weak electricity.
8. High-precision potentiometer for reliable and convenient control.
9. Strong, consistent, and reliable weld joints with reduced spattering.
10. Compact and durable design with both foot pedal and auto mode operation options.

Package Includes

1 × LS-A200 Spot Welding Machine

1 × Pair of Welding Pens

1 × Foot Pedal

1 × User Manual

Specifications
