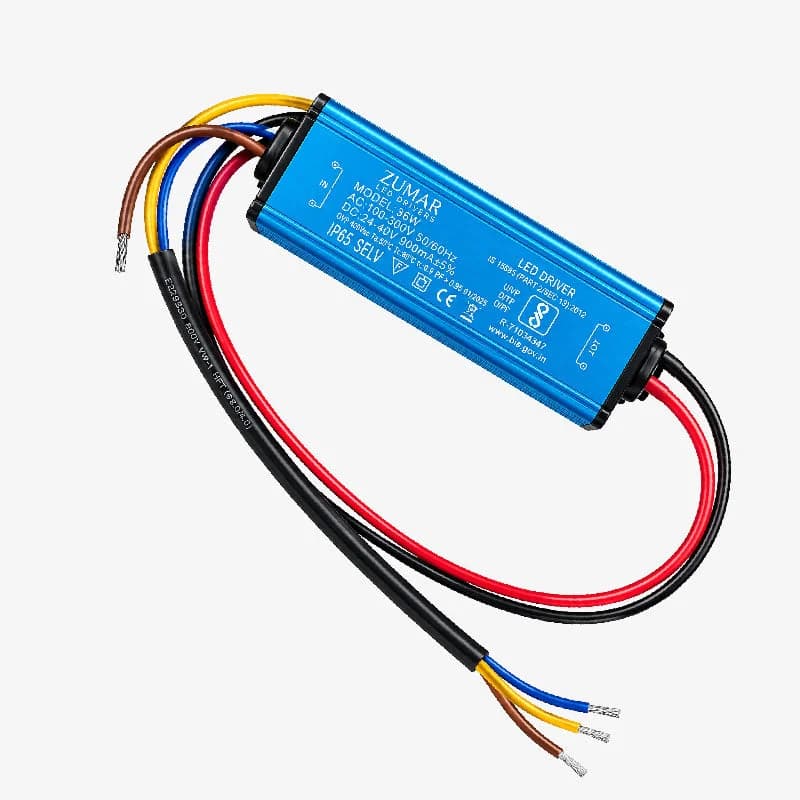

36W LED Driver Module with 900mA Output Current and 24-40V Output DC Voltage

The 36W LED Driver Module is a high-efficiency constant current power supply designed for reliable operation of LED lighting systems. With a wide input voltage range of 85–265V AC, it delivers a regulated output of 24–40V DC at 900mA, making it suitable for powering 24–36W LED modules. Built with high power factor correction (PF ≥ 0.9) and efficiency above 87%, this driver ensures stable performance while reducing energy losses. The module is enclosed in a robust aluminum casing with IP65 protection, making it safe for both indoor and outdoor applications.

Features of 36W LED Driver Module:

1. Constant current output for stable LED performance
2. Wide input voltage range: 85–265V AC, 50/60Hz
3. Output voltage range: 24–40V DC, max 36V
4. Output current: 900mA ±5%
5. High efficiency (≥ 87%) and power factor (PF ≥ 0.9)
6. Overload, overvoltage, and short-circuit protection
7. Durable aluminum housing with IP65 waterproof rating

Package Includes:

1 × 36W LED Driver Module with 900mA Output Current and 24–40V DC Voltage
