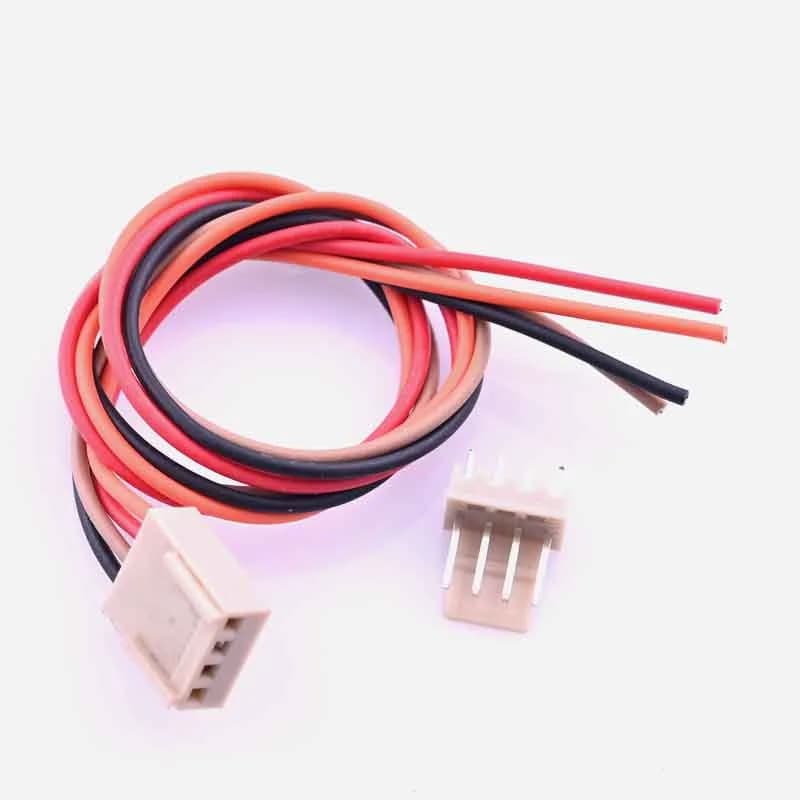

4-Pin Polarized Header Relimate Wire Connector (2.54mm pitch - 2510 series)

This is a 4 pin Relimate connector also known as RMC. This comes in the male and female header with different colored wires with standard convention. It has a polarized female header with a 2.54 mm (0.1") pitch at one end. This 4 pin header wire has an approximate length of 25 cm and works fine for jumping from board to board or just about anything else.

Product Description of 4-Pin Polarized Header Wire

Features of 4 pin RMC

• Has Single row female housing connecter and 4 pin DIP male header
• Female housing connecter : Pitch: 2.54mm (0.1"), houses 4pcs Tin Plated Pins, Current rating: 3A AC/DC (AWG 22) ,Voltage Range: 250V AC,DC, Withstand Voltage: 1000V AC/Minute
• 4 pin DIP male header: Contact finish -tin, Mounting Type: through-hole, Pitch – Mating: 0.100" (2.54mm), Contact material: copper alloy, Voltage Rating: 250VAC
• Simple and easy connections
• Temperature Range: -40℃ to 105℃
• Applicable PC Board Thickness: 1.6mm

Package Contents

1 x 4-Pin Polarized Header Wire (Relimate Connector)

Specifications
