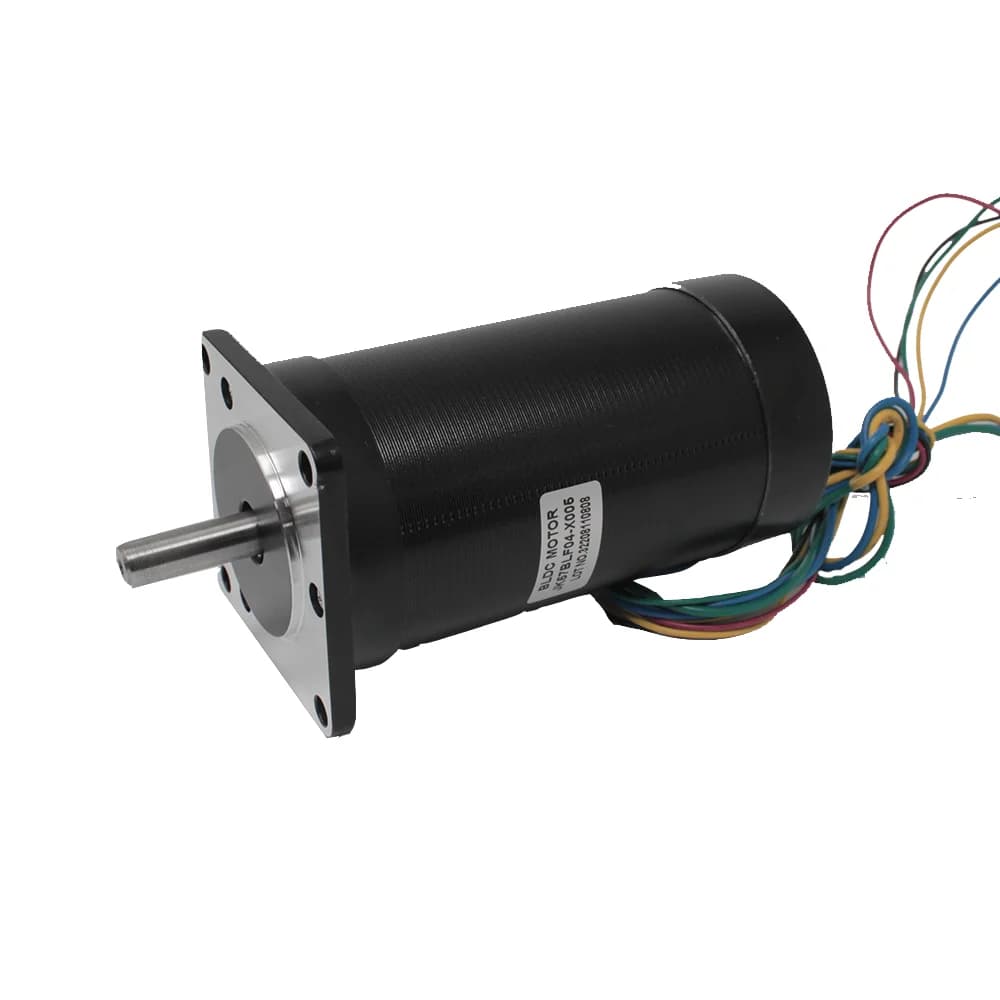

57BLF04-X005 36V-RPM4000-0.44N-m- 107mm Round Type Shaft

The 57BLF04 is a 36V brushless motor with a maximum speed of 4000 RPM and a torque rating of 0.44 N-m. It features a compact design, with a length of 107mm. This motor is ideal for applications that require high efficiency, precise control, and moderate power output. Its brushless design ensures reliable and maintenance-free operation, making it suitable for various industrial and automation systems where space is limited, and performance is crucial. Features: Low Inertia Quick Feedback High Torque High Efficiency Small Vibration Low Noise Package Includes: 1 x 57BLF04 36V-RPM4000-0.44N-m- 107mm

Specifications

Winding type	Star
Hall effect angle	120-degree electrical angle
Shaft run out	0.025mm
Model No. / Name:	57BLF04
Rated Voltage (VDC):	36
Rated Speed (RPM):	4000
Shaft Type:	Round
Winding Type	star
Radial play	0.02mm@450g
End play	0.08mm@450g
Max. Radial force	75N @20mm form the flange
Max. Axial force	15N
Insulation Class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance (MOhm)	100MΩ Min.,500VDC
Weight (g):	1150
Shipping Weight	1.155 kg
Shipping Dimensions	14 × 6 × 6 cm
